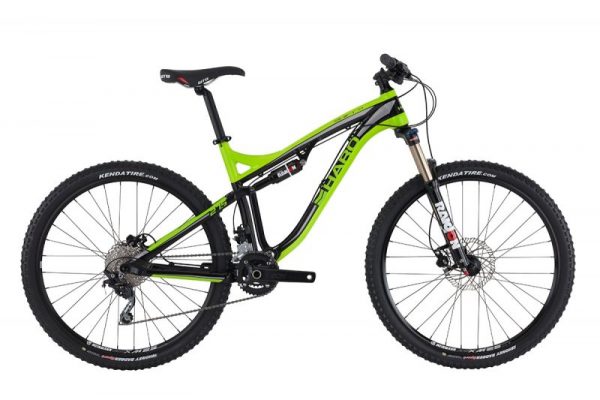

2017 Haro Shift S3
Availability:
In stock
Features
- 6061-T6 alloy single pivot frame, 120mm rear travel, tapered 1.5″ head tube, 73mm BB shell, 9mm Q/R rear dropouts

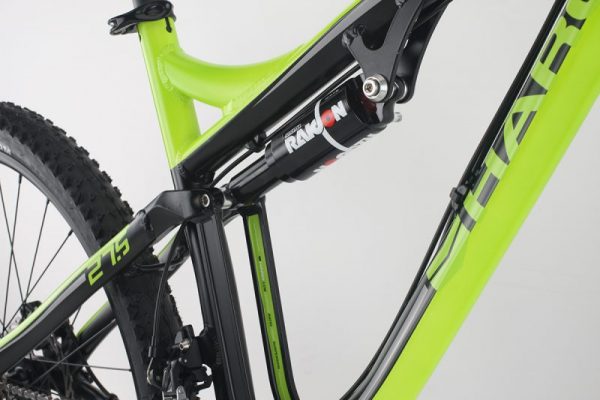

- X-Fusion 02 Pro R rear shock w/ adjustable rebound

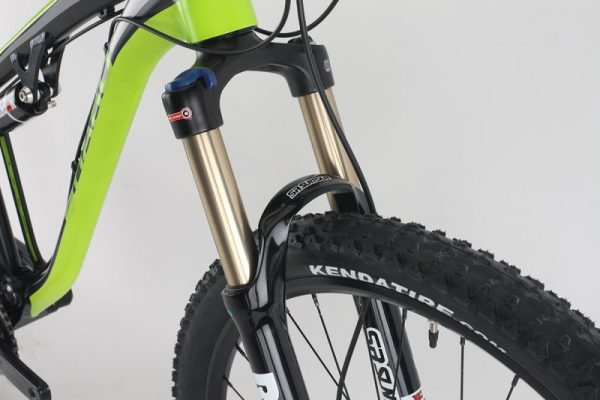

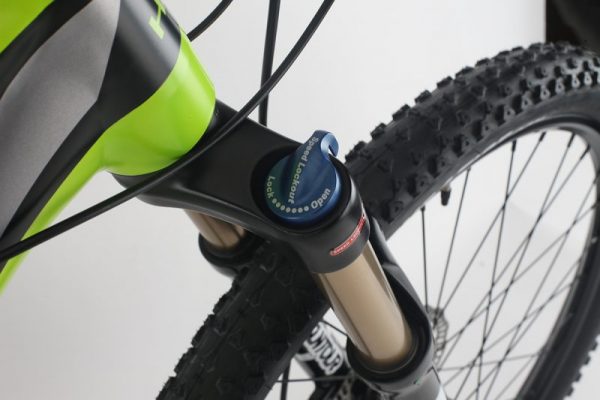

- SR Raidon-XC-LO-R fork, tapered alloy steerer, 120mm travel, air spring w/ hydraulic lockout
- Suntour XCM 38/24T crankset w/ 24mm Axle, 10-spd compatible

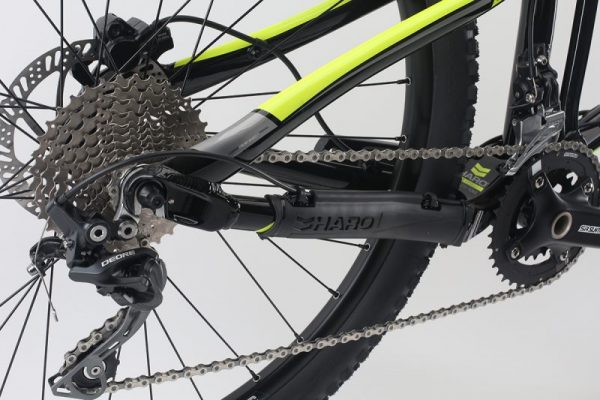

- Shimano Deore front & rear derailleur + shifters

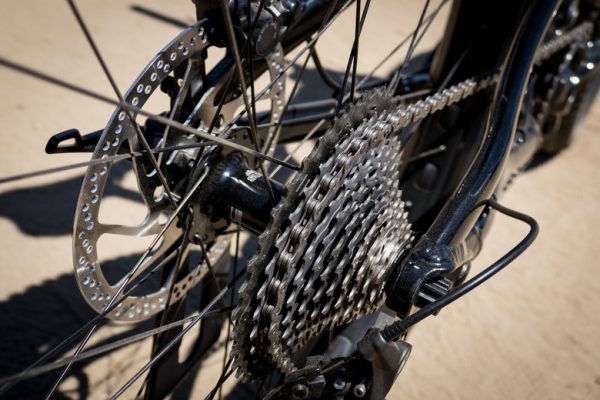

- Shimano Deore 10-spd 11-36T cassette
- Light Weinmann U-26 disc rims
- Pivit alloy cockpit with 0 Deg. Trail stem
Haro Shift S3 | Dual Suspension Mountain Bikes
Take a long drink of cool trails on the Shift S3, a full-featured Shift / Trail bike at a refreshing price point. Sharing the same hydroformed tubing and front triangle as the rest of the Shift family, the Shift S3 opts for a simple and easy-to-maintain single pivot suspension design. Enjoy 120mm of front and rear travel with a Suntour Raidon fork, new X-Fusion rear shock, 2×10 Deore drivetrain, Tektro hydraulic disc brakes, internal down tube cable routing, and Suntour XCM 2-pc crankset.
Specifications
| Frameset | |
|---|---|
| Frame | 6061-T6 Series Alloy Single Pivot Frame, 120mm Rear Travel, Tapered 1.5″ Head Tube, 73mm BB Shell, Enduro Bearings, 9mm Q/R Dropouts, Internal Cable Routing |
| Fork | SR Suntour Raidon-XC-LO-R-27.5; 1-1/8 – 1.5in Tapered Alloy Steerer, 120mm Travel, Air Spring w/ Hydraulic Lockout |
| Colors | Neon Yellow / Grey, Grey / Black |
| Drivetrain | |
| Cranks | 2017 Suntour XCM-AX / 2-Pc, 38/24t, 10-Spd Chainrings |
| Pedals | N/A |
| Chain | KMC X10 NP/GY, 1/2″ X 11/128″, w/ Missing Link |
| Bottom Bracket | Suntour BB-BKA008-C, 73mm, Sealed Cartridge |
| Front Derailleur | Shimano Deore, Down Swing, Top Pull, Direct Mount |
| Rear Derailleur | Shimano Deore, 10-Spd, Top Normal, Shadow Design |
| Derailleur Shifter | Shimano Deore, 2×10-Spd, w/ Optical Gear Display |
| Freewheel/Cassette | Shimano Deore CS-HG50-10, 10-Spd 11-36t |
| Wheels | |
| Tires | Kenda Honey Badger 27.5×2.20″ |
| Wheels/Rims | Weinmann U-26 Disc Rims, 27.5″ X 32h Alloy DW, Pivit Alloy Disc Hubs, 10-Spd Cassette |
| Braking System | |

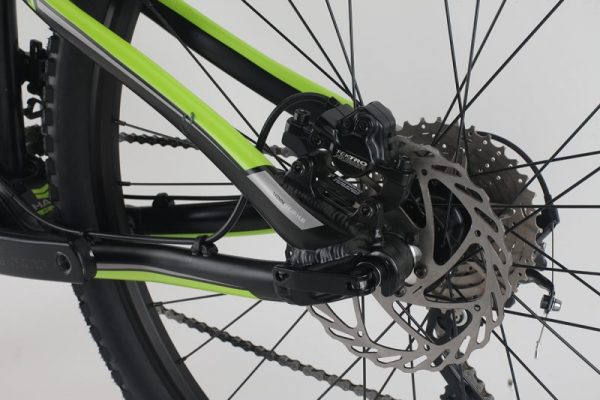

| Brakes | Tektro Auriga Hydraulic HD-M285 180/160mm Rotors |
| Brake Levers | Tektro Auriga |
| Other Components | |
| Grips | WTB Weirwolf |
| Handle Bar | Pivit Alloy 25mm Riser Bar 31.8mm, 700 / 720mm, 9 Deg. Sweep |
| Stem | Pivit Alloy Trail 0 Deg., 4 Bolts, Ext.: 55mm |
| Headset | FPD Dozer-1048 w/ 1.5″ ACB Bottom For 44/56mm Head Tube |
| Saddle | WTB Pure Sport |
| Seat Post | Pivit Alloy Micro Adjust 31.6mm, 300 / 350mm |
| Seat Clamp | Pivit Alloy 34.9mm Quick Release |
Geometry
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach |
| 14.5 | 68.5° | 75 / 70.5° | 565 | 368 | 440 | 20 | 1095 | 693 | 578.5 | 391 |
| 16 | 68.5° | 75 / 71.5° | 585 | 406 | 440 | 20 | 1123 | 705 | 588 | 414 |
| 18 | 68.5° | 75 / 72.2° | 615 | 457 | 440 | 20 | 1159 | 720 | 597 | 447 |
| 20.5 | 68.5° | 75 / 72.8° | 630 | 520 | 440 | 20 | 1179 | 755 | 606 | 463 |
| SIZE | XS / 14.5 | S / 16 | M / 18 | L / 20.5 |
| A. Seat Tube (C-T) | 368 | 406 | 457 | 520 |
| B. Top Tube (Effective) | 565 | 585 | 615 | 630 |
| C. Head Tube Angle | 68.5 | 68.5 | 68.5 | 68.5 |
| D. Seat Tube Angle | 75 / 70.5 | 75 / 71.5 | 75 / 72.2 | 75 / 72.8 |
| E. Chainstay Length | 440 | 440 | 440 | 440 |
| F. BB Drop | 20 | 20 | 20 | 20 |
| G. Wheelbase | 1095 | 1123 | 1159 | 1179 |
| H. Head Tube Length | 100 | 110 | 120 | 130 |
| I. Standover | 738 | 748 | 754 | 766 |
| J. Stack Height | 578.5 | 588 | 597 | 606 |
| K. Reach | 391 | 414 | 447 | 463 |
| L. Fork Height | 514 | 514 | 514 | 514 |
| M. Fork Offset | 42 | 42 | 42 | 42 |
| N. Stem Length | 55 | 55 | 55 | 55 |
| O. Bar Width | 700 | 700 | 720 | 720 |
| P. Crank Length | 170 | 170 | 175 | 175 |
How To Buy
| brands | Haro |
|---|---|
| PC / Model | Shift S3 |
| size | 14.5", 16", 18", 20.5" |
