Sonic performance for your high-profile projects

Zoom spec’d the H4n Pro for high-resolution sonic performance. The H4n Pro sports the same low-noise, high-performance mic preamplifiers as in the company’s renowned H5 and H6 Handy Recorders, both of which have found much use here at Sweetwater. It records and plays back at resolutions up to 24-bit/96kHz and boasts an improved noise floor that captures low-volume audio with few artifacts and vanishingly low noise.

Stereo, M-S, and 4-channel modes

The H4n Pro can handle up to 140dB SPL, which makes it perfect for recording concerts, from a quiet chamber quartet to an ear-bludgeoning metal band. Using the H4n Pro’s built-in XY mics (or external ones), Stereo mode is great for capturing acoustic instruments, dialogue, live performances, and more — covering a broad stereo spectrum while capturing clear, defined sound sources in the center. You can change the angle of the two unidirectional condenser mics from 120 to 90 degrees for a wider or more tightly focused image. Plus, Zoom has included an onboard M-S decoder for mid-side recording with external mics, which lets you adjust the width of the stereo image in post production. In 4-channel mode, you can record with the built-in mics and two external inputs simultaneously, adding lively room ambience to a stereo board mix.

For journalism and podcasting, the Zoom H4n Pro can’t be beat, giving you the portability, miking versatility, and professional audio quality you need for impactful storytelling. The H4n Pro’s support for plug-in power lets you easily mic the talent with a lavalier. Record time-stamped WAV files and sync the audio with video footage in post production, or embed hi-fi audio directly in your video in real time, via an 1/8″ stereo feed.

Zoom H4n Pro Features:

• Simultaneous 4-track recording
• High-fidelity microphone preamps

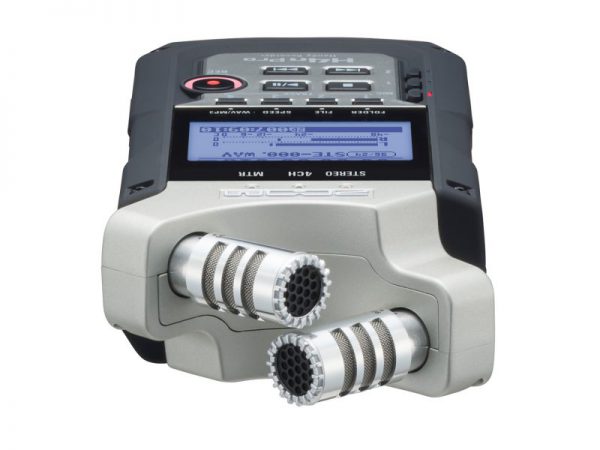

• Onboard XY stereo microphones, adjustable between 90 and 120 degrees
• Record up to 140dB SPL with the built-in microphones

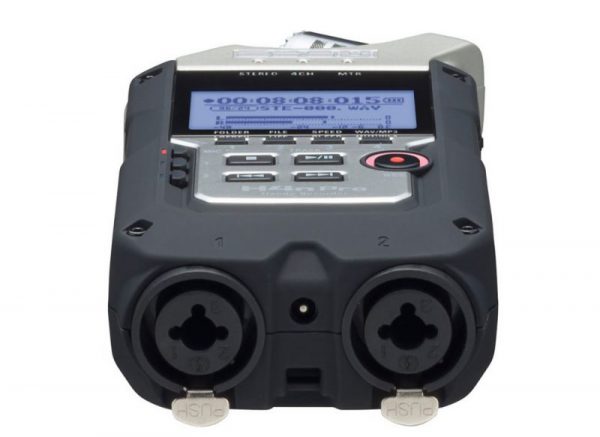

• 2 Mic/Line inputs with XLR/TRS combo connectors
• Stereo 1/8″ Mic in 1/8″ phone jack
• Main inputs support +24 or +48V phantom power
• Plug-in power (2.5V) via Mic/Line in 1/8″ jack
• Output/headphone jack with dedicated volume control
• Ergonomic, rubberized body with 1.9″ backlit LCD display
• Built-in speaker for instant playback
• Records directly to SD and SDHC cards (up to 32GB)
• Supports up to 24-bit/96kHz in BWF-compliant WAV or a variety of MP3 formats
• Onboard mid-side decoding lets you adjust stereo width in post production
• 4-track to stereo, stereo to dual mono internal mixdown
• Accommodates up to 99 markers per recording
• Onboard FX include compressor/limiter, highpass filter, reverb/delay, and amp models
• Normalize (maximum gain) and Divide (file splitting) functions
• Built-in metronome and chromatic tuner
• Playback looping with user-defined start and stop points
• Variable playback speed without affecting pitch (50% to 150%)
• Variable pitch without affecting playback speed
• USB port for file transfer to and from your computer
• 2-in/2-out USB audio interface for Mac/PC
• Mounts to tripod or mic stand, or directly to DSLR with optional hot-shoe adapter
• Remote operation with optional Zoom RC4
• Runs on 2 standard AA alkaline or NiMH rechargeable batteries
• Up to 6 hours of operation (up to 10 hours in Stamina mode)
• Includes Cubase LE8 and Wavelab LE8 software for Mac/PC

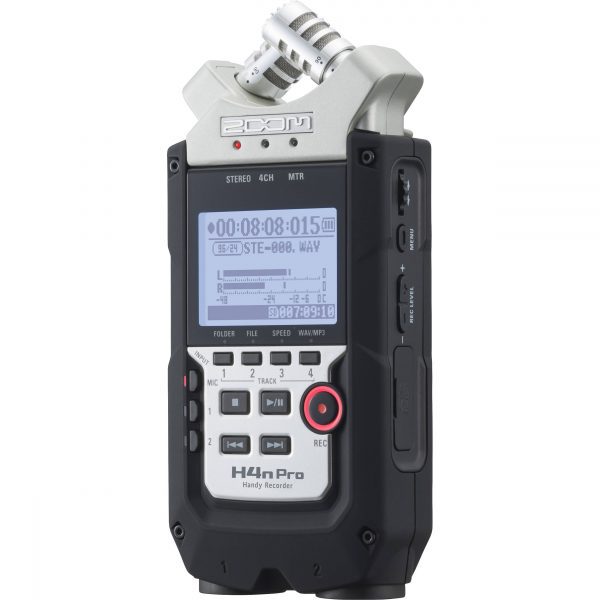

  Zoom H4n Pro 4-Channel Handy Recorder

  Number of Tracks	Simultaneous Recording Tracks: 2 (stereo mode), 4 (4-channel mode), 2 (MTR mode) Simultaneous Playback Tracks: 2 (stereo mode), 4 (4-channel mode), 4 (MTR mode)
  Recording Time	4 GB with SDHC: Approx. 380 minutes (WAV 44.1 kHz/16-bit stereo track) Approx. 68 hours (MP3 44.1 kHz/128 kbps stereo track)* Recording times are approximations
  Recording File Size	Maximum: 2 GB
  Project Files	1000/card
  Locate Function	Hours/Minutes/Seconds/Milliseconds
  Other Functions	Punch-in/out, Bounce, A-B repeat
  Effects	Modules: 2 Stereo/4 Ch Mode: Lo Cut, Compressor/Limiter MTR Mode: Pre Amp module, EFX module
  Type	53
  Patches	60
  Tuners	Chromatic, Guitar, Bass, Open A/D/E/G, DADGAD
  Metronome	Sound Sources: 5
  Beat	Variable: 1/4 to 8/4, 6/8, unaccentuated
  Tempo	40.0 to 250.0 BPM
  A/D and D/A Conversion	24-bit x 128 oversampling
  Recording Media	SD card (16 MB to 2 GB), SDHC card (4 to 32 GB)
  Display	128 x 64 dots full-dot backlit LCD
  Data Type	WAV Format (Record/Play) Quantization: 16/24-bit Sampling Frequency: 44.1, 48, and 96 kHz MP3 Format (Recording) Bit Rate: 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320kbps, VBR Sampling Frequency: 44.1 kHz MP3 Format (Playback) Bit Rate: 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320kbps, VBR Sampling Frequency: 44.1/48 kHz

  Inputs
  General	1 & 2: XLR (balanced input) / 1/4″ (6.3 mm) phone (unbalanced input) combo jack
  Input Impedance	Balanced: 3 kOhms or more, pin-2 hot Unbalanced: 470 kOhms or more
  Input Gain	Balanced: -16 to 43 dB Unbalanced: -30 to 32 dB
  Built-In Microphone	Type: Unidirectional condenser microphone Sensitivity: -45 dB/1 Pa at 1 kHz Input gain: -16 to 51 dB Maximum SPL: 140 dB
  External Microphones	Connection: 3.5mm Mini stereo phone jack Input impedance: 2 kOhms or more Input gain: – 16 to 51 dB

  Outputs
  Line / Phone	Line output load impedance: 10 kOhms or more Rated output level: -10 dBu Phone: 20 + 20 mW (into 32-Ohms load)
  Speaker	400 mW 8 Ohms
  Phantom Power	48 & 24 V, Off
  USB	USB 2.0 High-Speed mass-storage class operation, audio interface operation (USB functions can be operated by USB bus power)
  Power Requirements	5 VDC from AC adapter (ZOOM AD-14)
  Batteries	2 x IEC R6 (size AA)
  Continuous Recording Time	Stereo mode: (With built-in mics at 44.1 kHz/16-bit without headphones connected): 6 hours with alkaline batteries, 8 hours with NiMH batteries. Stamina mode: (With built-in mics at 44.1 kHz/16-bit without headphones connected): 10 hours with alkaline batteries, 12 hours with NiMH batteries.
  Dimensions (W x D x H)	2.9 x 6.6 x 1.5″ / 73 x 167.2 x 37 mm
  Weight	10 oz / 294 g

  Packaging Info
  Box Dimensions (LxWxH)	7.6 x 5.6 x 2.9″
