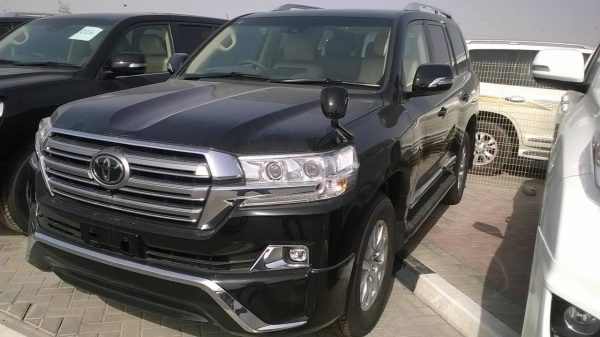

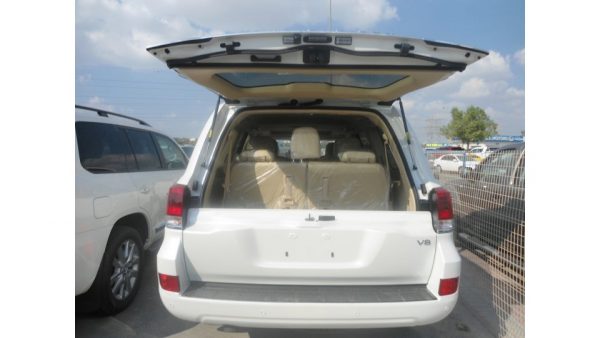

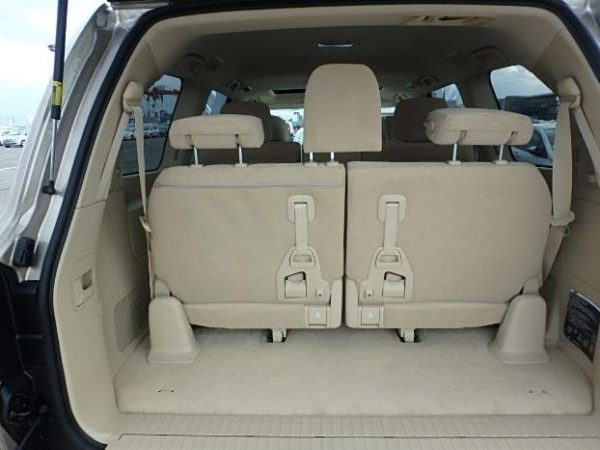

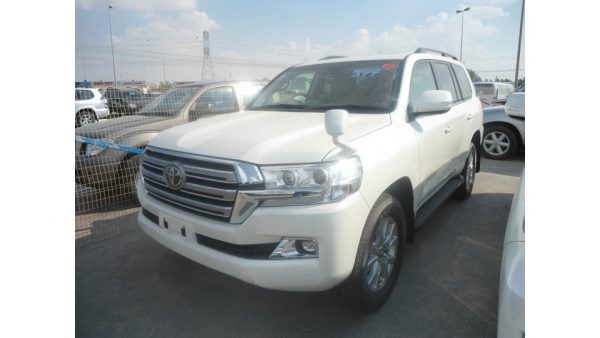

2016 Toyota Land Cruiser AX-G
General Specification
Model: | CBA-URJ202W |
Dimension: | 4950×1970×1880mm |
Wheelbase: | 2850mm |
Tread front/rear: | 1640/1635mm |
Dimension(Interior): | 2715×1640×1200mm |
Weight: | 2530kg |
Body Type: | SUV |
Doors: | 5 |
Riding Capacity: | 8 |
2016 Toyota Land Cruiser AX-G
Land Cruiser 200 Facts
Disclaimer The facts laid out here are for the Japanese domestic market Land Cruiser 200 series. This is important, because the Land Cruiser models ( not to be confused with the Prado/ Lexus GX) manufactured for other markets have different specs. For instance, the only engine available in from JDM Land Cruiser is the 4.6L gasoline engine. In New Zealand, the only engine available is the 4.5L Diesel. In the US, the 5.7L gasoline engine is standard. Engines aren’t the only things that differ across markets. Fuel tank size is different, and standard features also differ. Generally speaking, in markets where the LX570 is available, the Land Cruiser models appear to be more basic. In Japan, Lexus does not offer the LX570, – they just last year got around to offering the Lexus version of the Toyota Harrier, the RX – so Toyota offers the comparably equipped Land Cruiser ZX, which many Japanese refer to as the “Toyota LX570.” Lexus UK, Lexus of France, Lexus of Spain and Lexus of Germany are just of several that do not offer the LX570. Lexus of China, Lexus of Russia and Lexus of America do offer the LX570. The Models The Land Cruiser 200 series was announced on September 18th of 2007. The initial offering was limited to the five-seat GX and the eight-seat AX.
Other than seating, what are the differences between the AX and GX?
Many features that are standard on the AX are optional on the GX. For instance:
- Aluminum rims
- Front fog lamps
- Running boards
- Cruise control
Just to name a few. Within the AX Grade, there is the standard AX and the AX G-Selection. The G-Selection was the highest grade Land Cruiser offered in Japan up until 2009, when Toyota introduced the Land Cruiser ZX. The MSRP’s reflect the difference is comfort features:
- GX … 4,400,000 JPY
- AX … 4.850,000 JPY
- AX G-Selection … 5,550,000 JPY
- ZX … 6,350,000 JPY
These prices do not come anywhere near to covering the purchase price of a new Land Cruiser in Japan. To give you some idea, I bought my AX G-Selection cost a total of 8,200,000 JPY once all was said and done. That includes the dealer options (e.g., floor mats), taxes and delivery. Additionally, there was a limited 60’s Anniversary edition offered in 2010 to commemorate the 60 years since the first Land Cruiser hit the market.
Land Cruiser Curb Weight
- ZX 2,690 kg
- AX G-Selection 2,530 kg
- AX 2,490 kg
- GX 2,430 kg
Gross Vehicle Weight Ratings
- ZX 3,130 kg
- AX G-Selection 2,970 kg
- AX 2,930 kg
- GX 2,705 kg
Land Cruiser Dimensions
Length is the same for ZX, AX, AX G-Selection, and GX, at 495 cm. Width is also the same across all model grades at 197 cm. Height without roof rails:
- ZX 187 cm
- AX (including G-Selection) 188 cm
- GX 188 cm
Height with roof rails:
- ZX 191 cm
- AX (including G-Selection) 192 cm
- GX 192 cm

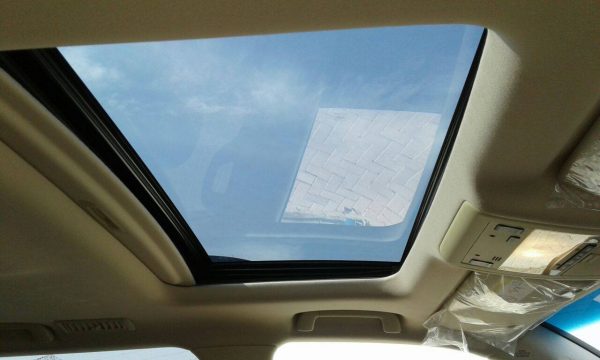

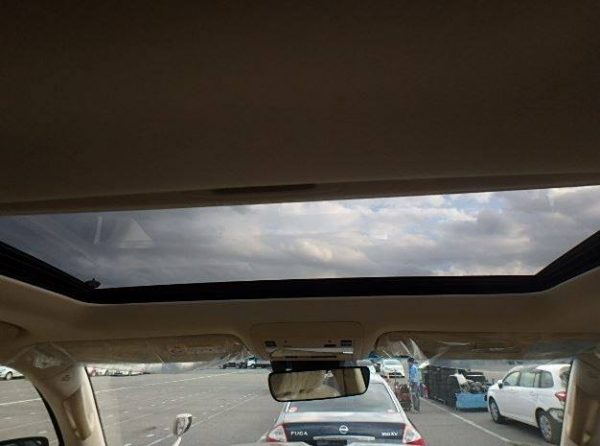

Add an additional 0.5 cm to the “with roof rails” height for LC200’s outfitted with sat nav. Wheelbase is same for all grades @ 285 cm. Lowest ground clearance is 22.5 cm. Interior length for the ZX and AX is 271.5 cm. Interior length for the GX is 197 cm. Interior width for the ZX and AX is 164 cm. Interior width for the GX is 161.5 cm. Interior height for the ZX is 117 cm. Interior height for the AX and GX is 120 cm, or 117 with optional tilt & slide moon-roof.
Fuel Economy Gas mileage varies depending on the model:
- ZX 6.7 km/L
- AX G-Selection 6.7 km/L
- AX 6.9 km/L
- GX 6.9 km/L

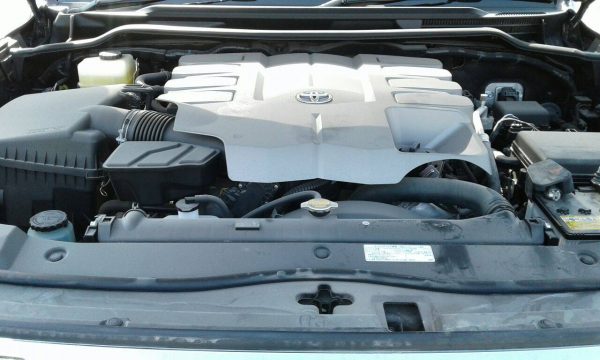

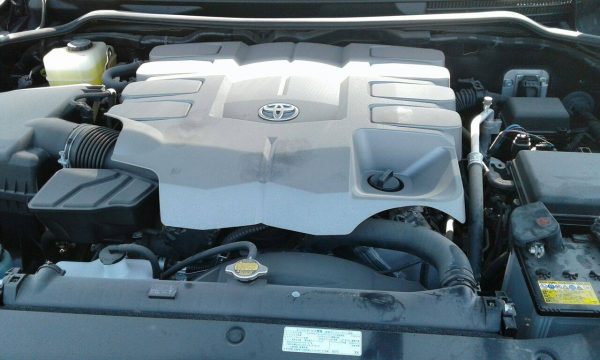

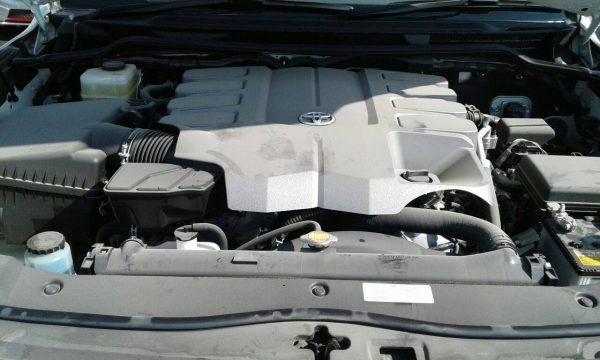

The Engine
The 1UR-FE is a 32-valve quad-camshaft V8 piston engine featuring Dual VVT-i (variable valve timing for both intake and exhaust cams). The 1UR-FE produces 255 kw or 342 (or 347, depending on source) horsepower at 6,400 RPM. As far as torque goes, the 1UR-FE produces 324 lb·ft (44.8 kg·m) at 3,400 rpm. The Land Cruiser’s engine is designed for unleaded gasoline with an octane rating of 91. The Transmission The Land Cruisers sold in Japan are offered exclusively with the 6-Speed Super ECT (Electronically Controlled Transmission) with Artificial Intelligence (AI), Shift Control and Sequential Manual Mode with the following ratios:
- First Gear Ratio – 3.333
- Second Gear Ratio – 1.960
- Third Gear Ratio – 1.353
- Fourth Gear Ratio – 1.000
- Fifth Gear Ratio – 0.728
- Sixth Gear Ratio – 0.588
- Reverse Ratio – 3.061
- Transfer Case Gear Ratio – 1.000
- Transfer Case Gear Ratio – 2.620
The Land Cruiser is full time four wheel drive, with Torsen Centre LSD (Torque sensing Limited Slip Differential).
Off-Road
- Kinetic Dynamic Suspension System
- Multi-Terrain Select
- Maximum Approach Angle: 30 °
- Maximum Departure Angle 20 °
- Maximum Wading Depth 70 cm
- Underbody Engine Protection: Standard
- Underbody Transfer Case Protection: Standard
- Underbody Fuel Tank Protection: Standard
Steering, Suspension and Brakes Steering is rack and pinion. The brakes are ventilated disc.
- Front brake rotor size (mm): 340 x 32
- Rear brake rotor size (mm): 345 x 18
Suspension for all grades:
- Front suspension: Independent double wishbone with gas dampers, coil springs and hydro-mechanical semi-active anti-roll bar.
- Rear Suspension: Live axle, trailing arms, coil springs, panhard rod, gas dampers and hydro mechanical semi-active anti-roll bar.

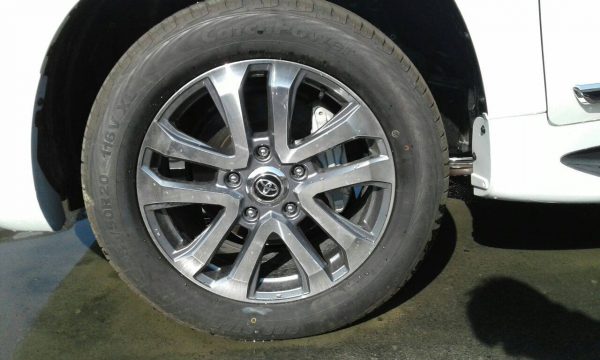

Tires and Rims
ZX: 285/50R20 tires on 20×8 1/2 alloy rims. AX (including G-Selection): 285/60R18 on 18×8 alloy rims. GX: 275/65R17 on 17×8 alloy rims. In the picture above: Yokohama Parada Spec X tires on Work LS SUV rims.
Security
- Immobilizer – Standard
- Alarm – Standard
- GPS notifications sent to Toyota and to owner’s mobile phone – Optional
Safety
- Anti-lock Braking System (ABS)
- Electronic Brake-force Distribution (EBD)
- Brake Assist (BA – supplements braking force in emergency situations)
- Traction Control (TRC)
- Vehicle Stability Control (VSC)
- Driver SRS Airbag
- Front Passenger SRS
- Driver Knee Airbag
- Front Passenger Knee Airbag
- Driver & Front Passenger Side Airbags (2)
- Second Seat Side Airbags (2)
- Side Curtain Airbags (2)
- Pre-tensioner seatbelts for both driver and front passenger
- Intelligent Clearance Sonar
- Radar based Pre-Collision System (PCS)
- Adjustable Headlights
brands | Toyota |
---|---|
Year of Manufacture | 2016 |
Condition | |
color | Black, Brown, Grey, White |
Engine Capacity | 4700cc |
Fuel | Petrol |
Transmission | Automatic |
Mileage | 0, Less than 50km |
