OVERVIEW

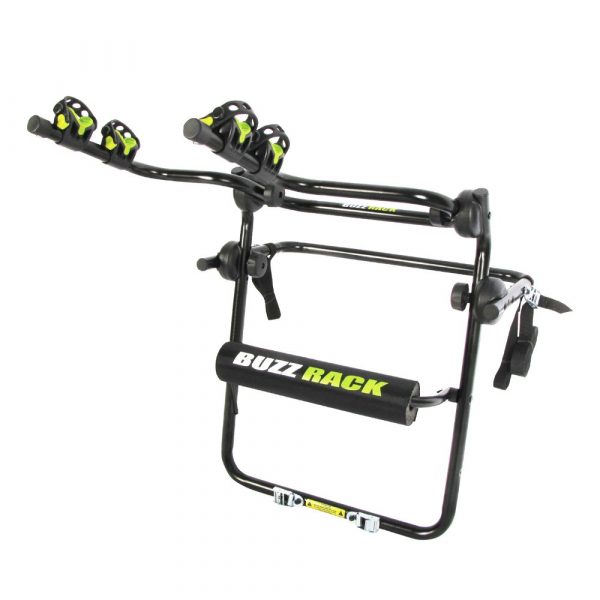

The BEETLE 4×4 is specially made for SUV with off-centered spare tire on the rear hatch. This convenient and easy to install rack allows you to carry up to 2 bikes

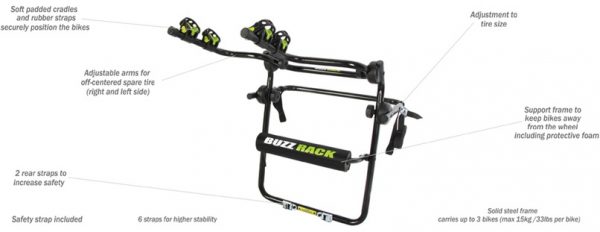

FEATURES

•

  FRAME

  The geometry of the BEETLE frame allows a quick and easy installation on most spare tyres.
  Solidly built of steel and high impact resistant plastic materials.
  No tools required, 100% assembled.

•

  QUICK INSTALLATION

  Using the hub mechanism, you can adjust, fold or unfold the rack without need for any extra tool.

•

  BIKE FRAME SUPPORTS

  The soft cradles and rubber straps allow an easy attachment of the bikes without damaging the paint. The cradles can be tightened to the rack. The cradles are made a a hard and a soft part to protect the bike frame.
  They are quick and easy to use. They have been 100% tested in our production line.

•

  SAFETY

  The product is supplied with an additional safety strap that allows to secure the bike.

•

  BIKE PROTECTION

  A protective pad covering an anti-sway tube will prevent the bike from moving and damaging the spare wheel, protecting the bike at the same time.

•

  TYRE POSITION

  Depending on the car model, you can find the spare tyre positioned to the right or left side. The bike support tube can be installed accordingly to fit all these cars

•

  SIZE

  The BEETLE can be folded and will take no space in your car.

USEFUL INFORMATION

TECHNICAL SPECIFICATIONS

Max number of bikes: 2
Dimensions (folded): 68 x 67 x 15 cm
Weight: 5.7kg
Max load capacity: 30kg
Max weight per bike: 15kg
Integrated lighting board: no
Locking: no

The carrier cannot be mounted to cars that have a plastic spoiler.

QUICK VIEW OF INSTALLATION

We show you in the following pictures how to install and use the product. You need to carefully read the instructions supplied with the product before using it.

INSTRUCTIONS

Click on the following link to download the instruction manual:

INSTRUCTION MANUAL (BEETLE 4X4)-V3
