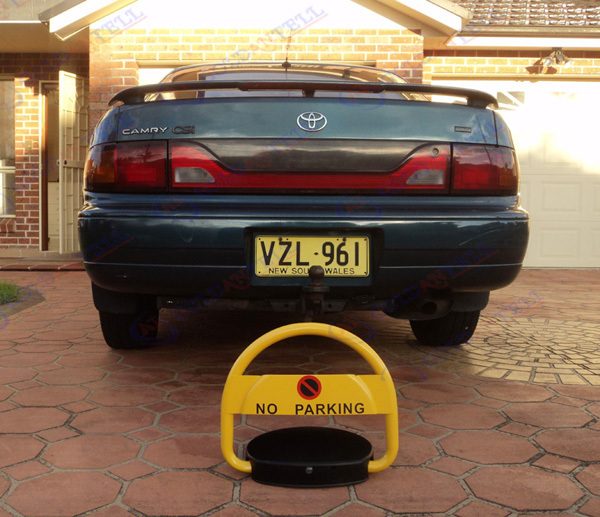

Automatic Remote Control Car Park Lock

Rating
Availability: In stock

Features

  • Automatic private parking lock with fashionable design: Robust and water resistant metal housing with smooth painted finish;Anti-pilfering: mounting bolting inside makes it impossible to be stolen
  • 180°Anti collision: the parking lock has flexible design and self-protection function. It can rotate back and forth to protect itselffrom external collision
  • Automatic alarming system: fully waterproof with alarming apparatus, alarm sound for unauthorized operation or exterior force trying to put the arm down;anti-pilfering: mounting bolting inside makes it impossible to be stolen
  • High pressure resistance: curved disign and thicker steel shell make it have a good performance in pressureresistance. The parking lock can endure a pressure of 5t without damage
  • Long remote control distance: Adopt loading coil to increase signal intensity. It has stronger penetration. The effective distance is 30 meters/98.5ft . You will feel easy and comfortable to control it
Compare

Automatic Remote Control Parking Lock 98.5ft Remote Control Carport Auto Parking Space Lock Stall Reserve Electronic Private Parking Lock (Automatic Parking Lock)

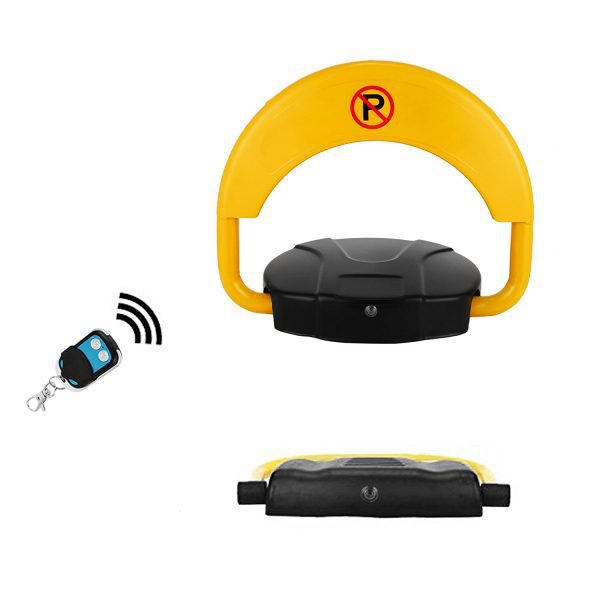

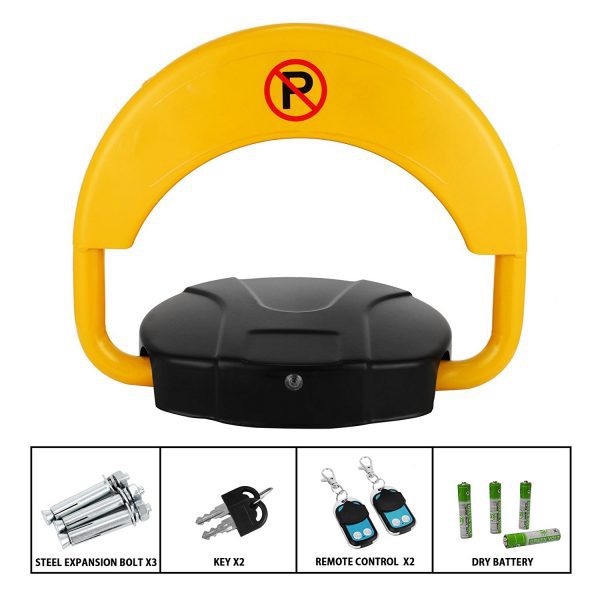

Car Park Lock set

Car Park Lock – Introduces a New Solution to Your Car’s Security

To all vehicle owners out there, this is your day to rejoice as this latest innovation is about to rock all parking spaces. Car park lock is the newest offer to car owners today, which significantly provides amazing outcome.

These days, it is quite hard to keep unwanted vehicle away from parking on the space wherein your car is supposed to be situated. Since parking spaces in commercial buildings are often in open area, intruders can sometimes invade the area and cause trouble to people, as well as to your hard-earned vehicle. Leaving your car without a secured car parking lock can be stressing and frustrating and that is why car park lock is created to leave you worry-free once you leave your car.



VIDEO ON YOUTUBE
CAR PARK LOCK  FEATRUES AND ADVANTAGES

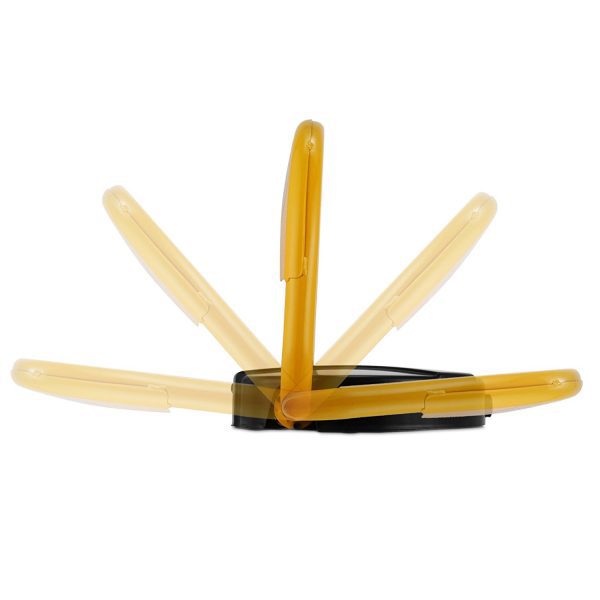

Car Park Lock 180°anti collision

The parking lock has  flexible design and self-protection
function.
It can rotate back and forth to  protect itselffrom external  collision.And the parking lock will alarm。

Car Park Lock seal Professional Sealing accessory

Adopt top sealing rubber strip material(wider and thicker).
The IP protection grade is 65, which can ensure to prevent dust and water from coming inside.

 Pressure resistance

curved disign and thicker steel shell make it have a good performance in pressureresistance.
The parking lock can endure a pressure of 500kg  without  damage .

anticollsion function of Car Park Lock
Car Park Lock dry battery   High capacity dry battery

Use dry battery instead of accumulator.
It is Charge-free and easy to maintain.

 Long remote control distance

Adopt loading coil to increase signal intensity.It has stronger penetration .
The effective distance is 10~50 meters.You will feel easy and comfortable to control it.

Car Park Lock remote control



Importance of Using Parking Lock Barriers

  • Keep strangers or intruders out of your property- This is first and evident benefit of installing a parking lock barrier around the premises of a certain establishment. Also, while keeping other people out of your property, it can lock them inside the premises so it would be a lot easier for you to seize them. You as the controller of the parking lock barriers; you can also lock all the gates of the building if you observe odd activities inside the building. This is a very successful method in keeping the entire place secured and protected.
  • People’s visits can be regulated- This means that if the parking lock barrier is used very well, the controller can only permit owners and employees or the shareholders to go in and out of the building. Use it along with CCTV then you won’t have any problem. With the help of CCTV, activities can be easily recorded. It can also record the plate number of cars for future purposes or reference.

Parking lock barriers should be made with strong materials so that it would last longer and can perform well for the safety of your property. There are also parking lock barriers that are unnamed for the reason that it is automatic, this kind of parking lock barriers are those barriers that can operate 24/7. There are so many kinds of parking lock barriers that are widely available today. There are also some barriers that only let the car pass through once there is a ticket that is inserted. These parking lock barriers are very useful and important for everyone’s safety. This can give you peace of mind knowing that your property is safe with strangers and intruders.

The series of parking lock developed by our company is featured by nice appearance, novel structure. easy control, strong function and high security and reliability etc. The parking lock can effectively avoid the misusing or occupation of the parking lock and is a good assistant for parking lock managements of top-grade residential areas,shopping centers, hotels,offices and airports etc.

CAR PARK LOCK INSIDE STRUCTURE

Car Park Lock inside structure

CAR PARK LOCK  TECHNICAL SPECIFICAITON
 Brand  Olide
 Model  PL-01
 Name Intelligent parking lock
Voltage  DC6V
Static current 3.5MA
Working current 3.5A
 Running time of rises or falls 320mm
After rising altitude 75mm
After dropping altitude ≤50
Remote controlled distance -25℃~+55℃
Eenvironment temperature  -20~50°C
Dimension  380*460*75mm
Weight  8.5kg
Function and Feature   1.Pressure resistance      2.Self locking
3.Rain-resistance            4.Theft protection
5.Power shortage indication(luminotron)
6.Reset after the alarm on external force
7.Power-off upon external resistance



It is a remote-controlled security device installed on parking spaces, conceptualized to protect and secure a spot for your car in the parking area. This is the latest solution for car owners in solving the issue of your car’s security. With the coming of this fresh technological innovation, majority of vehicle owners will surely find relief by with the knowledge that their car is safe and secured when they leave them on the parking lot.

Car park lock is your ideal security system that is not only simple but is also convenient to use. This is run by a remote controlled system that automatically alarms once tampered. The security alarm assures you that no one will have access to your parking space besides you. With that, you will be able to limit the intruders from getting into your privacy.

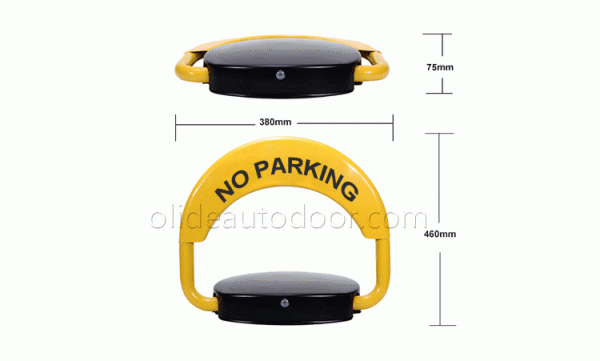

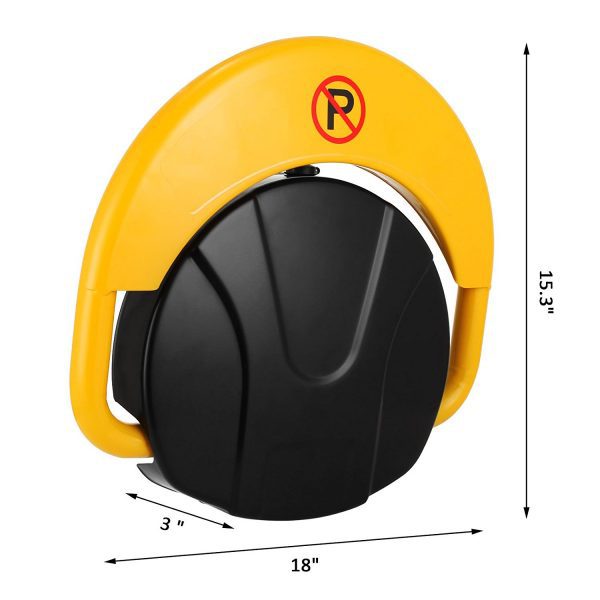

CAR PARK LOCK SIZE OF PARKING LOCK

Car Park Lock parking remote size

CAR PARK LOCK  INSTALLATION

A. Installation Position

Do not touch the parking lock when the automobile is going in and out of the parking lock. The parking lock is suggested to be installed in the middle of parking lock entrance.

B . Installation Site

The lock is required to be installed on level and dry cement ground.

Installation Method

A. Rotate the worm with manual crank to raise the rocker, open the lock with key. Open  uper cover to install the lock

.
B. Drill three holes (12mm  of diameter and 50mm of depth)  and install M8 expansion bolts according to the locations of three installation holes on the parking lock foundation.

C. Cover three foundation spacers on the expansion bolts. and then cover parking lock foundation. install and tighten the bolts to finish installation.

D. When using the lock, open the upper cover and insert the  battery plug to the  parking lot socket.Then set the battery level.

E. Install the upper cover. Keep the upper and lower fixed blocks joggling (Hold the back of upper cover to push forward. as indicated in the schematic ),the lock the upper cover.

Car Park Lock installation



As a smart solution to the urgent need for your car’s security, car park lock is your ideal choice for boosting the level of security of your vehicle. It is expected that in the next years, this product will get more intense in terms of security measures for all vehicle owners. With this latest innovation, you can now intensify the security of your car in both public and private parking spaces wherever your car takes you for a ride. Indeed, it is a smart choice for people who are always after the safety of one of their priceless possessions and it is their car. As you are on the way to your destination, you are guaranteed with a secured parking space.

PROJECT

Car Park Lock applicaiton
