Product description

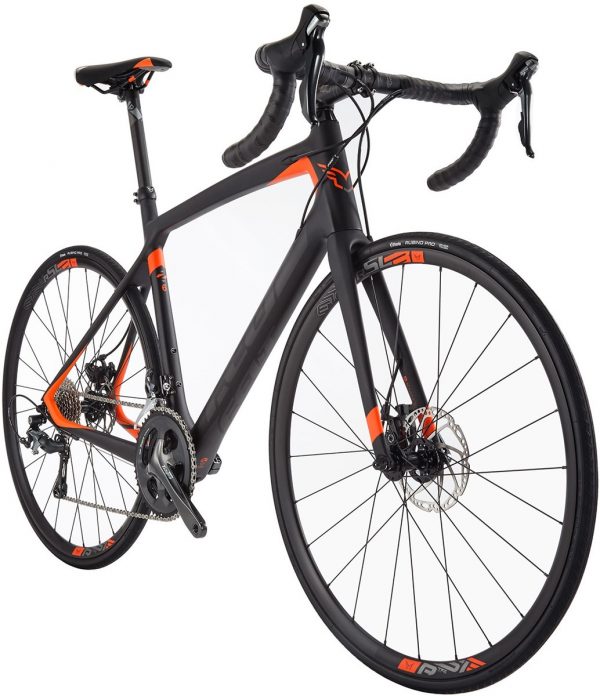

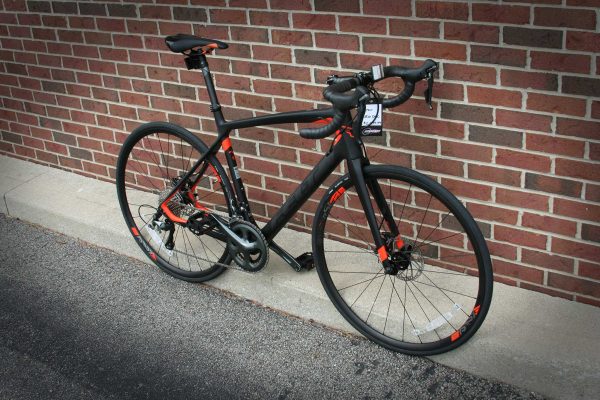

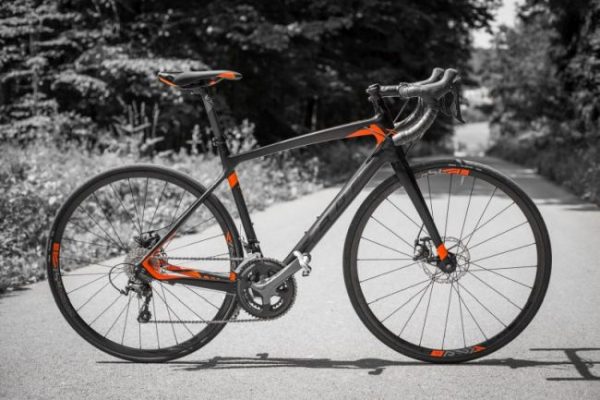

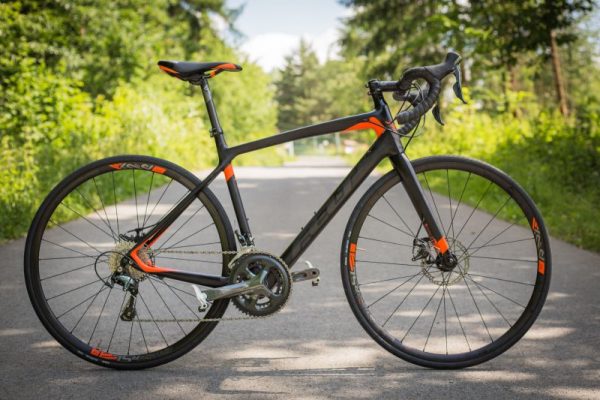

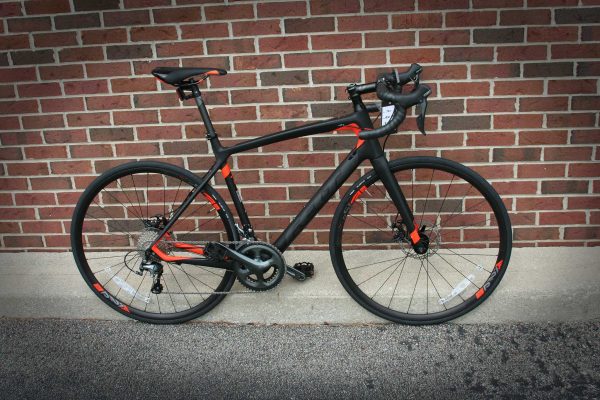

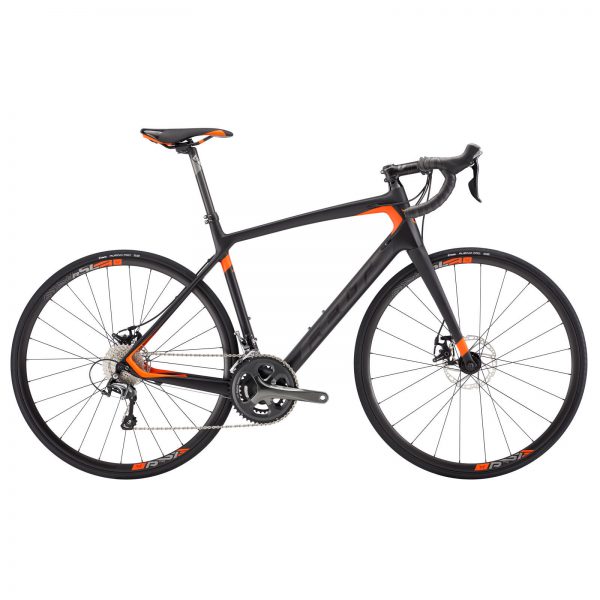

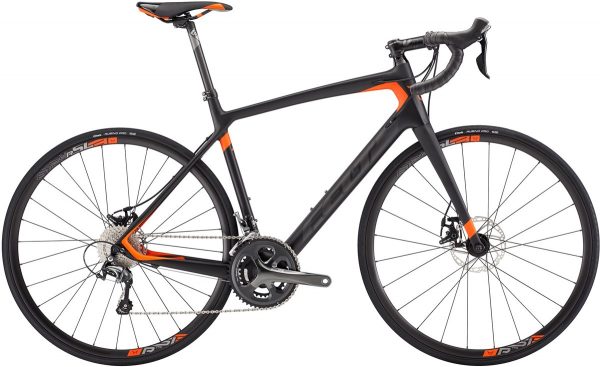

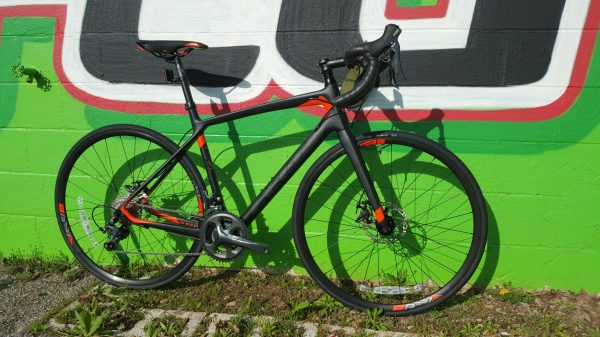

The 2016 Felt Z6 Disc is a superb road bike bike for long distance adventures, discovering new rides and lightning quick commutes. Geometry is optimised for comfort and efficiency thanks to the superb carbon composite frame.

Felt’s Z series is their best selling road bike range. The Z6 Disc is one of the most versatile road bikes on the market. You can buy the Z6 Disc through a 0% interest Tredz Finance package.

Frame & Fork

Key to the quality ride feel is the composite frame matched with endurance road bike geometry. A slightly more relaxed geometry with a more upright riding position combines comfort and efficiency for long days in the saddle.

At the core of the Z6 is a UHC Performance carbon composite frame. Felt’s engineers use a mix of high and medium modulus fibres to provide stiffness and malleability where it’s needed. The Z5 is not a sluggish endurance bike. The frame is constructed with plenty of lateral and torsional rigidity for efficient power transfer and precise handling.

Felt’s InsideOut construction technique for precision engineering of the carbon layup translates into consistent performance when you’re on the road. Down low is a BB30 bottom bracket which helps improve lateral stiffness. However, vertical compliance is built in through slim seat stays and the natural vibration dampening qualities of composite.

Internal cable routing creates a clean looking frame while protecting your cables. The Z6 is compatible with electronic gears if you’re looking to make future upgrades.

Upfront is a UHC Advanced Carbon monocoque fork to help with steering precision and provide vibration damping for your hands. The carbon fibre seatpost also helps to absorb road buzz to keep your muscles feeling fresher for longer.

Components

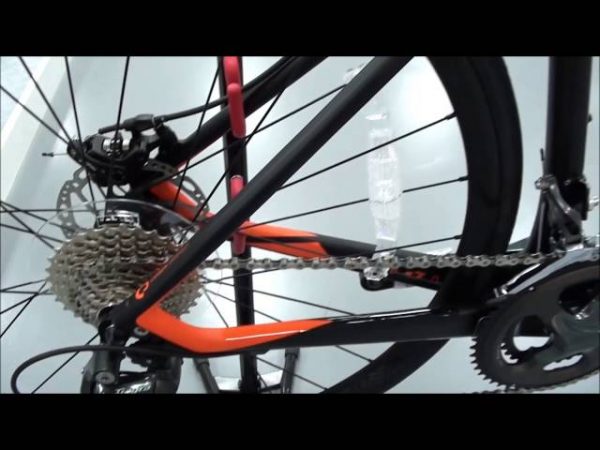

You get a Shimano Tiagra 10 speed drivetrain with compact cranks and a wide range cassette. This setup allows you to take on all the varied terrain you’re likely to find on a century fitness ride, or during a sportive. The 2016 Z6 runs on lightning quick disc equipped Felt RSL3 rims.

TRP Spyre mechanical disc brakes provide consistent stopping performance in all weather conditions. This opens the Z6 Disc up as a year round training machine and commuter.

Size specific short reach handlebars and crank lengths (as well as stem) gives you the best fit on the frame, regardless of the frame size you choose. These features will keep you in the saddle for longer.
The Felt Z6 Disc 2016 Features are:

Frame: Felt Endurance Road Disc UHC Performance carbon fiber, MMC w/ InsideOut construction, BB30 & carbon dropouts, replaceable rear derailleur hanger, IS disc mount, internal cable routing (mechanical & electronic compatible)

Fork: Felt Endurance Road Disc UHC Advanced carbon fiber monocoque construction, ControlTaper 1.125″ – 1.5″ carbon fiber steer tube w/ integrated crown race, crown, blades w/ post mount disc tabs & dropouts

Headset: FSA NO.38/42, 1.125″ – 1.5″ sealed cartridge bearing w/ Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 1x 10mm + 2 x 5mm PC headset spacers, Felt top cap & aluminum bolt

Bars: Felt SuperLite Road, short 65mm reach, 125mm drop, Ø31.8mm

51cm = 400mm
54 – 56cm = 420mm
58 – 61cm = 440mm

Stem: Felt VariableAngle, +/- 8°/16° rise, Ø31.8mm

51cm = 80mm
54cm = 90mm
56cm = 100mm
58 – 61cm = 110mm

Speed: 20

Front Mech: Shimano Tiagra braze-on

Rear Mech: Shimano Tiagra long cage

Shifters Shimano Tiagra

Chainset: Shimano Tiagra

51cm = 170mm
54 – 56cm = 172.5mm
58 – 61cm = 175mmShimano 50/34T

Bottom Bracket: Token For BB30 Frame w/ Shimano Crankset, Alloy CNC Cups inserted w/ Sealed Bearings

Cassette: Shimano 10-speed,11-32T

Chain: KMC 10-speed

Front Brake: TRP Spyre C Disc w/ stainless steel, 160mm 6-bolt rotor

Rear Brake: TRP Spyre C Disc w/ stainless steel, 140mm 6-bolt rotor

Rims: Felt Road RSL3 Disc (Tubeless Ready), 22mm Width, 24mm Depth

Front Hub: Felt R3 Disc, sealed bearing, 28H

Rear Hub: Felt R3 Disc, sealed cartridge bearing, 32H, 10-speed (11-speed compatible)

Spokes: 2.0mm stainless steel

Tyres: Challenge Paris-Roubaix, 700c x 27c Front Challenge Paris-Roubaix, 700c x 27c Rear

Seatpost: Felt Endurance Road UHC Performance carbon fiber, Ø27.2mm, 330mm lengthFelt double bolt, Ø30.6mmFelt double bolt, Ø30.6mm
