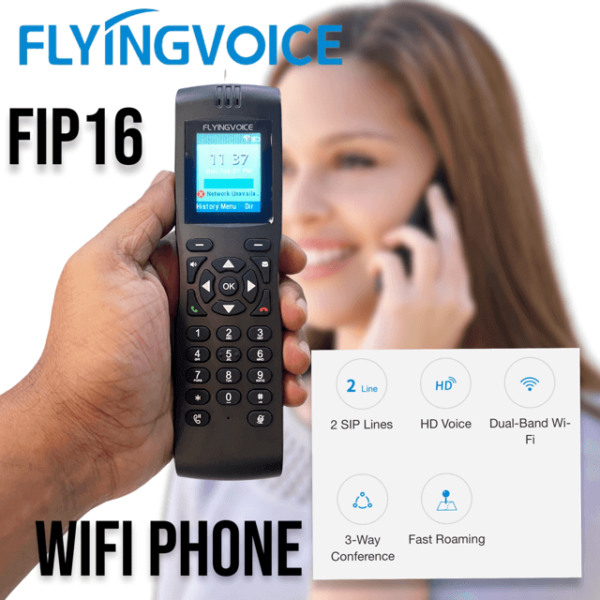

Flyingvoice FIP16 Portable Business Dual-Band IP Phone
Flyingvoice FIP16 WiFi VoIP Phone (WLAN 802.11b/g/n/ac,WiFi Uplink, AP Mode)
The Flyingvoice FIP16 Cordless WiFi IP Phone offers basic to advance the features of the Call hold, mute, DND, redial, auto-answer One-touch speed dial, and hotline options. It is the one of te best phone you can give to yor security staff, gatekeepers and people within WIFI coverage mobility.

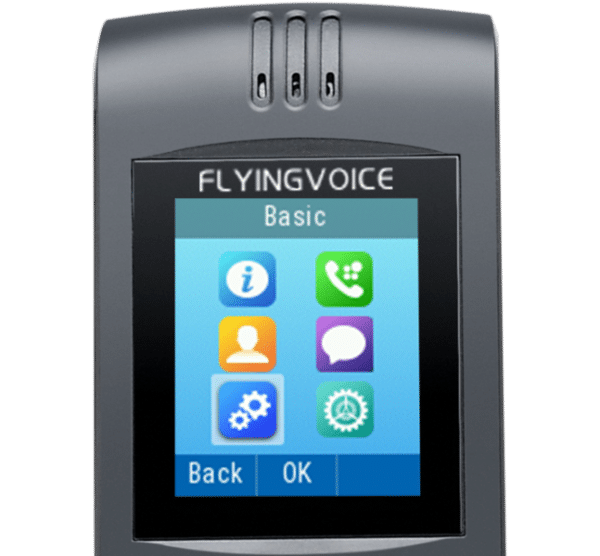

• 1.8″ TFT color display
• 2 SIP accounts
• HD Voice
• 2.4GHz & 5GHz Wi-Fi
• 1 x Micro USB port
• 1 x 3.5mm headphone jack
Product Features

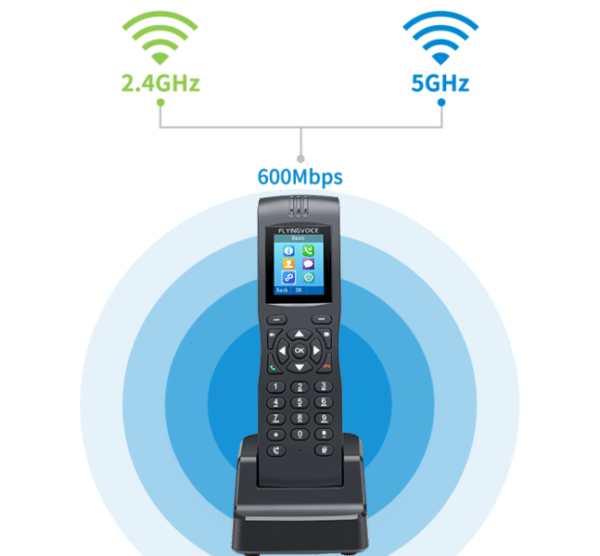

Dual-Band Radio, Support WiFi Uplink and AP Mode
Sleek, Ultra-Compact Design
| VoIP SoC | Audio Feature | |
| • CPU: MT7628 (580Mhz)
|
• G.711 (A/u)
• G.722 (HD) • G.729AB • G.723 • G.726 • iLBC • Adaptive Jitter Buffer • Voice Activity Detection • Comfort Noise Generation • Echo Cancellation |
|
| RAM | ||
| • 64MB SD RAM
|
||
| Flash | ||
| • 16MB Flash
|
||
| Operating System | ||
| • Linux 2.6.36 | ||
|
|
Battery |
|
| Power |
|
• 4000mA |
| • AC/DC Adapter
AC Input: 100~240V, 50~60Hz DC Output: 5V, 1A |
|
|
|
|
Size and Weight |
|
|
|
• 182mm (L) x 48mm (W) x 25mm (H) • 406g (N.W) |
|
|
|
|
|
| Environmental |
Phone Keys |
|
| • Operation Temperature: 0~50 Degree C
• Storage Temperature: -25~85 Degree C • Relative Humidity: 10%~90% No Condensing |
• 6 Function Keys6
• 12 Dialing Buttons (0~9, *, #) • 2 Soft Keys |
|
| Protocols | Phone Feature | |
|
• SIP V2 (RFC 3261,3262,3263,3264) • SDP (RFC2327) • RTP/RTCP (RFC1889 and RFC1890) • NAPTR for SIP URI Lookup (RFC2915) • STUN (RFC 3489) • ARP/RARP (RFC 826/903) • SNTP (RFC 2030) • IEEE802.11 b/g/n • IEEE802.11 ac • HTTP Server for Web Management • TFTP/HTTP/HTTPS for Auto Provisioning • Message Waiting Indicator (RFC3842) • DHCP Option Codes for SIP (RFC3361) • DNS/DNS SRV (RFC1706 and RFC 2782) • IEEE802.1Q VLAN/802.1p and IP TOS • SNMPV2 • TR069(TR104/TR098/TR111)
|
• Customized Ring Tone • SMS (100 Records) • Call History ( 100 Records ) Most Recently Missed Calls Most Recently Received Calls Most Recently Dialed Numbers • Phone Book (500 Records )
|
|
|
|
Management |
|
|
|
• Firmware Upgradeable • Web Management Interface • Password Management • Local and Remote Syslog (RFC 3164) • Auto Provisioning: TFTP, HTTP And HTTPS • SNTP Time Synchronization • Multi User Level • Support TR069 Management Mode • Support Flying FCMS Cloud Management |
|
|
Call Features |
|
Applications |
|
• DTMF Relay: In-band, RFC 2833 and SIP info • Volume adjustment: Handset, Handfree, Speaker and Ring • Call Hold, Call Transfer and Call Waiting • CID And CWCID • Music ON Hold • MWI • 3 Way Conference • Auto Answer • Call Pickup • Full-duplex Speakerphone • Dial Rule • Hotline • Redial • Mute • Call Forward |
|
• SMS Function • MAC Address Clone • SIP Proxy Redundancy • Direct IP to IP calling • DNS SRV • NAT Traversal: Traversal by STUN • Built-in 100M NAT Router • VPN: PPTP,l2tp,OpenVPN • QoS with Layer 2 and Layer 3 • DHCP Server and Client • IP conflict detection • Support Mutil-Vlan • Support 2.4GHZ |
