Freesat GTC Satellite Receiver DVB-S2 DVB-C DVB-T2 ISDB-T 2GB 16GB +BT4.0 Amlogic S905D Set Top Box

Availability: In stock


  • Android 6.0 BOX+DVB-S/S2,DVB+T/T2/Cable/ISDBT. 4K/3D/H.265/MPEG-4 movies supported.
  • Amlogic S905D 2GBRAM +16GBROM. Built-in Wifi 2.4G+BT4.0, 802.1.1b/g/n. Netflix,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.
  • Typical features of GTC product: Android+DVB-S2+T2+C+ISDB-T ISDB-T: Typically suitable for South America, Phillipines, Japan.DVB-C: Besides suitable for Europe, it also supports J.83B, which is applicable in North America and Brazil.
  • GTC supports 4K, OTA upgrade, DDR4, 2GB+16GB, supports Cccam, Newcam, Powervu, Biss Key.
  • GTC comes with GT Media APK. (Paid Account typically demands USD 60 per year while supports 1500 sets of European LIVE Channels and VOD, very stable. Of course, The item not included account, please know).

Freesat GTC Amlogic S905D DVB-T2 DVB-S2 DVB-C ISDB-T 2GB RAM DDR4 16GB ROM EMMC Android 6.0 2.4G WiFi 100M LAN 4Kx2K 60fps Bluetooth 4.0 Android TV Box Mini PC

Image result for Freesat GTC Satellite Receiver

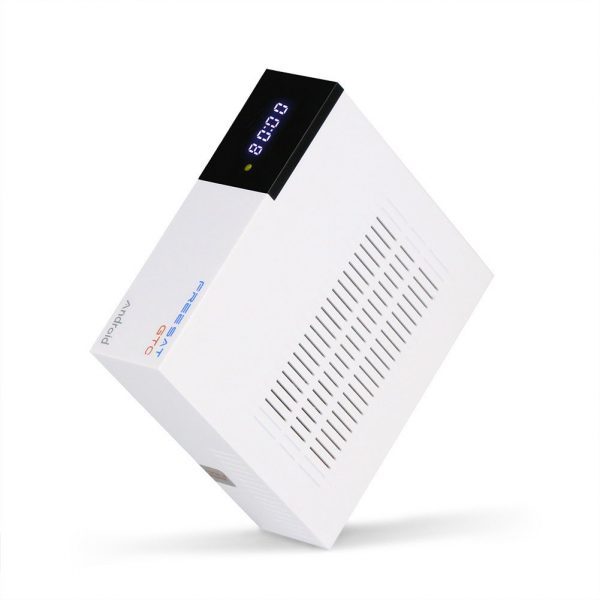

FREESAT GTC is a streaming media player which combines Android TV BOX and DVB-S2, DVB-T2, DVB-C, ISDBT. You can change your traditional TV & LCD monitor into a multimedia center by connecting the Internet. You also can watch millions of movies and programs on TV. It can combine the Internet with the TV to build a new entertainment system, and you can greatly enjoy videos, music, photos, and games.


CPU Amlogic S905D up to 2.0 GHz, Quad core ARM Cortex-A53
GPU Penta-core ARM Mali-450 , up to 750MHz+(DVFS)
Flash Memory eMMC Flash 16G

OS: Android 6.0
Ethernet: 100M LAN

Wifi: Built in 2.4G WiFi Support IEEE 802.11 b/g/n
Bluetooth: 4.0


CPU Amlogic S905D up to 2.0 GHz, Quad core ARM Cortex-A53
GPU Penta-core ARM Mali-450, up to 750MHz+(DVFS)
Flash Memory eMMC Flash 16G
3D Graphics OpenGL ES 1.1/2.0 and Open VG 1.1 support
Video Decode  UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264
Audio Decode MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC, EAC-3, Dolby+
Panel display 4-digit LED display
LED Indicator Power ON: Green; Standby: Red
Button NOT
Wifi Built in 2.4G WiFi Support IEEE 802.11 b/g/n
Blutooth Bluetooth 4.0
IR Exit IR for 38KHz, Infra Remote control
Rear Panel RF IN  ( EC-type IEC169-2 Female)
LNB IN (Frequency Range950MHz to 2150MHz)
HD 2.0 (V1.3/V1.4)
1 x RJ45
Power (DC 12V/1.5A)
Tuner specifications:
DVB-S2  DVB-S2 system standard:ETS 302 307
Symbol Rates: QPSK, 8PSK
Forward error correction rate 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps
and ±3MHz for the remaining symbol rates
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
Symbol Rates: 1- 55 Msps
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
Input Signal level: -84 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE F
DVB-T2  DVB-T2 system standard:ETSIEN 302 755
Support MPLP
Demodulation: QPSK, 16QAM, 64QAM or 256QAM
Forward error correction rate 1/2, 2/3, 3/4, 3/5, 5/6
Guard interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Bandwith: 6/7/8MHz
Input Frange range:54–860MHz Input Impedance:75 Ω
Input Signal level: -84 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE, female
DVB-C IEC 169-24 female 75Ω for input
Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Input Frange range:50–860MHz Input Impedance:75 Ω
Input Signal level: -84 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE, female
ISDBT ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video, DiVX
FFT Mode: 2K / 8K/32K
Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK
Forward error correction rate 1 / 2, 2/3, 3/4, 5/6, 7/8 Automatic
Guard interval:  1/4, 1/8, 1/16, 1/32
Bandwith: 6/7/8MHz
Input Frange range:VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz
Input Signal level: -83 dBm to 0 dBm (average power)
ANT. Connector:IEC TYPE, female
Sortware Features:
Standard Fully comply with DVB-S/S2 (SCPC and MCPC receivable from C/Ku band satellite), DVB-T/T2/Cable/ISDBT, MPEG-2/4 H.264 Standard
switch protocol DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC @ 400mA MAX, Overload Protection, 0/22K
Channels Number 10000 channels TV and Radio programmable
Favorites 8 different favorite groups selection
OSD Language OSD Multi-language for options(Arabic, Catalan, Czech, Dansk,
Deutsch, Eapanol, English, Euskar, Farsi, French, Finnish, Galego, Greek, Hrvatska, Italian, Magyar, Nederlands, Polska, Spanish, Slovakian, Svenska, Portuguese, Russian, Ukrainian, Turkish, Thai and etc.)
EPG Fully support to 7 days Electronic Program Guide(EPG)
OSD Color 256 color/16bit On Screen Display
Picture JPEG, BMP, PNG, GIF Supported
Channel Search Supports NIT Search, Automatic network search for newly added transponders
Channel Edit Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort)
Parental Ctrl Parental control for channels
Easy Menu Plug and Play installation, with an easy to use Menu System
PAL/NTSC Automatic PAL/NTSC conversion
SoftUpgrade Software upgrades through USB port, Support OTA and HTTP/FTP upgrade.
Channel Recording one channel, can view another channel under the same TP, Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort)
Subtitle support DVB EN300743 and EBU
Teletext support DVB ETS300472 by VBI and OSD
Time Set Time set by GMT offset automatic and manual, Summer Time support
Timer 5 event timers, off/Once/Daily/Weekly Mode
USB 2.0 Support FAT/FAT32/NTFS big capacity hard disk
PVR Option USB 2.0 for PVR, TIMESHIFT, media files playback
Audio Codec WMA, MP3, AAC (.wma, .mp3, m4a)
Photo Codec JPEG, BMP, PNG

Package Included:

1 x Freesat GTC S905D 2G/16G TV Box
1 x HD Cabke
1 x Remote Control
1 x EU Power Adapter
1 x User Manual
