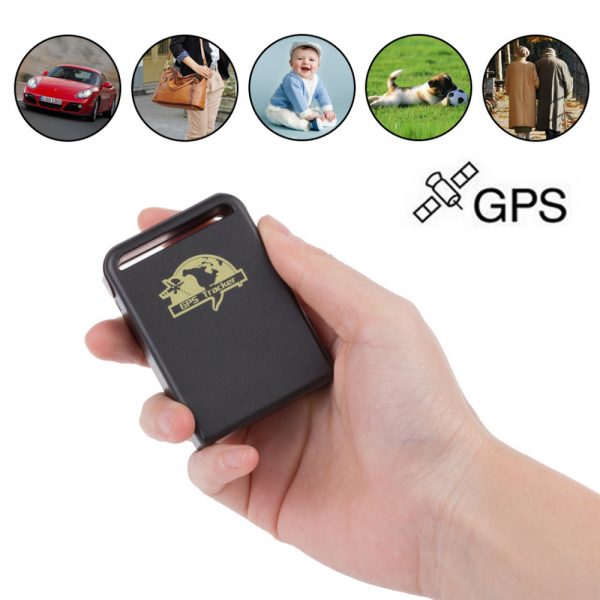

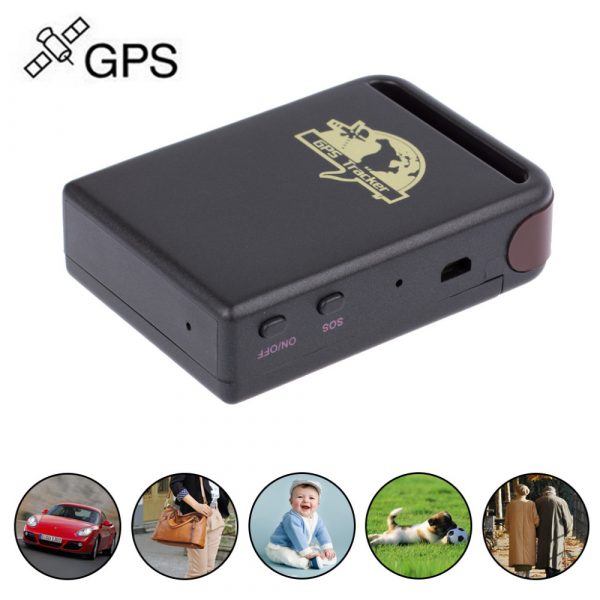

GPS Tracker TK102 Mini Tracker Device Realtime Tracking Locator GPS/GSM/GPRS

Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of its location thru a SMS message. You can then use these coordinates on any mapping software (for example Google Earth) which will show where exactly the unit is located.(only support 2G network)

This Cutting-Edge GPS tracker is designed for advanced tracking/monitoring, especially for vehicle tracking using GPS, GSM and GPRS technology. The GPS tracker is designed for use in any vehicle to track it’s location, such as cars, trucks, boats, motor homes, vans and construction machinery and many more – the live tracking possibilities are limitless! This is particularly useful if your vehicle, pets, child or your belongings have been stolen. Time to enjoy the benefits this GPS tracker brings!

Applications:

• This product can locate accurately, provide real time tracking for: Vehicles (Anti-Theft) Protect Children, the old, vulnerable Loved Ones, the disabled, pets, etc.
• Camping/Vacations
• Employees/Fleet Managing
• Remotes control Vehicles
• Criminals
• Lost R/C Model Airplane Locator

Feature:

• 100% brand new and high quality.
• LIVE! Real-Time tracking!
• Built-in GPS personal locator.
• GSM/SMS communication or GPRS TCP/UDP connection.
• Works Worldwide!
• Supports single location AND continuous tracking.
• Supports location triggered by tracker.
• Supports location triggered by authorized cell phone.
• Supports alarm and remote VOICE MONITORING!(Microphone is for voice monitor, when you send the ” monitor+password” to the devices, it will respond”monitor ok” then you could hear what you want, for more detail, please refer to the manual)
• Supports quick dialing buttons for 2 preset phone numbers.
• Supports check location by SMS and Internet.
• Monitors can track the person without interfering with him/her.
• Locate the locator holder by the mobile phone via SMS.
• SOS button sends out exact location for immediate rescue/action.
• Geo-fencing to restrict tracker movement to a defined radius.
• No monthly service charges to be paid to the call center.
• Compact size, easy to carry, hold and hide.

Specification:

• GSM Chip: 850 / 900 / 1800 / 1900 Mhz
• GPS Sensitivity: -159DB
• GPS Frequency: L1, 1575.42 MHz
• Accuracy for Location: 5m, 2D RMS
• Accuracy for Speed: 0.1m/s
• Time to First Startup: 38 seconds on average
• Warm Start: 8 seconds on average
• Altitude Limit: 18,000 meters (60,000 feet) max
• Velocity Limit: 515 meters/second (1000 knots) max
• Vibration Limit: 20m/second
• Operation Temperature: -25°C to +65°C
• Humidity: 5% ~ 95% non-condensing
• Standby Time: Around 100 hours (with sleep mode)
• Battery: Rechargeable and changeable 3.7V / 850mAh Li-ion battery
• Charging Port: DC 5V (Mini USB Port)
• Size: Approx.66 (L) x 46 (W) x 17 (H) mm

Package Content:

• 2 x GPS Tracker
• 2 x 3.7V / 850mAh Li-ion battery
• 2 x Cable
• 2 x User Manual
