HARO FLIGHTLINE ONE 27.5
Availability:
In stock
FEATURES
- New MY18 Haro FL 6000 Series alloy frame w/ internal head tube
- HL CH-389 suspension fork w/ 80mm travel
- 1-1/8″ internal Threadless headset

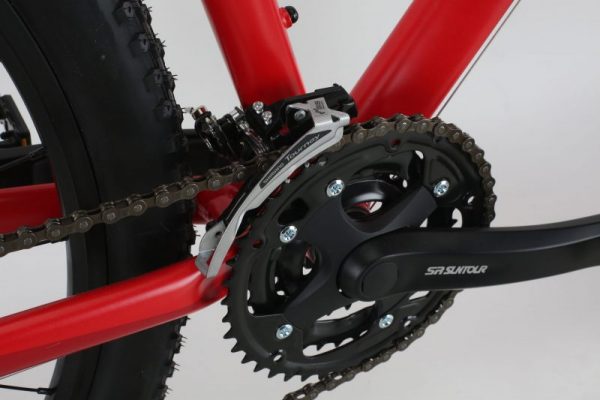

- Shimano FC-TY301, 42x34x24T alloy crankset

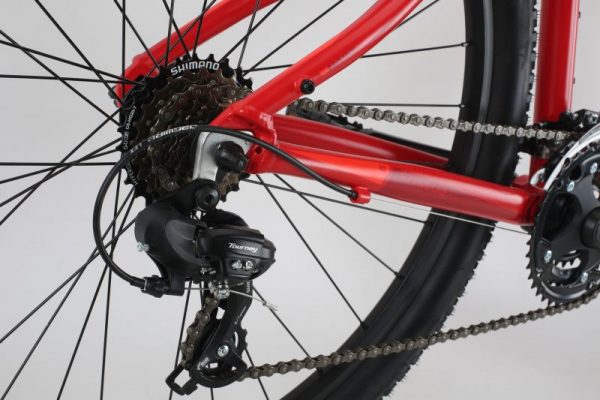

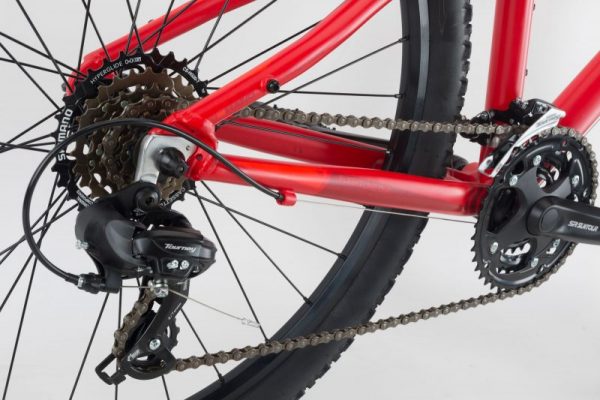

- Shimano Tourney TY-300 rear derailleur

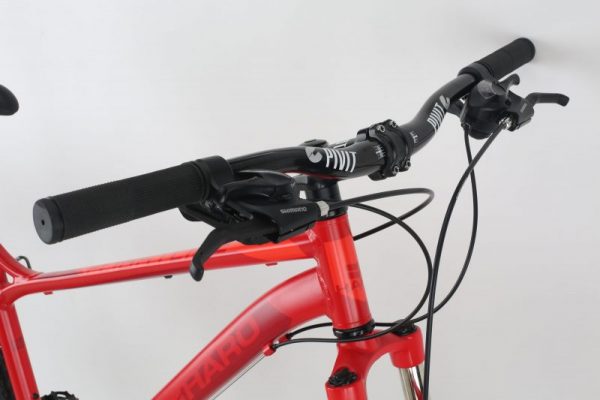

- Shimano EF-41 3×7-spd shifters
- Shimano Tourney 7-spd freewheel 14-34T
- Wide 2.2″ MTB tires
- Alloy DW rims w/ Pivit alloy cassette 32h hubs
FLIGHTLINE ONE 27.5
Flightline One 27.5 features an all new 6000 series alloy frame with an internal head tube mounted to a Haro suspension fork with 80mm of travel to smooth out all the bumps. FL One 27.5 features 27.5″ wheels which are slightly taller and faster rolling, made from alloy double wall rims, Pivot alloy hubs, and 2.2″ wide tires with multi surface tread patterns ideally suited to on road riding as well as off.
SPECIFICATIONS
GEOMETRY & SIZING
| SIZE | XS / 14 | S / 16 | M / 18 | L / 20 |
| A. Seat Tube (C-T) | 356 | 406 | 457 | 508 |
| B. Top Tube (Effective) | 566 | 592 | 622 | 633 |
| C. Head Tube Angle | 70 | 70 | 70 | 70 |
| D. Seat Tube Angle | 72.5 | 72.5 | 72.5 | 72.5 |
| E. Chainstay Length | 428 | 428 | 428 | 428 |
| F. BB Drop | 38.5 | 38.5 | 38.5 | 38.5 |
| G. Wheelbase | 1042 | 1069 | 1098 | 1110 |
| H. Head Tube Length | 110 | 115 | 115 | 120 |
| I. Standover | 681 | 698 | 738 | 765 |
| J. Stack Height | 591 | 596 | 596 | 600 |
| K. Reach | 380 | 405 | 434 | 444 |
| L. Fork Height | 485 | 485 | 485 | 485 |
| M. Fork Offset | 33 | 33 | 33 | 33 |
| N. Stem Length | 60 | 70 | 70 | 90 |
| O. Bar Width | 680 | 680 | 700 | 700 |
| P. Crank Length | 170 | 170 | 175 | 175 |
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
How To Buy
| size | 14", 16", 18", 20" |
|---|
