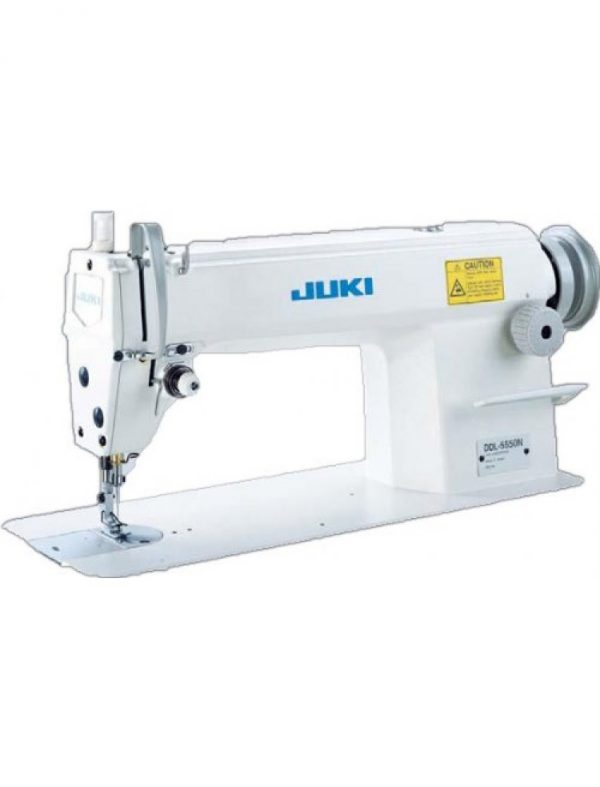

Juki DDL-5550N Straight Lockstitch Industrial Sewing Machine
Features
|
Juki DDL-5550N High-speed Single Needle Straight Lockstitch Industrial Sewing Machine (MADE IN JAPAN) with Table and Clutch Motor (Table Comes Assembled)
The optimum-balance and highly rigid machine head were created using the latest 3D-CAD design technology.Thanks to its low vibration and low noise feature, the machine head provides the operator with a comfortable work environment. In addition, the distance from the machine arm to the needle on the front of the machine head is sufficiently wide to allow easy handling of the sewing material.The machine inherits the desirable features, such as high-speed stitching performance 5,500rpm, extreme stitching performance, ease of operation, and reliability, from the highly evaluated previous JUKI lockstitch machines.
(DDL-5550 : 5,000rpm)
Sewing mechanism that demonstrates outstanding responsiveness to materials to be sewn.
By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, the machine flexibly responds to various kinds of materials and produces beautiful seams of consistent quality.
Maintainability was improved.
Enhanced maintainability is ensured by the improved machine head, such as incorporation of an eccentric pin that is used to adjust the feed dog.
In addition, the machine is provided with a mounting seat for attachment to improve workability while replacing the attachment and increasing the durability of the machine bed surface.
The machine has easy-to-operate functions to achieve improved operability.
By providing a presser foot with a higher lift(13mm), a light-touch stitch dial, a throat plate with marker grooves that can be used as guide for seam allowance, and other easy-to-operate functions, the burden on the operator is lightened, and productivity is further increased.
Newly developed lockstitch machine provides upgraded quality and a comfortable environment that increases productivity.
The thread take-up mechanism, feed mechanism, thread path and hook have been further improved to enhance responsiveness to material changes and to ensure consistent stitch quality
The sewing mechanism demonstrates outstanding responsiveness to materials being sewn.
The thread take-up mechanism, feed mechanism, thread paths and hook have been further improved to enhance responsiveness to material changes and to ensure consistent stitch quality.
Higher lift of the presser foot.
The ample lift of the presser foot makes it easier to set or remove materials or to sew overlapping sections.
The arm configuration is designed to provide a larger sewing space.
Permits easier cloth handling while sewing.
The feed and lubricating mechanisms have improved durability.
The durability of the machine frame and components has been improved. This will result in long-range economy.
MACHINE SPECIFICATIONS:
| Application | For medium weight materials. |
| Max Sewing Speed | 5,500 stitches per minute |
| Max Stitch Length | 4mm |
| Needle bar stroke | 30.7mm |
| Lift of the presser foot by hand | 5.5mm |
| Lift of the presser foot by knee | 13mm |
| Needle (at the time of delivery) | DBX1 (#14) – For JE: 134 (Nm75) |
| Hook | Automatic-lubricating full-rotary hook |
| Lubrication | Automatic |
| Lubricating oil | Juki New Defrix Oil No. 1 |
MOTOR OPTIONS
Some other advantages of the Servo Motor include:
- They consume up to 90% less energy than clutch motors
- 1/3 lighter than clutch motors
- Reverse motor rotation with the flick of a switch
- Nothing to wear or adjust
- Adjusted speed remains the same no matter how hard the pedal is pressed
Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don’t require high speed stitching.
Juki DDL-5550N High-speed Single Needle Straight Lockstitch Industrial Sewing Machine
The Juki DDL-5550N is a single-needle, straight stitch, industrial sewing machine. Manufactured in Japan by Juki, a world leader in sewing quality and technology, this machine is perfect for sewing light to medium weight fabrics (not intended for leather or other heavy materials). With engineering for reduced vibration and noise, the Juki DDL-5550N is optimized for comfortable operation. This item is sold as a complete unit, which includes the machine head, table, stand, motor, sewing light, drawer, and all necessary components installed and ready to sew. ***Please be advised that this is industrial equipment. Minor blemishes and scratches on the table and legs may occur during the production process, and these do not indicate any defect or deficiency in the operation of the unit. ***Industrial clutch motors produce noise. ***Table color may vary depending on availability.
- Brand: Juki
- Application: For light-medium weight materials
- Bed Size: 517mm x 178mm
- Feed Dog: 3-Row
- Hook: Automatic-lubricating full-rotary hook
- Max. Sewing Speed: 5500spm (motor 3450RPM)
- Max. Stitch length: 5mm
- Thread take-up: Slide Type
- Needle System (at time of delivery): DB x 1(#14)#9
- #18 For JE:134(Nm90)
- Lubrication: Fully automatic lubrication system by means of plunger pump
- Lubricating Oil: Juki New Defrix Oil #2(Equivalent to ISO VG32)
- Lift of Presser Foot by Hand: 5.5 mm
- Lift of Presser Foot by Knee: 13 mm
- Weight of Machine Head: 75 LBS.
- Thread Material: Polyester
- Made In: Japan
