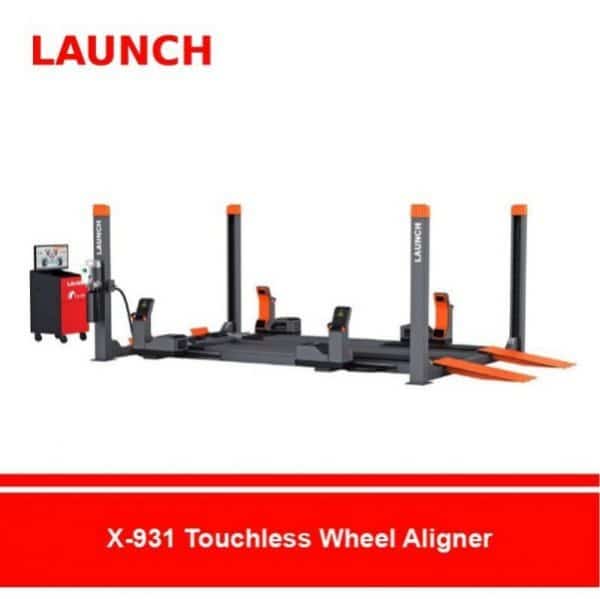

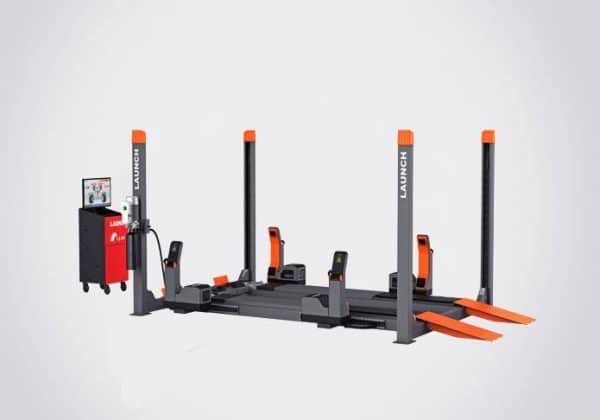

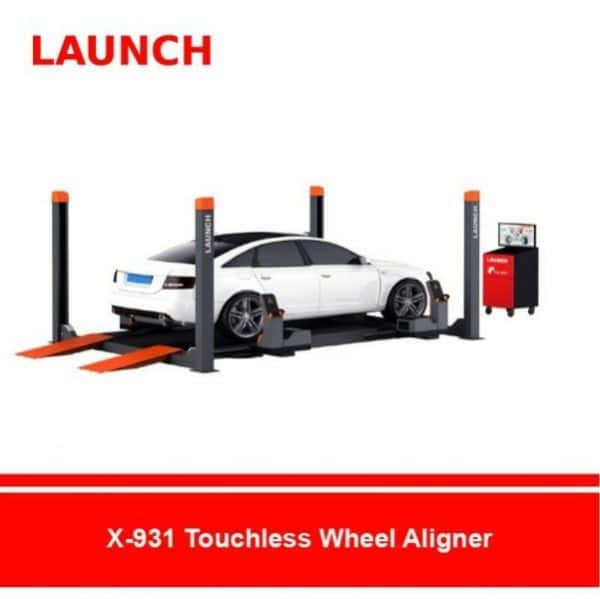

Launch X-931 Touchless Wheel Aligner
Launch X-931 Touchless Wheel Alignment Machine Auto Repair Machine With Good Configuration And CE
The new arrival. The X-931 Touch-less wheel aligner accurately measures the wheel alignment parameters without any component touching with the vehicle tyre or wheel rim. It can measure each parameter of the vehicle wheel: front and rear Toe-in, front and rear camber, caster, Kingpin inclination and thrust angle, etc.
1. Easy to meaure, greatly reduce the work frequency and intensity ( unnecessary to mount and demount the wheel clamps and the targets).

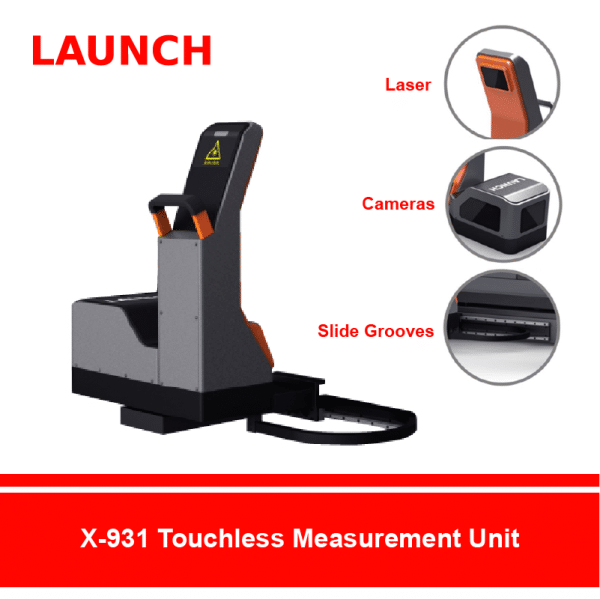

2. Meaurement date accurate and real-time, adopts advanced technology of laser image processiong.
3. Real touch-less measurement, no any injury to the wheel rim, improve customer satisfaction.
4. Greatly increase the meaurement work efficiency ( unnecessary to perform the vehicle-pushing compensation operation).
Launch X-931 Touchless Wheel Aligner

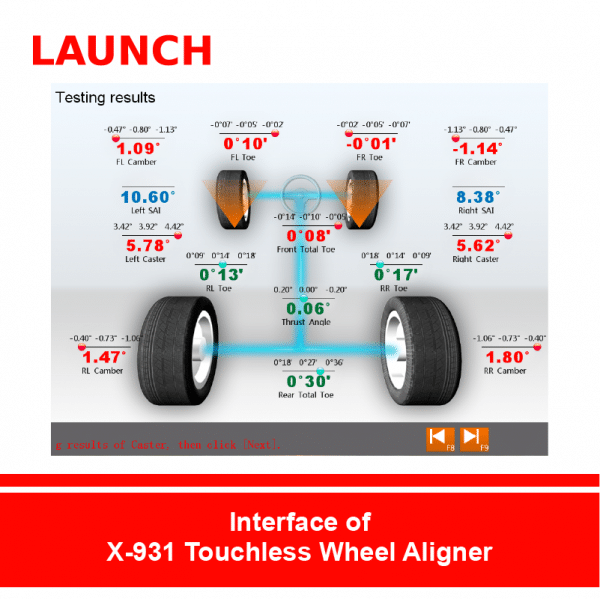

1. Measurement Parameters
| Alignment Parameters | Measurement Range |
| Total Toe-in | ±20︒ |
| Individual Toe-in | ±10︒ |
| Camber | ±10︒ |
| Caster | ±20︒ |
| Kingpin inclination | ±20︒ |
| Thrust Angle | ±5︒ |
2.Equipment Parameters
| Technical Index | Description |
| Wheelbase | For passenger vehicle and light commercial vehicle, from 1800mm to 3750mm |
| Input Voltage | 100～220V AC (10A) |
| Input Frequency | 50～60Hz |
| Power | 0.5KW |
| Others | Computer host, LCD display, keyboard & mouse; Measurement software; Printer and loudspeaker, etc. |
