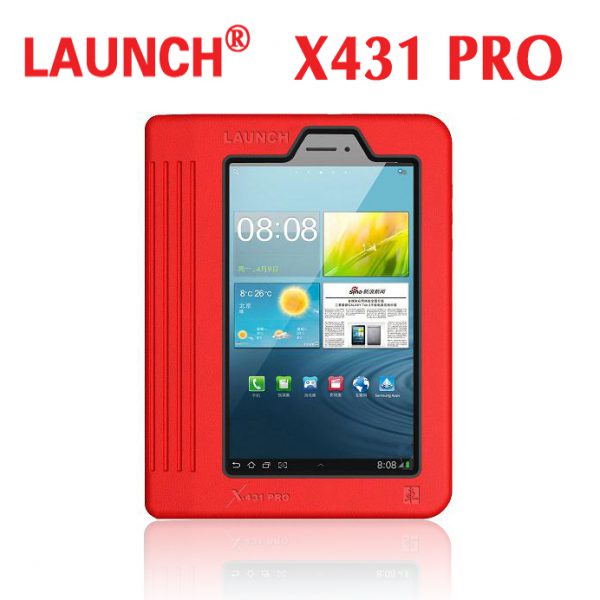

Launch X431 Pro

Rating
Availability: In stock

Launch X431 V/x431 Pro Wifi/bluetooth Tablet Full System Diagnostic Tool Support Multi-languages and Online One-click Update

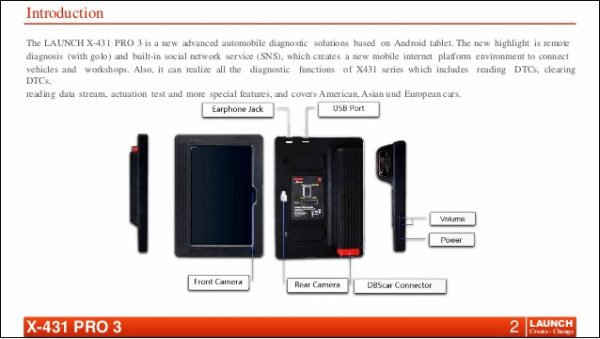

X-431 PRO is a new type of auto diagnostic device developed by LAUNCH based on Android system and Internet application. It inherits LAUNCH company’s product features of vast cover of car modules, strong diagnostic functions, many special functions, and precise test data Through Bluetooth communication between diagnostic connector and smart terminal device to realize all car modules and full system auto malfunction diagnosis. X-431 PRO has the application advantage of mobile Internet, which could sharing the Maintenance and cases database of the DBS car network., also provide instant maintenance information, create public and private circle so as to enter a vast auto diagnostic community. This is an internet application based classic diagnostic device provided by Launch to diagnostic industry.

  • High configuration software that allows for high operating speeds
  • A multi-touch, tablet-style capacitor screen for quick, smooth use
  • Portable size makes it easy to use and transport
  • Brand new interface that’s much more user-friendly
  • Users can install any Android software
  • Also has photo, video and multimedia functions, as well as other software applications
  • Quick and easy updating procedure, over Wi-Fi
  • Can graph live data when in use
  • Module coding, resets, relearns and bi-directional capabilities also possible
Compare

LAUNCH Automobile Diagnostic Scan Tool- X431 Pro

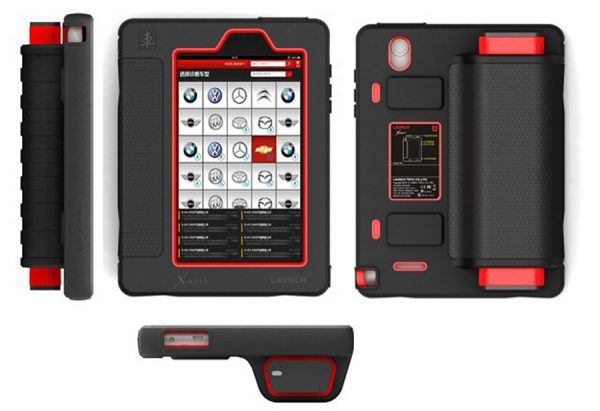

LAUNCH X431 V

Launch x431 V is full system diagnostic tool, support all system of car such as ABS system, Engine system, SAS system, TPMS system, Immobilizer system, Battery system, Oil service system , SRS system, Parking assist system, Air Conditioning system, Body System, AWD, Door Lock System, ect. Why choose launch x431 V ?

  • Support Active Test
  • Bidirectional Control
  • ECU Coding support
  • Full Systems Diagnoses
  • Comes with 15 Service Functions
  • Adaptation+ Matching+ Reset + Initialization + Coding
  • 108 Brands and 10000+ Cars supported
  • Read ECU Version

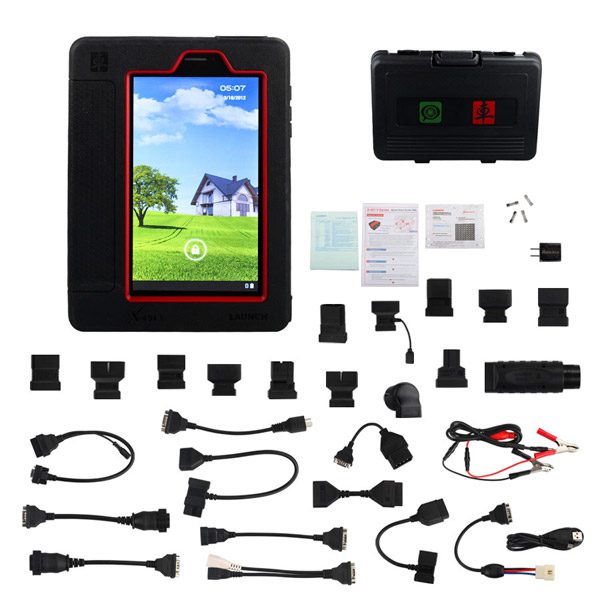

What comes with X431 V?

  • X-431 V SCAN PAD, BLUETOOTH ADAPTER, QUICK START GUIDE, SOFTWARE LIST, FUSE , SWITCHING ADAPTER
  • 14 connector : TOYOTA-17, HONDA-3, MAZDA-17,FORD-6+1,SSANG YONG-20 , CHRYSLER-6, SUBARU-9 , KIA-20, DAEWOO-12 ,GEELY-22 ,GMVAZ-12, DAEWOO-12, BMW-20, BENZ-38
  • 12 cables : GAZ , OBDII-16 EXTEND CABLE , SSANG YONG-14, SUZUKI-3, AUDI-4, FIAT-3, MITSUBISHI HYUNDAI-12+16, OBD1 ADAPTOR, BENZ-14, NISSAN-14+16, DAIHUATSU-4, POWER CABLE CLIPS.

Extensive Vehicle Coverage:

  • Aisa: Changcheng, Daewoo, Huachen, Zhongxing, Indian Tata, JAC, Maruti, Perodua, Chery, Isuzu, Jinlong, Suzuki, Saipa, HM, Hmazda, Ikco, Malaysia Proton, Luxgen, Toyota, Changan, Futian, Honda, Wuling, V-class, Jpisuzu, Kia, Indian Maruti, Indian Mahindra, Malaysia Perodua, Hafei, Lifan, Mahindra, Nissan, Xiali, Zhongshun, Tata, Changhe, China GM, Saicmg, Mazda, Zhongtai, Daihatsu, BYD Flyer, Hyundai, Proton, Subaru, Ssangyong, Joylong, Mitsubishi,Gonow, Qoros, Maxus, Mvm
  • Europe: Vaz, Porsche, Maserati, BMW, Seat, VW, Audi, Citroen, Landrover, Smart, Renault, Skoda, Sprinter, Land Rover, Benz, Fiat, Opel, Volvo, Peugeot, Ferrari, Saab, Gaz, DR
  • USA: Gm, USAFord, Chrysler, Willy
  • Australia: Austford, Holden
  • Brazil: BXFiat, BXGM

Target Audience:Technician , advacne DIY, garage, car dealer, used car dealer, auto repair shop, automotive engineer, diagnostic tech, truck man, automobile tech, home mechanic, DIY beginner, automotive student, backyard mechanic, retired mechanic, weekend DIY, individual.

All System Diagnostic Tool – Launch x431 v

  • Full Diagnose Function: X431 V can diagnose the electronic control system of prevailing vehicle models covering
  • Asian,European,American and China. Full range car models and Full car systome diagnose make it a professional automotive diagnostic tool
  • Diagnosis functions include: Read DTCs,Clear DTCs,Read datastream,Special Funtion etc.
  • Browser: Bulit-in Wi-Fi modules makes surfing on the internet freely
  • Settings: To configure your personalized X-431 V through it.
  • Search: Enables you to Locate your target quickly and conveniently
  • Email: Allows you to send and receive email. External POP3 or IMAP emal account for some common Web email service provider can be added
  • File Manager: You can manage the files or download files stored in SD Card efficiently
  • Other Additional Functions: Alarm,calendar and calculator etc
  • Applications: Other android based applications can be customized to install or uninstall

Vehicle Health Report Share and Print

V431 V PRINT REPROT

Bidirectional control : Bi-Directional Control which is used to request information or command a module to perform specific tests and functions

Actuation Test: it can send information to and receive information from a vehicles control module.

Key Program: if you know you the PIN# of your car, x431 v can match a new key for you .

ECU Coding: after replace a new ecu for car, x431 v can help you code it. It is very useful for mechanic.

Remote Assistance: launch x431 v support remote diagnosis, if you need help from other mechanic, open the remote control function.

Diagnostic report print: x431 v can automatically generate a diagnostic report when diagnostic work is successfully finished.Generated diagnostic report will be saved and sent to the email box then print the report on PC.

  • Launch x431 v support 2 years free update.
  • Launch x431 v comes with 16G memory, BUT it can extension to 128G with TF card.
  • 8 inch touch screen, it is big, very good for eyes.
  • Operating System: Android 7.1, make read data more quickly.
  • CPU: Quard Core 1.4GHz
reset functions

X431 V support 11 reset / relearn functions:

  • Oil Lamp Reset
  • TPMS Reset (Tire Pressure Monitor System Reset)
  • Immobilizer Matching
  • Electronic Parking Brake Reset
  • Steering Angle Calibration
  • Battery Register / Battery Maintenance
  • ABS Bleeding
  • Electronic Throttle Position Reset / Learn
  • Diesel Particulate Filter (DPF) Regeneration
  • Gear Learning
  • Fuel Injector Coding
  • Enhanced added reset functions: Air Suspension Reset/Gearbox Reset/Sunroof RESET/AFS Reset/ EGR Reset

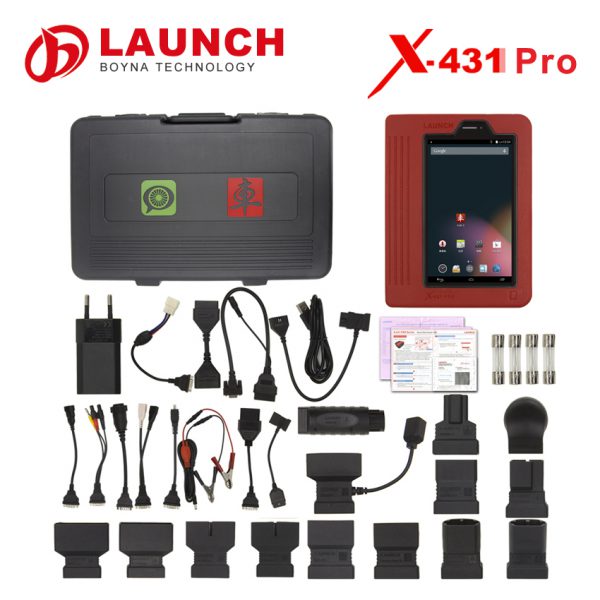

X431 Pro Package Contents:
X-431 PRO pad computer
Password envelope
X-431 PRO protection sleeve
DBScar diagnostic connector
OBD II extension cable
Cigarette lighter cable
Power adaptor
USB data cable

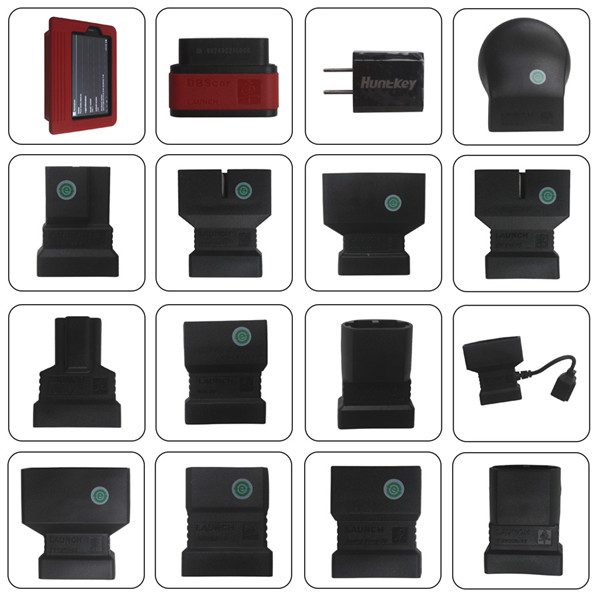

Non-16pin connector

Launch X431 Pro Package 1
Launch X431 Pro Package 2

LAUNCH X431 PRO salient Feature

  • X-431 PRO displays a multi-point capacitive touch screen.
  • Can support almost all OBD I and OBD II protocol.
  • User can search error code online from device itself.
  • Can scan up to range of 10 Meter away car.
  • Also support remote diagnosis.
  • Online software update
  • A very light and small so can be easily adjusted and taken anywhere.
  • No compulsion for software update every year.

LAUNCH X431 PRO supported function

  • Read and clear trouble code
  • Support data stream and actuation test/component testing
  • ECU/ECM programming
  • Injector coding
  • KEY coding for Maruti Suzuki (upto 2013),TATA and HONDA (Note: Key coding is not available for Mahindra car)
  • Immobilizer trouble code reading.
  • Service light reset for BMW, AUDI, Benz, VW, Skoda and many more.
  • Support A.B.S(anti lock brake) function
  • Support E.P.S(Electric Power Steering) function
  • Support Air bag function
  • Support car A.C( air conditioning sustem)
  • Support ECM/PCM reset
  • Support Automatic Transmission function
  • Support B.C.M(Body Control Module) including seat belt, Central locking,  Light
  • Support adaptation for almost all car
  • Scan radio system



Supported Car brand by LAUNCH X431 PRO

Aisan:

Mahindra, Maruti, Hyundai, Tata, Toyota, Nissan, Mitsubishi, Acura, Changan, Daweoo, Gaz, Hafei, Huachen, Jiao, Lexus, Xiali, Xinkai, Holden, Australia Ford, Ssangyong, Changhe, Infiniti, Perodua,Proton, Qirui, Tlisuzu, Zhongshun, HM,Changcheng, HaoQing, Jinlong, Liuwei, ZhongTai, ZhongXing, Isuzu, Jacty, JPIsuzu, Mazda, Daihatsu,  Kia, Subaru, Suzuki.

European:

VW, Skoda, Renault, BENZ, BMW, Jaguar, LandRover, Porsche, Volvo, AUDI, Fiat, OPEL, Dacia, Rover, Romeo, Fiat, Citroen, Lancia, Peugeot, Saab, Flyer, GMSA, EOBD2, Euroford, , Smart, Sprinter

USA:

Ford(USA),Ford(Australia),Chrysler,GM

X-431 PRO is a best auto diagnostic device, introduced by LAUNCH. This extraordinary device solves so many repair and maintenance issues of the car and provides greater convenience to the car owners. Enjoy the exclusive benefits of this android based device and have a happy and safe drive.
