Masi Gran Corsa Disc
FEATURES
- All-New Masi Race Tuned Alloy MA6 Disc alloy frame, full internal cable routing, tapered 1.5″ head tube, BB86 press-fit BB, flat mount disc, 12mm Thru Axle
- New Masi Elite/RS Disc carbon integrated w/tapered 7075 alloy steerer, 12mm thru axle & flat mount disc
- Shimano 105 derailleurs & shifters / levers
- Praxis Works Alba 52/36t crankset w/Praxis Works M30 by Enduro BB
- Shimano 105 5800 11-spd 11-28t cassette ProMax DeCode R flat mount mechanical disc brakes
- New Brev. M 3D forged alloy cockpit
- DT Swiss R460 Disc rims w/ Alloy 28h thru-axle disc hubs w/alloy TA
- Kenda Kountach 25c tires
Masi Gran Corsa Road Bike
The Gran Corsa Disc is a dedicated racer with an eye towards the future. Like the standard Gran Corsa, its designed and built using our Race Tuned performance geometry. The bike is equipped with Praxis Alba cranks combined with an Enduro bottom bracket which produces efficient and reliable power transfer. The lightweight BREV.M Aluminum stem and seat post combination delivers ride comfort and precise control in equal measures. The addition of Promax Decode R flat mount mechanical disc brakes and the DT Swiss R460 disc specific thru-axle wheel set provides the rider with the most advanced technical options available.
FEATURES
- All-New Masi Race Tuned Alloy MA6 Disc alloy frame, full internal cable routing, tapered 1.5″ head tube, BB86 press-fit BB, flat mount disc, 12mm Thru Axle
- New Masi Elite/RS Disc carbon integrated w/tapered 7075 alloy steerer, 12mm thru axle & flat mount disc
- Shimano 105 derailleurs & shifters / levers
- Praxis Works Alba 52/36t crankset w/Praxis Works M30 by Enduro BB
- Shimano 105 5800 11-spd 11-28t cassette ProMax DeCode R flat mount mechanical disc brakes
- New Brev. M 3D forged alloy cockpit
- DT Swiss R460 Disc rims w/ Alloy 28h thru-axle disc hubs w/alloy TA
- Kenda Kountach 25c tires
SPECIFICATIONS
Frameset | |

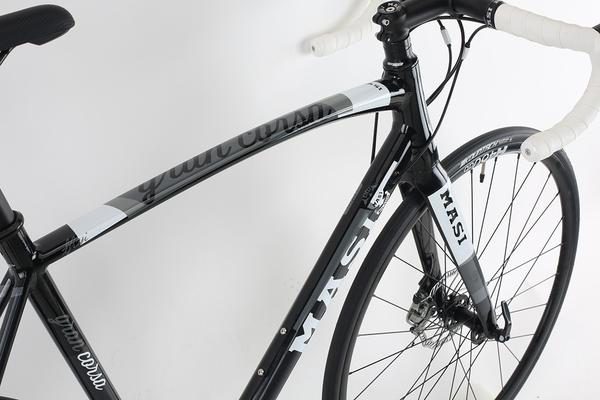

Frame | New Masi Ma6 Disc Double-Butted Alloy w/ Integrated 1.5″ Tapered Headtube, BB86, Internal Cable Routing, 12mm Thru-Axle & Flat Mount Disc |
Fork | Masi Elite/Rs Carbon Integrated w/ 7075 Alloy Tapered Steerer, 12mm Thru-Axle, Flat Mount Disc Brake |
Colors | Charcoal / White |
Drivetrain | |
Cranks | Praxis Works Alba Mid-Compact 52/36t |
Pedals | N/A |
Chain | KMC X11 |
Bottom Bracket | Praxis Works M30 By Enduro |
Front Derailleur | Shimano 105 |

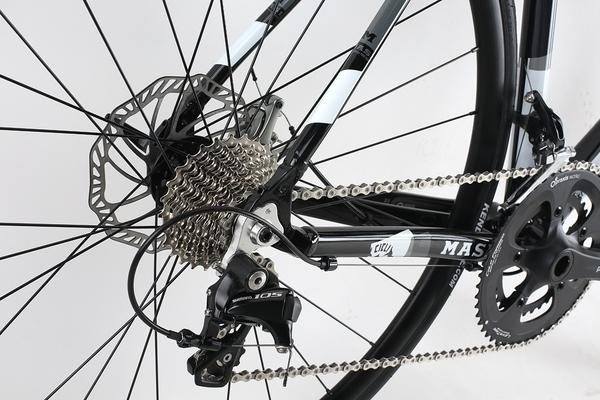

Rear Derailleur | Shimano 105 5800 11-spd |
Derailleur Shifter | Shimano 105 11-spd |
Freewheel/Cassette | Shimano 5800 11-28t, 11-spd |
Wheels | |
Tires | Kenda Kountach 25c |
Wheels/Rims | Dt Swiss R460 Disc Rims, Alloy 28h Disc Cassette 12mm Thru-Axle Hubs w/Alloy TA |
Braking System | |

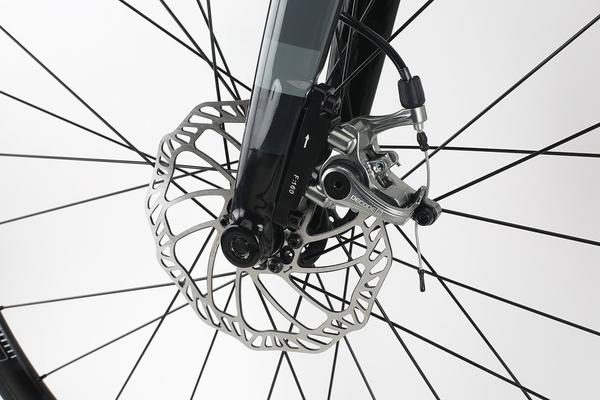

Brakes | Promax Decode R Flat Mount Mechanical Disc, 160F/160R |
Brake Levers | Shimano 105 |
Other Components | |
Grips/Tape | New Masi Gripper Tape w/Gel |

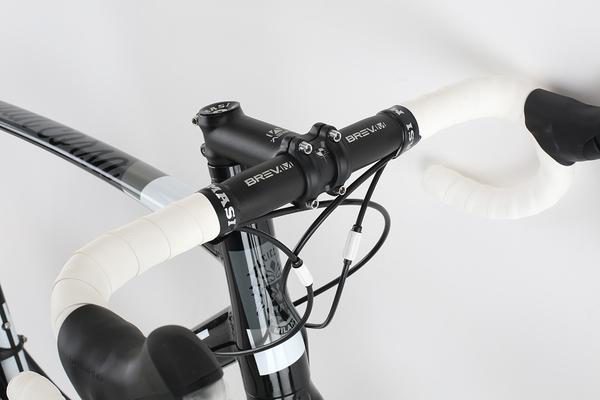

Handle Bar | New Brev. M 31.8 Alloy Bar |
Stem | New Brev. M 3D Forged Flip/Flop Stem |
Headset | FSA No.42; Orbit C-40 Sealed 1-1/8 ACB Top, 1.5″ Industrial Sealed Bottom |
Saddle | New Masi Scs |
Seat Post | New Brev. M 3D Forged Alloy 27.2 X 300mm |
Seat Clamp | Alloy, 31.8mm |
GEOMETRY & SIZING
To read more about how Masi’s fit and geometry
are created visit our Bicycle Fit Tips page.
Size | 47 | 51 | 54 | 56 | 58 | 61 | |||||||||||
A. Top Tube (Effective) | 520 | 530 | 545 | 565 | 585 | 595 | |||||||||||
B. Seat Tube (C-T) | 470 | 510 | 540 | 560 | 580 | 610 | |||||||||||
C. Stack Height | 502 | 523 | 543 | 565 | 582 | 601 | |||||||||||
D. Reach | 376 | 380 | 389 | 398 | 413 | 422 | |||||||||||
E. Standover | 712 | 744 | 764 | 797 | 817 | 842 | |||||||||||
F. Head Tube Length | 100 | 120 | 140 | 160 | 180 | 200 | |||||||||||
G. Head Angle | 72 | 72.5 | 73 | 73.5 | 73 | 73 | |||||||||||
H. Seat Angle | 74 | 74 | 74 | 73.5 | 73.5 | 73.5 | |||||||||||
I. Wheel Base | 969 | 975 | 986 | 994 | 1019 | 1034 | |||||||||||
J. Chainstay | 410 | 410 | 410 | 410 | 410 | 410 | |||||||||||
K. BB Drop | 68 | 68 | 68 | 68 | 68 | 68 | |||||||||||
L. Fork Offset | 45 | 45 | 45 | 43 | 43 | 43 | |||||||||||
M. Stem Length | N/A | N/A | N/A | N/A | N/A | N/A | |||||||||||
N. Bar Width | N/A | N/A | N/A | N/A | N/A | N/A | |||||||||||
O. Crank Length | N/A | N/A | N/A | N/A | N/A | N/A | |||||||||||
P. Wheel Size | N/A | N/A | N/A | N/A | N/A | N/A |
