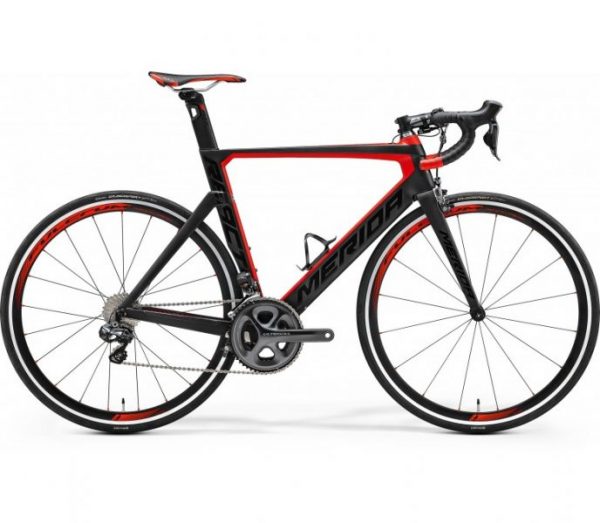

Merida Reacto 500 2018
MERIDA REACTO 500 RACEFIETS
+ Reacto Lite frame
+ Reacto Carbon Race front fork
+ Shimano Ultegra 2×11 assembly
+ FSA Gossamer Pro crankset with 52/36 front cover
Merida Reacto Track 500 (2018)
Specifications:
+ Reacto Lite frame
+ Reacto Carbon Race front fork
+ Shimano Ultegra 2×11 assembly
+ FSA Gossamer Pro crankset with 52/36 front cover
 |
PROLITE 66 TRIPLE BUTTED ALUMINUM 2018
Merida’s premium alloy represents very durable and light aluminum of high-end quality. The triple-butted wall thicknesses not only result in an exciting design, first and foremost they offer an optimal stiffness counterweight ratio. |
 |
CARBON FORK 2018
This road bike is equipped with a stiff carbon fork. Merida carbon forks surprise with excellent vibration absorption and excellent braking and stiffness. Reliable steering and braking performance in every situation.
|
 |
TFS – TECHNO FORMING SYSTEM 2018
Due to its properties, such as the low weight, aluminum is still very strongly represented as a frame construction material. Thanks to the mechanical printing process, modern three-dimensional shapes are possible at TFS. Material: Racelite 6061 aluminum.
|
 |
HFS – HYDRO FORMING SYSTEM 2018
The mechanical TFS process works from the outside in. In contrast, the complex Hydroforming concept forms the frame by pushing hot oil from the inside to the outside under high hydraulic pressure. |
 |
SMOOTH WELDING 2018
The aluminum frames do not only have to function great, they also have to convince optically. With Smooth Welding, a second weld makes the first, connecting weld seam smoother – a costly process for a beautiful appearance without loss of strength. |
 |
NACA FASTBACK PROFILE 2018
The NACA Fastback concept is the result of extensive wind tunnel tests. Especially the down tube, seat tube and upright swingarm have the aerodynamically optimized abbreviated drop shape that simultaneously optimizes stiffness. |
 |
INTERNAL CABLE 2018
The frame is designed with special inlets and outlets for inwardly moved brake and / or shift cables. “Clean” in the double sense of the word: The bike looks well-organized, while the cables get an effective protection against moisture and dirt.
|
 |
DI2 READY 2018
Di2 electronic switching is not to be forgotten from cycling and mountain biking thanks to proven constant performance and smooth running. The DI2 READY frames are standard suitable for (retrofitting) a Di2 switching group. |
 |
INTERNAL CLAMP 2018
The concealed seat post clamp ensures optimum aerodynamics and also ensures a sleek look. |
Extra Information
| COLOR | metallic black (red/silver) |
|---|---|
| FRAME SIZES |
XS(47)
S(50)
SM(52)
ML(54)
L(56)
XL(59)
|
| FRAME | REACTO LITE |
| FORK | Race Full carbon tapered fork with conventional brake mounts |
| DERAILLEUR FRONT | Shimano Ultegra |
| DERAILLEUR REAR | Shimano Ultegra |
| SHIFTERS | Shimano Ultegra, 22 speed |
| BRAKE LEVER | Shimano Ultegra |
| BRAKES | Shimano Ultegra levers with Shimano 105 calipers |
| CHAINWHEEL | FSA Gossamer Pro 52-36 teeth Mega |
| CHAIN | KMC X11-1 |
| HUBS | Sealed bearing with quick release |
| RIM | MERIDA Expert CW, 35mm profile, 17mm inner width |
| FREEWHEEL | Shimano CS-5800, 11 speed, 11-28 teeth |
| TIRES | Maxxis Dolomites 25c folding |
| SPOKES | Double Butted Black stainless |
| HANDLEBAR STEM | MERIDA Expert, 3d forged, 6061 aluminium, Oversize clamp, -5 degree |
| HANDLEBAR | MERIDA Expert Aero double butted 6061 aluminium compact drop, oversize clamp |
| HEADSET | MERIDA M2331 |
| SEAT POST | Reacto carbon |
| SADDLE | MERIDA Race |
| PEDAL | Not included |
| WEIGHT | 9.17 kg |
Occasionally without notice, manufacturers sometimes change product specifications.
