Technical Features:

• NANO MATRIX CARBON: To protect the integrity of the carbon frames, the fibers are joined with epoxy resin with nanoparticles, increasing the impact resistance by up to 40%.
• CARBON FORK: Carbon forks offer a great suspension and precise steering. All road bikes have forks entirely made of carbon, from the pipe up to the bars.
• ANTI WRINKLE SYSTEM: When creating the individual carbon elements, an air chamber is used to ensure there are no wrinkles in the tube, as that can add weight and affect resistance. This results in a lighter, stiffer and stronger frame.

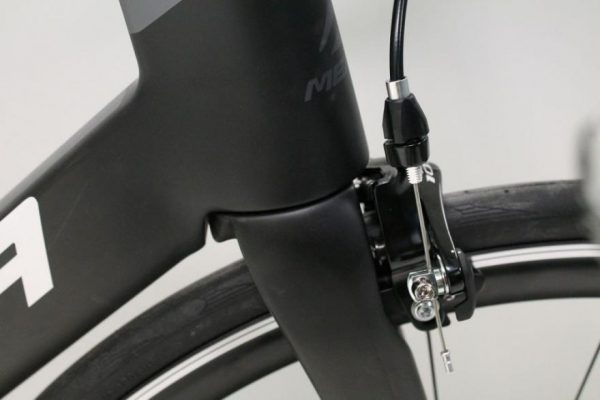

• X-TAPER HEADTUBE: Tapered headtube with 11/8” bearings in the upper part and 11/4”, and 11/2” in the lower part to create great strength and precision, affording safety whilst handling.
• NACA FASTBACK PROFILE: The frame aerodynamics are based around a NACA0028 teardrop profile (National Advisory Committee for Aeronautics). Air moves around the frame despite having the back cut off, which saves material and weight.

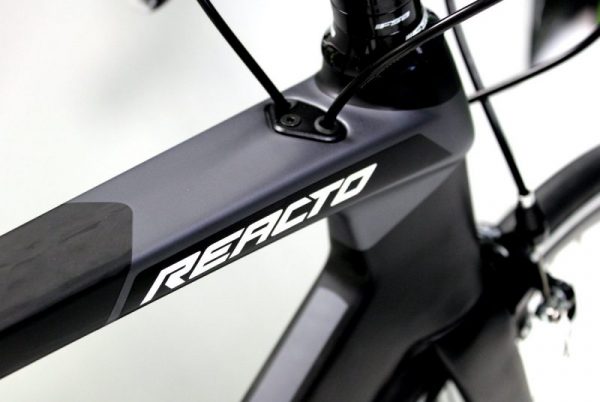

• INTERNAL CABLE: The brake and/or shifter cables are guided through the inside of the frame. Improves the design and aesthetics as the cables are hidden from view, with no disadvantages.
• DI2 READY: The models and frames with the Di2 Ready symbol are prepared for integrating this technology with the battery mounting in the saddle or in chainstays.

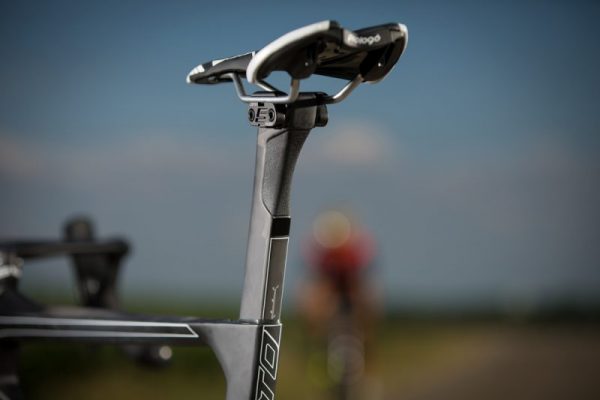

• INTERNAL CLAMP: The seatpost integrated into the frame helps to minimise the turbulence in the upper part of the tube.
• S-FLEX: The carbon is good at absorbing vibrations, but to increase comfort Merida shapes the seatposts to improve comfort with the ‘S-Flex’ design.
