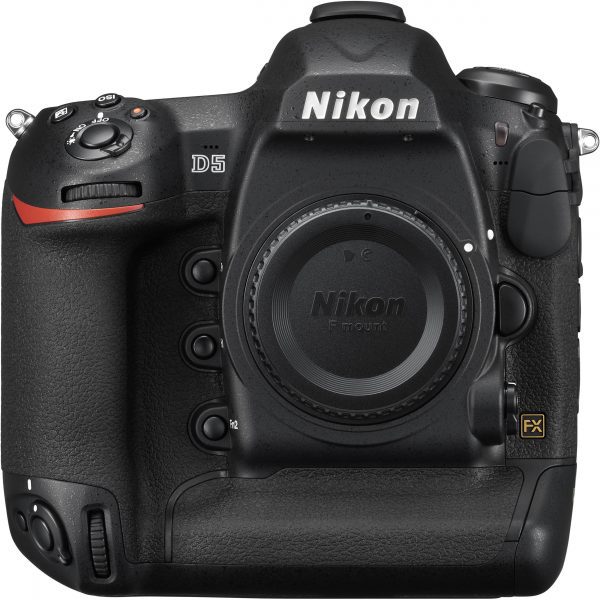

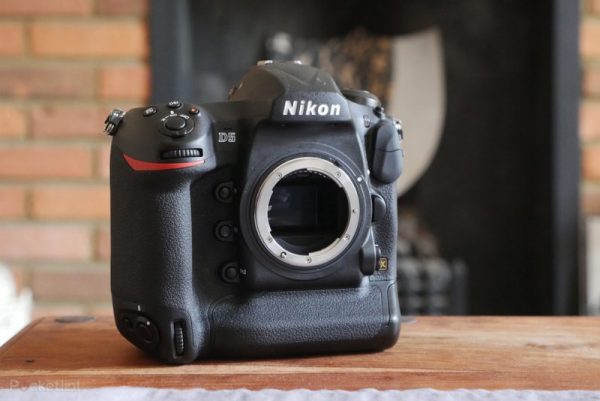

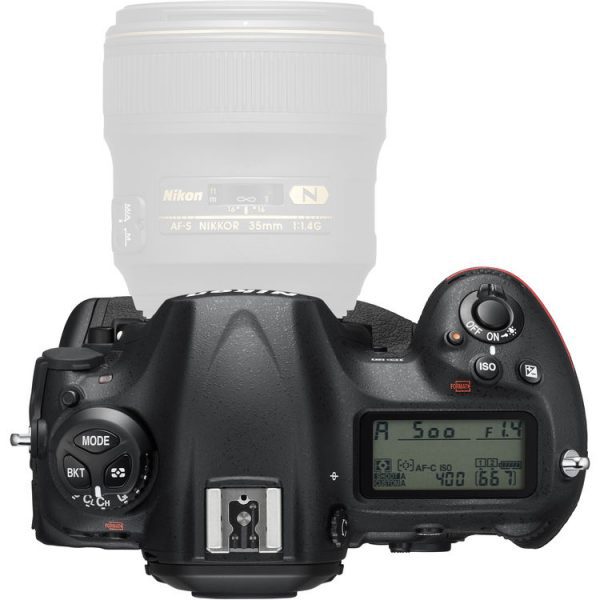

Nikon D5 20.8 MP FX-Format Digital SLR Camera Body (XQD Version)

Shoot beyond what the eye can see with the D5—power and precision to beat the odds.

Equipped with Nikon’s incredible next-generation 153-point AF system, the D5 keeps you on track whether you’re shooting the race or the red carpet. Coverage is exceptionally wide, and a new buffer allows up to 200 NEF (RAW) images to be captured during one high-speed burst. New image and metering sensors deliver phenomenally accurate subject recognition and image detail. The highest expanded sensitivity in Nikon’s history frees you to shoot from bright sunlight to astronomical twilight. And for moviemakers who go to extremes, D-Movie now enables high-definition 4K/UHD movies to be recorded in-camera.

STAY ON TOP OF YOUR GAME WITH NEXT-GENERATION 153-POINT AF AND 200 NEF (RAW) IMAGE BUFFER

Own the game with Nikon’s phenomenal new AF system. With an incredible 153 focus points and 99 cross-type sensors, the D5 offers exceptionally wide coverage. Whether you’re shooting the race or the red carpet, almost every situation is covered. Small subjects moving at high speed can be tracked with a new level of precision. Subjects at the edge of the frame are easily detected, and vertical shooting is vastly improved. AF sensitivity down to -4 EV (ISO 100, 20 °C/68 °F) enables superior low-light performance and all AF modes have been improved. The system is configurable in 153-point, 72-point and 25-point coverage settings in Continuous AF mode. All 153 focus points are compatible with AF NIKKOR lenses with an open aperture of f/5.6 or faster, and 15 central focus points work with an effective aperture of f/8. The camera’s high-performance buffer allows up to 200 NEF (RAW) or large JPEG images to be captured during one high-speed burst: enough to cover an entire 100 m sprint final without taking your finger off the shutter-release button.

BEAT THE ODDS WITH A WINNING COMBINATION OF POWER AND PRECISION

The phenomenal performance of the D5 is all you need to capture images that defy the odds. Thanks to a new AF ASIC unit, maximum computing power is allocated to AF at all times. No matter how fast the action, the camera does not compromise. Shoot at up to 12 fps with AE/AF tracking, or at up to 14 fps with mirror up. AF tracking and viewfinder visibility are vastly improved when shooting sports, or any scene in which subjects tend to change direction suddenly. Faster sequential shutter and mirror mechanisms significantly reduce viewfinder blackout during high-speed bursts. For ultimate precision, pair the D5 with a professional NIKKOR lens equipped with SPORT VR mode, such as the AF-S NIKKOR 600mm f/4E or the AF-S NIKKOR 500mm f/4E. SPORT VR mode also delivers a stable viewfinder image when tracking high-speed movement. Combine the D5 with one of these lenses and you’ll capture fast-moving, unpredictable subjects with unprecedented smoothness.

MOVE AHEAD OF THE PACK WITH NEW METERING AND IMAGE SENSORS

The sheer imaging power of the D5 is a liberating experience. The all-new 20.8 MP FX-format CMOS image sensor and 180K-pixel RGB metering sensor deliver phenomenally accurate subject recognition and image detail. Even if you’re shooting fast sports indoors, this camera will get you the shot. And not just any shot: tonal gradations are richer and more accurate. The D5 also boasts a new 8.0 cm (3.2 in.), 2360k-dot LCD monitor, which offers touch operation in review mode. With a level of responsiveness comparable to smartphones, this high-resolution screen means you can easily check and select key images on the spot. Shoot in Live View and you can use touch operation to change the focus point, or acquire preset Spot White Balance data, based on the selected area within the frame. For even greater control, Picture Control 2.0 makes it easy to define parameters whether you’re shooting stills or video. Ease post-production with the Flat pre-setting for maximum dynamic range; fine-adjust detail with Clarity.

FROM BRIGHT SUNLIGHT TO ASTRONOMICAL TWILIGHT: SHOOT BEYOND WHAT THE EYE CAN SEE

The D5 blows the possibilities for low-light shooting wide open. With a standard ISO range of 100 to 102400, and the highest expanded sensitivity in Nikon’s history, the envelope is yours to push. Thanks to the camera’s new EXPEED 5 image processing engine, image quality is unprecedentedly high across the standard ISO range. This exceptionally clean performance is made possible by a signal processing system optimised for the new sensor’s 25% higher pixel count. Fine noise is dramatically reduced and even cropped images shot at high ISOs retain their quality. In an incredible feat of engineering, the ISO range can now be extended to ISO 3280000 equivalent, at the Hi 5 setting. Designed for specialist use, such as surveillance or security applications, these astonishingly high ISO counts enable colour images to be captured without a flash in astronomical twilight, which is equivalent to an amazingly low 0.001 lux.

GO TO EXTREMES: 4K HIGH-DEFINITION D-MOVIES

As the first Nikon DSLR to record high-definition 4K/UHD movies in-camera, the D5 hugely exceeds the moviemaking flexibility of the D4S. 4K movies (3840×2160 pixels) can be recorded at 30p/25p/24p in dot-by-dot native pixel crop, which ensures the highest image quality. When shooting Full HD (1080p) video, you can record at frame rates up to 50p/60p in multiple sensor crop formats, including native Full HD pixel crop. When filming in M mode, sensitivity for all video resolutions and crop modes can be set from ISO 100 all the way up to Hi 5. Auto ISO allows ISO 200 up to Hi 5, and lets you configure the maximum ISO settings you want to work with. The camera offers clean HDMI out: even 4K movies can be recorded to the in-camera memory card or output uncompressed to HDMI with 8-bit 4:2:2 YCbCr. HDMI output is available for all movie resolutions during remote shooting.

TURBOCHARGE YOUR WORKFLOW: HIGH-SPEED IMAGE CAPTURE AND 4X FASTER DATA TRANSFER

Faster, sharper, and easier to handle, everything about the D5 is geared towards a smoother experience. Engineered to incorporate feedback from agency photographers who spend all day shooting, this camera reduces the stress factors that come with the demands of professional photography. Ergonomically, improvements include buttons with more defined ridges and curves, which enable more intuitive control, especially when shooting through the viewfinder. New double XQD card slots easily handle the D5’s incredible capacity to shoot up to 200 NEF (RAW) images in one burst, and ensure the buffer is instantly cleared for the next burst. A new USB 3.0 port enables high-speed transfer of large amounts of data, and wireless and Ethernet connection is now 2x faster. Beyond the camera body, Nikon’s Creative Lighting System continues to go from strength to strength with the new SB-5000. This new Speedlight utilises radio communication and improves the performance of Nikon flash systems under challenging conditions.

Innovation for inspiration.

What determines when Nikon releases a full-frame flagship camera? When technological innovation demands it. Introducing the D5, an FX-format DSLR that makes the impossible possible. Huge advancements in sensor design, autofocus, metering and image processing result in thrilling new capabilities—low light shooting all the way to ISO 102,400 (expandable to an unheard of ISO 3,280,000), precise AF detection and tracking across that entire ISO range, regardless of your subject’s speed or direction changes, blazing fast 12 fps continuous shooting, 4K UHD video and, of course, image quality that captures the hearts and minds of your viewers. This is not iteration, friends. This is innovation…spectacular innovation. How will it change the way you shoot?

D5 photo of a bear drinking water from a river

Game-changing low light capabilities

Nikon’s widest native ISO range ever

The low light performance of the D5 might make it a legend. With Nikon’s widest native ISO range (100 to 102,400) and highest expanded range (up to Hi-5 ISO 3,280,000), advancements in noise reduction and color fidelity and a next-generation AF system that performs in near darkness (EV -4), a world of new shooting opportunities has opened. Capture clear, sharp images you may not have attempted before—at night, in dark reception halls, arenas and more. For surveillance and security applications, this expanded ISO range means getting a shot others can’t see without a flash.

VIEW SAMPLE PHOTOS(VIEW IN A LIGHTBOX)

DPReview Field Tests the Nikon D5

Flagship Autofocus Performance Put To The Test

To test the D5’s market-leading autofocus system, DPReview took the camera out to Santa Fe, and put one in the hands of professional photographer Michael Clark. In this field test, DPReview’s technical editor Rishi Sanyal joined Michael to shoot a range of activities, including dirt bikes and white-water kayaking. Watch the video to see how the D5 performed.

D5 DSLR photo of a woman in a yellow dress leading a marching band

EXPEED 5, Nikon’s most powerful processor ever

Masterful image quality

The sheer imaging power of the D5 is exhilarating. With its Nikon developed 20.8MP FX-format CMOS sensor, the D5 is the highest resolution full-frame Nikon flagship ever and ready for your next challenge. Nikon’s superior image processor has been updated to EXPEED 5 to harness the power of this remarkable new sensor, and a second processor has been added just for autofocus. All of the exquisite detail and textures, vibrant colors and rich tonality delivered by NIKKOR lenses is captured in flawless precision, even in extreme low light. Create images that move people.

VIEW SAMPLE PHOTOS(VIEW IN A LIGHTBOX)

Photo of a motorcycle rider inset with smaller photos of the same rider shot at 12 fps

Stay on top of your game

The speed to capture decisive moments

When you hear the D5 shooting at full speed—12 fps with fulltime AF and AE, 14 fps with fixed focus and AE with mirror up—you know the game has changed. For the first time in a Nikon DSLR, a second processor is dedicated solely to autofocus operation and computing. A new shutter and mirror sequencing mechanism nearly eliminates blackout time and mirror slap for bright, consistent views during high-speed capture. EXPEED 5 and a high performance buffer handle up 200 NEF (RAW) and/or Large JPEG images during one high-speed burst—enough to cover an entire 100m sprint without taking your finger off the shutter release button. The new 180K RGB Advanced Scene Recognition System pulls it all together and ensures every shot has optimal exposure.

VIEW SAMPLE PHOTOS(VIEW IN A LIGHTBOX)

D5 DSLR photo of soccer players inset with a D5 photo of water polo players

Capture images that defy the odds

Nikon’s fastest, most accurate AF system yet

The D5 ushers in a new era of autofocus with the Multi-CAM 20K AF sensor module. It uses 153 focus points with 99—yes 99—cross-type sensors and a fully dedicated AF processor, and it works in near darkness (EV -4). Small subjects moving at high speed, even in low light, can be tracked with remarkable precision. The system is configurable in 153-, 72- and 25-point coverage when used with Continuous AF. All 153 points are compatible with AF NIKKOR lenses f/5.6 or faster, and 15 central points work with an effective aperture of f/8. Whether you’re shooting a high-speed race or A-listers on the red carpet, the D5 has you covered.

VIEW SAMPLE PHOTOS(VIEW IN A LIGHTBOX)

D5 DSLR with ME-1 Stereo Mic on the hot-shoe

Moviemaking flexibility

4K UHD video in light others wouldn’t dare

For the first time in a full-frame Nikon DSLR, record 4K Ultra High Definition (UHD) video with dot-by-dot readout for maximum image quality. Capture 3840 x 2160 at 30/25/24p with an angle of view approx. 1.5x lens focal length, or record Full HD 1080 video at 60/30/24p. Shoot stunning 4K UHD Time-lapse, right in camera. Auto ISO handles smooth lighting transitions from ISO 200 to the sensitivity of your choice (all the way up to Hi-5). Enjoy all the professional video capabilities of D4S and D810—simultaneous external and internal recording, Flat Picture Control, Zebra Stripes, a built-in stereo microphone with 20-step increment adjustments and so much more. Combine the D5’s low light capabilities and the versatility of NIKKOR lenses, and your next video project is bound to be acclaimed.

Photo of the rear of a D5 DSLR with an image of a woman leading a marching band and a hand touching the LCD showing touchscreen functionality

A smooth operator

Incorporating feedback from the field, the D5 is engineered to reduce the stress factors of shooting all day. Improved ergonomics and an expanded illuminated button layout put key controls at your fingertips. A high resolution XGA Touchscreen LCD with a smartphone-like interface makes it easy to select AF points or Spot White Balance in Live View, swipe through shots, pinch to zoom, edit file names and more. New double XQD card slots* easily handle the camera’s incredible burst shooting capacity and keep the buffer cleared. All of this in a light and durable magnesium-alloy body with extensive weather sealing.

*A new modular design for memory lets you select a model with either dual XQD slots or dual high-speed CF slots.

VIEW D5 UNDER THE HOOD GALLERY(VIEW IN A LIGHTBOX)

Photo of Nikon D5 surrounded by NIKKOR lenses

Change your perspective

The D5 uses the versatile “F” lens mount that pros and advanced shooters have come to rely on. Use your prized NIKKOR glass to bring out the absolute best in your photos and videos. Pair the high speed of the D5 with a NIKKOR lens equipped with SPORT VR mode, like AF-S NIKKOR 500mm or 600mm f/4E, and experience unprecedented smoothness and precision. SPORT VR mode delivers a stable viewfinder image when tracking high-speed movement; even subjects moving quickly and unpredictably can be captured in stunning detail.

Photo of a ballerina in a forest shot with the D5 and SB-5000 Speedlight

Ready for the future of creative lighting

The D5 is the first Nikon full-frame DSLR to incorporate control for its new radio controlled Advanced Wireless Lighting system. With the optional WR-A10 (Wireless Remote Adapter) and WR-R10 Wireless Remote Controller (transceiver) (requires firmware version 3.0 or later), the D5 can control and fire up to six groups of SB-5000 Speedlights around obstacles, corners, in bright sunlight—even in another room—up to 98 feet away. Access control right from the D5’s menu and shine light on yet more shooting opportunities. Of course, the D5 is also fully compatible with SB-910, SB-800 and SB-700 series Speedlights.

VIEW SAMPLE PHOTOS(VIEW IN A LIGHTBOX)

Photo of the D5 with a NIKKOR lens and ME-1 mic on the hotshoe, alongside a D5 with NIKKOR lens and Ethernet cable attached

Streamlined workflow

Shoot more and wait less with the D5’s ultrafast communication system, which performs over 1.5 times faster than D4S. Transfer files over LAN at blazing speeds: approx. 400 mbps wired and 130 mbps wirelessly with the new optional WT-6A Wireless Transmitter, which supports the IEEE802.11ac standard and extends connectivity distance to 656 ft. For even faster performance, shoot in two smaller RAW sizes: RAW size S (12 bit, uncompressed) and RAW size M, both of which maintain exceptional sharpness and detail.

Side by side photos of the twin XQD and twin CF card slots of the D5

XQD or Compact Flash memory? Your choice.

The D5 lets you select your preference—dual XQD card slots or dual Compact Flash slots. The XQD format is designed to take advantage of the speed that the D5 can offer photographers. For instance, the Nikon D5 can shoot at 12 frames per second and can record up to 200 NEF (RAW) and/or Large JPEG images during one high-speed burst. For photographers shooting sports, action and other fast paced events or 4K UHD video, it is vital to have a media card format that can keep up with the camera. XQD is the solution.

Nikon D5 Specs

Type of camera
Type	Single-lens reflex digital camera
Lens mount	Nikon F mount (with AF coupling and AF contacts)
Effective angle of view	Nikon FX format
Effective pixels
Effective pixels	20.8 million
Image sensor
Image sensor	35.9 x 23.9 mm CMOS sensor
Total pixels	21.33 million
Dust-reduction system	Image sensor cleaning, Image Dust Off reference data (Capture NX-D software required)
Storage
Image size(pixels)	FX (36×24) image area: 5568 x 3712 (L), 4176 x 2784 (M), 2784 x 1856 (S) 1.2x (30×20) image area: 4640 x 3088 (L), 3472 x 2312 (M), 2320 x 1544 (S) DX (24×16) image area: 3648 x 2432 (L), 2736 x 1824 (M), 1824 x 1216 (S) 5:4 (30×24) image area: 4640 x 3712 (L), 3472 x 2784 (M), 2320 x 1856 (S) Photographs taken during movie recording at a frame size of 3840 x 2160: 3840 x 2160 FX-format photographs taken during movie recording at a frame size of 1920 x 1080 or 1280 x 720: 5568 x 3128 (L), 4176 x 2344 (M), 2784 x 1560 (S) DX-format photographs taken during movie recording at a frame size of 1920 x 1080 or 1280 x 720: 3648 x 2048 (L), 2736 x 1536 (M), 1824 x 1024 (S) Photographs taken during movie recording at a frame size of 1920 x 1080 crop: 1920 x 1080
File format	NEF (RAW): 12 or 14 bit (lossless compressed, compressed or uncompressed); large, medium, and small available (medium and small images are recorded at a bit depth of 12 bits using lossless compression) TIFF (RGB) JPEG: JPEG-Baseline compliant with fine (approx. 1:4), normal (approx. 1:8) or basic (approx. 1:16) compression; optimal quality compression available NEF (RAW)+JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats
Picture Control system	Standard, Neutral, Vivid, Monochrome, Portrait, Landscape and Flat; selected Picture Control can be modified; storage for custom Picture Controls
Storage media	XQD-Type (Models for use with XQD cards): XQD cards CF-Type (Models for use with CompactFlash cards): Type I CompactFlash memory cards (UDMA7 compliant)
Double card slots	Slot 2 can be used for overflow or backup storage or for separate storage of copies created using NEF+JPEG; pictures can be copied between cards
File system	DCF 2.0, Exif 2.3, PictBridge
Viewfinder
Viewfinder	Eye-level pentaprism single-lens reflex viewfinder
Frame coverage	FX (36×24): Approx. 100% horizontal and 100% vertical 1.2x (30×20): Approx. 97% horizontal and 97% vertical DX (24×16): Approx. 97% horizontal and 97% vertical 5:4 (30×24): Approx. 97% horizontal and 100% vertical
Magnification	Approx. 0.72x (50 mm f/1.4 lens at infinity, -1.0 m^-1)
Eyepoint	17 mm (-1.0 m^-1; from center surface of viewfinder eyepiece lens)
Diopter adjustment	-3 to +1 m^-1
Focusing screen	Type B BriteView Clear Matte Mark IX screen with AF area brackets (framing grid can be displayed)
Reflex mirror	Quick return
Depth-of-field preview	Pressing Pv button stops lens aperture down to value selected by user (A and M modes) or by camera (P and S modes)
Lens aperture	Instant return, electronically controlled
Lens
Compatible lenses	Compatible with AF NIKKOR lenses, including type G, E, and D lenses (some restrictions apply to PC lenses), DX lenses (using DX [24×16] 1.5x image area), AI-P NIKKOR lenses, and non-CPU AI lenses (exposure modes A and M only); IX-NIKKOR lenses, lenses for the F3AF, and non-AI lenses cannot be used: The electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster (the electronic rangefinder supports the 15 focus points with lenses that have a maximum aperture of f/8 or faster, of which 9 points are available for selection)
Shutter
Type	Electronically-controlled vertical-travel focal-plane mechanical shutter; electronic front-curtain shutter available in mirror up release mode
Speed	1/8000 to 30 s in steps of 1/3, 1/2 or 1 EV, bulb, time, X250
Flash sync speed	X=1/250 s; synchronizes with shutter at 1/250 s or slower
Release
Release mode	S (single frame), CL (continuous low speed), CH (continuous high speed), Q (quiet shutter-release), Self-timer, MUP (mirror up)
Approximate frame advance rate	Up to 10 fps (CL); 10 to 12 fps, or 14 fps with mirror up (CH); or 3 fps (quiet continuous mode)
Self-timer	2 s, 5 s, 10 s, 20 s; 1 to 9 exposures at intervals of 0.5, 1, 2 or 3 s
Exposure
Metering	TTL exposure metering using RGB sensor with approx.180K (180,000) pixels
Metering method	Matrix: 3D color matrix metering III (type G, E and D lenses); color matrix metering III (other CPU lenses); color matrix metering available with non-CPU lenses if user provides lens data Center-weighted: Weight of 75% given to 12-mm circle in center of frame; diameter of circle can be changed to 8, 15 or 20 mm, or weighting can be based on average of entire frame (non-CPU lenses use 12-mm circle) Spot: Meters 4-mm circle (about 1.5% of frame) centered on selected focus point (on center focus point when non-CPU lens is used) Highlight-weighted: Available with type G, E and D lenses
Range (ISO 100, f/1.4 lens, 20°C/68°F)	Matrix or center-weighted metering: -3 to 20 EV Spot metering: 2 to 20 EV Highlight-weighted metering: 0 to 20 EV
Exposure meter coupling	Combined CPU and AI
Mode	Programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M)
Exposure compensation	-5 to +5 EV in increments of 1/3, 1/2 or 1 EV
Exposure lock	Luminosity locked at detected value
ISO sensitivity (Recommended Exposure Index)	ISO 100 to 102400 in steps of 1/3, 1/2 or 1 EV; can also be set to approx. 0.3, 0.5, 0.7 or 1 EV (ISO 50 equivalent) below ISO 100 or to approx. 0.3, 0.5, 0.7, 1, 2, 3, 4 or 5 EV (ISO 3280000 equivalent) above ISO 102400; auto ISO sensitivity control available
Active D-Lighting	Can be selected from auto, extra high +2/+1, high, normal, low or off
Focus
Autofocus	Multi-CAM 20K autofocus sensor module with TTL phase detection, fine-tuning and 153 focus points (including 99 cross-type sensors and 15 sensors that support f/8), of which 55 (35 cross-type sensors and 9 f/8 sensors) are available for selection
Detection range	-4 to 20 EV (ISO 100, 20°C/68°F)
Lens servo	Autofocus (AF): Single-servo AF (AF-S); continuous-servo AF (AF-C); predictive focus tracking automatically activated according to subject status Manual focus (M): Electronic rangefinder can be used
Focus point	153 focus points, of which 55 or 15 are available for selection
AF-area mode	Single-point AF, 25-, 72-, or 153-point dynamic-area AF, 3D-tracking, group-area AF, auto-area AF
Focus lock	Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing the center of the sub-selector
Flash
Flash control	TTL: i-TTL flash control using RGB sensor with approx. 180K (180,000) pixels; i-TTL balanced fill-flash for digital SLR is used with matrix, center-weighted, and highlight-weighted metering, standard i-TTL fill-flash for digital SLR with spot metering
Flash mode	Front-curtain sync, slow sync, rear-curtain sync, red-eye reduction, red-eye reduction with slow sync, slow rear-curtain sync, off; auto FP high-speed sync supported
Flash compensation	-3 to +1 EV in increments of 1/3, 1/2 or 1 EV
Flash-ready indicator	Lights when optional flash unit is fully charged; flashes after flash is fired at full output
Accessory shoe	ISO 518 hot-shoe with sync and data contacts and safety lock
Nikon Creative Lighting System (CLS)	Supported
Radio-controlled Advanced Wireless Lighting	Supported
Unified flash control	Supported
Sync terminal	ISO 519 sync terminal with locking thread
White balance
White balance	Auto (3 types), incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual (up to 6 values can be stored, spot white balance measurement available during live view), choose color temperature (2500 K to 10000 K); all with fine-tuning
Bracketing
Bracketing types	Exposure, flash, white balance, and ADL
Live View
Live view mode	Photo live view with available silent mode, Movie live view
Lens servo	Autofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F) Manual focus (M)
AF-area mode	Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF
Autofocus	Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
Movie
Metering	TTL exposure metering using main image sensor
Metering method	Matrix, center-weighted or highlight-weighted
Frame size (pixels) and frame rate	3840 x 2160 (4K UHD); 30p (progressive), 25p, 24p 1920 x 1080; 60p, 50p, 30p, 25p, 24p 1920 x 1080 crop; 60p, 50p, 30p, 25p, 24p 1280 x 720; 60p, 50p Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps respectively; ★high quality available at all frame sizes, normal quality available at all sizes except 3840 x 2160
File format	MOV
Video compression	H.264/MPEG-4 Advanced Video Coding
Audio recording format	Linear PCM
Audio recording device	Built-in stereo or external microphone; sensitivity adjustable
ISO sensitivity	Exposure modes P, S and A: Auto ISO sensitivity control (ISO100to Hi 5) with selectable upper limit Exposure mode M: Auto ISO sensitivity control (ISO 100 to Hi 5) available with selectable upper limit; manual selection (ISO 100 to 102400 in steps of 1/3, 1/2, or 1 EV) with additional options available equivalent to approx. 0.3, 0.5, 0.7, 1, 2, 3, 4 or 5 EV (ISO 3280000 equivalent) above ISO 102400
Other movie options	Index marking, time-lapse movies
Monitor
Monitor	8-cm/3.2-in., approx. 2359k-dot (XGA) TFT touch-sensitive LCD with 170° viewing angle, approx. 100% frame coverage, and manual monitor brightness control
Playback
Playback	Full-frame and thumbnail (4, 9 or 72 images) playback with playback zoom, movie playback, photo and/or movie slide shows, histogram display, highlights, photo information, location data display, auto image rotation, picture rating, voice memo input and playback, and IPTC information embedding and display
Interface
USB	SuperSpeed USB (USB 3.0 Micro-B connector); connection to built-in USB port is recommended
HDMI output	Type C HDMI connector
Audio input	Stereo mini-pin jack (3.5-mm diameter; plug-in power supported)
Audio output	Stereo mini-pin jack (3.5-mm diameter)
10-pin remote terminal	Can be used to connect optional remote control, optional WR-R10 (requires WR-A10 WR Adapter) or WR-1 Wireless Remote Controller, GP-1/GP-1A GPS Unit, or GPS device compliant with NMEA0183 version 2.01 or 3.01 (requires optional MC-35 GPS Adapter Cord and cable with D-sub nine-pin connector)
Ethernet	RJ-45 connector Standards: IEEE 802.3ab (1000BASE-T)/IEEE 802.3u (100BASE-TX)/IEEE 802.3 (10BASE-T) Data rates: 10/100/1000 Mbps with auto detect (maximum logical data rates according to IEEE standard; actual rates may differ) Port: 1000BASE-T/100BASE-TX/10BASE-T (AUTO-MDIX)
Peripheral connector	For WT-6/A/B/C, WT-5A/B/C/D Wireless Transmitter
Supported languages
Supported languages	Arabic, Bengali, Bulgarian, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Marathi, Norwegian, Persian, Polish, Portuguese (Portugal and Brazil), Romanian, Russian, Serbian,Spanish, Swedish,Tamil, Telugu, Thai, Turkish, Ukrainian, Vietnamese
Power source
Battery	One EN-EL18a Rechargeable Li-ion Battery
AC adapter	EH-6b AC Adapter; requires EP-6 Power Connector (available separately)
Tripod socket
Tripod socket	1/4 in. (ISO 1222)
Dimensions / weight
Dimensions (W x H x D)	Approx. 160 x 158.5 x 92 mm/6.3 x 6.3 x 3.7 in.
Weight	XQD-Type (Models for use with XQD cards): Approx. 1405 g/3 lb 1.6 oz with battery and two XQD memory cards but without body cap and accessory shoe cover; approx. 1235 g/2 lb 11.6 oz (camera body only) CF-Type (Models for use with CompactFlash cards): Approx. 1415 g/3 lb 1.9 oz with battery and two CompactFlash memory cards but without body cap and accessory shoe cover; approx. 1240 g/2 lb 11.8 oz (camera body only)
Operating environment
Operating environment	Temperature: 0 to 40°C/32 to 104°F humidity: 85% or less (no condensation)

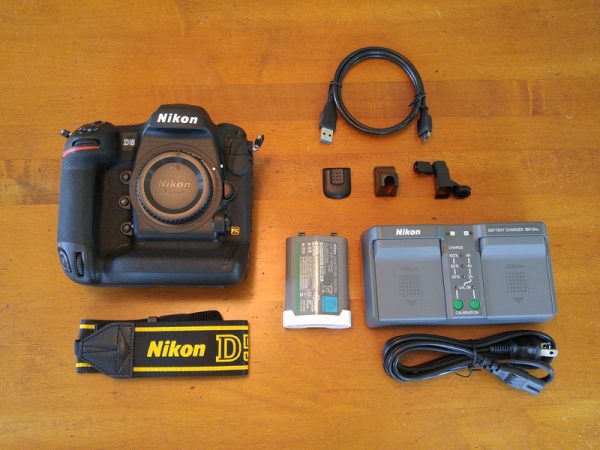

Accessories
Supplied accessories (may differ by country or area)	EN-EL18a Rechargeable Li-ion Battery, MH-26a Battery Charger, UC-E22 USB Cable, AN-DC15 Strap, BF-1B Body Cap, BS-3 Accessory Shoe Cover, USB Cable Clip, HDMI Cable Clip, DK-27 Eyepiece Adapter, DK-17F Fluorine-Coated Finder Eyepiece, BL-6 Battery Chamber Cover

XQD is a trademark of SONY Corporation.
PictBridge is a trademark.
CompactFlash is a registered trademark of SanDisk Corporation.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
Windows is either a registered trademark or atrademark of Microsoft Corporation in the United States and/or othercountries.
Google and Android™ are trademarks or registered trademarks of Google Inc.
Products and brand names are trademarks or registered trademarks of their respective companies.
WT-6/A/B/C Wireless Transmitter, SB-5000 Speedlight and WR-1/WR-R10 Wireless Remote Controller are controlled by the United States Export Administration Regulations. The permission of the U.S. government is not required for export to countries other than the following, which as of this writing are subject to embargo or special controls: Cuba, Iran, North Korea, Sudan, and Syria (list subject to change).

Specifications are subjects to change without notice.

LCD, Video and Photo Gallery images are for illustrative purposes only.
