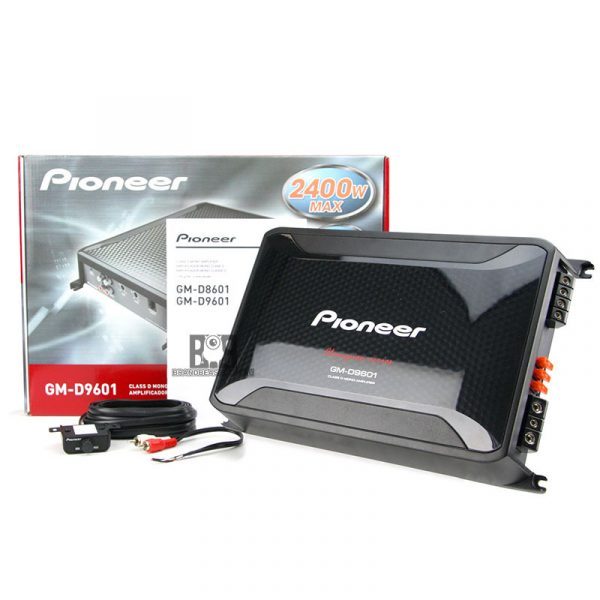

Pioneer GM-D9601 Mono Subwoofer Amplifier

Rating
Availability: In stock

Class D Mono Amplifier with Wired Bass Boost Remote

  • 2,400 Watts Max Power
  • Compact Design for Versatile Installation Options
  • Wired Bass Boost Remote and Variable Bass Control
  • 1 ohms Stable
Compare

Pioneer GM-D9601 2,400 Watt Class D Mono Amplifier with wired bass boost control



Pioneer GM-D9601 2,400 Watt Class D Mono Amplifier with wired bass boost control features:

  • 2,400 Watts Max Power
  • Pulse Width Modulated MOSFET Power supply
  • Compact Design for Versatile Installation Options without compromising sound quality, Efficient Class-D digital amplifiers are 50% smaller that the Pioneer GM-Series amplifiers.
  • Improved Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Stability circuitry allows connection to 1 ohm subwoofer systems which allows connection of large or multiple subwoofers.
  • Variable Low Pass filters allow you to adjust the playback frequencies from 40Hz to 240Hz
  • Wired remote bass control allows you to adjust the level of bass
  • Speaker level inputs allow you to connect this amplifier stereo system that do not have RCA outputs. The is very typical for OEM head-units and you can now avoid adding separate line level converters.
  • Remote turn on by auto signal sense, so you do not need to run a remote turn on lead with OEM head-units
  • Bridge mode allows to run this as a three channel or two channel amplifier
  • 2 channel RCA inputs accepts up to 6.5 volt input signals
  • RCA Pass through outputs to connect multiple amplifiers in series
  • Bass boost 0-18dB
  • Gold plated screw terminal connections for Power Inputs and Speaker level outputs
  • Continuous Power Output (1 Ω, ≤ 1% THD+N): 1,200 W x 1
  • Continuous Power Output (2 Ω, ≤ 1% THD+N): 800 W x 1
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 500 W x 1
  • Frequency Response: 10Hz to 240Hz
  • Total Harmonic Distortion (4 Ω): < 0.5% (1kHz)
  • Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >100dB
  • Dimensions: 12 3/8″ (W) x 2 3/8″ (H) x 7 7/8″ (D)
