RoughRider Wheelchair

Description

The award-winning RoughRider is designed to handle rugged terrain with ease. It has been proven in over 25 countries by thousands of riders who live in the worst of conditions and need the best of chairs. Riders use it as a super-durable daily-use chair or as a backup when life calls for off-pavement adventures.

The RoughRider is Whirlwind’s answer to expensive fragile chairs that unnecessarily limit access.Priced at less than half of other outdoor wheelchairs, the RoughRider is by far the best-value rugged wheelchair.

Features

Back Rest Adjustable: 15″ 17″ 19″
Long Wheelbase: Provides outstanding stability and safety from tipping – the number one cause of injury to wheelchair riders

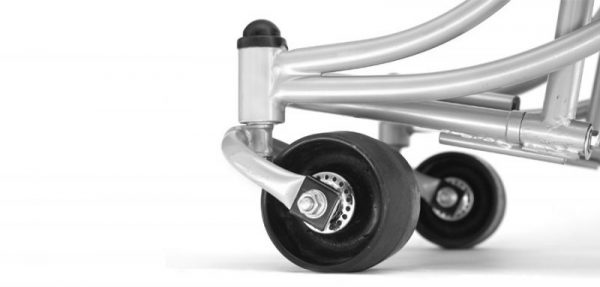

WideFlex Casters: Whirlwind’s signature Zimbabwe wheels float over soft surfaces like grass and mud and absorb shocks for a smooth ride
Tight Turning: Radius Useable in spaces as tight as less stable chairs
High Traction Rear Bike Tires: Perfect for off road adventures and affordable to replace
Super Duty Tough: Double the industry standard durability performance tests
Multi Position Rear Axle: Allows for center of gravity adjustment for optimal balance
Easy Transport: Simple X-Brace folding design
Bucket Seat: Seat dump designed keep the rider safe chair sudden stops
Machine Washable Upholstery
Easily Available Parts: – Tires, tubes, hardware and bearings are easy to find locally
Sporty Wheel Camber: -3 degrees of wheel camber gives ergonomic push rim placement and lateral stability
Push Button Quick Release Wheels: – Now standard
Anti-Tippers – Now standard
Note: Pressure relief cushion is now included.

Specifications

Seat Widths: 12.5”, 14”, 15.5”, 17”, 18.5”
Seat Depths: 14”, 16”, 18”
Front Seat Height: 19.3” *
Back Seat Height: 16.5” *
Seat Angle: 12 degrees
Back Heights: 14”, 16”, 18” (adjustable) *
Foot Rest Height: 12” – 17” below seat (adjustable)
Lower Back Support Angle: fixed at 8 degrees
Upper Back Support Angle:## 8 degrees, 12 degrees, 15 degrees, custom
Wheel Camber: 3 degrees
Axle Position: 5-position adjustable +/- 0.8”
Max Tested Rider Weight: 220 lbs
Track Length:** 20.4” – 23.55”
Overall Width: 21.5” – 28.5”
Caster Size: 4.5” x 3”
Overall Length:*** 38.7” – 41.85”
Frame Type: Folding
Folded Width: 14” including rear wheels
Weight: 44 lbs (with Whirlwind Super Duty Mountain Bike wheels)

* Seat Height measurement is based on 15.5 Seat Width. Seat Height varies +/- 1.2” with other Seat Widths.

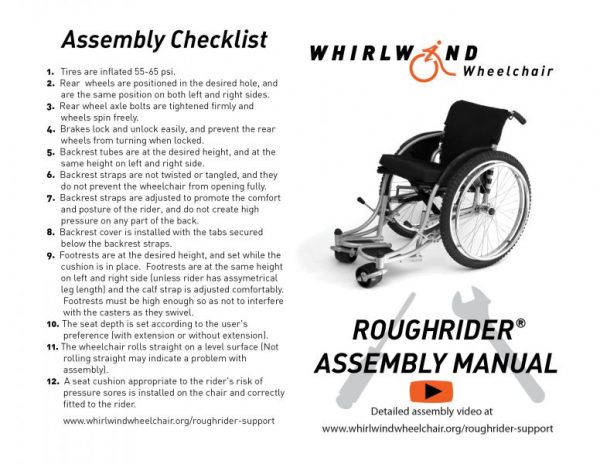

• RoughRider Wheelchair Assembly
• Brake Adjustment
• Backrest Height And Tensionable Straps
• Footrest Height
• Caster Installation
• Rear Wheel Installation
• Seat Extension
• Anti-tip Assembly instructions
• Quick Release Rear Wheel Assembly
