Samsung Gear S3 Frontier Smartwatch with Active Silicon Band

SM-R760NDAAXAR

Gear S3 frontier

Bluetooth^®

About This Product

Stay in touch, without reaching for your phone,¹ with the smartwatch that’s engineered for adventure. With the Gear S3, you can pay right from your wrist, track your location, and withstand any weather.²

TEST >

Never miss a moment.

The Gear S3 is Bluetooth connected¹ so you can receive texts, emails, and alerts without reaching for your phone. With a built-in speaker and microphone, you can also make and answer calls hands-free.

Pay with your watch.

With Samsung Pay on your Gear S3, you can easily make payments with your watch almost anywhere you can swipe or tap a credit card—even without your phone or wallet.²

Get out there.

Whether you’re off-roading or exploring a new city, the built-in GPS tracks your activity and makes it easy to share your location.

Designed for the elements

The military-grade Gear S3 is tough enough to handle the elements. It resists water, dust, extreme temperatures, and the occasional drop so you can venture out with confidence.³

Just turn the bezel.

Rotate the distinctive steel bezel to easily access apps and notifications so you can instantly check texts, updates, and more.

Go for days

Go nonstop for days on a single charge.⁴ When it’s time to recharge, the wireless charger lets you power up without slowing down.

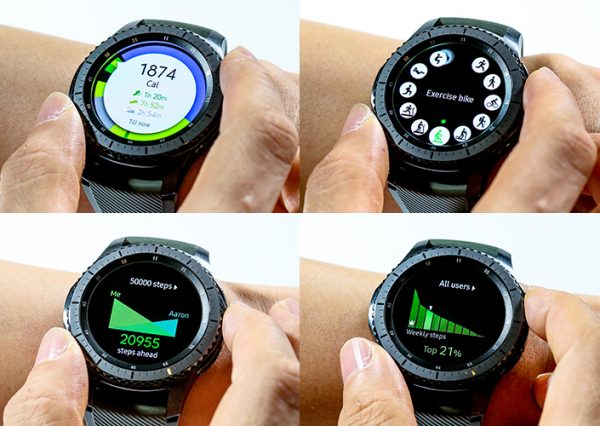

Track your fitness.

With the built-in S Health app, track your steps, monitor your heart rate, and more.⁵Set goals, post results, and check leaderboards to see how you stack up.

Apps at your command

Access the apps you use every day on your Gear S3. Catch a ride, check scores, stream music, and more.

Tailored to you

Make the Gear S3 your own. Customize your watch face, choosing from thousands of striking colors and designs. Plus easily swap out the standard 22mm band.⁶

Sync with Android and iOS.

Just pair your smartwatch via Bluetooth using the Samsung Gear companion app.⁷

Built-in mic

1.3 “

Display Size

HIDE ALL SPECS

Category

Type

Gear S3 frontier
Carrier

Type

Bluetooth
Color

Color

Dark Gray
OS

OS

Tizen 2.3.2
Size

Weight

2.2 oz (63g), without bands
Battery

Battery Type and Size

380mAh Li-ion

Typical Usage

up to 3 days**

Charging Method

Wireless Charging Dock
Memory

Internal Memory

4GB Internal Memory / RAM 768MB
Connectivity

Type

Bluetooth-only

Wi-Fi

Wi-Fi b/g/n

Bluetooth

Bluetooth^® 4.2

Location Technology

GPS / Glonass

NFC

Yes

Network

3G UMTS : B2(1900), B5(850)
Case

Case Dimension

46mm x 49mm | 1.81” x 1.93”

Case Depth

12.9mm | 0.51”

Case Crystal

Gorilla Glass SR+
Strap

Material

Active Silicon (Gear S3 frontier)

Length

Strap with buckle – 70mm or 2.76 in.
Large strap with holes – 130mm or 5.12 in.
Small strap with holes – 110mm or 4.33 in.

Width

Standard 22mm wide connection

Buckle band

70mm (2.755 in)
Processor

Processor Speed, Type

1GHz, Dual Core (Exynos7270)
Display

Main Display Resolution

360×360, 278ppi

Main Display Size

1.3 “

Main Display Technology

Super AMOLED, Full Color Always on Display

Touchscreen

On-Cell Touch AMOLED
Key Features

GPS Navigation

Yes

Enabled for 4G LTE

4G LTE : B2(1900), B5(850)

Dust and Water-resistant

IP68*** (water and dust resistant rating)

Military-grade durability

MIL-STD-810G (Military-grade durability)
Audio

Audio Playing Format

MP3, M4A, 3GA, AAC, OGG, OGA, WAV, WMA, AMR, AWB
Codec: MP3, AMR-NB, MAR-WB, AAC, AAC+, eAAC+, WMA, Vorbis
Fun & Entertainment

Features

S Health
Services and Applications

Gear Manager

Yes

S-Voice

Yes

Additional Features

24Hours, SleepTracking, Floors, Auto Exercise Tracking, Auto HR, Together

Samsung Pay

Yes

S Health

**** 24-hour-log, Steps, Floors, Heart Rate, Challenges, Leaderboard, Water and Caffeine

Auto Exercise Tracking

Walking, Running, Cycling, Elliptical trainer, Rowing machine, Dynamic workout
Communication Features

Features

Music Player, GPS Exercise, Notifications, Preset text, Emoticons
Sensor Type

Type

Accelerometer, Barometer, Gyro Sensor, Heart Rate Monitor, Ambient Light Sensor

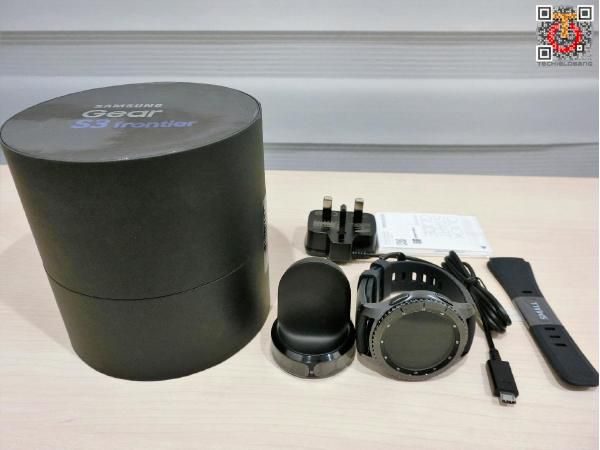

Package Contents

Included in Box

Gear S3 frontier
Band Strap
Wireless Charging Dock / Display Stand
Quick Start Guide
User Manual

Key Features

4G LTE CONNECTIVITY

The Gear S3 frontier is the first Samsung smartwatch on the AT&T 4G LTE network.¹

NUMBERSYNC

NumberSync^SM—only from AT&T—lets you call and text using your primary mobile number.³

DIRECTV

Change channels, schedule recordings, and more with the DIRECTV Remote App on the Gear S3 smartwatch.⁴

DIGITAL LIFE

Monitor and manage your home directly from your wrist.⁵

Features

Music

Music Player

Supported music formats

AMR, MP3, MP4, M4A, OGG, OGA, WAV, WMA

Create music playlists

Via Gear companion app

External music play controls

Via screen

Messaging

Text Messaging

Send and receive text messages from your wrist (messaging charges apply)

Email

Mobile Email

Get support for POP3/IMAP, Yahoo!® Mail, Gmail™, Hotmail®, Outlook.com, Microsoft® Exchange ActiveSync®, and more via your supported smartphone running Samsung Gear app.⁶

Microsoft Direct Push

Applications/Media

Ringtones

Cool Tools

Samsung Pay, S Health™

Customizable Watchface

Preloaded apps from AT&T

DIRECTV, Digital Life

Appstore

Samsung Galaxy Apps Store

Productivity

Calendar

Alarm clock

Call waiting

Caller ID

Contacts

Conference calling

Call forwarding

Multitasking

Sensors

Accelerometer, Ambient Light, Barometer, Gyroscope, Heart Rate, Altimeter

Extras

Voice dialing and voice commands

Wireless Emergency Alerts-capable

SIM Type

Nano

UPC

887276186283

Technical Specifications

Battery

Capacity

380mAh (non-removable)

Talk Time (hours)

Up to 3.1

Standby time (days)

Up to 2.5 (Bluetooth® connected)

Wireless Charging Capable

Dimensions

Size (inches)

1.81 x 1.93 x 0.51

Weight (ounces)

5.36

Display

Display size (inches)

1.3-inch circular Super AMOLED® with Corning® Gorilla® Glass SR+

Resolution (pixels)

360 x 360

Colors

16 million

Processor

Chipset

Exynos 7270

Cores

1.0 GHz dual-core

Memory

Internal memory storage

Up to 4GB

RAM

768MB

Wireless Technology

4G-LTE

Bands 2 and 5

3G – UMTS

850/1900MHz

NumberSync Capable

Wi-Fi connectivity

802.11 b/g/n

Near Field Communication (NFC)

Open, Secure

Bluetooth® technology

v4.2

FOTA capable – upgrade Firmware OverThe Air

Via Gear Manager

Operating System

Tizen™

OS Version

2.3

Keyboard

Touchscreen

QWERTY

Virtual

Predictive text for fast typing

Handwriting recognition

¹4G LTE not available everywhere. LTE is a trademark of ETSI.

²The Gear S3 frontier works with any Android phone running 4.4 or later and works best with a Samsung Galaxy class smartphone.

³Requires HD Voice-enabled smartphone. Data charges apply to text messages sent/received through watch via NumberSync. Watch must be in AT&T-owned/operated coverage area to share phone’s number. 911 calls are not supported outside the US, Puerto Rico or USVI. Other restrictions apply. Details at att.com/numbersync.

⁴Requires DIRECTV service and compatible internet-connected HD DVR (available separately). Watch must be connected to same Wi-Fi network as receiver to use remote. Some functionality requires standard remote control. Details at directv.com/apps.

⁵Requires Digital Life service (sold separately). Details at att.com/digitallife.

⁶Email support limited on non-Samsung handsets to notifications only. Notifications, reply and delete supported on Samsung handsets.
Disclaimer

Disclaimer

*All functionality, features, specifications and other product information provided in this document including, but not limited to, the benefits, the design, pricing, components, performance, availability, and capabilities of the product are subject to change without noticed or obligation. **Battery performance may vary depending on network conditions and configuration and device usage. ***IP68 rating means it’s water-resistant in up to 5 feet of water for up to 30 minutes; rinse residue/dry after wet. See user manual. ****Caution! The information gathered from his device or its related software is not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment or prevention of disease. The accuracy of the information and data provided by this device and its related software, including heart rate readings, may be affected by factors such as environmental conditions, skin condition, specific activity performed while wearing the device, setting of the device, user configuration/user provided information, placement of the sensor on the wrist, and other end-user interactions. Please refer to the user manual for more information on proper wear and use, or see www.samsung.com/us/heartratesensor
