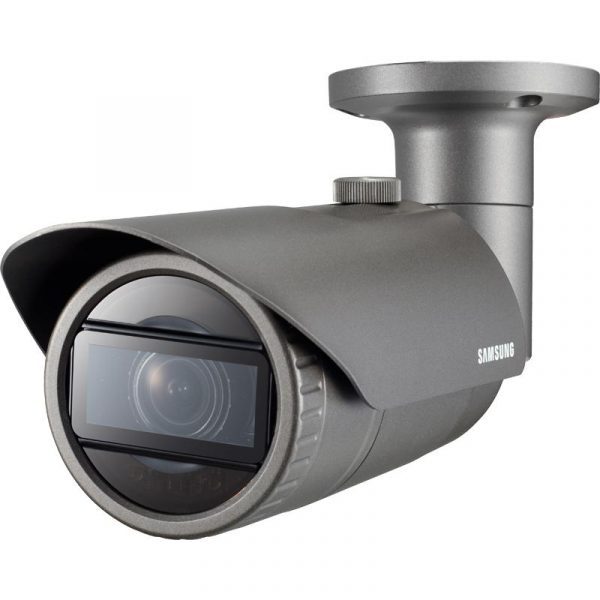

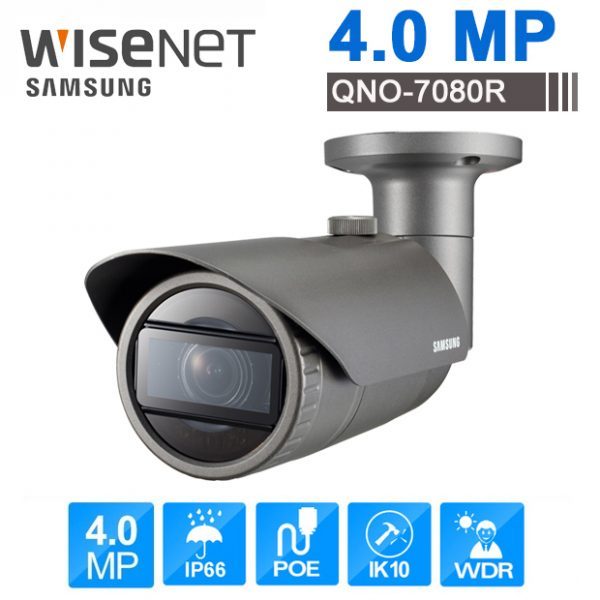

Samsung QNO-7080R 4MP IR Network Bullet Security Camera
Key Features:
- Max. 4M resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- Max. 20fps@4M, Max.30fps@2M all resolutions
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Motion detection, Tampering, Defocus detection
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 30m, IP66, IK10
- Hallway view support
- LDC support (Lens Distortion Correction)
SAMSUNG QNO-7080R 4MP IR NETWORK BULLET SECURITY CAMERA – 2.8~12MM MOTORIZED LENS, 1/3″ CMOS, 1080P, H.265, WEATHER AND VANDAL PROOF, 120DB WDR
The QNO-7080R from Hanwha’s Q Series affordable network camera line is a 4MP bullet network camera featuring WiseStream, Hanwha’s compression technology, triple codec H.265/H.264/MJPEG, 2.8 ~ 12.0mm motorized varifocal lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
The unit’s varifocal lens provides wide horizontal views (up to 109°) and allows the desired viewing angle to be easily set during installation. Wide dynamic range (WDR) is supported, enabling details in scenes with bright and dark areas to be viewed clearly. Additionally, Hallway viewing mode is also supported and helps to maximise the area of interest in narrow scenes by vertically orientating the video stream.
Configurable video motion detection and tampering alarms can be set to trigger recording to the on-board MicroSD card and also inform users of activity via email notification. The unit’s integrated I/O ports allow the connection of external devices to enhance alarm signalling, and a microphone (not included) can be connected through the audio I/O port to enable audio recording.
Power-over-Ethernet supplies the unit with both power and network connectivity via a single cable – resulting in a quick and cost-effective installation. In addition, WiseStream technology is also included to help lower bandwidth and storage requirements.
Please note: this camera does not come with a power supply, please select from the dropdown menu above if required.
Key features & benefits
- Capable of delivering 4 megapixel video at 20 fps, or 2MP resolution at full frame rate
- True day/night functionality enables round-the-clock CCTV surveillance
- Built-in infrared LEDs provide up to 30m of night vision
- IP66 and IK10-rated housing provides protection in exposed, indoor or outdoor locations
- Varifocal lens offers horizontal viewing angles from 109° to 26°
- Enhanced security monitoring with a range of configurable video motion detection alarms
- External alarm sources can be connected via built-in I/O ports to enhance alarm signalling
- One-way audio is supported with the connection of a microphone (not included) – allowing users to listen to scene activity
- Wide dynamic range technology enables details in scenes with both bright and dark areas to be viewed clearly
- Hallway view helps to maximise the area of interest in narrow scenes by vertically orientating the video stream
- WiseStream technology lowers bandwidth by analysing and optimising the video stream in real time
- H.265 compression format is supported – offering further reductions on bandwidth and storage over H.264
- Recordings can be written to the on-board MicroSD card (not included) – providing a helpful data backup if the network fails
- PoE supplies the camera with both power and network connectivity via a single cable – simplifying installation
- Downloadable SmartViewer recording software provides a free video management solution for up to 36 IP cameras
- Remote access to live video and playback of recordings via the Wisenet mobile app for iOS or Android
- Dimensions: Ø70 x 246mm
- PoE consumption: 8W
- Warranty period: 5 years
Compatible Recording Platforms
Typical applications
The Samsung Wisenet QNO-7080R delivers high-quality 4 megapixel resolution at an attractive price. It’s an ideal choice for users requiring 24-hour CCTV monitoring in outdoor locations such as petrol stations, train platforms and small car parks.
Accessories
Included:
- Instruction manual
- Installation CD
- Mounting template
Optional (please select from the dropdown menu):
- PoE midspan
- MicroSD card
WATCH VIDEO
Product Specifications
| Video | |
|---|---|
| Imaging Device | 4 MP 1/3″ progressive CMOS sensor |
| Total Pixels | 2720 x 1536 |
| Effective Pixels | 2688 x 1520 |
| Minimum Illumination | Color: 0.15 lux (30 IRE) B/W: 0 lux (IR LED on) |
| Electrical | |
|---|---|
| Input Voltage | PoE IEEE 802.3af, Class 3, 12 VDC |
| Maximum Power Consumption | PoE: 8 W 12 VDC: 7 W |
| Environmental | |
|---|---|
| Operating Temperature | -22 to 131°F (-30 to 55°C) |
| Operating Humidity | <90% RH |
| Storage Temperature | -22 to 140°F (-30 to 60°C) |
| Storage Humidity | <90% RH |
| Mechanical | |
|---|---|
| Material | Metal |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Dimensions (Ø x H) | Without Sunshield: 2.76 x 9.7″ (70 x 246 mm) With Sunshield: 3.1 x 10.2″ (77.6 x 260 |
| Weight | 1.65 lb (0.75 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.7 lb |
| Box Dimensions (LxWxH) | 11.7 x 7.0 x 5.4″ |
