-10%

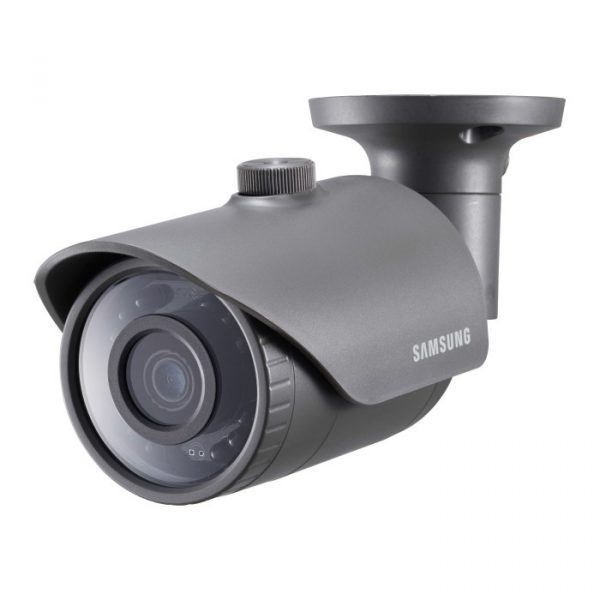

Samsung Sco-6023RP AHD Analog IR Bullet Camera
Availability:
In stock
KES19,000.00
SCD-6023R Key Features
• Full HD (1,920 x 1,080 30fps) resolution
• [email protected] (Color), [email protected] (B/W : IR LED on)
• Built-in 4mm fixed lens
• Day & Night (ICR), DWDR, SSNRIV, Motion detection
• IR viewable length 20m
• Transmission distance max. 500m
• Easy installation (Plug & play)
Samsung Sco-6023RP Full HD 1080p AHD Analog IR Bullet Camera 4mm Lens Boxed
WiseNet HD+ IR indoor dome cameras allow users to upgrade their surveillance systems to HD using legacy coax cabling without the costly process of ripping and replacing coax with Ethernet cabling. The new WiseNet HD+ cameras offer a variety of high-performance features including Day/Night operation, motion detection, defog, IR illuminators and more depending on model. Models include box, indoor dome, outdoor vandal dome, and outdoor bullet. Setup functions are easily controlled by OSD with the built-in joystick or control over coaxial cable with WiseNet HD+ DVRs. Low power consumption, compact form factors, and transmission up to 1,640 feet further enhance the lineup.
SCD-6023R Specification
| Video | |
| Imaging Device | 1/2.9″ 2M CMOS |
| Total Pixels | 2,000(H) x 1,121(V) 2.24M pixels |
| Effective Pixels | 1,984(H) x 1,105(V) 2.19M pixels |
| Scanning System | Progressive scan |
| Min. Illumination | Color : 0.25Lux (F2.1) B/W : 0Lux (IR LED on) |
| S / N Ratio | 52dB (AGC off, Weight on) |
| Video Output | BNC (AHD, CVBS selectable) |
| Resolution | 1920 x 1080 |
| Max. Framerate | 30fps@1080p, 30fps@720p |
| Lens | |
| Focal Length (Zoom Ratio) | 4mm fixed |
| Max. Aperture Ratio | F2.1 |
| Angular Field of View | H : 72.2˚ / V : 52.9˚ / D : 94.3˚ |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Manual |
| Lens Type | Fixed |
| Mount Type | Board-in type |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operat ional | |
| On Screen Display | English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
| Camera Title | Off / On (Displayed 15 characters) |
| Day & Night | Auto (ICR) / Color / B/W |
| Backlight Compensation | Off / User BLC / HLC |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | SSNRIV (Off / On) |
| Defog | Off / Auto / Manual |
| Motion Detection | Off / On (4 zones) |
| Privacy Masking | Off / On (4 zones rectangle) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
| Electronic Shutter Speed | 1sec ~ 1/12,000sec |
| Reverse | Off / H-Rev / V-Rev / HV-Rev |
| Profile | Basic, Day & Night, Backlight, Indoor, User |
| Remote Control Interface | Coaxial control |
| Protocol | Coax : NTSC/PAL – Samsung CCVC, Pelco-C (Coaxitron), AHD – ACP (AHD Coax Protocol) |
| IR Distance | 20m (65.62ft) |
| Video Transmission Distance | 500m (1,640.42ft) (75-5 coaxial cable) |
| Environmental | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Electrical | |
| Input Voltage / Current | 12V DC ±10% |
| Power Consumption | Max. 4.2W |
| Mechanical | |
| Color / Material | Ivory / Plastic |
| Dimensions (WxH) | Ø110.0 x 86.0mm (Ø4.33″ x 3.39″) |
| Weight | 242g (0.53 lb) |
How To Buy
