Specialized Pitch 27.5″ Mountain Bike 2017 – Hardtail MTB

Pitch 650b

You’ve thought about it—probably even got out on the dirt or gravel a few times—and now’s the time to pull the trigger on a fully-fledged mountain bike. Well, you’re in the right place. The Pitch 650b features everything you need to start getting off the road and out on some trails.

    • FRAME

      Specialized A1 Premium Aluminum, Sport Trail 650b Geometry, butted tube sets, externally relieved head tube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger

    • FORK

      SR Suntour XCT 650b, coil spring, custom Multi-Circuit Damping, 80/100mm travel

    • FRONT HUB

      Shimano Center Lock, disc, 9x100mm QR, 32h

    • REAR HUB

      Shimano Center Lock, disc, 10x135mm QR, 32h

    • SPOKES

      Stainless, 14g

    • RIMS

      Stout 650b, alloy, disc only, double-wall, 25mm inner width, 32h

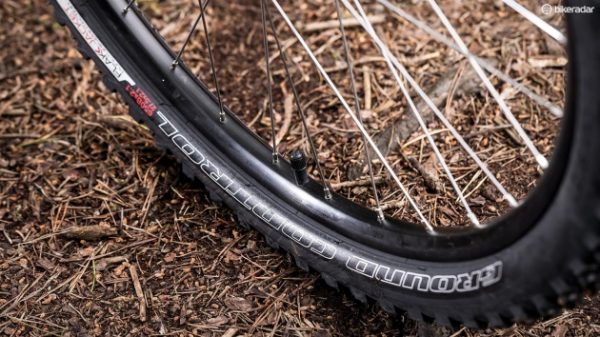

    • FRONT TIRE

      Ground Control Sport, 650bx2.1″, 60TPI, wire bead, Flak Jacket protection

    • REAR TIRE

      Ground Control Sport, 650bx2.1″, 60TPI, wire bead, Flak Jacket protection

    • CRANKSET

      Forged alloy, square taper spindle w/chainguard

    • CHAINRINGS

      44/32/22T

    • BOTTOM BRACKET

      Square taper, 73mm, internal bearings

    • SHIFT LEVERS

      Shimano EF510, EZ Fire Plus, 8-speed

    • FRONT DERAILLEUR

      Shimano Altus, 34.9mm clamp, down-swing, 7/8-speed

    • REAR DERAILLEUR

      Shimano Acera, SGS cage, 8-speed

    • CASSETTE

      Sunrace, 8-speed, 11-34t

    • CHAIN

      KMC X8, 8-speed w/reusable MissingLink

    • FRONT BRAKE

      Shimano BR-M375, mechanical disc, resin pads, 180/160mm rotor

    • REAR BRAKE

      Shimano BR-M375, mechanical disc, resin pads, 160mm rotor

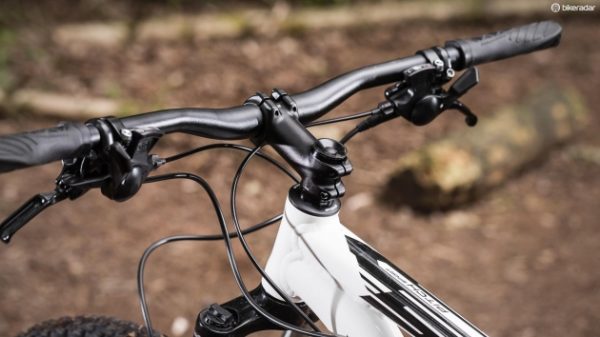

    • HANDLEBARS

      Stout bar, 15mm rise, 9-degree backsweep, 5-degree upsweep, 720mm width, 31.8mm

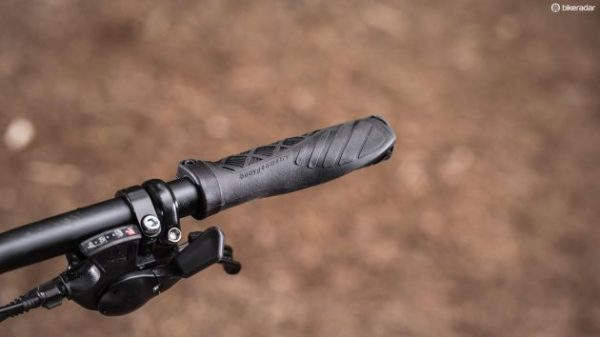

    • GRIPS

      Specialized MTB Grip, lock-on

    • STEM

      Stout 3D-forged alloy, 31.8mm, 6-degree rise

    • SADDLE

      Body Geometry mountain, steel rails, 143mm

    • SEATPOST

      Alloy, 12mm offset, 2-bolt clamp, 30.9mm

    • SEAT BINDER

      Alloy, QR clamp, 31.8mm

    • PEDALS

      Specialized Dirt

    Specifications subject to change without notice.

You’ve thought about it—probably even got out on the dirt or gravel a few times—and now’s the time to pull the trigger on a fully-fledged mountain bike. Well, you’re in the right place. The Pitch 650b features everything you need to start getting off the road and out on some trails. It features a light aluminum frame that’s equal parts performance-driven and durable, while all of the components have been mindfully selected for their capability and long term strength. And when you factor in a geometry that’s going to leave you feeling confident and ready to get after it, it’s safe to say that the Pitch 650b is the perfect starting point for your life of playing in the dirt.
  • The frame is constructed from lightweight A1 Premium Aluminum in order to provide a compliant, durable platform to support our acclaimed Sport Trail 650b Geometry. Combined, you get a bike that’s extremely versatile, making it equally capable on the climbs and descents.
  • Custom SR Suntour 650b fork pairs a coil spring with our Multi-Circuit Damping technology to eliminate any “pogo” effect by delivering 80/100mm (size-specific) of hydraulic damped suspension that smooths out rough terrain.
  • A Shimano Acera rear derailleur is built to with durability in mind, so you can rest assured that you’ll have a reliable shifting partner for the long trails ahead.
Geometry
XS S M L XL
STACK 580mm 580mm 580mm 580mm 599mm
REACH 370mm 391mm 410mm 429mm 449mm
HEAD-TUBE LENGTH 100mm 100mm 100mm 100mm 120mm
HEAD-TUBE ANGLE 70.5° 70.5° 70.5° 70.5° 70.5°
B-B HEIGHT 301mm 301mm 301mm 301mm 301mm
B-B DROP 48mm 48mm 48mm 48mm 48mm
TRAIL 79mm 79mm 79mm 79mm 79mm
FORK LENGTH (FULL) 475mm 475mm 475mm 475mm 475mm
FORK RAKE/OFFSET 42mm 42mm 42mm 42mm 42mm
FRONT-CENTER 605mm 626mm 645mm 664mm 690mm
CHAIN-STAY LENGTH 425mm 425mm 425mm 425mm 425mm
WHEELBASE 1025mm 1046mm 1065mm 1084mm 1110mm
TOP-TUBE LENGTH (HORIZONTAL) 536mm 557mm 587mm 606mm 632mm
BIKE STAND-OVER HEIGHT 694mm 733mm 780mm 792mm 835mm
SEAT-TUBE LENGTH 330mm 394mm 444mm 460mm 510mm
SEAT-TUBE ANGLE 74° 74° 73° 73° 73°
CRANK LENGTH 170mm 170mm 175mm 175mm 175mm
HANDLEBAR WIDTH 720mm 720mm 720mm 720mm 720mm
STEM LENGTH 60mm 60mm 70mm 80mm 90mm
SADDLE WIDTH 143mm 143mm 143mm 143mm 143mm
SEAT POST LENGTH 300mm 350mm 350mm 400mm 400mm
