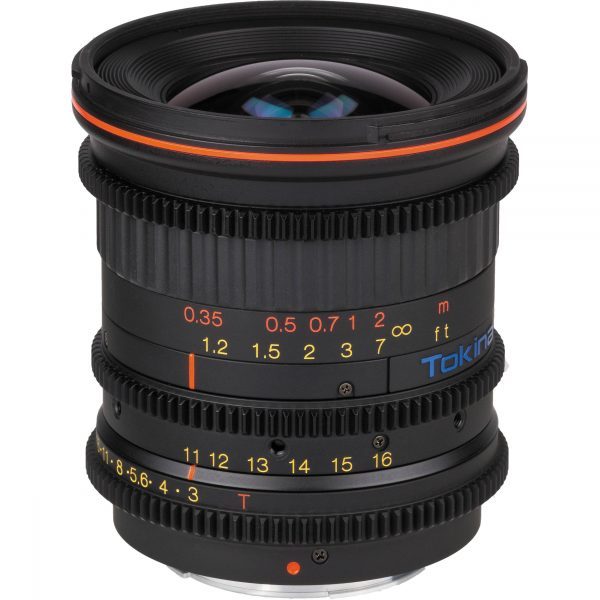

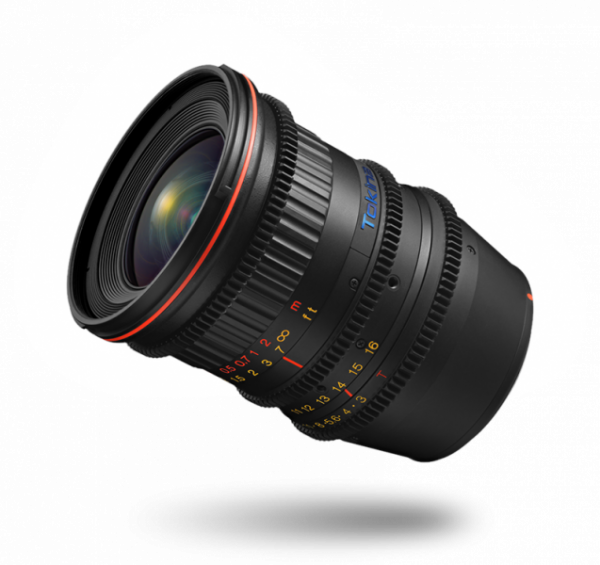

Tokina 11-16mm T3.0 Cinema MFT Mount Wideangle Zoom Lens
Tokina Cinema 11-16mm T3.0 with Micro Four Thirds Mount Wideangle Zoom Lens
The compact, lightweight Tokina Cinema 11-16mm T3.0 is not just a simple rehousing of the critically-acclaimed still lens version, rather the lens designers re-engineered it to provide cinematographers the control and performance they have come to expect in lenses that cost 10 times as much. Engineered to offer superb optical 4K performance the 11-16mm T3.0 delivers sharp, consistent images throughout its zoom range by reducing breathing and maintaining focus throughout the zoom range (Parfocal). Its compact size gives you the flexabilty to use it in creative ways not possible with larger lens designs.
- Covers APS-C and Super-35 Sensors
- Parfocal Lens Design
- Constant T3.0 Aperture
- Geared Focus, Aperture, and Zoom Rings
- De-Clicked Aperture Ring
- Two Aspherical Lens Elements
- Two Super-Low Dispersion Lens Elements
- Multi-Layer Coating
- Min. Focus Distance of 13.78″
Tokina 11-16mm T3.0 Cinema MFT Mount
The Cinema 11-16mm T3.0 with Micro Four Thirds Mount Mount is a wide-angle zoom lens for APS-C or Super-35 sized sensors and features a Micro Four Thirds lens mount. The lens uses the same distortion-free design and optical performance of Tokina’s 11-16mm f/2.8mm DSLR lens, but puts it into an all-metal housing optimized for video and digital cinema use. The housing provides manual focus control with an easy-to-read distance scale and a de-clicked aperture ring for smooth iris pulls. The focus, aperture, and zoom rings all have standard cine-style gears for use with follow focus systems.
In addition to the new housing, the lens also has been updated with a parfocal design that allows you to maintain focus on your subject while zooming. The Tokina 11-16mm T3.0 utilizes two super-low dispersion and two aspherical lens elements to produce images with high contrast and sharpness, while multi-layer coating help minimize flare and ghosting.
-
- Ultra-wide angle T3.0 zoom lens
- Covers APS-C and Super-35-sized sensors
- Parfocal lens design
- 4K image sharpness
- Rugged all-metal lens housing
- 0.8 MOD cine-style geared focus, aperture, and zoom rings
- 9-blade aperture diaphragm
- 77mm filter diameter
- Min. focus distance of 13.78″
Tokina 11-16mm Specs
| Focal Length | 11 – 16mm |
| Lens Mount | Micro Four Thirds |
| Format | Super35/APS-C |
| Maximum T-Stop | T3.0 |
| Maximum F-Stop | f/2.8 |
| Minimum T-Stop | T22 |
| Diagonal Angle of View | Super35: 104 – 84° |
| Minimum Focus Distance from Image Plane | 13.78″ / 35 cm |
| Optical Design | 13 Elements in 11 Groups |
| Iris Blades | 9 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
| Front Diameter | 84 mm |
| Filter Thread | 77 mm |
| Zoom Ratio | 1.45x |
| Maximum Magnification Ratio | 1:4.94 |
| Dimensions (W x H) | 3.27 x 3.27″ / 83.1 x 83.1 mm |
| Length | 4.8″ / 120.7 mm |
| Weight | 1.7 lb / 0.8 kg |
| Packaging Info | |
|---|---|
| Package Weight | 2.45 lb |
| Box Dimensions (LxWxH) | 9.0 x 5.5 x 4.6″ |
