OUTPUT
|
| Output Volt Amp Capacity (VA) |
3000 |
| Output kVA Capacity (kVA) |
3 |
| Output Watt Capacity (Watts) |
2500 |
| Output kW Capacity (kW) |
2.5 |
| Output Capacity Details |
Max output is reduced to 2400W at 200V, 208V and 220V nominal settings OVERLOAD CAPACITY: Supports inverter operation up to 100% load continuously, 120% for 30 seconds, 150% for 10 seconds and >150% for 0.1 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits). |
| Power Factor |
0.8 |
| Crest Factor |
3:1 |
| Nominal Output Voltage(s) Supported |
200V; 208V; 220V; 230V; 240V |
| Nominal Voltage Details |
230V default |
| Frequency Compatibility |
50 / 60 Hz |
| Frequency Compatibility Details |
Output frequency matches input nominal on startup, defaults to 50 Hz on cold-start. Frequency conversion from 60 to 50 Hz -or- 50 to 60 Hz supported. Output capacity de-rates by 20% during frequency conversion operation. |
| Output Voltage Regulation (Line Mode) |
+/- 2% |
| Output Voltage Regulation (Economy Line Mode) |
-12%, + 10% |
| Output Voltage Regulation (Battery Mode) |
+/- 2% |
| Output Receptacles |
(8) C13; (2) C19 |
| Included Output Power Cables |
Includes 2 C13 to C14 and 1 C19 to C20 power cables |
| Load Management Receptacles |
Two switchable 4 C13 outlet load banks |
| Hot-Swap PDU options |
PDUBHV20 (2U / 6 C13, 2 C19 outlets) |
| Output AC Waveform (AC Mode) |
Sine wave |
| Output AC Waveform (Battery Mode) |
Pure Sine wave |
|
INPUT
|
| Rated input current (Maximum Load) |
15A (200V); 14.4A (208V); 13.6A (220V); 13A (230V); 12.5A (240V) |
| Nominal Input Voltage(s) Supported |
200V AC; 208V AC; 220V AC; 230V AC; 240V AC |
| Nominal Input Voltage Description |
230V factory configuration |
| UPS Input Connection Type |
C20 inlet |
| UPS Input Cord Length (ft.) |
5 |
| UPS Input Cord Length (m) |
1.5 |
| Input Phase |
Single-Phase |
|
BATTERY
|
| Full Load Runtime (min.) |
6 min. (2500w) |
| Half Load Runtime (min.) |
15 min. (1250w) |
| Expandable Battery Runtime |
Supports extended runtime with optional external battery packs |
| External Battery Pack Compatibility |
BP72V15-2U(limit 1); BP72V28RT-3U(multi-pack compatible); BP72V18-2US(multi-pack compatible) |
| DC System Voltage (VDC) |
72 |
| Battery Recharge Rate (Included Batteries) |
Less than 4.8 hours from 10% to 90% (typical, full load discharge) |
| Internal UPS Replacement Battery Cartridge |
RBC96-2U |
| Battery Access |
Front panel battery access door |
| Battery Replacement Description |
Hot-swappable, replaceable batteries |
| Expandable Runtime |
Yes |
|
VOLTAGE REGULATION
|
| Voltage Regulation Description |
Online, double-conversion power conditioning |
| Overvoltage Correction |
2% output voltage regulation during overvoltages to 288 |
| Undervoltage Correction |
2% output voltage regulation during undervoltages to 160V |
| Severe Undervoltage Correction |
2% output voltage regulation during undervoltages to 140V (under 66% load only) or 120V (under 33% load only) |
|
USER INTERFACE, ALERTS & CONTROLS
|
| Switches |
2 Switches control off/on power status and alarm-cancel/self-test operation |
| Alarm Cancel Operation |
Power-fail alarm can be silenced using alarm-cancel switch |
| Audible Alarm |
Audible alarm indicates power failure, low battery, overload, replace battery and EPO operation |
| LED Indicators |
14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats |
|
SURGE / NOISE SUPPRESSION
|
| UPS AC Suppression Joule Rating |
420 |
| EMI / RFI AC Noise Suppression |
Yes |
| AC Suppression Response Time |
Instantaneous |
|
PHYSICAL
|
| Included Mounting Accessory Description |
4 post installation accessories included |
| Installation Form Factors Supported with Optional Accessories |
2 post rackmount(2POSTRMKITWM); Tower(2-9USTAND) |

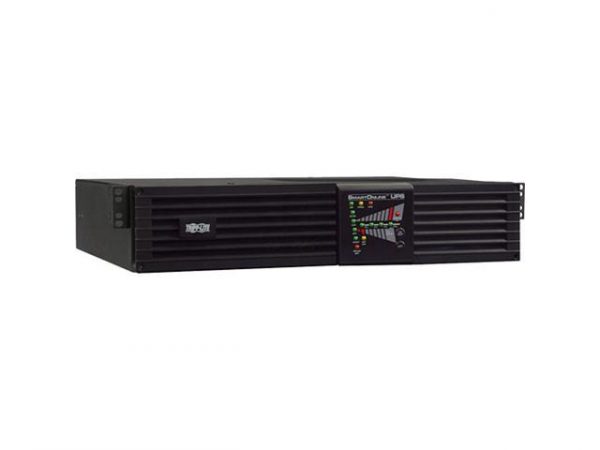

| Primary Form Factor |
Rackmount |
| UPS Power Module Dimensions (hwd, cm) |
8.89 x 43.94 x 66.04 |
| Rack Height (U Spaces) |
2 |
| Minimum Required Rack Depth (cm) |
93.98 |
| UPS Power Module Weight (kg) |
31.98 |
| UPS Shipping Dimensions (hwd / cm) |
22.86 x 55.88 x 83.31 |
| Shipping Weight (kg) |
39.9 |
| Cooling Method |
Fan |
| UPS Housing Material |
Steel |
| Minimum Required Rack Depth (mm) |
940 |
| Primary UPS Height (mm) |
89 |
| Primary UPS Width (mm) |
439 |
| Primary UPS Depth (mm) |
660 |
| Shipping Height (mm) |
229 |
| Shipping Width (mm) |
559 |
| Shipping Depth (mm) |
833 |
|
ENVIRONMENTAL
|
| Operating Temperature Range |
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius. |
| Storage Temperature Range |
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius. |
| Relative Humidity |
0 to 95%, non-condensing |
| AC Mode BTU / Hr. (Full Load) |
956 |
| AC Economy Mode BTU / Hr. (Full Load) |
264 |
| Battery Mode BTU / Hr. (Full Load) |
1276 |
| AC Mode Efficiency Rating (100% Load) |
89% |
| AC Economy Mode Efficiency Rating (100% Load) |
97% |
|
COMMUNICATIONS
|
| Communications Interface |
USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface |
| Network Management Cards |
SNMPWEBCARD; TLNETCARD; WEBCARDLX |
| Network Monitoring Port Description |
Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications |
| PowerAlert Software |
For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Communications Cable |
USB and DB9 cabling included |
| WatchDog Compatibility |
Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
LINE / BATTERY TRANSFER
|
| Transfer Time |
No transfer time (0 ms.) in online, double-conversion mode |
| Low Voltage Transfer to Battery Power (Setpoint) |
160V (100% load), 140V (66% load), 120V (33% load) |
| High Voltage Transfer to Battery Power (Setpoint) |
288V |
|
SPECIAL FEATURES
|
| Cold Start (Startup in Battery Mode During a Power Failure) |
Cold-start operation supported |
| High Availability UPS Features |
Automatic inverter bypass; Hot swappable batteries |
| Green Energy-Saving Features |
High efficiency economy mode operation; Individually controllable load banks; Schedulable daily hours of economy mode operation |
|
CERTIFICATIONS
|
| UPS Certifications |
CE; Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to UL1778 (USA) |
|
WARRANTY
|
| Product Warranty Period (Worldwide) |
2-year limited warranty |
|
