Yeastar D30 Capacity Card | Expands S Series PBX
Availability:
In stock
Yeastar DSP Expansion Module for S100 and S300
The Yeastar D30 is a DSP module, used to expand the capacity of S-Series PBX. For each D30 module added, the max amount of users increased by 100, and concurrent calls increase by 30.
Use up to 1 module on the S100, and up to 2 modules on the S300.
- DSP Expanson Module for Yeastar S100 and S300 Systems

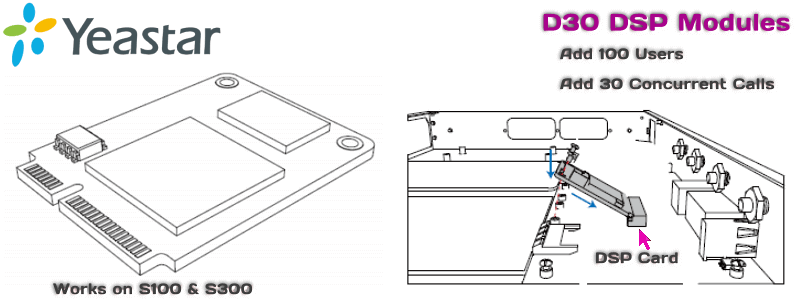

- Install on the motherboard to expand capacity by 100 extensions and 30 concurrent calls
- Use up to 1 module on the S100 and up to 2 modules on the S300
Yeastar D30 Capacity Card | Expands S Series Pbx
Yeastar D30 Expansion DSP Module for Yeastar series S100 and S300 Systems. Install on the motherboard to expand capacity by 100 extensions and 30 concurrent calls.
The Yeastar D30 DSP (digital signal processor) module can be inserted into a Yeastar S100 or S300 IP-PBX, letting the VoIP PBX support an additional 100 users and 30 concurrent calls. Expand the power of your VoIP phone system without needing expensive hardware with this module.
Quick Info:
- Expansion module for S100 and S300 IP PBX
- supports up to 100 additional extensions
- supports up to 30 additional concurrent calls
Compatible with:
- Yeastar S100 (1x D30 module supported)
- Yeastar S300 (2x D30 modules supported)
Capacity:
S SERIES PBX |
NO D30 |
1X D30 |
2X D30 |
|||
|---|---|---|---|---|---|---|
MAX EXT |
SIM* |
MAX EXT |
SIM* |
MAX EXT |
SIM* |
|
S100 |
100 |
30 |
200 |
60 |
N/A |
N/A |
S300 |
300 |
60 |
400 |
90 |
100 |
120 |
*SIM = Simultaneous calls, assuming no call recording
