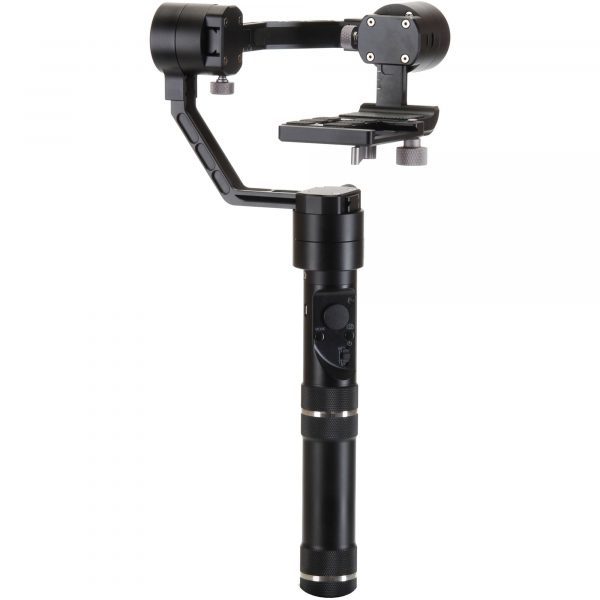

Zhiyun-Tech Crane 3-Axis Handheld Gimbal Stabilizer
Zhiyun-Tech Crane 3-Axis Handheld Gimbal Stabilizer
The Zhiyun Crane 3-Lab Handheld Stabilizer for DSLR takes a new direction in gimbal stabilizer design by designing the gimbal with an articulating secondary handgrip where most of the manual controls and batteries are located. This allows the main handle to be shorter than previous versions of the Crane gimbal, allowing you to get closer to the ground for low-angle shots. The secondary handle allows for a smooth transition to and from low mode as there is no repositioning of the handles required. The gimbal supports two optional motors for focus and zoom, both controllable from the secondary handgrip as well as the app.
- 360° Rotation Along All Three Axes
- Supports Compact Cameras up to 3.9 lb
- Includes Lens Support for Long Lenses
- Three 32-Bit MCUs Running at 4000 Hz
- Four-Way Stepless Joystick
- Tool-Less Camera Attachment
- 1/4″-20 Threaded Hole on the Bottom
- Can Be Controlled via iOS/Android App
- 12-Hour Runtime with Included Batteries
Zhiyun-Tech Crane 3-Axis Handheld Gimbal Stabilizer
Crane is an omnipotent gimbal which has three 360-degree rotary axes, automotive-grade high-precision motors, camera control interface, tool-less quick-release system and powerful 32-bit MCUs. It also supports two kinds of batteries – both 26500 and 26650, with which it provides 6h and 12h operation time respectively.
You can get incredibly excellent shots with Crane in hand!
Main Features:
– It provides you the freedom of 3-axis 360-degree unlimited rotations.
– The motors which have automotive-grade magnetic encoders can detect 0.02-degree displacement.

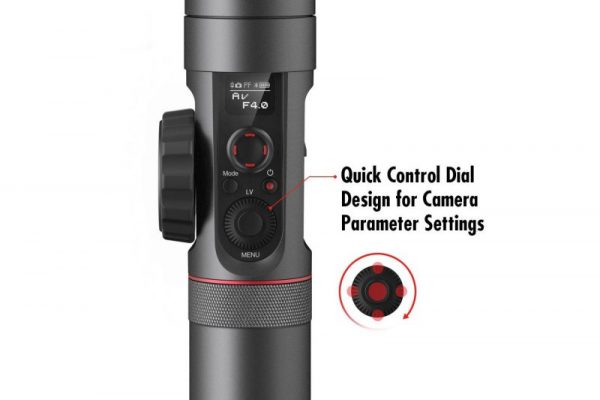

– The shutter and focus of the camera can be easily controlled via the camera control interface on the handle of the gimbal.
– Turning the screws suffices to mount the camera thanks to its quick-release design.
– Wonderful compatibility with 26500 ( included ) and 26650 ( not included ) Li-ion batteries. The former can provide 6h operation time, whereas, the latter can be used for 12 hours each time.
– Three 32-bit MCUs run concurrently at 4KHz; support floating point calculation, attitude control, and servo control algorithms; control the camera with the accuracy of 0.01 degree in less than 0.25 millisecond.
– There are three operation modes, including Pan Following Mode, Pan and Tilt Following Mode and Lock Mode.
Specifications:
Gimbal
Model: Crane
Size: 154 x 159 x 395mm
Operation current: 0 – 45 Deg.C
Operation time: 6 – 12h
Weight: 950g ( excluding battery )
Controllable range: 360-degree ( roll / tilt / pan )
Battery
Model: 26500 Li-ion
Capacity: 2000mAh
Voltage: 3.7V
Weight: 42g ( single )
Charging temperature: 0 to 45 Deg.C
Discharging temperature: -10 to 45 Deg.C
Storage temperature: 25 Deg.C
Maximum charging current: 800mAh
Compatible Cameras
Model: almost all mirrorless cameras
Weight range: 350 – 1,200g
Maximum lens: 70mm
Charger
Model: 26500 Li-ion battery charger
Input voltage: 5V
Charging current: 800mA
Zhiyun Assistant
Required system: iOS 8.0 or above, Android 4.1.2 or above
You can also scan the QR code on the user manual or go to the App Store to download the app.
Specification
| General | Brand: zhiyun FPV Equipments: Gimbal Camera Gimbals: Brushless Gimbals |
|---|---|
| Gimbal | Type: 3 Axis |
| Dimension and Weight | Product weight: 0.9500 kg Package weight: 2.7800 kg Product size (L x W x H): 15.40 x 15.90 x 39.50 cm / 6.06 x 6.26 x 15.55 inches Package size (L x W x H): 36.00 x 31.80 x 11.00 cm / 14.17 x 12.52 x 4.33 inches |
| Package Contents | Package Contents: 1 x Gimbal, 2 x 26500 Battery, 1 x Balance Charger, 1 x Charging Cable, 1 x Camera Lens Supporter, 2 x Screw, 1 x Warranty Card, 1 x English Manual, 1 x Storage Box |
