APC SMART-UPS 1500VA LCD RM 2U 230V
PRODUCT HIGHLIGHTS
- Output: 1000W / 1500VA
- Input: 230V
- 4 x Battery-Powered Outlets
- 4 x IEC 320 C13, 2 x IEC Jumpers
- Recharge Time 3 Hours
- Audible Alarm
- SmartSlot x 1, RJ-45, USB
- LED Status Indicators
- Cold Start / Hot Swap Batteries
- Delivers Battery Powered AC
APC SMART-UPS 1500VA LCD RM 2U 230V
|
Main Features
|
Smart-UPS are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
|
||||
APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks.
Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption.
Rack mounted Smart-UPS are ideal for powering blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS features a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.
- Alphanumeric LCD (Liquid Crystal Display) Intuitive interface provides detailed and accurate information with the ability to configure locally.
- Communication Ports: Serial, USB, and SmartSlot™ for accessory cards.
- 4 IEC320 C13 Outlets
- Push Button Circuit Breaker enables quick recovery from overloads.
- Network-grade Power: Provides most stable power conditions by filtering noise, automatic voltage regulation (AVR), and surge protection.
- High Efficiency Green Mode: Saves utility costs and reduces heat promoting longer component life.
- Advanced Battery Management: Temperature-compensated charging extends life and advanced algorithms recommend replacement date
Smart-UPS Display
Intuitive, easy-to-use LCD interface
LCD Display Screen – Clear, consistent, and detailed information in your choice of basic or advanced menus.
Power Status:
Operating mode and efficiency
Load VA/Watts/Amps
Input/Output voltage and frequency
Battery capacity and runtime
Energy meter and more
Control: – UPS and outlet group settings
Configuration:
Language
Power quality settings
Alarm, delay and threshold settings
Test and Diagnostics: – Initiate battery and runtime calibration tests
Logs: – See explanation of last 10 transfers and faults
About: – UPS and replacement battery part numbers, serial numbers, battery install, and suggested replacement dates
Online Status Indicators: – Online, on battery, fault, and replace battery LEDs for quick status identification.
APC Smart-UPS Line-Interactive 1500VA Rackmount Black
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Audible alarms
Provide notification of changing flywheel conditions
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC’s Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Resettable circuit breakers
Enables a quick recovery from overload events.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS conditions.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Serial Connectivity
Provides management of the UPS via a serial port.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Network manageable
Provides remote management of the UPS over the network.
Adjustable voltage sensitivity
Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Specifications
Summary
- Product Description
- APC Smart-UPS 1500 LCD – UPS – 1 kW – 1500 VA
- Device Type
- UPS – rack-mountable
- Rack Size
- 2U
- Weight
- 28.6 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V
- Power Capacity
- 1 kW / 1500 VA
- Input Connectors
- Power IEC 60320 C14
- Output connectors
- 4 x power IEC 60320 C13
- Battery
- Lead Acid
- Run Time (Up To)
- 7.2 min at full load
- Networking
- RS-232, USB
- Dimensions (WxDxH)
- 43.2 cm x 45.7 cm x 8.9 cm
- Manufacturer Warranty
- 3 years warranty
APC Smart-UPS SMT1500RM2U Video
Overview
-

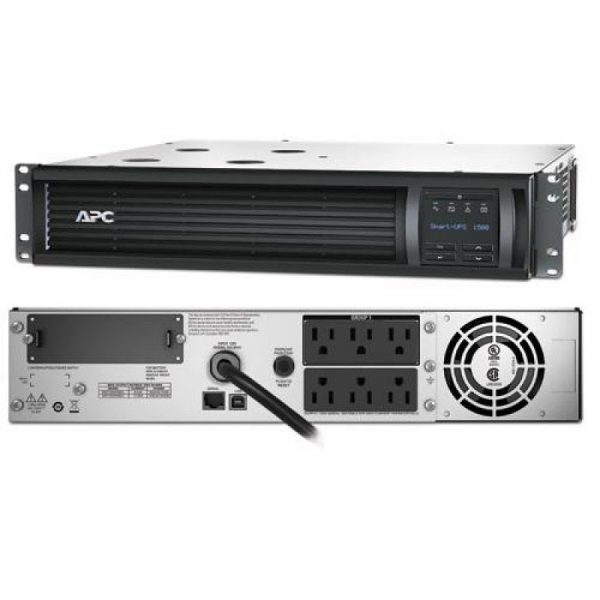

APC Smart-UPS SMT1500RM2U
- Instant backup battery power during an outage
- Protects electronic equipment from harmful power conditions
- Six power and surge protected outlets
- One switchable outlet group for individual load management
- Pure sine wave output while on battery
- Green mode reduces power consumption
- Smart battery management for long battery life
- LCD interface with intuitive navigation keys
- SmartSlot for using a network management card
- Includes rails and hardware for rack-mount installation
- PowerChute software provides safe shutdown
- Three-year limited warranty
- $150,000 equipment protection policy
Features
-
Backup Battery Lets You Keep Working through Outages
Protect your servers, switches, routers and networking devices with the APC Smart-UPS SMT1500RM2U. This UPS provides backup battery power in the event of a power outage, monitoring and safeguarding your equipment from harmful power conditions, spikes and surges. An automatic green mode ensures you are operating at the highest level of efficiency, and intelligent battery management maximizes performance. Use the intuitive LCD interface or PowerChute Business Edition software to configure UPS settings and monitor usage. With a 1,000-watt power capacity, eight battery and surge protected outlets and one switchable outlet group, this UPS is ideal for small and medium-sized businesses. This model comes with rails and hardware for rack-mounted installation.
-
Protects Electronic Equipment from Power Disruptions
Keep your electronic equipment protected through blackouts, brownouts, surges, and other power disturbances with APC Smart-UPS. It provides generous runtime while on battery so you can continue working during medium-length power outages.
Automatic voltage regulation (AVR) adjusts high and low voltages to a safe level, ensuring your equipment has reliable power and preserving the life of the battery. The pure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Power-Saving Green Mode Operates at High Efficiency
Operate efficiently with the Smart-UPS green mode, conserving energy when power quality is within optimal levels and power conditioning is not necessary. The UPS will enter and exit green mode automatically, ensuring you are always operating at the highest efficiency while saving power, reducing utility costs, and generating less heat. To help you monitor your energy usage, this UPS has an energy meter that provides actual kilowatt-hours of usage.Battery Management Features Ensure Optimal Performance
For easy battery maintenance, this UPS provides you with a predictive date for when battery replacement is recommended. The periodic self-test and disconnected battery notification both ensure you detect any faulty batteries. To prolong battery life, the Smart-UPS regulates the charge voltage according to battery temperature. -
Intuitive LCD Interface for Easy Configuration
Check utility status and adjust settings on the easy-to-use LCD interface. A bright display provides clear, accurate information in multiple language options, and intuitive navigation keys make it simple to configure settings. This UPS has a SmartSlot that allows use of a network management card for customization.PowerChute Software Provides Safe System Shutdown
Designed for exceptional usability, PowerChute Business Edition software provides safe system shutdown in the event of an extended power outage while preventing potential data corruption. It’s fast and easy to install, and you can tailor settings to meet your individual needs. Find cost savings by using PowerChute to monitor your equipment’s energy consumption.
Warranty and Equipment Protection Policy
This Smart-UPS is covered by a three-year limited warranty. This product also comes with a lifetime equipment protection policy of up to $150,000. APC will repair or replace office equipment that sustains surge-related damage while properly connected to a registered APC Smart-UPS unit.Package Contents
APC Smart-UPS SMT1500, CD with PowerChute Business Edition software, documentation CD, Smart-UPS APC Smart-UPS SMT1500RM2U, CD with PowerChute Business Edition software, documentation CD, rack-mount support rails and hardware, Smart-UPS signaling RS-232 cable, and USB cable.signaling RS-232 cable, and USB cable.
Technical Specifications
-
Output
- Output Power Capacity: 1000 Watts / 1440VA
- Max Configurable Power: 1000 Watts / 1440VA
- Nominal Ouput Voltage: 120V
- Output Voltage Distortion: Less than 5% at full load
- Outpout Frequency (sync to mains): 50/60Hz +/- 3Hz (auto sensing)
- Topology: Line interactive
- Waveform Type: Sine Wave
- Output Connections: (6) NEMA 5-15R
Input
- Nominal Input Voltage: 120V
- Input Frequency: 50/60Hz +/- 3Hz (auto sensing)
- Input Connections: NEMA 5-15P
- Cord Length: 2.44 meters
- Input Voltage Range for Main Operations: 82 – 144V
- Input Voltage Adjustable Range for Mains Operation: 75 – 154V
Batteries & Runtime
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
- Typical Recharge Time1 : 3 hour(s)
- RBC Quantity: 1
Communications & Management
- Interface Port(s): SmartSlot, USB
- Control Panel: Multi-function LCD status and control console
- Audible Alarm: Alarm when on battery, distinctive low battery alarm, configurable delays
- Emergency Power Off (EPO): Optional
Surge Protection & Filtering
- Surge Energy Rating: 455 Joules
- Filtering: Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449
Physical
- Maximum Height: 3.50 in
- Maximum Width: 17.00 in
- Maximum Depth: 18.00 in
- Net Weight: 63.00 lbs
- Shipping Weight: 70.20 lbs
- Shipping Height: 9.88 in
- Shipping Width: 23.38 in
- Shipping Depth: 23.75 in
- Color: Black
Conformance
- Regulatory Approvals: CSA, ENERGY STAR (USA), FCC Part 15 Class A, UL 1778
Sustainable Offer Status
- RoHS: Compliant
- REACH: Contains no SVCHCs
