APC Smart-UPS 750VA LCD 230V
Availability:
In stock
PRODUCT HIGHLIGHTS
- Output: 500W/750VA
- Input: 230V
- 6x Battery-Powered Outlets
- 6x IEC 320 C13, 2x IEC Jumpers
- Recharge Time: 3 Hours
- Audio Alarm
- SmartSlot, USB Interface
- LCD Status and Control Console
- Cold Start/Hot Swappable Batteries
- For International Use Outside of US

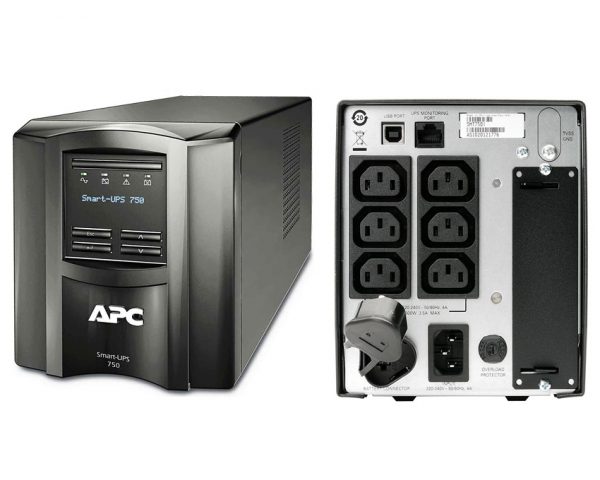

750VA APC Smart-UPS SMT750I Tower UPS with LCD display. 230V, 500W, Retail Box
APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
APC Smart-UPS Line-Interactive 750VA Tower Black
The electrical or electronic product contains little or no Hazardous Substances (RoHS). Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component.
Brand: APC
Product name: Smart-UPS
Product code: SMT750I
EAN/UPC code: 0731304269069
Category:uninterruptible power supplies (UPSs)
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specs
Power
Output power capacity
The maximum power that the device can produce.
750 VA
Output power
The power that the device can produce.
500 W
Input operation voltage (min)
The minumum voltage needed by the device during operation.
151 V
Input operation voltage (max)
The maximum input voltage supported by the device.
302 V
Output operation voltage (min)
The minumum voltage produced by the device during operation.
220 V
Output operation voltage (max)
The maximum output voltage produced by the device.
240 V
Power supply input frequency
The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.
50/60
Surge energy rating
A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure.
540 J
Efficiency
98%
Emergency Power Off (EPO)
O
Ports & interfaces
AC outlets quantity
The number of sockets in the device where AC electrical power can be connected.
6
AC outlet types
The type of outlet for AC electricity.
C13 coupler
Cable length
How long the cable is.
1.83 m
USB port
Number of output IEC jumpers
2
SmartSlot
Battery
Battery technology
The type of battery in the device, e.g. nickel–cadmium (NiCd).
Sealed Lead Acid (VRLA)
Battery recharge time
Approximate time required to recharge the battery from completely empty to completely full
3 h
Typical backup time at half load
The amount of time that a backup energy source (e.g. UPS – Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity).
15.8 min
Typical backup time at full load
The amount of time that a backup energy source (e.g. UPS – Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity).
4.6 min
Battery life (max)
5 year(s)
Battery capacity
146 VAh
Cold start
Replacement battery cartridge
RBC48
Hot-swap battery
Automatic battery test
Design
Form factor
The shape or design of the product.
Tower
Colour of product
The colour e.g. red, blue, green, black, white.
Black
Display
The description of display that can includes display type, resolution, size etc.
LCD
Performance
UPS topology
Line-Interactive
Hold time (min)
4 ms
Hold time (max)
8 ms
Performance
Surge protection
Auto-restart
Automatic Voltage Regulation (AVR)
Waveform
Sine
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
40 dB
LED indicators
Status
Audible alarm(s)
Alarms that make a sound when they are activated (set off).
Logistics data
Quantity per pallet
Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet.
24 pc(s)
Technical details
Input connections
IEC-320 C14
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 – 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-15 – 45 °C
Operating relative humidity (H-H)
5 – 95%
Storage relative humidity (H-H)
0 – 95%
Operating altitude
0 – 3000 m
Non-operating altitude
0 – 15000 m
Certificates
RoHS compliance
The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance.
Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
Weight & dimensions
Width
The measurement or extent of something from side to side.
138 mm
Depth
The distance from the front to the back of something.
358 mm
Height
The measurement of the product from head to foot or from base to top.
157 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
13.2 kg
Package width
The distance from one side of the packaging to the other.
278 mm
Package depth
The distance from the front to the back of the packaging.
499 mm
Package height
The distance from the top to the bottom of the packaging.
301 mm
Package weight
Weight of the packaged product.
14.2 kg
Packaging content
Software CD
Cables included
RS-232, USB cable
Quick installation guide
Other features
Nominal input voltage
The voltage which the manufacturer recommends that the device needs to operate normally.
230
Nominal output voltage
The voltage which the manufacturer states that the device can produce.
230
Specifications
Summary
- Product Description
- APC Smart-UPS 750 LCD – UPS – 500 Watt – 750 VA
- Device Type
- UPS – external
- Weight
- 13.18 kg
- Input Voltage
- AC 230 V
- Output Voltage
- AC 230 V
- Power Capacity
- 500 Watt / 750 VA
- Input Connectors
- Power IEC 60320 C13
- Output connectors
- 6 x power IEC 60320 C13
- Battery
- Lead Acid
- Run Time (Up To)
- 5 min at full load
- Networking
- RS-232, USB
- Dimensions (WxDxH)
- 13.8 cm x 36.3 cm x 16.1 cm
- Manufacturer Warranty
- 3 years warranty
Detail
General
- Device Type
- UPS – external
- Colour
- Black
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 160 – 280 V
- Input Voltage Range (Adjustable)
- AC 151 – 302 V
- Frequency Provided
- 47 – 53 / 57-63 Hz
- Frequency Required
- 50/60 Hz
- Input Connectors
- Power IEC 60320 C13
- Power Output Connectors Details
- 6 x power IEC 60320 C13
- Output Voltage
- AC 230 V 47 – 53 / 57-63 Hz
- Power Capacity
- 500 Watt / 750 VA
- Output Waveform
- Sinewave
- Surge Suppression
- Yes
- Surge Energy Rating
- 540 Joules
Battery
- Technology
- Lead Acid
- Run Time (Up To)
- 5 min at full load
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x management (RS-232) – 9 pin D-Sub (DB-9) , 1 x USB
- Expansion Slots
- 1 SmartSlot
Miscellaneous
- Features
- Audible alarm, LCD display
- Compliant Standards
- C-Tick, UL 1449, VDE, EN 50091-2, RoHS, EN 50091-1, REACH
Manufacturer Warranty
- Service & Support
- Limited warranty – 3 years , Limited warranty – batteries – 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 – 95%
- Sound Emission
- 40 dBA
Dimensions & Weight
- Width
- 13.8 cm
- Depth
- 36.3 cm
- Height
- 16.1 cm
- Weight
- 13.18 kg
