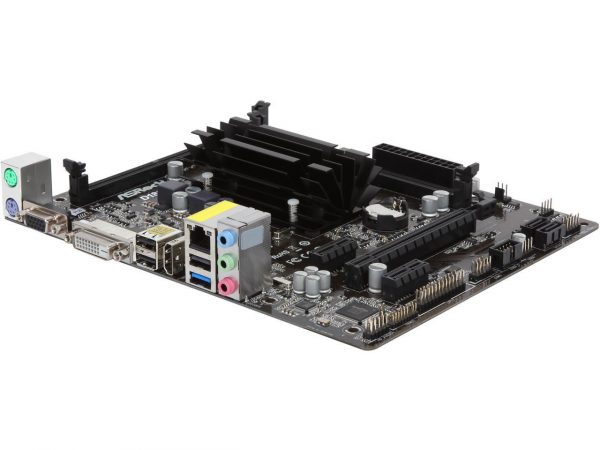

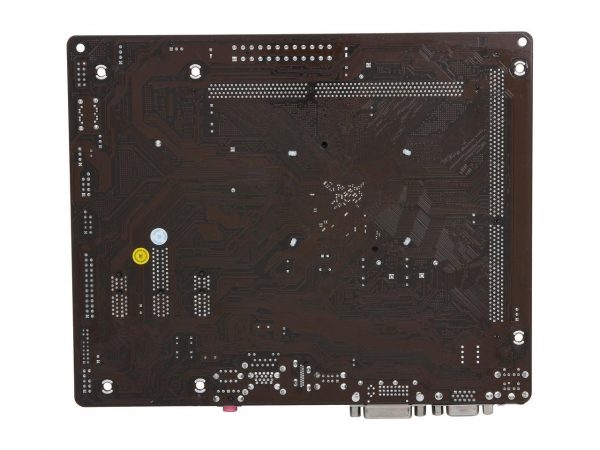

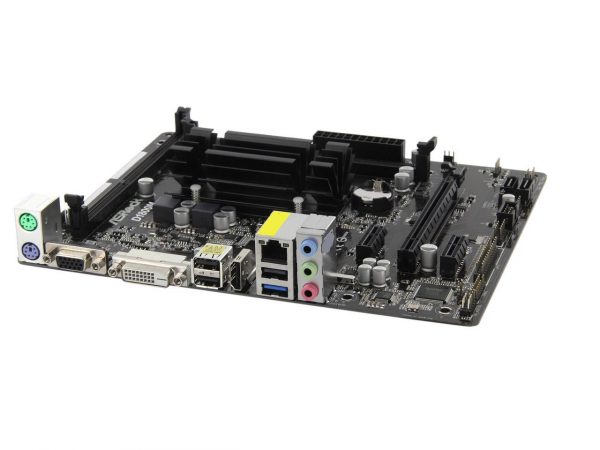

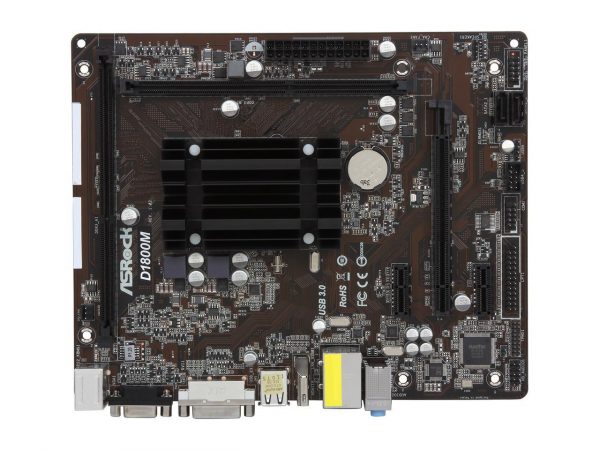

ASRock D1800M Micro ATX Motherboard

Rating

Availability: In stock

Key Features

CPU (Included): Intel J1800 Processor (2.41GHz, Dual-Core)
Memory: 2x DDR3(L)-1333/1066 DIMM Slots, Dual Channel, Non-ECC, Buffered, Max Capacity of 16GB
Slots: 1x PCI-Express 2.0 x16 Slot (runs at x1), 2x PCI-Express 2.0 x1 Slots
SATA: 2x SATA2 Ports
LAN: Relate RTL8111GR PCI-Express x1 Gigabit Ethernet Controller
Ports: 1x USB 3.0 Port, 6x USB 2.0 Ports (3 rear, 3 via headers), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
Power Connector: 1x 24pin ATX Power Connector

Compare

ASRock D1800M Intel Dual-Core Celeron Processor J1800 Micro ATX Motherboard/CPU/VGA Combo

Learn more about the ASRock D1800M

Model

Brand: ASRock

Model: D1800M

Combo Type: Motherboard/CPU/VGA Combo

Bundle

CPU: Intel Dual-Core Celeron Processor J1800

With Cooler: Yes

Supported CPU

CPU Type: Celeron

Memory

Number of Memory Slots: 2×240pin

Memory Standard: DDR3 1333/1066

Maximum Memory Supported: 16GB

Channel Supported: Dual Channel

Expansion Slots

PCI Express x16: 1 x PCI Express 2.0 x16 (x1 mode)

PCI Express x1: 2 x PCI Express 2.0 x1

Storage Devices

SATA: 2 x SATA 3.0Gb/s

Onboard Video

Onboard Video Chipset: Intel HD Graphics

Onboard Audio

Audio Chipset: Realtek ALC662

Audio Channels: 5.1 Channels

Onboard LAN

LAN Chipset: Realtek RTL8111GR

LAN Speed: 10/100/1000Mbps

Rear Panel Ports

PS/2: 1 x PS/2 Mouse
1 x PS/2 Keyboard

Video Ports: 1 x D-Sub
1 x DVI-D

HDMI: 1 x HDMI

USB 1.1/2.0: 3 x USB 2.0

USB 3.0: 1 x USB 3.0

Audio Ports: 3 Ports

Internal I/O Connectors

Onboard USB: 3 x USB 2.0

Other Connectors: 1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion Header
1 x CPU Fan Connector (3-pin)
1 x Chassis Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x Front Panel Audio Connector

Features

Features

Intel Dual-Core Celeron Processor J1800

Long DIMM, Std. & Low Voltage Memory

All Solid Capacitor design

Built-in Intel 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0

1 x Printer Port Header, 1 x COM Port Header

1 x USB 3.0, 6 x USB 2.0 (3 Front, 3 Rear), 2 x SATA2

Supports ASRock Full Spike Protection, A-Tuning, XFast LAN, XFast RAM, USB Key

Physical Spec

Form Factor: Micro ATX

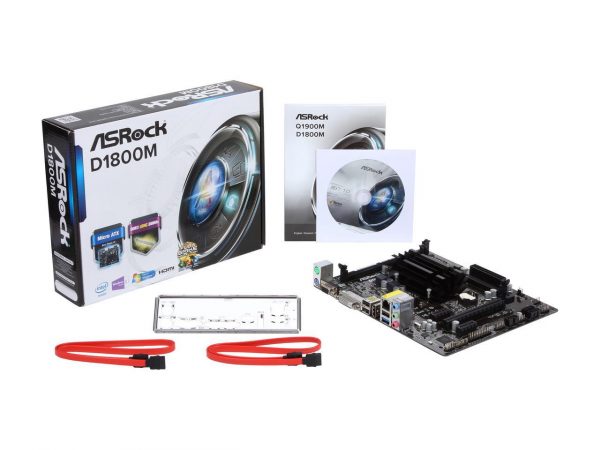

Package Contents

Package Contents: ASRock D1800M Motherboard
Quick Installation Guide
Support CD
I/O Shield 2 x SATA Data Cables

How To Buy

brands	ASRock
Condition	Brand New
