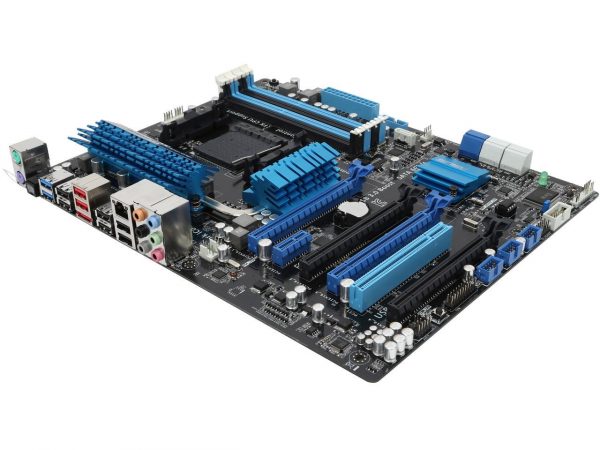

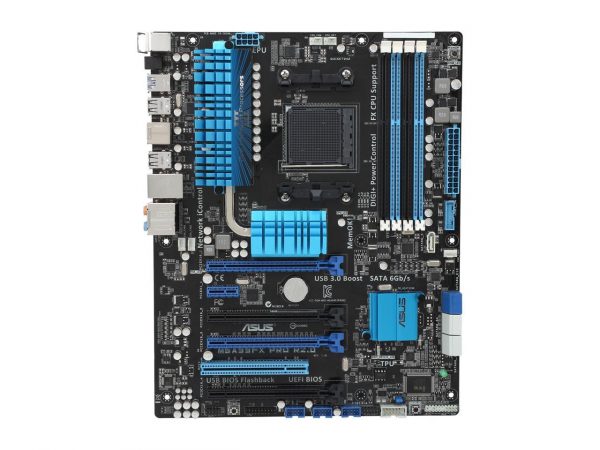

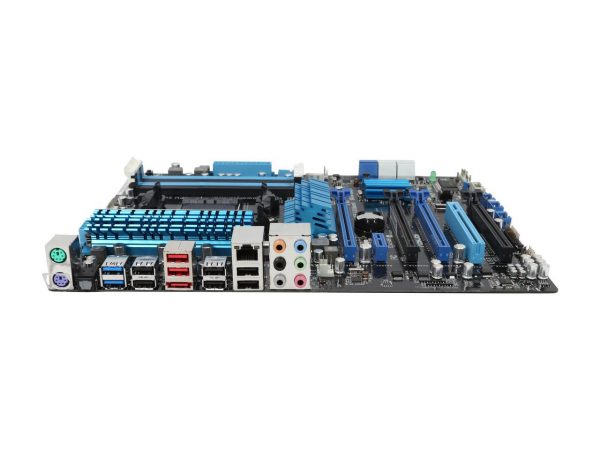

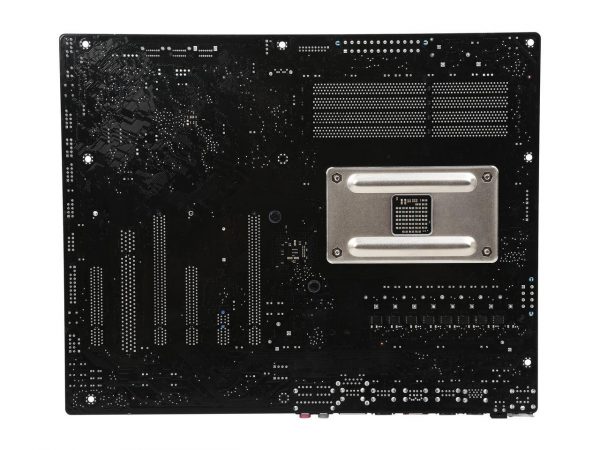

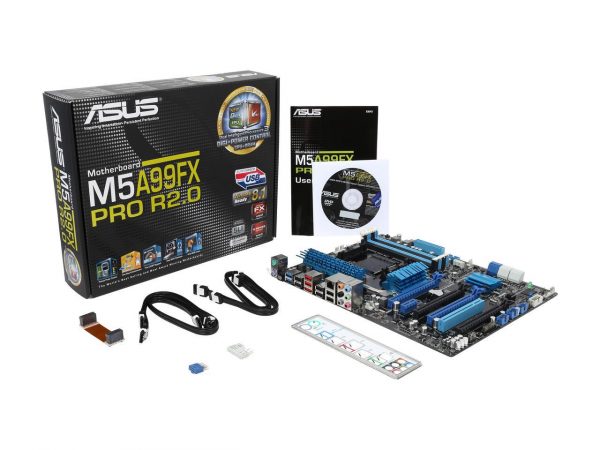

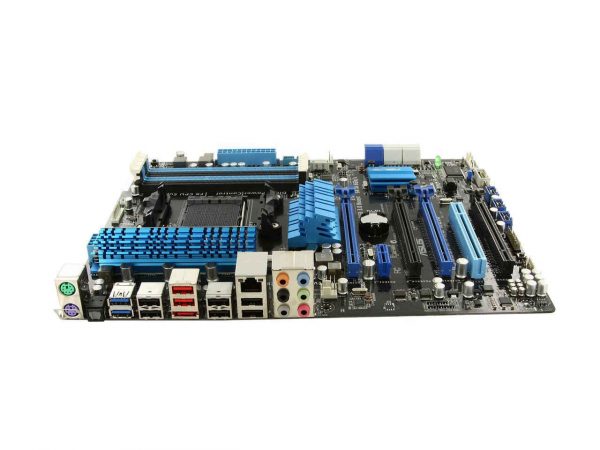

ASUS M5A99FX PRO R2.0 AM3+
Key Features |
|
Product Type | Motherboard |
Form Factor | ATX |
Width | 30.5 cm |
Depth | 24.4 cm |
CPU Type | Athlon II, Phenom II, Sempron |
CPU Socket Type | Socket AM3+ |
Chipset Type | AMD 990FX |
Data Bus Speed | 2600 MHz |
Storage Controllers | Serial ATA-600, eSATA port |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
ASUS M5A99FX PRO R2.0 AM3+ AMD 990FX + SB950 SATA 6Gb/s USB 3.0 ATX AMD Motherboard with UEFI BIOS
CPU and DRAM Digital Power Design for a 100% Performance Boost on AMD 990FX Platform
- Dual Intelligent Processors 3 with New DIGI+ Power Control – Full Hardware Control. Total Performance Tuning.
- Remote GO! – One-stop PC Remote Control and Home Entertainment
- USB 3.0 Boost – Faster USB 3.0 Transmission with UASP
- Network iControl – Real-time Network Bandwidth Control
- DirectKey – A Dedicated Button to Access the BIOS Directly
- USB BIOS Flashback – Easy, Worry-free USB BIOS Flashback with Hardware-based Design
- UEFI BIOS – Flexible & Easy BIOS Interface
Dual Intelligent Processors 3 with New DIGI+ Power Control
Dual Intelligent Processors 3 with New DIGI+ Power Control
The world’s first Dual Intelligent Processors from ASUS pioneered twin onboard chips – TPU (TurboV Processing Unit) and EPU (Energy Processing Unit). Third generation Dual Intelligent Processors with New DIGI+ Power Control provides a total CPU, memory and SMART DIGI+ Key profile tuning digital power solution, which includes two digital voltage controllers allowing ultra-precise DRAM tuning in addition to ultra-precise CPU voltage control – a first on the AMD platform. It’s upgraded with one-click extreme performance optimization with the user-friendly AI Suite II utility. This evolution of innovative and industry-leading ASUS technology provides super-accurate voltage tuning for better efficiency, stability and performance.
New DIGI+ Power Control
All-New Digital Power Control for both CPU and DRAM
The New DIGI+ Power Control design with two digital voltage controllers upgrades motherboard power delivery to an overall solution on AMD AM3+ motherboards, including all-new DRAM controllers that offers ultra-precise memory tuning in addition to ultra-precise CPU voltage control. This evolution of innovative, industry-leading ASUS technology provides the best in class control for better efficiency, stability and performance.
TPU with the All-New SMART DIGI+ Key for a Blazing Performance Boost
Always at the forefront of power design, ASUS propels you into the future standard of power management again by giving you a complete CPU, memory and new SMART DIGI+ Technology with profile tuning digital power solution, which works with the TPU to ramp up performance to its maximum. Enable the all-new SMART DIGI+ Key profile with a single click and adjust CPU ratios manually in the TPU to increase CPU frequency up to an incredible 100%!
Increased CPU and DRAM Overclocking Range
With programmable digital controllers onboard, users can adjust CPU and DRAM voltage and VRM switching frequencies for various overclocking scenarios. New DRAM tuning possibilities make the most of DDR3 memory for better performance with CPU/NB load line calibration and 30% more DRAM current capacity. Thanks to a slew of power options teamed with an extensive and intuitive UEFI BIOS, overclocking very large memory setups is no more difficult than mainstream motherboards.
TPU
The Ultimate Turbo Processor
Unleash your performance with ASUS AI Suite II utility. The TPU chip offers precise voltage control and advanced monitoring through Auto Tuning and TurboV functions. Auto Tuning offers a user friendly way to automatically optimize the system for fast, yet stable clock speeds, while TurboV enables unlimited freedom to adjust CPU frequencies and ratios for optimized performance in diverse situations.
EPU
Energy Efficiency All Around
Tap into the world’s first real-time PC power saving chip through AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!
ASUS Exclusive Features
Remote GO!
One-stop PC Remote Control and Home Entertainment
Remote GO! links PCs, tablets, smartphones and TVs wirelessly together through an existing LAN cable and router setup. It allows users to stream multimedia content from PC to DLNA devices, access their computer anywhere using their mobile device at home, while also allowing easy file transfers between your computer and mobile device. It provides seamless environment for a futuristic connected lifestyle with three useful functions: DLNA Media Hub, Remote Desktop and File Transfer.
DLNA Media Hub: Enjoy HD video, music and photos stored in the PC streaming to your DLNA devices via Wi-Fi connectivity. You can even control the PC to play multimedia on a TV with a tablet. It’s the perfect match for creating your own home theater!
Remote Desktop: Operate and control your PC in real-time from a smartphone or tablet for complete comfort. This function brings notebook-like convenience, by creating a virtual remote desktop, offering portable access to your data in desktop with a smartphone or tablet.
File Transfer: Send and share files between your PC and smart devices* with only a right click on the mouse.
*iPad/iPhone can send, but not receive files from the PC
Set up Your Home PC with Remote GO!
1.Wi-Fi environment setup – use an existing LAN cable and router setup to connect PC and smart devices on the same home network
2.Install Remote GO! software on your PC
3.Download Wi-Fi GO! Remote to your smart devices (Supported Systems: iOS 4.0 or later & Android 2.3 or later)
4.Setup complete – get three useful free apps with ASUS Remote GO!
USB 3.0 Boost
Faster USB 3.0 Transmission with UASP
New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device’s transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction.
- World’s 1st USB 3.0 UASP Support – 170% faster instantly
- Complete USB 3.0 Solution – Performance boost for most USB devices
- Simple Plug & Boost – Auto detection design ensures best performance always
USB BIOS Flashback
Easy, Worry-free USB BIOS Flashback
USB BIOS Flashback offers the most convenient way to flash the BIOS ever! It allows overclockers to try new UEFI BIOS versions easily, without even entering their existing BIOS or operating system. It even works without key components such as the CPU and memory installed. Just plug in any USB storage and push the dedicated button for 3 seconds. The UEFI BIOS is automatically flashed using ATX standby power. Worry-free updating for the ultimate convenience!
DirectKey
A Dedicated Button to Access the BIOS Directly
Designed for users requiring frequent BIOS access, you can easily enter the BIOS automatically when the PC is on standby power with a press of a button. It saves you time during boot-up from having to repeatedly press the DEL key. Convenience and ease at its best!
Network iControl
Real-time Network Bandwidth Control
With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it’s an intuitive network bandwidth control center.
UEFI BIOS
ASUS UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond traditional keyboard-only controls. It also natively supports fully-utilized hard drives larger than 2.2TB in 64-bit operating systems.
ASUS Exclusive Interface
EZ Mode displays frequently-accessed info. Users can choose system performance settings and drag and drop boot priorities. Advanced Mode for performance enthusiasts includes detailed DRAM settings via a dedicated memory info page for complete insight.
New Upgrade! Quick and Easy Info for Enhanced System Control
- F12 BIOS snapshot hotkey for sharing UEFI setup info and troubleshooting
- New F3 Shortcut for most accessed info
- ASUS DRAM SPD (Serial Presence Detect) Information for accessing memory info, detecting faulty DIMMs and helping with difficult POST situations
Latest Transfer Technology
Complete USB 3.0 Integration
Double USB Access, Double Convenience
ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel – 4 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. This motherboard affords greater convenience to high speed connectivity.
Extra SATA 6Gb/s Supports
Extra Ports, Extra Speed and Accessibility
The AMD SB950 chipset natively supports the next-generation Serial ATA (SATA) interface, delivering up to 6Gb/s data transfers. ASUS provides extra SATA 6Gb/s ports with enhanced scalability, faster data retrieval and double the bandwidth of current bus systems.
ASUS Crystal Sound
DTS Connect
Expand Your PC Audio Experience
To get the most out of your audio entertainment across all formats and quality levels, DTS Connect combines two enabling technologies. DTS Neo:PC™ upmixes stereo sources (CDs, MP3s, WMAs, internet radio) into as many as 7.1 channels of incredible surround sound. Consumers can then connect their PC to a home theater system.DTS Interactive is capable of performing multi-channel encoding of DTS bitstreams on personal computers, and sending encoded bitstreams out of a digital audio connection (such as S/PDIF or HDMI) designed to deliver audio to an external decoder.
DTS UltraPC II
DTS UltraPC II delivers exceptional 7.1 surround through the most popular PC audio setups – your existing stereo speakers or headphones. In addition to virtual surround, it upgrades original sound to new levels with Audio Restoration, recreating the dynamic range of audio files. Symmetry mode improves the balance of perceived loudness across different input sources and Enhance boosts audio quality through high and low frequency equalization. With these technologies, users experience better home theater audio with ease.
CPU, Chipset and Graphics features
AMD® Socket AM3+ for AMD® FX Series CPU up to 8-core
AMD® FX™-Series/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors (socket AM3+/AM3)
M5A99FX PRO R2.0 supports AMD® AM3+/AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1866 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process.
AMD® 990FX Chipset
AMD 990FX Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and dual PCI Express™ 2.0 x16 graphics. It is optimized with AMD latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities.
Quad-GPU SLI and Quad-GPU CrossFireX Support!
Flexible Multi-GPU Solutions, Your Weapon of Choice!
M5A99FX PRO R2.0 brings multi-GPU configurations through both SLI™ and CrossFireX. This motherboard features the powerful AMD® 990FX/SB950 platform, optimizing PCIe allocation in multiple GPU configurations. Expect a brand new gaming style like you’ve never experienced before!
Rich Software Bundled
ASUS CPU-Z
Whole New Design of CPU-Z
ASUS CPU-Z is a customized ASUS version authorized by CPUID. It has the same functionality and credibility as the original version, with a unique design. Use the whole new look of ASUS CPU-Z to truly report your CPU related information and your uniqueness.
M5A99FX PRO R2.0 Product Overview
Other ASUS Features
TurboV
Adjust system performance parameters with just a few clicks away.
Auto Tuning
Achieve extreme yet stable overclocking results automatically.
External SATA
The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.
MemOK!
Quickly ensures memory boot compatibility.
AI Suite II
One-stop Access to Innovative ASUS Features.
Fan Xpert
Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
Q-Design
ASUS Q-Design enhances your DIY experience.
100% Japan-made Solid Capacitor
Uses 100% Japan-made Solid Capacitor.
