Autel MaxiScan MS509 OBD 2 EOBD Complient Auto Code Reader Scanner Diagnostic

Rating
Availability: In stock

Features

  • Retrieves generic and manufacturer specific Diagnostic Trouble Codes (DTC), features built-in OBD-II DTC lookup library and software is upgradeable via Internet
  • Features large easy-to-read backlit LCD screen, a multilingual menu and DTC definitions and standard 16-pin OBD-II connectivity; no additional cables are needed
  • Contains advanced functionality including: live PCM datastream, live O2 sensor test data, graphs data (1996 and newer), memory backup for off-vehicle data review and analysis, and USB printing
  • Supports the CAN (Controller Area Network) protols and all other current OBD-II protocols
  • Works with all OBD-II/EOBD compliant U.S., European and Asian vehicles (OBD-II is standard on all cars sold in U.S. post-1996)
Compare

Autel MaxiScan MS509 OBDII EOBD Auto Code Scanner Fit For USA Asian European

The MaxiScan MS509 EOBD / OBD2 Scanner is designed for both automotive technicians and professional mechanics to which all nine OBD2 test modes on all OBD2 compliant vehicles are important. This code reader enables technicians or enthusiasts to accurately diagnose very complex problems. This ergonomic and light car diagnostic tool is characterized as sophisticated easy-to-use scan tool, which makes your vehicle service experience much more pleasant!

Feature:
Prints data via your PC!
Reads live PCM Data Stream!
Works on all 1996 & later OBD2 compliant US, European & Asian vehicles
Easily determines the cause of the “Check Engine Light”
Retrieves generic (P0, P2, P3, & U0) & manufacturer specific (P1, P3, and U1) codes
Turns off Check Engine Light, clears codes & resets monitors
Displays DTC definitions onscreen
Views freeze frame data
Displays monitor & I/M readiness status (emissions)
Identifies pending codes
Reads live PCM data stream
Displays live O2 sensor test data
Graphs data – (1996 and newer)
Reads, stores & playbacks live sensor data
Memory/battery backup for off-vehicle data review & analysis
Bilingual interface & definitions—English/Spanish
Performs modules present test
Retrieves vehicle information (VIN, CID and CVN)
Supports CAN (Controller Area Network) & all other current OBD2 protocols
Built-in OBD2 DTC lookup library
Large easy-to-read backlit LCD screen
Software upgradeable via internet
Prints data via PC
Autel MaxiScan MS509 Supported Protocols
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 14230-4 KWP 2000 (fast init, 10.4 kbaud)
ISO 14230-4 KWP 2000 (5 baud init, 10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
SAE J1850 VPW (10.4 kbaud)
SAE J1850 PWM (41.6 kbaud)

Specification:

Display Backlit, 128 x 64 pixel display with contrast adjsutment
Operating Temperature 0° to 50°(32 to 122°F)
Storage Temperature -20° to 70°(4 to 158°F)
External Power 8.0 to 15.0V power provided via vehicle battery
Internal Power 9V cell battery (not included)
Length 178mm / 7.00″
Width 95mm / 3.74″
Height 35mm / 1.38″
Package Included:
1 X OBD2 II EOBD Car Diagnostic Code Reader Live Data
1 X 4-foot OBD II cable
1 X CD User′s Manual

1 X Carrying Bag

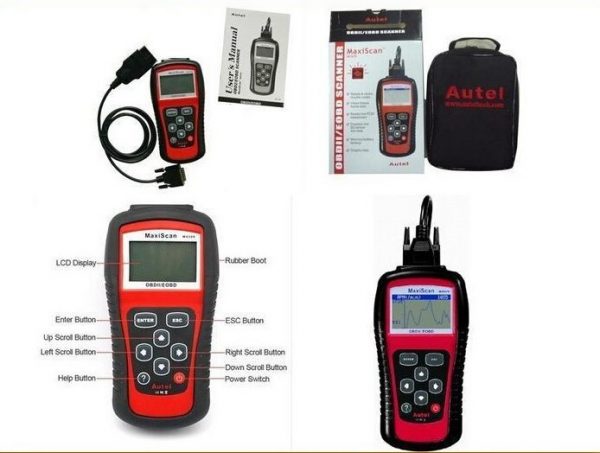

Autel MaxiScan MS509 Pictures:

Autel MaxiScan MS509Autel MaxiScan MS509Autel MaxiScan MS509Autel MaxiScan MS509Autel MaxiScan MS509Autel MaxiScan MS509Autel MaxiScan MS509

OBD2 II EOBD Car MS509 Diagnostic Code Reader Live Data

OBD2 II EOBD Car MS509 Diagnostic Code Reader Live Data

OBD2 II EOBD Car MS509 Diagnostic Code Reader Live Data

OBD2 II EOBD Car MS509 Diagnostic Code Reader Live Data

ms509 comparison table

Vehicle Covered:

for GM \`96 – Current Year (OBD-II)
for Ford \`96 – Current Year (OBD-II)
for Chrysler \`96 – Current Year (OBD-II)
for Toyota \`96 – Current Year (OBD-II)
for Honda \`96 – Current Year (OBD-II)
for NISSAN \`96 – Current Year (OBD-II)
All other Asian and European \`96 – Current Year (OBD-II)
