Blackmagic Design HyperDeck Studio 2

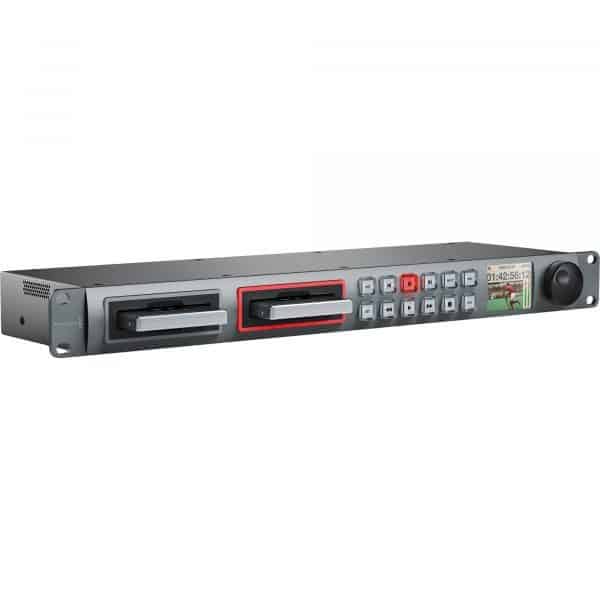

The Blackmagic Design HyperDeck Studio 2 is a file-based deck that features the same functionality and control of professional tape decks. It records uncompressed video with 4:2:2 color sampling at 10-bit in Quicktime format, and also records video using either ProRes or DNxHD codecs. With two SSD slots, you can record almost endlessly as one SSD becomes full, recording automatically continues on to the other. The HyperDeck Studio features one 3G-SDI input and three SD/HD/3G-SDI outputs plus a loopthrough output, and one HDMI input and one HDMI output. All outputs, except the loopthrough SDI, are always active, so playback is available on both the SDI and HDMI outputs no matter what input it was recorded from.

  • 1RU File-Based Video Recorder
  • Records Uncompressed 10-bit 4:2:2
  • Records Compressed in ProRes / DNxHD
  • Records on Two 2.5″ SSDs
  • 1 x 3G-SDI Input, 3 x Outputs
  • 1 x HDMI Input, 1 HDMI Output
  • Outputs are Always Active
  • Front Panel Button, Jog Wheel & RS-422
  • Multi-Display Integrated LCD



Blackmagic Design HyperDeck Studio 2

HyperDeck Studioof Blackmagic Design is a video recorder for video capture and playback of uncompressed 10-bit for solid state drives with two slots that allow you to continue recording automatically in the next disc, when it runs out of space on a disk for a recording of unlimited duration. HyperDeck Studio della Blackmagic Design video recorder in a compact and affordable, therefore, allows you to record HD video and uncompressed 10-bit and play, all from a removable SSD can also be used for assembly

With Blackmagic Design HyperDeck Studioyou can bypass the camera compression to get perfect uncompressed 10-bit SD/HD video. Thanks to SD/HD-SDI and HDMI inputs and outputs, HyperDeck Studio works with virtually every camera, deck or monitor. HyperDeck Studio also comes standard with a USB connection for firmware updates and settings.

Use Blackmagic Design HyperDeck Studio as the video playback source for digital signage systems or switchers and as a fantastic replacement for a broadcast deck. At a single rack unit and less than 4 inches deep, you get a beautiful and solid design with an integrated LCD for playback status and video preview. Its perfect for on-set recording and viewing of dailies, as a video server, or for replays at live events; for broadcast, post production, live production and more.


HyperDeck Studio for video capture Technical Specifications
Blackmagic Design HyperDeck Studio Connections
SDI Video Input 1 x 10-bit SD/HD/3 Gb/s SDI switchable
SDI Video Output
  • 2 x 10-bit SD/HD/3G Gb/s SDI switchable
  • 1 x 10-bit SD/HD/3 Gb/s SDI switchable Loop Output
  • 1 x 10-bit SD/HD/3 Gbs/SDI switchable Monitor Output
HDMI Video Input 1 x HDMI 1.3 type A connector
HDMI Video Output 1 x HDMI 1.3 type A connector
SDI Audio Input 16 Channels embedded in SD and HD
SDI Audio Output 16 Channels embedded in SD and HD
HDMI Audio Input 8 Channels embedded in SD and HD
HDMI Audio Output 2 Channels embedded in SD and HD
SSD Interface 2 x 2.5″ SATA 3Gb/s
Computer Interface 1 x Mini-B type USB 2.0 connector for initial setup, firmware updates and HyperDeck Utility software control
Sync Input Blackburst or Tri-Sync
Device Control Sony compatible RS422 deck control port
Recorder Control 12 buttons and jog wheel for local control of HyperDeck Studio or use either RJ45 Ethernet or USB 2.0 high speed interface
Recorder Configuration Use USB 2.0 high speed interface
Blackmagic Design HyperDeck Studio Standards
SD Format Support 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only
HD Format Support 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
SDI Compliance SMPTE 259M, SMPTE 292M
SDI Metadata Support HD RP188 and closed captioning
Video Sampling 4:2:2
Audio Sampling Television standard sample rate of 48kHz and 24 bit
Color Precision 10-bit
Color Space REC 601, REC 709
Multiple Rate support SDI and HDMI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI
Blackmagic Design HyperDeck Studio Extras
Displays Built-in LCD for video, audio and timecode monitoring
Power Supply +12V universal power supply included with international socket adapters for all countries
Product Warranty 12 Month Limited Manufacturers Warranty
