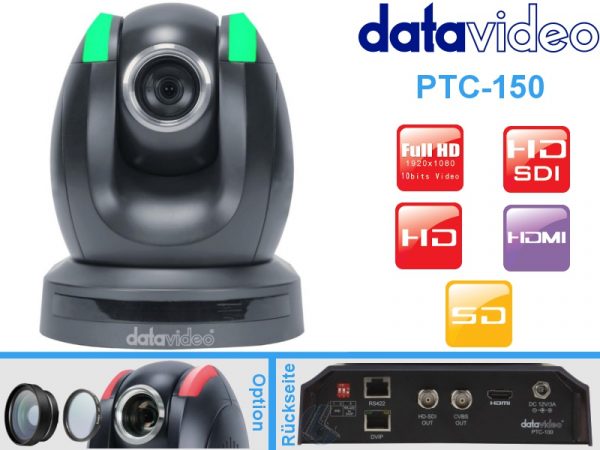

Datavideo PTC-150 HDSD-SDI PTZ Camera
Datavideo PTC-150 HD/SD PTZ Video Camera
30x optical zoom HD/SD PTZ Camera
The PTC-150 HD/SD PTZ Video Camera from Datavideo captures HD video at up to 1920x1080p resolution, and features wide dynamic range with backlight compensation. It can be mounted on a wall, ceiling, floor, or tabletop, and includes an IR remote control.
- Datavideo PTC-150 PTZ Camera – PTC-150 Unit – Quick Start Guide – IR Remote Controller – Table/Ceiling Mounting Bracket – Main Unit Mounting Bracket – Mounting Screws – DC 12V Power Adapter and Cord – Datavideo 2 Year Warranty (If Product Registered in 30 Days)
- HD Resolution: 1/2.8″ High Definition 2.0 MegaPixels progressive MOS sensor
- SD Format Support: 480/59.94p, 480/59.94i, 576/50i
- Reported Position Coordinates: Position coordinates report in real time per frame
- Sony VISCA: Supports SONY VISCA Protocol Keyboard
Datavideo PTC-150 HD/SD PTZ Video Camera
30x optical zoom HD/SD PTZ Camera

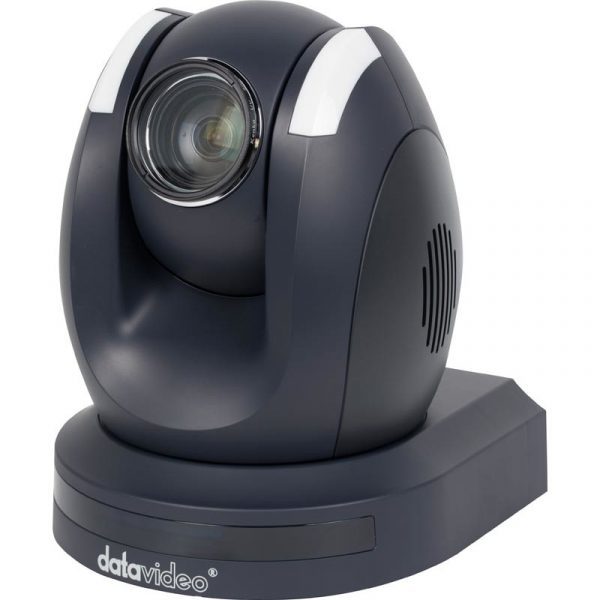

The PTC-150 is a full HD PTZ video camera, featuring 4:2:2 output, a 30x optical zoom, and HDMI, SDI and composite outputs.
The 1920 x 1080 resolution camera features wide dynamic range with backlight compensation as well as a built-in IR cut filter for low light shooting. The camera’s image mirror and image rotation functions allow you to electronically orientate the image to adjust for the position in which the PTZ has been located. PTC-150 can be mounted on a wall, ceiling, floor or a tabletop and includes an IR remote control.
50 programmable position presets including pan, tilt and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote, or a PTZ controller. For multi-camera shoots, the built-in tally light indicates when it active. PTC-150 supports real time position reporting by per frame, providing useful information for virtual studio applications.
The camera supports Sony VISCA protocol for PTZ control using RS-422 protocols over the unit’s RJ-45 port.
Key Features:
- 30x optical zoom (f=4.3 mm to 94.6 mm)
- Position coordinates reported in real time per frame
- Dehazing technology allows the foggy or hazy images to be clear and sharp
- Supports SONY VISCA Protocol Keyboard
- Supports DVIP Control Protocol (F/W update to activate)
- Digital Noise Reduction Function (DNR)
The camera supports Sony VISCA protocol for PTZ control using RS-422 protocols over the unit’s RJ-45 port.
Datavideo PTC-150 Specs
| General | |
|---|---|
| Video Outputs | 1 x HD/SD-SDI 1 x CVBS 1 x HDMI (V1.3) |
| Output Level | 1 V p-p, 75 ohms |
| Control | |
|---|---|
| Ports | 1 x RJ-45, RS-422 1 x RJ-45, DVIP |
| Protocol | VISCA / DVIP (selectable) |
| Baud Rate | 38,400 bps (or more) |
| F/W Upgrade | Via USB port on rear using USB dongle (not included) |
| IR | 2 x IR receivers in front of the camera |
| Video Capture | |
|---|---|
| Image Pickup Element | 1/2.8″ type progressive scan Sony CMOS sensor |
| Effective Picture Elements | Approx. 2.14 MP |
| Resolution | HD / FHD / SD (CVBS only) |
| Supported Formats | HDMI & SDI: 1080/59.94p (4:1:1), 1080/59.94i, 1080/29.97p, 720/59.94p 1080/50p (4:1:1), 1080/50i, 1080/25p, 720/50p CVBS: 480i/576i |
| S/N Ratio | 50 dB |
| Minimum Illumination | Color: 0.4 lx (f/1.6, 1/30 sec, 50 IRE, high gain) Black / White : 0.03 lx (f/1.6, 1/30 sec, 50 IRE, high gain) |
| Electric Shutter | 1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000, 1/2000 sec |
| Electronic Sensitivity UP | 0 – 128x |
| Gamma | Off, AUTO, Smart-1, Smart-2, Smart-3 |
| Iris Control | Auto / manual |
| Digital Noise Reduction (DNR) | On / off |
| On Screen Display | English |
| White Balance | AWC / ATW / MWB (adjustable R and B signals) / outdoor / indoor / fluorescent |
| AGC (Automatic Gain Control) | Gain Adjustment Table: Low1 / Low2 / Low / Mid1 / Mid / High1 / High / OFF |
| Mirror | Of / horizontal / vertical / H+V |
| Switches | Fog Correction: On / off Backlight Compensation Function: On / Off Camera Title (OSD): On / off, 16 alphanumeric characters (Camera ID: 16) Color Bar: On / off (full bar) |
| Focus Modes | Auto / manual / one-push / STOP-AF |
| Day & Night | Auto / color / BW (using IR) |
| Lens | |
|---|---|
| Type | 30x optical zoom |
| Focal Length | 4.3 to 94.6 mm, f/1.6 to f/4.7 |
| Angle of View | Horizontal: 63.7° to 2.3° |
| PTZ Control | |
|---|---|
| Pan Range | 270° |
| Tilt Range | +90° to -20° |
| Pan/Tilt Speed | Manual: 1 – 150°/sec Swing: 1 – 150°/sec |
| Initializing Time | 30 sec |
| Preset | 50 positions |
| Scan | 8 groups |
| Camera ID | 1 – 7 |
| Operating Noise | Tilt: ≤25 dB Pan: ≤25 dB |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 20 – 90%, non-condensing |
| Certifications | CE / FCC Class A |
| Dimensions (W × H × D) | 6.8 x 7.4 x 8.6″ (173 x 189 x 218 mm) |
| Weight | 6.1 lb (2.8 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 9.5 lb |
| Box Dimensions (LxWxH) | 24.6 x 14.4 x 12.1″ |
