Konica Minolta bizhub C654 and C754

Availability: In stock


  • High-speed print/copy output: 60 ppm in color, 65 ppm in B&W
  • Standard single-pass dual scanning at up to 180 originals per minute
  • Enhanced INFO-Palette design puts more information at your fingertips, including downloadable apps

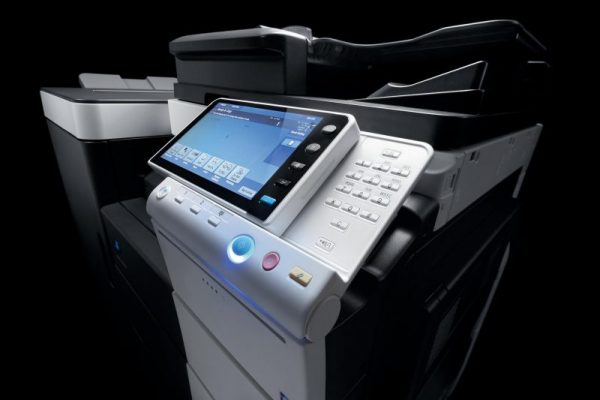

  • Large 9” color display on the multi function printer lets you drag and drop, pinch in and out, rotate images and more — as easy as operating a familiar tablet
  • Electrostatic keys and sound settings for a “hands-on” touch and feel
  • Built-in Emperon® print system with universal printer driver for cross-platform productivity, standard 250 GB hard disk drive
  • Simitri® HD toner with biomass reduces the environmental impact of the multi-function printer
  • Downloadable apps from our bizhub Marketplace to improve your productivity.

Konica Minolta bizhub C654 and C754

Product Overview

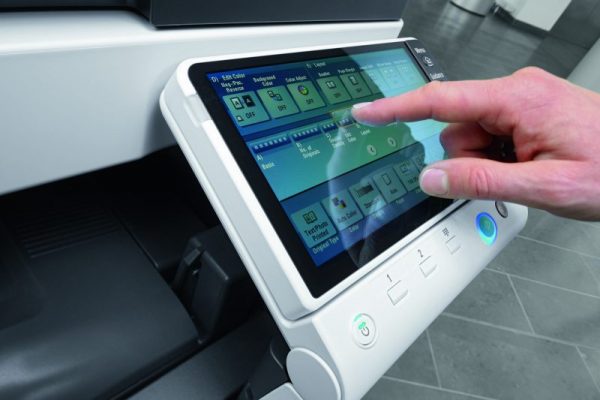

The Konica Minolta bizhub C654 ($32,828) and bizhub C754 ($38,467) features Konica Minolta’s INFO-Palette touch screen interface. This 9″ color touch screen has what Konica Minolta called a “touch and swipe” interface, much like you’d operate a mobile device, as well as customized icons for functions you use more frequently. An external keyboard is available as an option.

Both machines has standard copying, printing, and scanning (and optional faxing) and a 60ppm color speed. Black-and-white speed is 65ppm and 75ppm for the bizhub C654 and bizhub C754, respectively. The controller uses a 1.2GHz processor and comes with 2GB of memory and a 250GB hard disk drive. PostScript and PCL printing support are standard, along with XPS printing. Warm-up time is 22 seconds, which puts these machines among the fastest in the industry. First-page-out time in color is an impressive 5.3 seconds.

An optional Fiery IC-412 image controller includes Adobe PostScript, excellent workflow tools and color management tools. It adds features like color profiles, hot folders, and defined workflows that enhance productivity.

There is also the bizhub MarketPlace, a place for downloadable apps. It includes features as scanning files to Gmail, Google Docs, and SharePoint. Konica Minolta PageScope Mobile App allows for printing from and scanning to smartphones.

Konica Minolta has made a big impression in the professional color market with rugged production models. The bizhub C654 and bizhub C754 are aimed at various industries, especially large medical offices that need to scan paper copies in order to prepare for adoption of electronic medical records. They are also good for large workgroup and departments with high-speed copying and printing needs.


Paper handling:

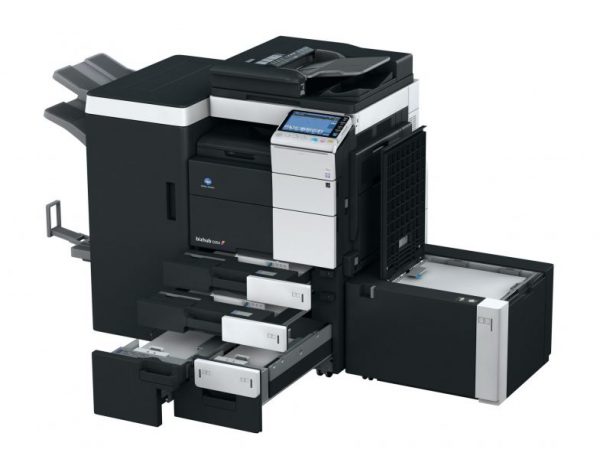

  • Dual 500-sheet paper cassettes, a 1,000-sheet paper cassette, and a 1,500-sheet cassette — all standard.
  • Standard 150-sheet bypass
  • Optional 3,000-sheet stacker that handles letter-size paper only ($1,780)
  • Optional 2,500-sheet unit that holds up to 12″ x 18″ paper
  • 6,650-sheet maximum paper capacity

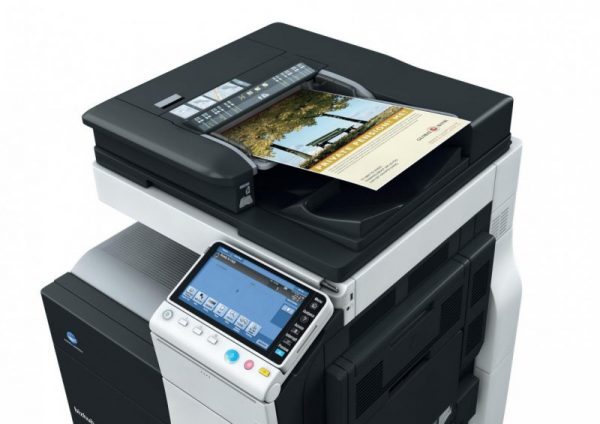

  • Standard 150-sheet dual-scanning document feeder with duplex speed of 180ppm
  • 250-sheet exit tray ($112)
  • Optional 3,200-sheet finisher with 50-sheet multiposition stapling ($1,885); users can also add an optional booklet maker with saddlestitching ($1,450) that allows users to create booklets up to 80 pages, and a optional 2/3-hole punch ($586)
  • Optional 3,100-sheet finisher with 100-sheet multiposition stapling ($3,020); users can also add an optional booklet maker with saddlestitching ($1,670) that allows users to create booklets up to 80 pages, and a optional 2/3-hole punch ($863)
  • Two-tray (200 sheets in each tray) optional postprocess inserter ($1,113)
  • Optional Z-folding unit ($5,509)

MFP features:

  • Scanning features include scan-to-email, scan-to-FTP, scan-to-SMB, and scan-to-PowerPoint
  • Scanning file formats include encrypted PDF and compact PDF; for PCs with Windows 7, there is also the Distributed Scan feature for sending scanned documents directly to a Scan Server
  • LDAP supported
  • Internet faxing standard
  • Optional faxing ($1,070) includes 33.6kbps modem, JBIG compression, and supports PC faxing and IP address faxing.

Security features:

  • Optional card and biometric authentication devices
  • Optional biometric recognition software that uses finger vein patterns
  • Secure print
  • HDD Lock
  • Job erase
  • Optional copy guard
  • Automatic Document Feeder?
  • Duplexing?
  • Ethernet Connectivity?
  • Wireless Connectivity?
  • Mobile Printing/Scanning?
  • Finishers?


These devices were released in 2012; we recommend users look at Konica Minolta’s more recent bizhub C654e/bizhub C754e for upgraded features, such as image rotation and drag-and-drop functionality via the touchscreen interface.


General Specifications
Type Console Full Colour Printer/Copier/Scanner
Colour Support Full-Colour
Copy Resolution Scan Main: 600dpi x Sub: 600dpi
Print Copy: Main; 600 dpi x Sub; 600 dpi / Print: Main; 1,200 dpi x Sub; 1,200 dpi
Gradation 256
Memory Capacity (Std./Max.) 2GB/4GB
Original Type Sheets, Books, Objects
Max. Original Size A3 (11″ x 17″)
Output Size SRA3 to A5, B6S 1, A6S 1 Thick paper, Foolscap 2 (8-1/2″ x 13-1/2″,
200 mm x 330 mm, 8-1/8″ x 13-1/4″, 8-1/2″ x 13″, 8-1/4″ x 13″, 8″ x 13″),
8K, 16K, Long Length Paper (210 x 457.3 mm to 297 x 1,200mm)
Image Loss Max. 4.2mm or less for top edge (5 mm for thin paper),
Max. 3.0mm or less for bottom edge,
Max. 3.0mm or less for right/left edges*A loss of 4.2 mm each during printing.
Warm-Up Time (23°C, std. voltage)
(May vary depending on the operating
environment and usage.)
22 sec. or less
(The time required to start printing when both the main power
and sub-power switches are turned from OFF to ON.)
22 sec. or less
(The time required to start printing when the main power switch
is ON and the sub-power switch is turned from OFF to ON.)
First Copy Time 3 Colour C754 : 5.3 sec. or less C654 : 5.3 sec. or less
B/W C754 : 3.6 sec. or less C654 : 3.7 sec. or less
Copy Speed
(A4 Crosswise)
Copy Magnification
Colour C754 : 60 ppm C654 : 60 ppm
B/W C754 : 75 ppm C654 : 65 ppm
Fixed Same Magnification 1:1±0.5% or less
Scaling Up 1: 1.154/1.224/1.414/2.000
Scaling Down 1: 0.866/0.816/0.707/0.500
Preset 3 types
Zoom 25-400% (in 0.1% increments)
Lengthwise Crosswise Individual Settings 25-400% (in 0.1% increments)
Paper Capacity
(80g/m2 paper)
Tray 1/2 : 500 sheets (up to SRA3), Tray 3 : 1,500 sheets (A4),
Tray 4 : 1,000 sheets (A4),
Multiple Bypass Tray : 150 sheets (up to SRA3)
Max. Paper Capacity (80g/m2) 6,650 sheets
Paper Weight Tray 1 – 4 52- 256g/m2
Multiple Bypass Tray 52- 300g/m2
Multiple Copy 1- 9,999 sheets
Auto Duplex Type: Non-Stack Paper Size: Width/100-320mm,
Length/148-457.2mm Paper: Weight 52 to 256g/m2
Power Requirements AC 230 V 10 A (50 to 60Hz)
Max. Power Consumption 2.1kW or less
Dimensions [W] x [D] x [H] 650mm x 799mm x 1,155mm (25-1/2″ x 31-1/2″ x 45-1/2″)
Weight Approx. 221 kg (487-1/4 lb)
Space Requirements4 [W] x [D] 988 x 1,525 mm (39″ x 60″)
1 S: Short edge feed 2 Set by Customer engineer
3 A4 crosswise full size/using the first tray/scanning from the original glass surface.
4 Without options, with paper trays pulled out, and multiple bypass tray, auxiliary tray and ADF opened.
Print Specifications (Standard)
Type Embedded
CPU MPC8536 1.2 GHz
Memory Shared with the copier
Print Speed Same as Copy Speed (when using the same original)
HDD 250 GB (Shared with the copier)
Print Resolution 1,200 x 1,200 dpi
PDL PCL5e/c Emulation, PCL XL Ver. 2.1 Emulation,PostScript 3 Emulation (3016),
XPS Ver. 1.0
Protocol TCP/IP, IPX/SPX (NDS support), SMB (NetBEUI), LPD, IPP1.1, SNMP, HTTP
Support OS Windows 2000 / XP / XP 64bit / Vista / Vista 64bit / 7 / 7 64bit
Server 2003 / Server 2003 64bit / Server 2003 R2 / Server 2003 R2 64bit /
Server 2008 / Server 2008 64bit,
Mac OS 9.2 or later / Mac OS X 10.2 or later / Mac OS X10.4 (Intel) or later,
Fonts PCL 80 Roman fonts
PS 137 Roman Type1 fonts
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T), USB 1.1, USB 2.0, USB Host
Print Specifications (Optional IC-414) * Optional Video Interface Kit VI-506 is required.
Type Embedded
CPU Intel Pentium E5300 2.60 GHz
Memory 2 GB
HDD 160 GB
Print Speed Same as Copy Speed (when using the same original)
Print Resolution 600 dpi, 1,200 dpi
PDL Adobe PostScript3 version3019, PCL6/PCL5
Protocol Ethernet (Apple Talk, TCP/IP), HTTP/HTTPS, SSL/TLS for HTTPS,
SMB, Port9100 (Bi-Directional), IPP, LDAP, IPV6, SNMP v3
Support OS Windows XP / Server 2003 / Vista / Server 2008 / Server 2008 R2 64bit / 7
Mac OS X 10.4.11, 10.5.x, 10.6.x
Fonts Adobe PS 138 Roman fonts, Agfa PCL 80 Roman fonts and 1 bitmap font,
Additional PCL 35 fonts, Euro Currency
Resident Font
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T), USB
Scan Specifications
Type Full-Colour Scanner
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
Driver TWAIN Driver, HDD TWAIN Driver
Protocol TCP/IP (FTP, SMB, SMTP)
Scanning Speed (Colour/B&W) (300dpi, A4 Crosswise) Simplex: 90 opm Duplex: 180 opm
Scanning Size Max. A3 (11″ x 17″)
Output Format TIFF, JPEG, PDF, Compact PDF, XPS, Compact XPS,
PPTx,Searchable PDF, PDF/A, Linearised PDF
Scanning Resolution Push 200dpi/300dpi/400dpi/600dpi
Pull 100dpi / 200dpi / 300dpi / 400dpi / 600dpi
Main Functions Scan to E-Mail, Scan to FTP, Scan to BOX (HDD), Scan to PC (SMB),
Network TWAIN, Scan to WebDAV, Scan to Me, Scan to Home,
Scan to USB, Scan to Scan Server, Scan to Web Service (WSD-Scan),
Device Profile for Web Services (DPWS)
Other Functions Universal Send, Authentication at the time of E-Mail send (SMTP authentication,
POP before SMTP), S/MIME, Annotation
Fax Specifications (Optional FK-511)
Communication Super G3
Compatible Lines Public Switch Telephone Network, Private Branch Exchange, Fax Communication Line
Line Density G3 (8 dot/mm x 3.85 line/mm, 600 x 600 dpi)
Modem Speed 2.4 to 33.6 kbps
Compression MH/MR/MMR/JBIG
Sending Paper Size Max. A3 (Long Length Support: Max.1,000 mm)
Recording Paper Size Max. A3 (Long Length Max. 1,000 mm — following the page division —)
Transmission Speed Less than 3 sec. (A4, V.34, 33.6 kbps, JBIG)
Memory Shared with the copier
Number of Abbr. Dials 2,000
Number of Program Dials 400
Number of Group Dials 100
Sequential Multiple Station Transmission Max. 600
Internet Fax Specifications
Protocol SMTP, POP
Connection Mode Full-Mode
Sending Paper Size A3, B4, A4
Recording Paper Size Max. A3
Resolution 200 x 100 dpi, 200 x 200 dpi, 400 x 400 dpi, 600 x 600 dpi
Interface Ethernet (10BASE-T/100BASE-TX/1000BASE-T)
Colour Support Colour Internet Fax
Format Send: TIFF-F, Receive: TIFF-F
Colour/Grey Scale: TIFF (RFC3949 Profile-C)
IP Address Fax Specifications *Optional Fax Kit FK-511 is required.
Protocol Transmission SMTP
Sending Paper Size A3, B4, A4
Resolution 200 x 200 dpi, 400 x 400 dpi, 600 x 600 dpi
Format Send: TIFF-F, Receive: TIFF-F
Colour/Grey Scale: TIFF (RFC3949 Profile-C)
