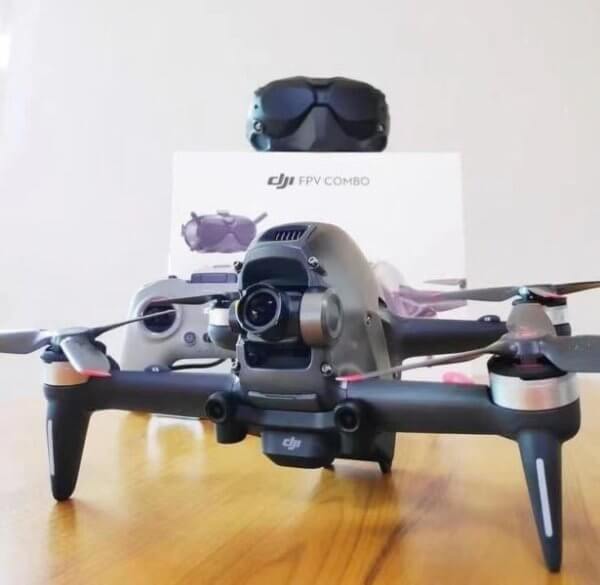

DJI FPV Drone
DJI FPV FPV Drone Racing
Fully immerse yourself in the amazing aerial views and unbridled speed of drone flying with the combo version of the DJI FPV Drone. Using the bundled FPV Goggles V2, you get a first-person view of what the drone sees, with footage that makes it feel like you’re the one flying through the sky. The onboard 4K60 fps gimbal camera can send low-latency video to your goggles for a near real-time experience. The 150° super-wide FOV lets you take in and appreciate the scope of the vistas you fly over.
- Fly in First-Person at up to 87 mph
- FPV Goggles V2 Included
- Record 4K Video at 60 fps
- 150° Super-Wide FOV
Specifications:
Aircraft | Takeoff Weight | Approx. 795 g |
Dimensions | 255×312×127 mm (with propellers) 178×232×127 mm (without propellers) |
|
Diagonal Distance | 245 mm | |
Max Ascent Speed | M mode: No limit
S mode: 15 m/s N mode: 8 m/s |
|
Max Descent Speed | M mode: No limit
S mode: 10 m/s N mode: 5 m/s |
|
Max Speed | 140 km/h(100km/h in Mainland China) M mode: 39 m/s (27 m/s in Mainland China) S mode: 27 m/s N mode: 15 m/s |
|
Max Acceleration | 0-100 kph: 2 s (in ideal conditions while flying in M mode) | |
Max Service Ceiling Above Sea Level | 6,000 m | |
Max Flight Time(without wind) | Approx. 20 mins (measured while flying at 40 kph in windless conditions) | |
Max Hover Time | Approx. 16 mins (measured when flying in windless conditions) | |
Max Flight Distance | 16.8 km (measured while flying in windless conditions) | |
Max Wind Speed Resistance | 39-49 kph (25-31 mph) | |
Number of Antennas | Four | |
GNSS | GPS+GLONASS+GALILEO | |
Hovering Accuracy Range | Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS positioning) |
|
Supported SD Cards | microSD (up to 256 GB) | |
Operating Temperature | -10° to 40° C (14° to 104° F) | |
Internal Storage | N/A | |
Camera | Sensor | 1/2.3” CMOS Effect pixels: 12 million |
Lens | FOV: 150° 35mm Format Equivalent: 14.66 mm Aperture: f/2.8 Focus Mode: Fixed Focus Focus Range: 0.6 m to ∞ |
|
ISO | 100-12800 | |
Shutter Speed | 1/50-1/8000 s | |
Still Photography Modes | Single shot | |
Max Image Size | 3840×2160 | |
Photo Format | JPEG | |
Video Resolution | 4K: 3840×2160 at 50/60fps FHD: 1920×1080 at 50/60/100/120fps |
|
Video Formats | MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC) | |
Max Video Bitrate | 120 Mbps | |
Color Profile | Standard, D-Cinelike | |
RockSteady EIS | Available | |
Distortion Correction | Available | |
Supported File Formats | exFAT (recommended) FAT32 |
|
Gimbal | Mechanical Range | Tilt: -65° to 70° |
Controllable Range | Tilt: -50° to 58° | |
Stabilization | Single-axis (tilt), electronic roll axis | |
Max Control Speed | 60°/s | |
Angular Vibration Range | ±0.01° (N mode) | |
Electronic Roll Axis | Available (can stabilize footage when the aircraft is tilted at angles of up to 10°) | |
Sensing System | Forward | Precision Measurement Range: 0.5-18 m Obstacle Sensing: Available in N mode only FOV: 56° (horizontal), 71° (vertical) |
Downward (dual vision sensors + TOF) | TOF Effective Sensing Height: 10 m Hovering Range: 0.5-15 m Vision Sensor Hovering Range: 0.5-30 m |
|
Downward Auxillary Light | Single LED | |
Operating Environment | Refers to non-reflective, discernible surfaces
Diffuse reflectivity >20% (e.g. walls, trees, people) |
|
Video Transmission | Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
Communication Bandwidth | 40 MHz (Max.) | |
Live View Mode | Low-Latency Mode: 810p/120fps ≤ 28ms High-Quality Mode: 810p/60fps ≤ 40ms |
|
Max Video Bitrate | 50 Mbps | |
Transmission Range | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) | |
Audio Transmission Support | Yes | |
DJI FPV Goggles V2 | Weight | Approx. 420 g (headband and antennas included) |
Dimensions | 184×122×110 mm (antennas excluded) 202×126×110 mm (antennas included) |
|
Screen Size | 2-inches (×2) | |
Screen Refresh Rate | 144 Hz | |
Communication Frequency <sup>[1]</sup> | 2.400-2.4835 GHz 5.725-5.850 GHz |
|
Transmitter Power (EIRP) | 2.400-2.4835 GHz FCC: ≤ 28.5 dBmCE: ≤ 20 dBmSRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 GHz CE: ≤ 14 dBm SRRC: ≤ 19 dBm |
|
Communication Bandwidth | 40 MHz (Max.) | |
Live View Mode | Low-Latency Mode: 810p/120fps ≤ 28ms* High-Quality Mode: 810p/60fps ≤ 40ms* * A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°. |
|
Max Video Bitrate | 50 Mbps | |
Transmission Range | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) | |
Video Format | MP4 (Video format: H.264) | |
Supported Video and Audio Playback Formats | MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3) | |
Operating Temperature | 0° to 40° C (32° to 104° F) | |
Power Input | Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries. | |
FOV | FOV: 30° to 54°; Image size: 50-100% | |
Interpupillary Distance Range | 58-70 mm | |
Supported microSD Cards | microSD (up to 256 GB) | |
DJI FPV Remote Controller | Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
Transmitter Power (EIRP) | 2.400-2.4835 GHz FCC: ≤ 28.5 dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 19 dBm |
|
Max. Transmission Distance | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) | |
Gimbal Dimensions | 190×140×51 mm | |
Weight | 346 g | |
Battery Life | Approx. 9 hours | |
Charging Time | 2.5 hours | |
Motion Controller | Model | FC7BMC |
Weight | 167 g | |
Operating Frequency Range | 2.400-2.4835 GHz; 5.725-5.850 GHz | |
Max Transmission Distance (unobstructed, free of interference) | 10 km (FCC), 6 km (CE/SRRC/MIC) | |
Transmitter Power (EIRP) | 2.4 GHz: ≤28.5 dBm (FCC), ≤20 dBm (CE/ SRRC/MIC) 5.8 GHz: ≤31.5 dBm (FCC), ≤19 dBm (SRRC), ≤14 dBm (CE) |
|
Operating Temperature Range | -10° to 40° C (14° to 104° F) | |
Battery Life | 300 minutes | |
microSD Card | Supported microSD cards | Max 256 GB UHS-I Speed Grade 3 |
Recommended microSD cards | SanDisk High Endurance U3 V30 64GB microSDXC SanDisk Extreme PRO U3 V30 A2 64GB microSDXC SanDisk Extreme U3 V30 A2 64GB microSDXC SanDisk Extreme U3 V30 A2 128GB microSDXC SanDisk Extreme U3 V30 A2 256GB microSDXC Lexar 667x V30 128GB microSDXC Lexar High Endurance 128GB U3 V30 microSDXC Samsung EVO U3 (Yellow) 64GB microSDXC Samsung EVO Plus U3 (Red) 64GB microSDXC Samsung EVO Plus U3 256GB microSDXC Netac 256GB U3 A1 microSDXC |
|
Goggles Battery | Capacity | 1800 mAh |
Voltage | 9 V (Max.) | |
Type | LiPo 2S | |
Energy | 18 Wh | |
Charging Temperature | 0° to 45° C | |
Max Charging Power | 10 W | |
Battery Life | Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level) | |
Intelligent Flight Battery | Battery Capacity | 2000 mAh |
Voltage | 22.2 V | |
Max Charging Voltage | 25.2 V | |
Battery Type | LiPo 6S | |
Energy | 44.4 Wh@0.5C | |
Discharge Rate | Standard: 10C | |
Weight | 295 g | |
Charging Temperature | 5° to 40° C (41° to 104° F) | |
Max Charging Power | 90 W | |
Charger | Output | Battery charging interface: 25.2 V ± 0.1 V 3.57 A ± 0.1 A (high current)1 A ± 0.2 A (low current) USB Port: 5V/2A (×2) |
Rated Power | 90 W |
Feature:
Immersive Flying Experience
Step into the sky with the goggles, HD low-latency image transmission, and limitless flight control.
Easy to Use
Multiple flight modes let users of any level fly, and the ultra-intuitive DJI Motion Controller (Not Included) provides stunningly intuitive control.
Ready to Fly
DJI FPV comes fully assembled, with everything you need for a seamless, hassle-free flight experience. Repairs and fast and easy thanks to a modular design with easily replaceable parts.
High-Quality Video
Ensure footage is as breathtaking as the experience with 4K/60fps video and a super-wide 150° FOV.
Advanced Safety Features
Fly confidently thanks to the Emergency Brake and Hover feature, RTH, an auxiliary bottom light, and other advanced safety features.
ve Flying Experienc
Note:
1. Due to local policy and regulation restrictions, the 5.8 GHz frequency band is currently banned in certain countries, including but not limited to Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations. Always check local rules and regulations before use, as they may change over time.
2. Maximum flight range specification is a proxy for radio link strength and resilience, not aircraft battery capability. It only refers to the maximum, one-way flight distance. Data was measured in an open environment without interference. Please pay attention to the return prompt on the DJI Fly app during actual flight. Refer to the following applicable standard in different countries and regions:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions;
SRRC: Mainland China;
CE: UK, Russia, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions;
MIC: Japan.
Footnotes:
1. Before flying DJI FPV, check local laws and regulations. Ensure that your flights are conducted safely and in accordance with all local laws and regulations.
2. The 150° FOV is only applicable when shooting at 50 or 100 fps.
3. Obstacle sensing is only available when the aircraft is in N mode. In this mode, DJI FPV will automatically decelerate when it detects obstacles, but it will not automatically stop.
4. To ensure flight safety when using M mode, it is recommended to have another person present to observe the flight environment. To obtain a more precise control experience when using M mode, adjust the F1 screw on the back of the thrust control stick (right side if flying in Mode 1, left side if flying in Mode 2) to disable recentering.
5. The DJI FPV aircraft supports two video coding formats, while the DJI FPV Goggles V2 only supports H.264.
6. In 810p/120fps Low-Latency mode, the video transmission latency is lower than 28ms; in 810p/60fps High-Quality mode, the video transmission latency is lower than 40ms.
7. FCC-compliant. Measurements were taken in unobstructed environments free of interference. Always follow local rules and regulations and fly your drone within your visual line of sight unless otherwise permitted.
8. The highest video transmission bitrate is 50 Mbps. Measured in an open, outdoor environment with no obstacles or interference.
9. DJI Care Refresh (DJI FPV) is a service plan that provides you with greater peace of mind during flight. DJI Care Refresh (DJI FPV) provides replacements for a small additional cost. If you purchase DJI Care Refresh (2-Year Plan), you will also enjoy an extension of the original warranty by up to two years (extension duration varies by region). For more information, contact DJI Support.
10. The DJI Virtual Flight app currently supports only iOS devices.
11. This function will be available in a future firmware update. Transmitted images from the goggles to the app can be sent to a smartphone via cable (USB-C to USB-C or USB-C to lightning).
12. The Fly Spots feature is currently available only in Mainland China. All flight locations displayed by the Fly Spots feature are based on voluntarily-shared location tags from SkyPixel users. DJI never collects or shares user data without user consent. Always check and follow the applicable rules wherever you fly.

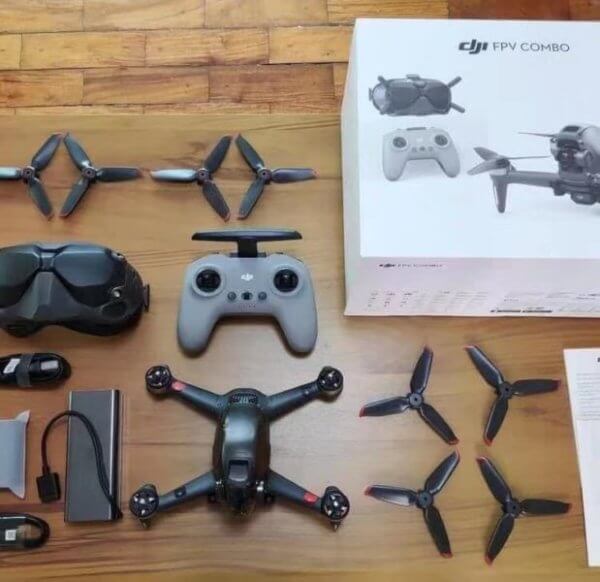

Package Included:
1 x DJI FPV Racing Drone
1 x DII Remote Controller
1 x DJI FPV Goggles V2
8 x Propeller (4XCW 4XCCW)
