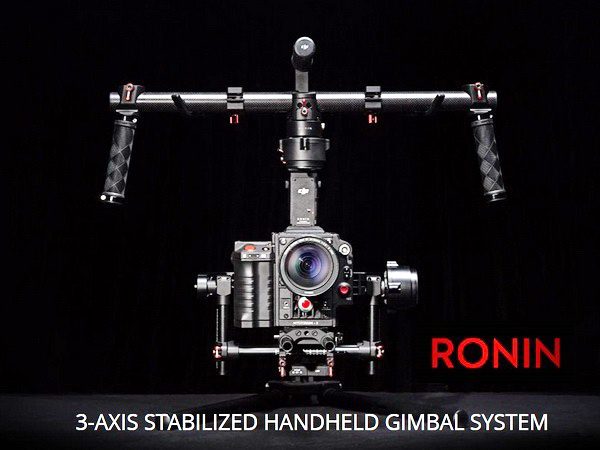

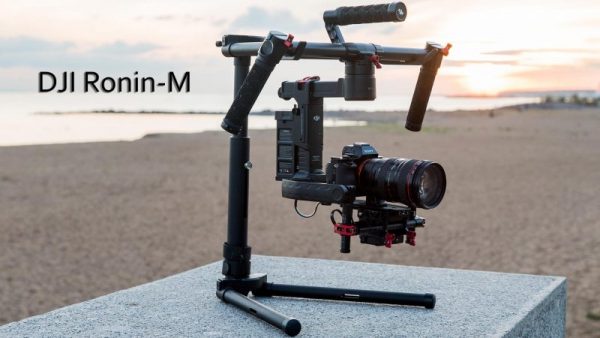

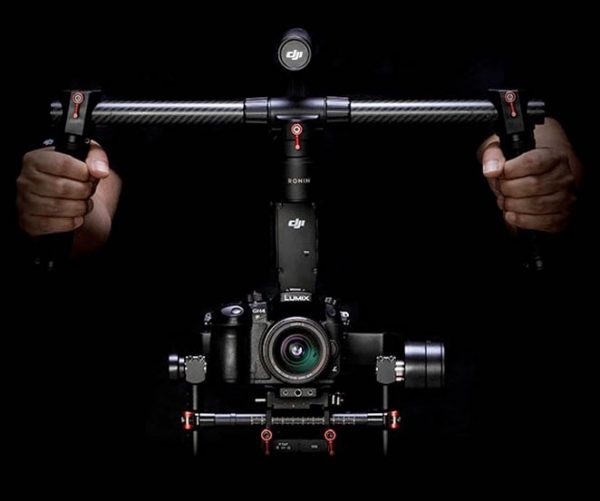

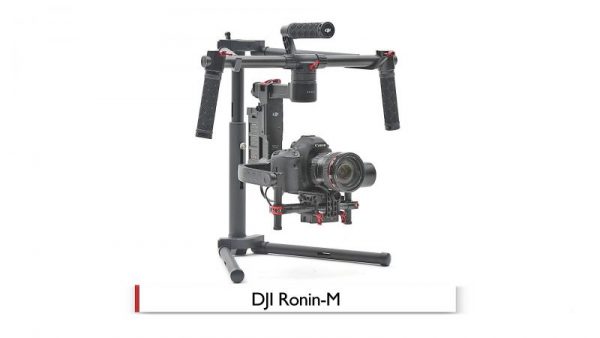

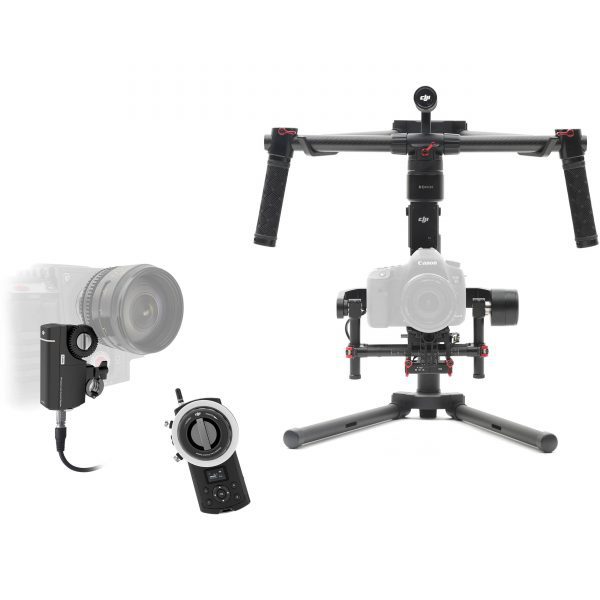

DJI™ Ronin-M 3-Axis Handheld Gimbal Stabilizer
DJI™ Ronin-M – Lightweight, Handheld 3-Axis Camera Gimbal -DJI™
The Ronin-M 3-Axis Handheld Gimbal Stabilizer from DJI is a camera stabilization system designed to give the operator close to the freedom of unencumbered handheld shooting but without the hand-shake. Suitable for most camera types and configurations up to 8 pounds, the Ronin-M uses brushless motors that work on three axes: one for side-to-side “roll” (keeping the horizon level), one for tilt, and one for pan. The system is computer-controlled and features a tilt range of 105° up / 165° down plus a roll range of ±110°. Furthermore, the system boasts a precision of control of ±0.02°, enabling precise camera moves and stability correction against even very fine movements. In addition to handheld shooting, the gimbal can be used in vehicle mounting scenarios and other contexts where vibrations or other abrupt movements would make tripods and rigid camera support systems unsuitable.
- Supports Cameras up to 8 Pounds
- Precision of Control: ±0.02°
- Transmitter for Remote Pan/Tilt Control
- Tool-Less Balance Adjustment System
- Assistant Software for iOS and Windows
- Bluetooth Wireless Interface for Setup
- Silent Mode For Quiet Operation
- USB and PowerTap Power Outputs
DJI™ Ronin-M 3-Axis Handheld Gimbal Stabilizer
Precision Shooting with DJI’s Ronin M
The Ronin M is a new and exciting piece of handheld, camera stabilisation technology which has been developed with film making professionals in mind.
The brushless motor gimbal system allows the Ronin-M to be used with a wide range of cameras of different sizes and weights up to a maximum of 3.6kg (8 lbs). It’s the smaller, lighter brother of the highly successful DJI Ronin, which was designed for larger camera setups. It weighs just 2.3kg (5 lbs) which is around half the weight of the Ronin.
The Ronin M is a very adaptable piece of kit. It can be used in three different positions: underslung mode, upright mode and briefcase mode, making it highly adaptable for changing viewpoints and also allowing access in tight locations.
The Ronin-M’s brushless gimbal stabilisation system is not simply three brushless motors moving on three axes. The motors work with positional feedback and the IMU (Inertial Measurement Unit) to communicate with DJI’s custom 32-bit processor. It processes movement calculations in milliseconds. This reduces angular vibration to less than ±0.02˚ of translated movement, meaning that the camera will remain perfectly steady.
Fast Setup, Efficient Balancing
Save time and start shooting professionally stabilised video in under five minutes. Mount your camera to the Ronin-M, quickly balance it, and then tap a button. The upgraded ATS (Auto Tune Stability) technology is more precise than before and completes the tuning and balancing processes with no tools necessary. Easy and efficient.
Capture tight shots, even when you have almost no space to work, and easily transport your Ronin-M. The top handle bars quickly and easily twist off, allowing you to minimize its size, achieve different shooting configurations, and pack or unpack it in seconds.
RONIN-MSPECS
GENERAL
| Built-In Functions |
|
|---|
MECHANICAL & ELECTRICAL CHARACTERISTICS
| Working Current | Static current: 300mA (@16V) Dynamic current: 600mA (@16V) Locked motor current: Max 10A (@16V) |
|---|---|
| Run Time | 3 hours |
| Operating Temperature | 5° F ~ 120° F (-15° C ~ 50° C) |
| Weight | 2.3kg (5.07lb) fully loaded with handlebar |
| Gimbal Dimensions | 500mm(W) x 210mm(D)x 420mm(H) |
PERIPHERAL

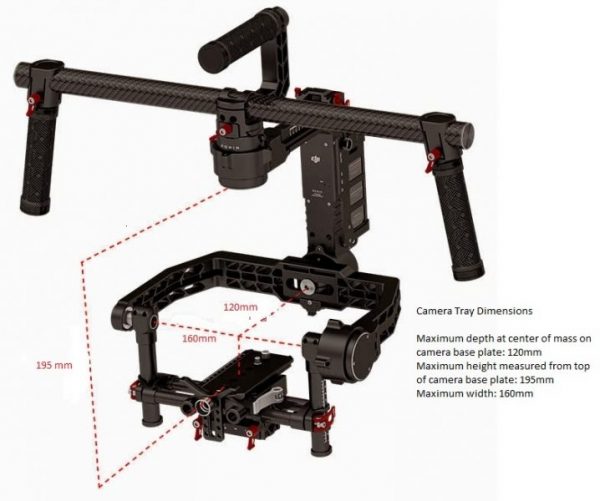

| Camera Tray Dimensions | Maximum depth at center of mass on camera base plate: 120mm Maximum height measured from top of camera base plate: 195mm Maximum width: 160mm |
|---|---|
| Accessory Power Connections | 12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1 |
| GCU Input Power | 4S Ronin-M Battery |
| Connections | 2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0 |
| PC Assistant Software Requirements | Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)；Mac OS X 10.9 or above |
| Mobile Assistant Software Requirements | Mobile Device: iOS 6.1 or above, Android 4.3 or above |
WORKING PERFORMANCE
| Load Weight (Reference Value) | 8lb (3.6kg) |
|---|---|
| Angular Vibration Range | ± 0.02° |
| Maximum Controlled Rotation Speed | Pan axis: 90°/s Tilt axis: 100°/s Roll axis: 30°/s |
| Mechanical Endpoint Range | Pan axis: 360° Tilt axis: +105° to -190° Roll axis: ± 110° |
| Controlled Rotation Range | Pan axis control: 360° Tilt axis control: +105° /-190° Roll axis control: ± 25° |
