Elite Screens Saker Tab-Tension
Features
- Screen Material: MaxWhite FG, 1.1 Gain. Fiberglass-backed, 180 degree wide viewing angle, fully black backed front projection screen with textured surface. 4K Ultra HD and Active 3D Projection Ready. GreenGuard and GreenGuard GOLD Certified. Mildew resistant and easy to clean with mild soap and water.
- Durable white casing designed for wall or ceiling installations. Synchronous motor provides a silent operation, and the tab-tension system with Fiberglass material helps maintain flatness across the entire projection surface.
- Includes infrared (IR) & radio frequency (RF) remotes, 3-way wall switch, wireless 5-12 volt trigger, built-in RJ45 port, and wall/ceiling installation brackets that permit the case to slide for in-line installation on wood studs.
- 2 Year Manufactures Warranty by Elite Screens; a ISO9001 manufacturer since 2004.
Elite Screens Saker Tab-Tension, Â Tensioned Electric Projection Projector Screen
Motorized Premium UHD 4K screen – Saker Tab Tension is the right choice !
Saker Tab-Tension Series
Electric Drop Down Tensioned Projection Screens by Elite Screens a global leader in projection screen manufacturing since 2004. Dedicated to providing superior service and products at affordable prices.
The Saker Tab-Tension Series includes a tab-tension system with MaxWhite® Fiberglass material to maintain flatness all across the projection surface. Standard features include a wireless 5-12 volt trigger, IR/RF remote control package, and a detachable manual keypad switch.
Available in the following front projection materials
| Material Name | Gain | Viewing Angle | Description |
| MaxWhite® Fiberglass (FG) |
 1.1 | 180° | MaxWhite® Fiberglass (FG) is fiberglass backed for added stiffness which provides the flattest possible non-tensioned screen surface with universal applications. This material provides wide viewing uniform diffusion while giving precise definition, color reproduction and black & white contrast. |
| AcousticPro UHD | 1.0 | 180° | AcousticPro UHD is an acoustically transparent front projection screen. It is 4K ultra HD ready and moire-free from visual artifacts. Recommended for rooms with controlled ligthing. Works with Standard, 1080P/4K projectors. |
Screen Material
- MaxWhite® Fiberglass (FG) 1.1 Gain
- 180° wide viewing angle
- Active 3D, 4K Ultra HD, and HDR Ready
- Not compatible with Ultra/Short-throw Projectors
- Standard black masking borders and black backing
- Available in the following range of diagonal sizes:
- 100″ and 120″ in 4:3 format
- 84″ – 180″Â in 16:9 format
- 106″ and 120″ in 16:10 format
Design and Installation
- Flush hidden wall mounts allow screen to slide horizontally for proper centering

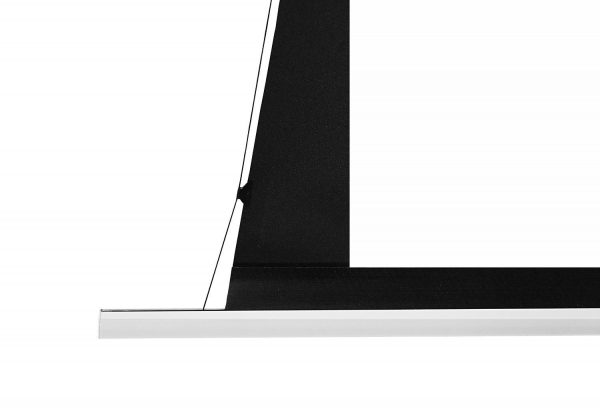

- Tab-tension design helps maintain a flat projection surface

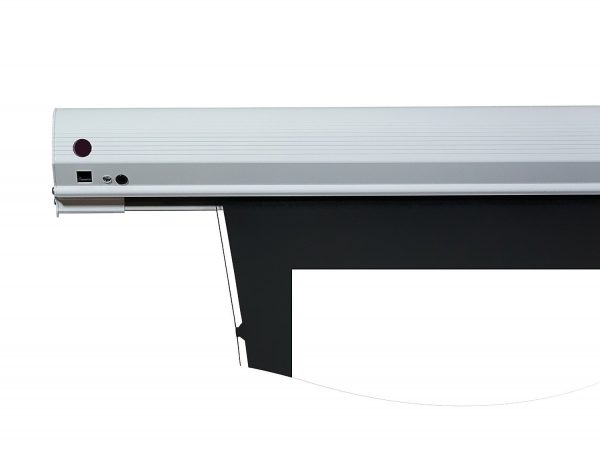

- Curved aluminum enamel white case with parallel grooves
- Extra top black masking border for high ceiling installations
- Plug & Play ready, no hardwire installation required
- Mounting hardware kit included for wall or ceiling installation
Control System

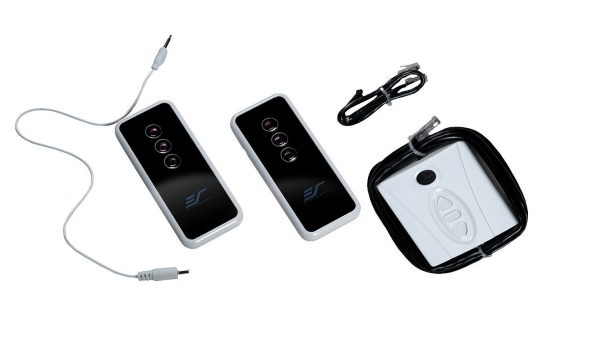

- Internal Radio Frequency/Infrared receivers with IR, RF remotes included
- Detachable 3-way wall switch keypad for UP/STOP/DOWN manual operation
- Wireless 5-12 volt trigger included
- RJ45 port allows 3rd party control system integration
Quality and Reliability
- Silent operation synchronous motor and low power consumption
- Flame Retardant: Complies with NFPA 701 Standards (MaxWhite FG & AcousticPro UHD)
- GREENGUARD® and GREENGUARD® Gold Certified (MaxWhite FG)
- 2-year warranty from defects in workmanship
- 3-year warranty offered through ENR-G program (Education, Non-profit, Religious, and Government/Military)
Saker Tab-Tension Product Video
Saker Tab-Tension AUHD Product Video
Saker/Saker Tab-Tension Wall Installation Video
Saker/Saker Tab-Tension Ceiling Installation Video
Saker/Saker Tab-Tension Series Flush Wall Mount Installation
Saker/Saker Tab-Tension Series Flush Ceiling Mount Installation
Saker/Saker Tab-Tension Wireless Trigger Demonstrations
Comparison Video of Elite’s New Tab-Tension Electric Screens
Electric/Motorized CineGrey 5D® Product Video
How to Properly Mount a Projection Screen
Selecting a Screen Size Educational Video
ANSI Lumens and Screen Gain Educational Video
4K/UltraHD Educational Video
.
Dimensions Table
The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.
Decoding the Model Number
Model Number = SKT100XHW-E12
SKT = Saker Tab-Tensioned Series
100 = Nominal Diagonal Size
X or N = White case/housing
H = HDTV 16:9 aspect ratio
(V = 4:3 / X = 16:10 / S = 1:1 / C = 2.35:1)
W = Matte White screen material
E12 = 12″ of top black masking border/leader
| Model Numbers | Diag. Size | Aspect Ratio | View Area (HxW) | Screen Material | Case Color | Gain | Overall L. With Bracket (A) | View Width (A1) | End Cap Screw Hole Distance (A2) | Overall L. W/out Bracket (A3) | Ceiling Bracket Hole Distance (A4) | Screen Width (A5) | Weight Bar Length (A6) | L/R Border (A7) | Overall H. W/ Ceiling Bracket (B) | View Height (B1) | Screen Height (B2) | Top Border (B3) | Bottom Border (B4) | End Cap H. W/ Bracket (B5) | End Cap W. W/ Bracket (C) | End Cap H. W/ Bracket (C1) | C2 | C3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKT100UH-E24-AUHD | 100″ | 16:9 | 49.0″x87.2″ | AcousticPro UHD | Black | Gain 1.0 | 105.7 | 87.2 | 105.0 | 103.9 | 72.4 | 95.0 | 101.4 | 3.9 | 79.6 | 49.0 | 75.4 | 24.0 | 2.4 | 3.9 | 4.0 | 4.3 | 1.4 | 0.9 |
| SKT100XHW-E12 | 100″ | 16:9 | 49.0″x87.2″ | MaxWhiteâ„¢ Fiberglass | White | Gain 1.1 | 105.7 | 87.2 | 105.0 | 103.9 | 72.4 | 95.0 | 101.4 | 3.9 | 67.6 | 49.0 | 63.4 | 12.0 | 2.4 | 3.9 | 4.0 | 4.3 | 1.4 | 0.9 |
| SKT100XVW-E10 | 100″ | 4:3 | 60.0″x80.0″ | MaxWhiteâ„¢ Fiberglass | White | Gain 1.1 | 98.4 | 80.0 | 97.6 | 96.6 | 65.1 | 89.4 | 94.0 | 4.7 | 76.6 | 60.0 | 72.4 | 10.0 | 2.4 | 3.9 | 4.0 | 4.3 | 1.4 | 0.9 |
| SKT106NXW-E12 | 106″ | 16:10 | 56.2″x89.9″ | MaxWhiteâ„¢ Fiberglass | White | Gain 1.1 | 108.3 | 89.9 | 107.5 | 106.5 | 75.0 | 97.8 | 103.9 | 3.9 | 74.8 | 56.2 | 70.6 | 12.0 | 2.4 | 3.9 | 4.0 | 4.3 | 1.4 | 0.9 |
| SKT110UH-E12-AUHD | 110″ | 16:9 | 53.9″x95.9″ | AcousticPro UHD | Black | Gain 1.0 | 116.2 | 95.9 | 115.4 | 114.4 | 82.9 | 105.3 | 111.8 | 4.7 | 72.6 | 53.9 | 68.3 | 12.0 | 2.4 | 3.9 | 4.0 | 4.3 | 1.4 | 0.9 |
| SKT110UH-E24-AUHD | 110″ | 16:9 | 53.9″x95.9″ | AcousticPro UHD | Black | Gain 1.0 | 116.2 | 95.9 | 115.4 | 114.4 | 82.9 | 105.3 | 111.8 | 4.7 | 84.6 | 53.9 | 80.3 | 24.0 | 2.4 | 3.9 | 4.0 | 4.3 | 1.4 | 0.9 |
| SKT110XHW-E24 | 110″ | 16:9 | 53.9″x95.9″ | MaxWhiteâ„¢ Fiberglass | White | Gain 1.1 | 116.2 | 95.9 | 115.4 | 114.4 | 82.9 | 105.3 | 111.8 | 4.7 | 84.6 | 53.9 | 80.3 | 24.0 | 2.4 | 3.9 | 4.0 | 4.3 | 1.4 | 0.9 |
| SKT120NXW-E12 | 120″ | 16:10 | 63.6″x101.8″ | MaxWhiteâ„¢ Fiberglass | White | Gain 1.1 | 121.9 | 101.8 | 121.1 | 120.1 | 88.6 | 111.2 | 117.5 | 4.7 | 82.2 | 63.6 | 78.0 | 12.0 | 2.4 | 3.9 | 4.0 | 4.3 | 1.4 | 0.9 |
| SKT120UH-E10-AUHD | 120″ | 16:9 | 58.8″x104.6″ | AcousticPro UHD | Black | Gain 1.0 | 124.8 | 104.6 | 124.1 | 123.0 | 91.5 | 114.1 | 120.5 | 4.7 | 75.4 | 58.8 | 71.2 | 10.0 | 2.4 | 3.9 | 4.0 | 4.3 | 1.4 | 0.9 |
| SKT120UH-E20-AUHD | 120″ | 16:9 | 58.8″x104.6″ | AcousticPro UHD | Black | Gain 1.0 | 124.8 | 104.6 | 124.1 | 123.0 | 91.5 | 114.1 | 120.5 | 4.7 | 85.4 | 58.8 | 81.2 | 20.0 | 2.4 | 3.9 | 4.0 | 4.3 | 1.4 | 0.9 |
| Model Numbers | Diag. Size | Aspect Ratio | N.W. (lbs.) | G.W. (lbs.) | N.W. (kgs) | G.W. (Kgs) | Packaging Dimensions (LxWxH) |
|---|---|---|---|---|---|---|---|
| SKT100UH-E24-AUHD | 100″ | 16:9 | 28.6 lb | 37.6 lb | 13.0 kg | 17.1 kg | 111.8″x6.7″x6.3″ |
| SKT100XHW-E12 | 100″ | 16:9 | 27.7 lb | 36.3 lb | 12.6 kg | 16.5 kg | 111.4″x6.3″x6.7″ |
| SKT100XVW-E10 | 100″ | 4:3 | 30.0 lb | 38.7 lb | 13.6 kg | 17.6 kg | 102.6″x6.7″x6.3″ |
| SKT106NXW-E12 | 106″ | 16:10 | 29.5 lb | 37.9 lb | 13.4 kg | 17.2 kg | 114.3″x6.7″x6.3″ |
| SKT110UH-E12-AUHD | 110″ | 16:9 | 32.1 lb | 40.9 lb | 14.6 kg | 18.6 kg | 122.2″x6.7″x6.3″ |
| SKT110UH-E24-AUHD | 110″ | 16:9 | 33.2 lb | 42.6 lb | 15.1 kg | 19.3 kg | 122.0″x6.7″x6.3″ |
| SKT110XHW-E24 | 110″ | 16:9 | 32.9 lb | 42.1 lb | 14.9 kg | 19.1 kg | 122.0″x6.7″x6.3″ |
| SKT120NXW-E12 | 120″ | 16:10 | 34.3 lb | 43.4 lb | 15.6 kg | 19.7 kg | 127.6″x6.7″x6.3″ |
| SKT120UH-E10-AUHD | 120″ | 16:9 | 34.4 lb | 43.4 lb | 15.6 kg | 19.7 kg | 131.3″x6.7″x6.3″ |
| SKT120UH-E20-AUHD | 120″ | 16:9 | 35.4 lb | 45.1 lb | 16.1 kg | 20.5 kg | 129.7″x6.7″x6.3″ |
.
Saker Tab-Tension Features
DesignThe Saker Tab-Tension series is an electric drop-down projection screen that utilizes a tab-tension system to maintain flatness across the entire projection surface. Thoughtful in design this series features a white enamel, aluminum casing with an arcuate profile, and a built-in motor that makes user operation convenient and hassle-free. |
Full TensionSaker Tab-Tension is designed with an incorporated tab-tension system. This tab-tension is designed to prevent wrinkles, curling, and creases that can be distracting and ruin one’s viewing experience. The fully tensioned screen maintains a flat surface, perfect for entertainment, gaming or instructional projection. |
Total ControlSaker Tab-Tension series arrives bundled with accessories that boast total user control. Screen can be conveniently operated with the included infrared remote, radio frequency remote, or detachable 3-way wall switch. Saker Tab-Tension series also features an RJ45 port for 3rd party control integration. The included wireless trigger feature allows for projector power cycle synching, for an effortless viewing experience. |
Easy InstallationPlug and Play ready. Saker arrives fully assembled and ready to mount. With all mounting hardware included for easy wall or ceiling installations. Also includes flush wall mounts that allow screen to slide horizontally. |
Screen Materials
MaxWhite FGMaxWhite Fiberglass is a matte white front projection material. The fiberglass backing yields remarkable strength and rigidity, and the black backing prevents light penetration. The multi-layer textured surface boasts an excellent 180 degree viewing angle and uniform diffusion, while producing exceptional definition, natural color reproduction, and high levels of black and white contrast. 1.1 Gain. 180 Degree Viewing Angle. Flame retardant. NFPA 701 standards. Indoor Air Quality (IAQ). Greenguard GOLD certification | UL 2818. Mildew resistant and easy to clean. |
AcousticPRO UHDAcousticPro UHD (ultra-high definition) is a moiré-free self-supported acoustically transparent front projection screen material. This dense synthetic weave is compatible with Ultra-High Definition/4K resolutions while mitigating light penetration for a brighter picture. Design maximizes sound penetration with minimal attenuation without compromising picture quality. Wide diffusion uniformity offers a broad viewing angle with superb picture quality across the entire surface. 1.0 Gain. 180 Degree Viewing Angle. Moiré-Free. Mildew Resistant. Flame Retardent. Mean Attenuation: -2.36dB. |
 |
 |
|
|---|---|---|
| Saker Series | Saker Tab-Tension Series | |
| Screen Material Options | MaxWhite FG | MaxWhite FG and AcousticPro UHD |
| Aspect Ratio Availability | 16:9 and 16:10 | 4:3, 16:9, 16:10 |
| Tensioned | No | ✓ |
| Remote Kit Included (IR, RF and 3-Way Wall Switch) | ✓ | ✓ |
| Projector Synching Capable | ✓ | ✓ |
| Size Availability | 84″ to 150″ | 84″ to 135″ |
| Application Level | Home | Premium |
