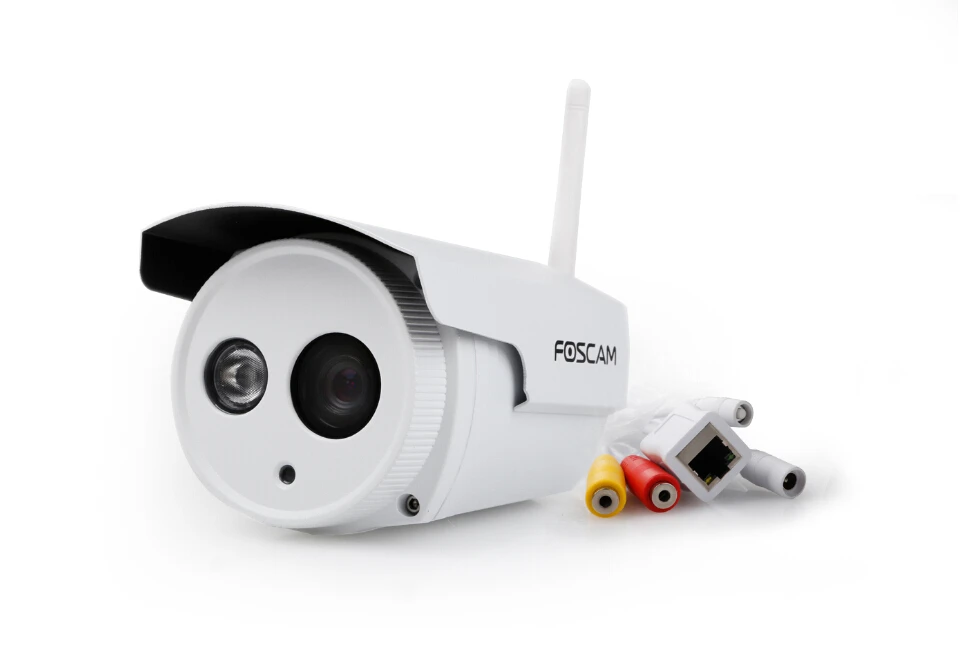

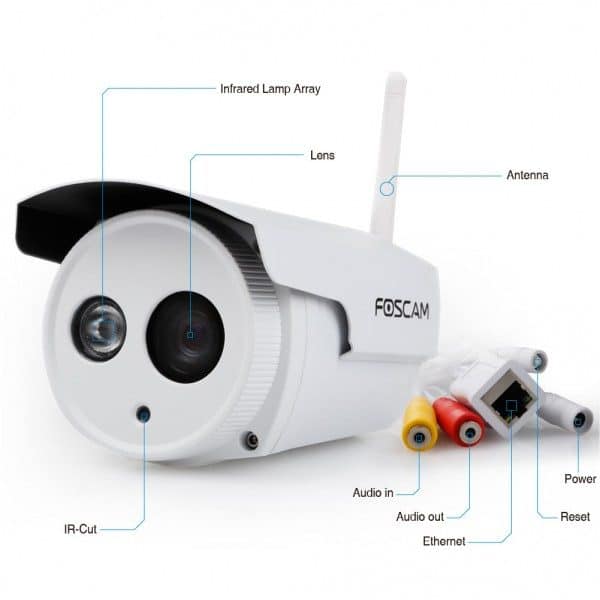

Foscam FI9803P HD Day/Night Outdoor Wireless IP Camera
FOSCAM FI9803P 1.0 Megapixel HD 720P Wireless Outdoor Waterproof IP Camera P2P CMOS Night Vision 20m
Anytime and nearly anywhere, you can set up a simple surveillance system with the FI9803P HD Day/Night Outdoor Wireless IP Camera from Foscam. It has a wide 2.8mm f/1.2 lens that offers a 70° viewing angle for capturing large areas. Combined with the 1.0MP color CMOS sensor users will be able to record video at up to HD 720p resolution at 23 fps. Using an H.264 compression, it will limit bandwidth and storage requirements, and it is dual-stream capable.
- Plug & Play – Easy To Setup with User Friendly Interface.720P (1280×720) Display Resolution
- Compatible with free Foscam Central Management Software.

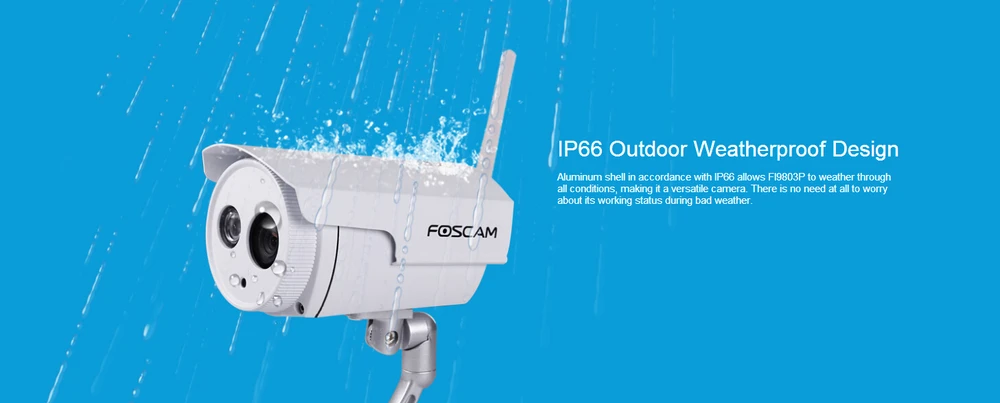

- IP66 Waterproof Rated
- Night Surveillance

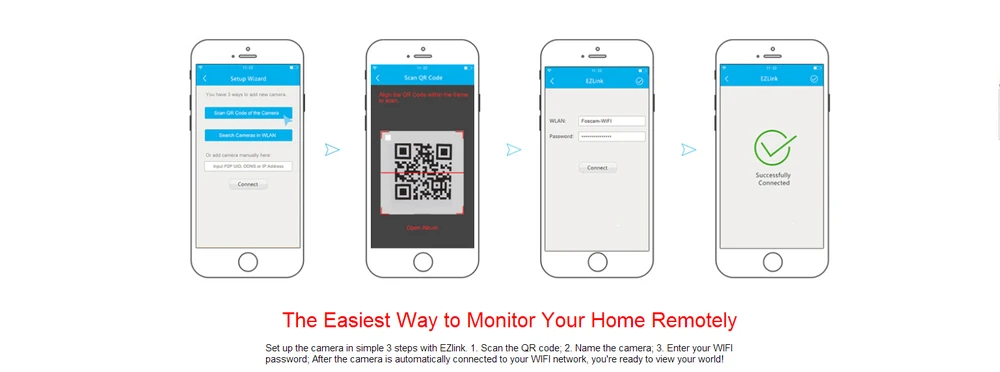

- It is smartphone compatible (iPhone & Android) as well as viewable over the internet using standard browsers.
Foscam FI9803P HD Day/Night Outdoor Wireless IP Camera
|
ITEMS |
FI9803P |
|
|
Image |
Sensor |
High Definition Color CMOS Sensor |
|
Display Resolution |
1280 x 720 (1.0M Pixels) |
|
|
Min. Illumination |
0 Lux (With IR Illuminator) |
|
|
Lens |
Lens Type |
Glass Lens |
|
focal length |
f:2.8mm |
|
|
Aperture |
F1.2 |
|
|
Angle of View |
70 |
|
|
Video |
Image Compression |
H.264 |
|
Image Frame Rate |
30fps(60Hz), 25fps(50Hz), downward adjustable |
|
|
Resolution |
720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240) |
|
|
Stream |
dual stream |
|
|
Image adjustment |
The hue, brightness, contrast, saturation, sharpness are adjustable |
|
|
Flip image |
flip and mirror |
|
|
Infrared mode |
Automatic or manual |
|
|
Night visibility |
With 1 Infrared Lamp Array, Night Vision Range up to 20m |
|
|
Network |
Ethernet |
One 10/100Mbps RJ45 port |
|
Wireless Standard |
IEEE802.11b/g/n |
|
|
Data Rate |
IEEE802.11b: 11Mbps(Max.);IEEE802.11g: 54Mbps(Max.); |
|
|
Wireless Security |
WEP, WPA, WPA2 |
|
|
Remote Access |
P2P DDNS |
|
|
Network Protocol |
IP,TCP,UDP,HTTP,HTTPS,SMTP,FTP,DHCP, |
|
|
System |
Operating System |
Microsoft Windows 2000/XP, Vista, 7,8; |
|
Browser |
Microsoft IE6 and above version or compatible browser; |
|
|
Other |
Motion Detection |
Alarm via E-Mail, upload alarm snapshot to FTP |
|
Privacy Block |
Set privacy area manually |
|
|
User Accounts |
Three levels user role |
|
|
Firewall |
Supports IP Filtering |
|
|
Reset |
Reset button is available |
|
|
Power |
Power Supply |
DC 12V/1.0A |
|
Power Consumption |
4.2 Watts (Max.) |
|
|
Physical |
Dimension(LxWxH) |
153(L)x 92(W)x 86(H) |
|
Net Weight |
380g |
|
|
Environment |
Operating Temperature |
-20C~ 55C (-4F ~ 131F) |
|
Operating Humidity |
10% ~ 80% non-condensing |
|
|
Storage Temperature |
-20C ~ 60C (-4F ~ 140F) |
|
|
Storage Humidity |
0% ~ 90% non-condensing |
|
|
Certification |
CE, FCC, RoHS |
|
|
Warranty |
Limited 1-year warranty |
|
