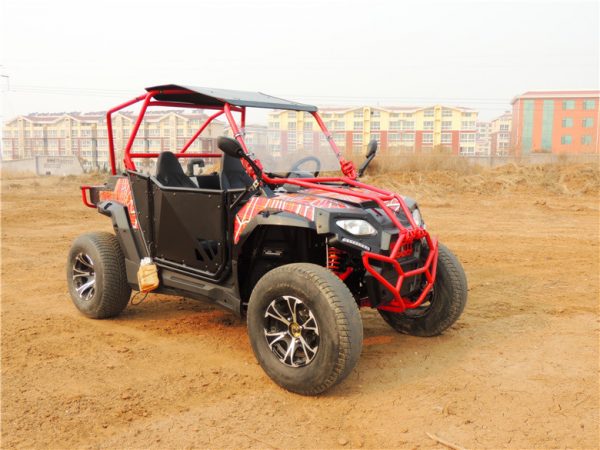

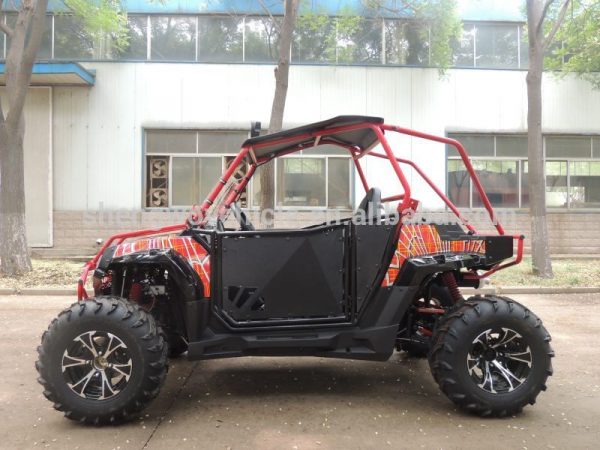

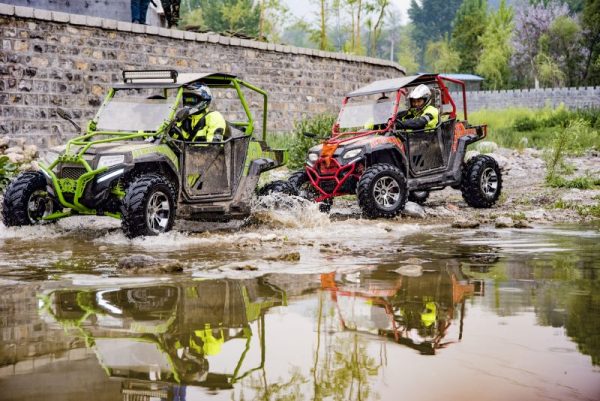

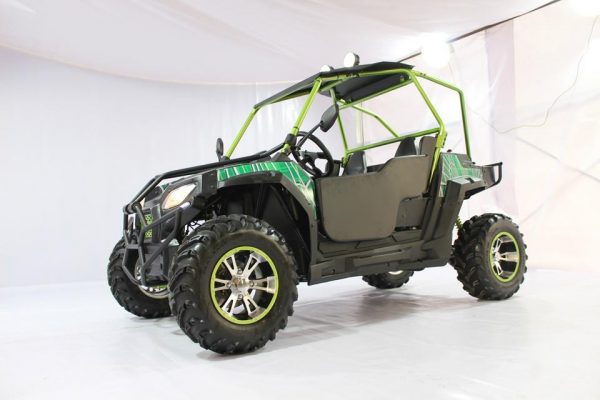

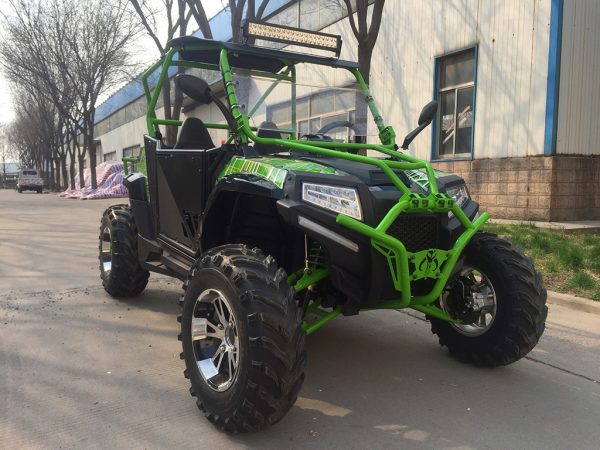

FX250 SPIDER UTV
Availability:
In stock
Quick Details
- Type: 250CC
- Certificate: EPA
- Fuel: Gas / Diesel
- Transmission Type: Other
- Place of Origin: China (Mainland)
- Brand Name: FANGPOWER
- Model Number: FX250
- Engine style: Australia Design
- Horse Power: 14.5HP
- Choke System: Automatic
- Fuel capacity: 9.5L
- Final Drive: Shaft-Drive
- Transmission: CVT
- Suspension Front: Double A-arm Suspension
- Suspension Rear: 4 road-Link Rear Suspension
- Front & Rear tyre size: 25×8-12 / 25×10-12
- windshield: half windshield
FX250 SPIDER UTV
| MODEL FX250 | ||||
| Engine type | 4-stroke,Single-Cylinder, Air/Oil-cooled | |||
| Engine style | Australia Design | |||
| Displacement | 232cc | |||
| Horse Power | 10.5kw(7500r/min) 14.5HP | |||
| Valve Configuration | OHV | |||
| Compression ratio | 10.3:1 | |||
| FUEL SYSTEM | ||||
| Fuel Delivery System | Fuel Pump+Vacuum Diaphragm Carburetor | |||
| Choke System | Automatic | |||
| Fuel capacity | 9.5L (2.1 Gallon) | |||
| Fuel meter | LED Fuel Meter | |||
| DRIVETRAIN | ||||
| Driveline Type | 2X4 | |||
| Final Drive | Shaft-Drive | |||
| Transmission | Constantly Variable Transmission | |||
| Gear Selection | R-N-D | |||
| Speed meter | LED Speed Meter | |||
| ELECTRICAL SYSTEM | ||||
| Forward Lights | High & Low Beam | |||
| Heading Light | LED | |||
| Driving Light | LED | |||
| Rear Lights | Brake Lights & Left/Right Signal lights | |||
| Starting system | Electric start | |||
| Ignition system | D.C.D.I | |||
| SUSPENSION / BRAKES | ||||
| Suspension Front | Double A-arm Suspension | |||

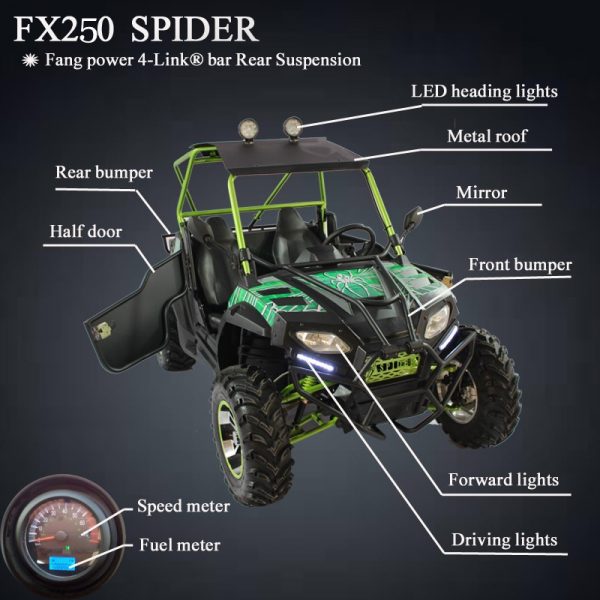

| Suspension Rear | Fang power 4-Link® bar Rear Suspension | |||
| Brakes Front | Front Dual Hydraulic Disk | |||
| Brakes Rear | Rear Dual Hydraulic Disk | |||
| TIRES | ||||
| Front Tread | 1150mm ( 45.3 in) | |||
| Rear Tread | 1040mm ( 41in) | |||
| Front & Rear tyre size | 25×8-12 / 25×10-12 | |||
| Front & Rear rim size(Alloy) | 12×6 / 12×8 | |||
| MISC | ||||
| Manufacturers Defect Warranty | 6 Months | |||
| Top speed | 60km/h | |||
| Dry weight | 340kg ( 750lbs.) | |||
| Gross weight | 348kgs(766lbs) | |||
| Wheelbase | 1980mm (78in) | |||
| Vehicle dimension (L×W×H) (Heading Light Height included) | 2590x1350x1660mm (102x 53×65.4 in) | |||
| Ground clearance | 260mm (10.2in) | |||
| Safety | Driver & Passenger Triple Point Fix Seat Belts/ Metal Semi-Door | |||
| brands | FangPower |
|---|---|
| color | Blue Spider, Red Spider |
| Condition |
