Hikvision DS-1100KI PTZ Network Keyboard
Availability:
In stock
Key Features
– 7″ TFT touch screen at 800 x 480 resolution
– Speed dome, video decoder & DVR control
– 1-ch HD video stream decoding at 1080p
– Support 15 users, and each can operate up to 256 devices
– USB 2.0 interface for video backup
– Speed dome, video decoder & DVR control
– 1-ch HD video stream decoding at 1080p
– Support 15 users, and each can operate up to 256 devices
– USB 2.0 interface for video backup
Features
- 7’’ TFT touch screen at 800×480 resolution;
- 4-axis joystick;
- Live view and playback of video on screen at up to 1080P resolution;
- Compatible with DVR/DVS, matrix, network camera/dome,PC-DVR, etc.
- Macro command operation;
- Display of decoded video on monitor or video wall;
- Shortcut keys for dome control, setting and calling preset,patrol and pattern;
- Shortcut keys for playback operation;
- Shortcut keys for input group and output group;
- Shortcut keys for wiper and light control operation;
- 1-channel video decoding for local live view;
- Video capture and recording to local U-flash disk;
- Support 3 operators, and each user is allowed to operate1280 devices;
- Support configuration by WEB server;
- Support configuration by the keyboard configuration tool;
- Configuration and control of the MVC system;
- Support control of the analog matrix with the protocol of ZT-1.0, ZT-2.0, EXTRON or CREATOR;
- Control at up to 255 analog domes by RS-485 connection;
- Accessible by the platform software.
DS-1100KI
| Screen | ||
|---|---|---|
| Screen: | | | 7” TFT LCD monitor with touch panel |
| Resolution: | | | Resolution: 800 × 480 |
| Joystick | ||
| Joystick: | | | 4-axis joystick |
| Control mode | ||
| Control mode: | | | IP-based |
| Audio Input/Output | ||
| Line In: | | | 1-ch, 3.5 mm connector (2.0 Vp-p, 1 kΩ) |
| Audio Out: | | | 1-ch, 3.5 mm connector (Linear, 560 Ω) |

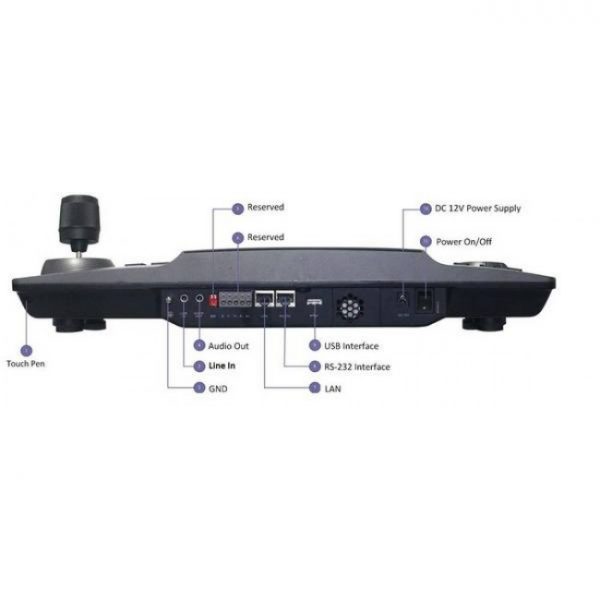

| External interface | ||
| Network Interface: | | | 1 10M/100M/1000M Ethernet interface |
| RS-232 Interface: | | | 1, RS-232 interface |
| RS-485 Interface: | | | 1, RS-485 interface |
| USB Interface: | | | 1, USB2.0 (for data storage and device upgrade) |
| General | ||
| Power Supply: | | | 12V DC |
| Power Consumption: | | | ≤ 15W |
| Working Temperature: | | | -10°C ~ 55°C (14°F ~ 131°F ) |
| Working Humidity: | | | 10% ~ 90% |
| Dimensions (W × D × H): | | | 435 × 193 × 110 mm (17.13” × 7.60” × 4.33”) |
| Weight: | | | 2 Kg (4.41lb) |
