Hikvision DS-2CD2042WD-I 4MP IR Bullet Network Camera

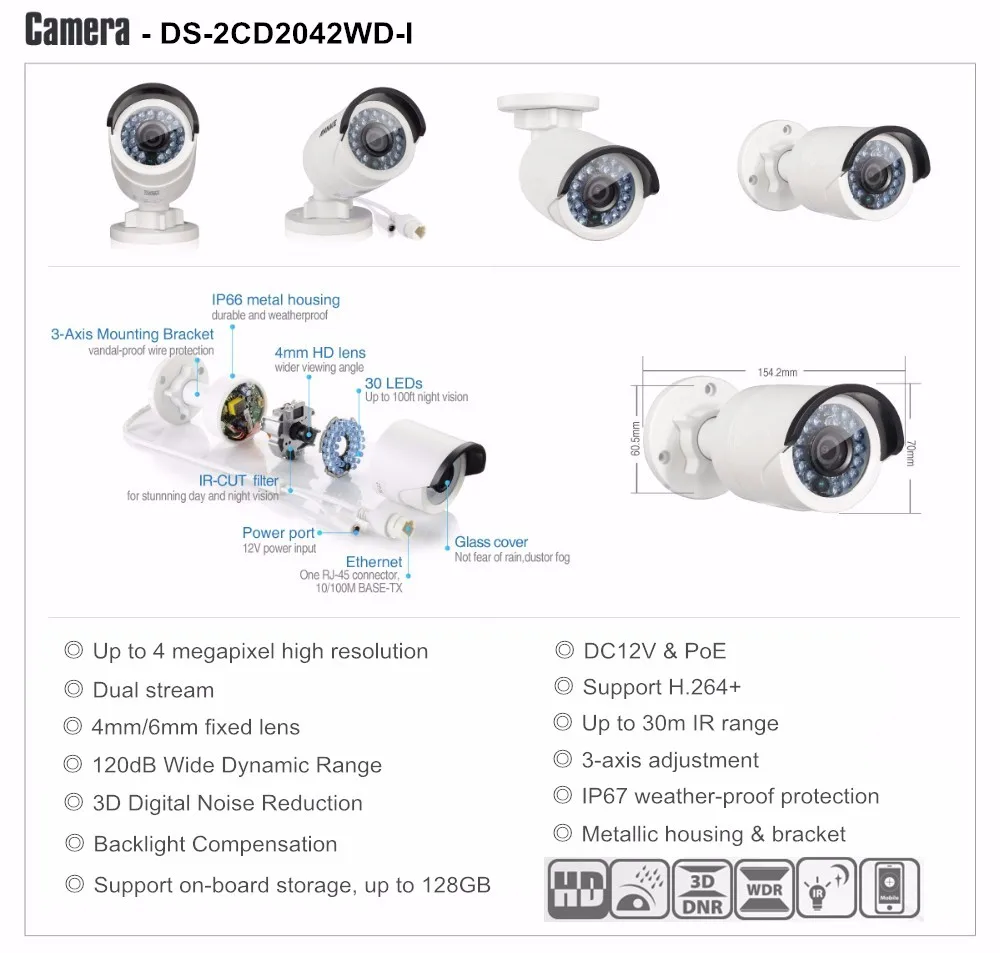

Key Features
– Up to 4 megapixel high resolution
– Full HD1080p video
– Dual video streams
– 120dB Wide Dynamic range
– 3D Digital Noise Reduction
– Backlight compensation
– 12V DC & PoE
– Support H.264+
– Up to 30m IR range
– 3-axis adjustment
– IP66 weather-proof protection
Hikvision Original DS-2CD2042WD-I Full HD 4MP IP Camera High Resoultion with 120db WDR POE IR Bullet Network CCTV Camera English Version Updatable 4mm lens Bullet camera

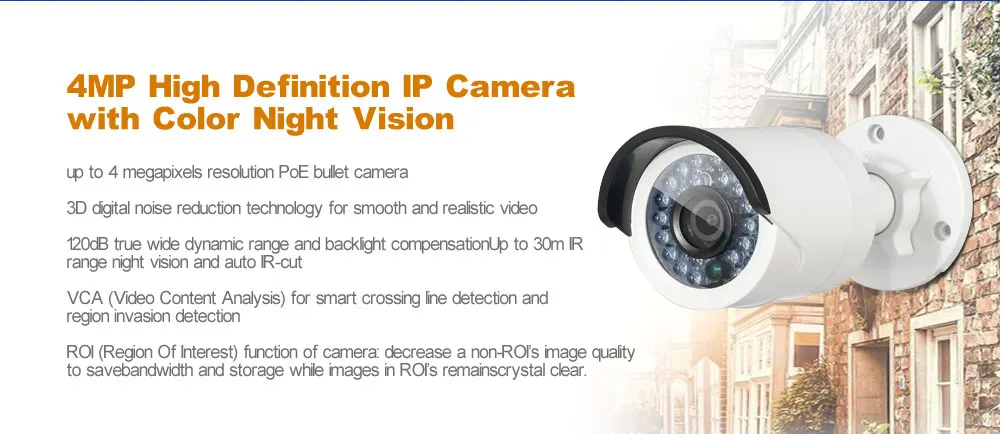

The 4MP Outdoor Mini Bullet Camera from Hikvision features a 1/3″ progressive-scan CMOS sensor for up to 2688 x 1520 resolution at 20 fps. The camera can also achieve 1920 x 1080 and 1280 x 720 resolutions at 30 fps for full HD video in real time. Equipped with a 4mm fixed lens, the camera can capture an 83° maximum field of view for a wide coverage area. Additionally, the camera’s lens is surrounded by IR LEDs, providing up to 98.4′ of night vision in complete darkness. Image enhancements such as WDR, backlight compensation, and 3D DNR allow you to capture clear images in ambient light for use in a variety of environments. PoE technology enables you to run just one wire for both data and power, for a simple and easy setup, and H.264 video compression conserves bandwidth usage for fast transmissions. This device is ONVIF-compliant for compatibility with a wide range of surveillance devices, and it is IP66-rated for weatherproof protection.
- 1/3″ progressive-scan CMOS sensor for up to 2688 x 1520 video resolution
- Dual video streaming for maximizing bandwidth usage
- 4mm fixed focal lens provides an 83° horizontal field of view
- Wide dynamic range allows you to capture clear images in ambient lighting
- 3D DNR effectively filters noise from the image, even in low-light scenarios
- Backlight compensation and saturation, brightness, contrast, and sharpness image settings
- IR LEDs provide up to 98.4′ of night vision for use at all times
- Motion detection, network disconnect, and tampering will trigger an alarm
- Security features such as flash-prevention, password protection, and privacy masking
- Can be powered via 12 VDC or standard PoE for convenience
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- IP66 weather-proof housing protects the camera from inclement weather for use outdoors
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3″ Progressive Scan CMOS |
| Min. Illumination: | | | Color: 0.028 @ ƒ/2.0, B/W: 0 with IR |
| Shutter time: | | | 1/3 s to 1/10,000 s |
| Lens: | | | Fixed, 4 mm @ ƒ/2.0 (6 mm option) Angle of view: 82° (4 mm), 55° (6 mm) |
| Lens Mount: | | | M12 |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120 dB |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG/H.264+ |
| H.264 Type: | | | Main profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 2688×1520 |
| Frame Rate: | | | 20 @ 2688×1520 30 @ 1920×1080, 1280×720 |
| Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| ROI: | | | Yes |
| 3D DNR: | | | Supported |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm Trigger: | | | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | | | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| System Compatibility: | | | ONVIF, PSIA, CGI, ISAPI |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | | | Max. 5 W |
| Weather Proof: | | | IP67 |
| IR Range: | | | 30 meters |
| Dimensions: | | | 60.4 mm × 76.9 mm × 139.2 mm (2.4” × 3.0” × 5.5”) |
| Weight: | | | 500g (1.1 lbs) |
