Hikvision DS-7600NI-K2/8P NVR
Features
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160)resolution
- 4-ch network cameras can be connected with 40M/60M/80M incoming bandwidth
- Support dual-os to ensure high reliablility of systemrunning
- Plug & Play with up to 4 independent PoE networkinterfaces
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Hikvision DS-7600NI-K2/8P 8/16CH NVR 2SATA interfaces network video recorder Integrated POE Ports 8MP max build
The Hikvision DS-7600NI-K2/8P 2-Bay NVR Network Video Recorder is designed to record and playback IP camera footage in up to eight megapixel resolution, making it ideal for home and business use. This Hikvision DS-7600NI-K2/8P 2-Bay NVR Network Video Recorder centrally manages IP cameras including configuration, information import and export, real-time information display and two-way audio. The Hikvision DS-7600NI-K2/8P 2-Bay NVR Network Video Recorder combines multiple advanced technologies and can work both alone as a recorder and cooperate with other devices to form a comprehensive surveillance system.
Key Features
- Un-populated two (2) bay network video recorder (NVR).
- Hikvision and third-party network cameras supported.
- Up to 8 megapixels resolution IP video recording.
- Supports H.265/H.264/MPEG4 for high video quality.
- Supports live view, storage, and playback.
- One (1) Gigabit Ethernet ports for network connectivity.
- Eight (8) RJ45 PoE 10/100 Ethernet interfaces.
- VCA detection alarm support included.
- Dual-OS design to ensure high reliability.
- Supports HDD quota and group modes.

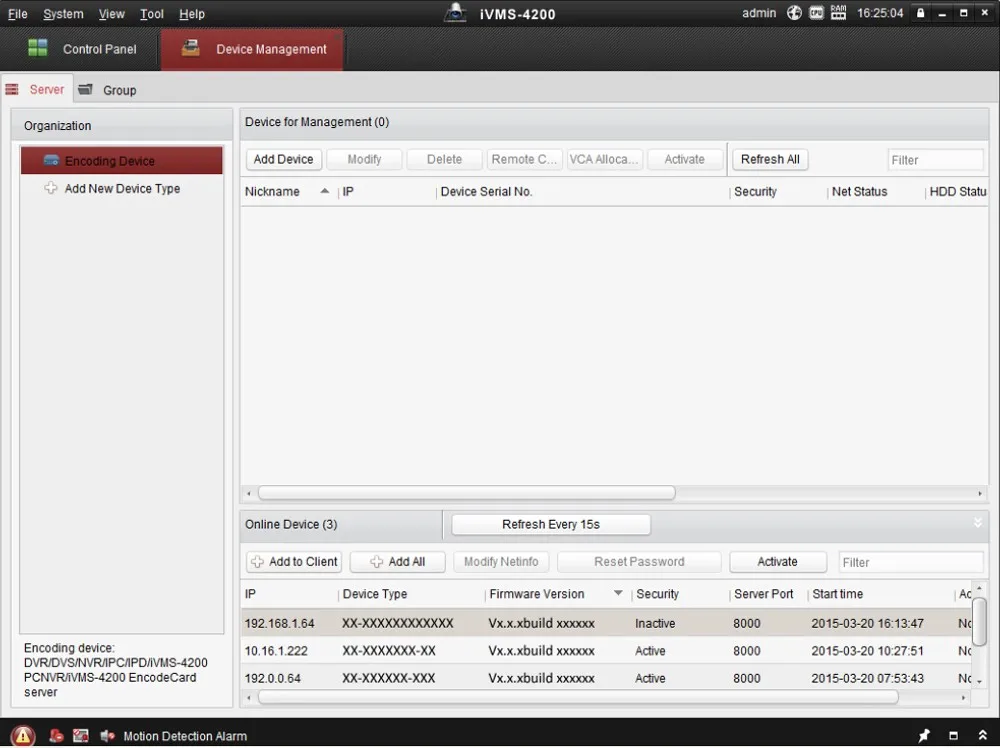

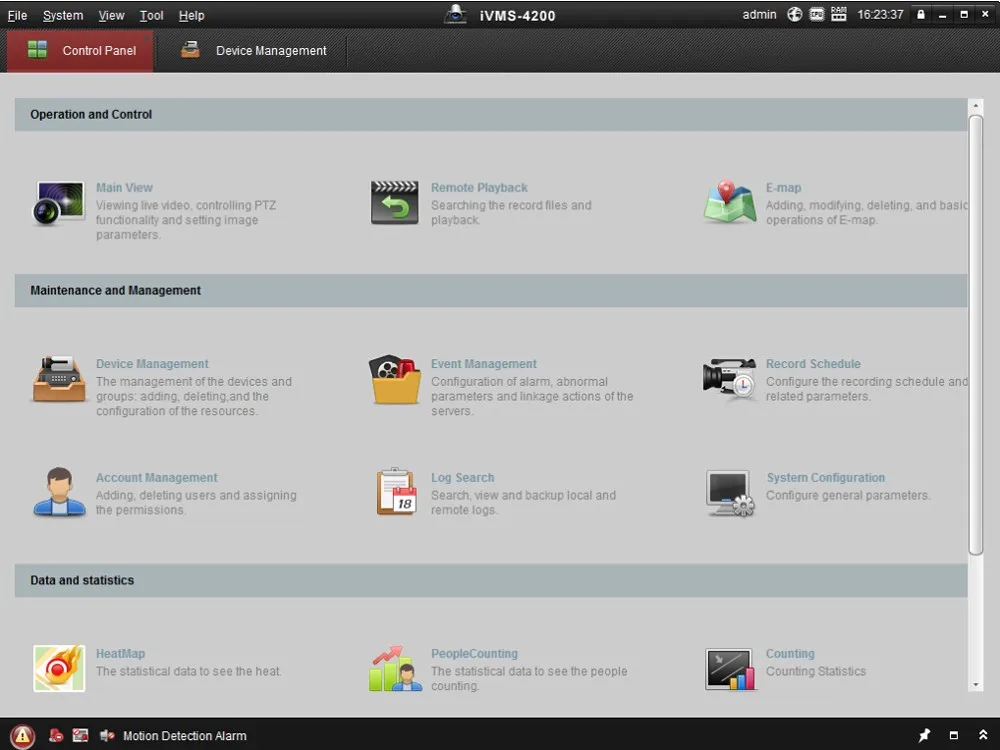

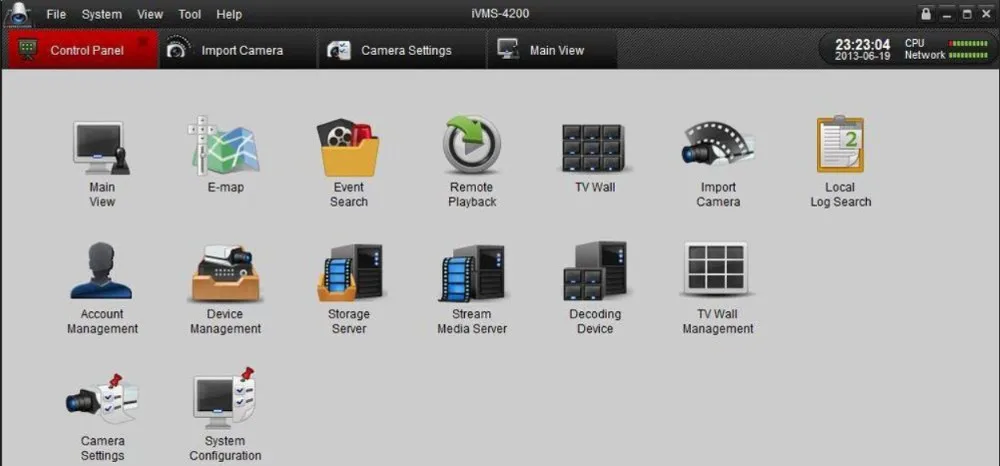

HikVision iVMS-4200 software
iVMS-4200 is versatile video management software included with HikVision DVRs, NVRs, IP cameras, encoders, and decoders. It provides multiple functionalities, including real-time live view, video recording, remote search and playback, file backup, alarm triggers, file download to a PC, and is built as a powerful, flexible, easy-to-use and navigate platform. iVMS-4200 offers a user-friendly wizard to introduces some basic operations of the software during setup, such as adding device, importing device to group, and configuring record schedule.
Photos
Specifications:
| Video/Audio Input | ||
|---|---|---|
| IP video input: | | | 16-ch |
| Two-way audio input: | | | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network | ||
| Incoming bandwidth: | | | 160Mbps |
| Outgoing bandwidth: | | | 160Mbps |
| Video/Audio Output | ||
| HDMI Output: | | | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution: | | | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | | | 1-ch, RCA (Linear, 1kΩ) |
| VGA Output: | | | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | ||
| Live view / Playback: | | | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | | | 8-ch@1080P |
| Hard Disk | ||
| SATA: | | | 2 SATA interfaces for 2 HDDs |
| Capacity: | | | Up to 6TB capacity for each HDD |
| External Interface | ||
| Network Interface: | | | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface: | | | 2, USB2.0 |
| Alarm In: | | | 4-ch |
| Alarm Out: | | | 1-ch |
| POE | ||
| Interface: | | | 8 independent 10 /100 Mbps PoE Ethernet interfaces |
| General | ||
| Power Supply: | | | 100 to 200 VAC |
| Consumption(without hard disk and POE): | | | ≤ 15 W |
| Working Temperature: | | | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | | | 10 % ~ 90 % |
| Chassis: | | | 385 mm chassis |
| Dimensions: | | | 385 × 315× 52 mm (15.2″ 12.4″ 2.0″) |
| Weight(without HDD): | | | ≤ 3 kg (6.6 lb) |
Easy Installation for DVRs (Compared with Conversional DVR Installation)
Secure Your Business Environment by HiWatch Video Surveillance Solution
Hikvision IP Camera/DVR Connect Using Internet Explorer
How To Buy
| brands | Hikvision |
|---|---|
| PC / Model | DS-7608NI-K2, DS-7616NI-K2 |
