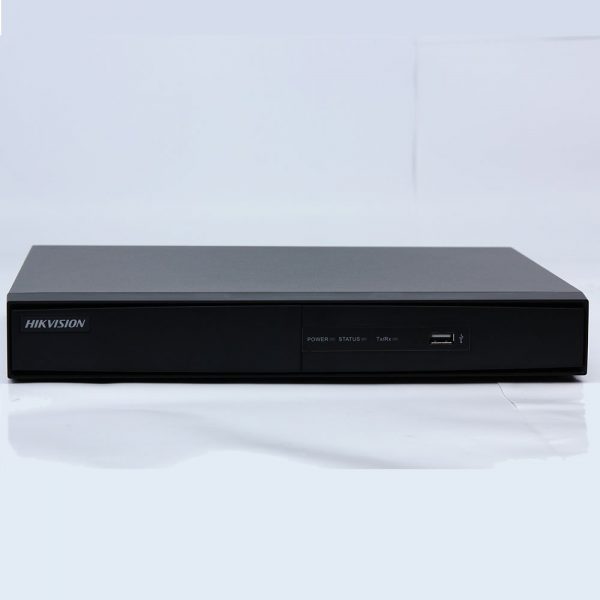

Hikvision DS-7216HGHI-E1 Turbo HD DVR
Features
• H.264 & Dual-stream video compression
• Support HD-TVI/analog/IP camera triple hybrid
• Support both HD-TVI and analog cameras with
adaptive access
• Full channel@ 720P resolution non real-time recording
• HDMI and VGA output at up to 1920×1080P
resolution
• Long transmission distance over coax cable
• Support up to 16-ch synchronous playback
HKV DS-7216HGHI-E1 Hikvision 16 Channel HD DVR with 1280x720P Resolution
Overview
DS-7200HGHI-E1 series DVR (Digital Video Recorder) is a new generationrecorder developed by Hikvision independently which can connect HD TVI/analog/network cameras and Coaxitron cameras and provide powerfulsurveillance. Combined with multiple advanced technologies, such as audioand video encoding & decoding technology, embedded system technology,storage technology, network technology and intelligent technology. It can bothwork alone as a recorder and cooperate with other devices to build a comprehensive surveillance system. The DS-7200HGHI-E1 series DVR are widely applied in the areas of finance,public security, military, communication, transportation, education, etc.
Features

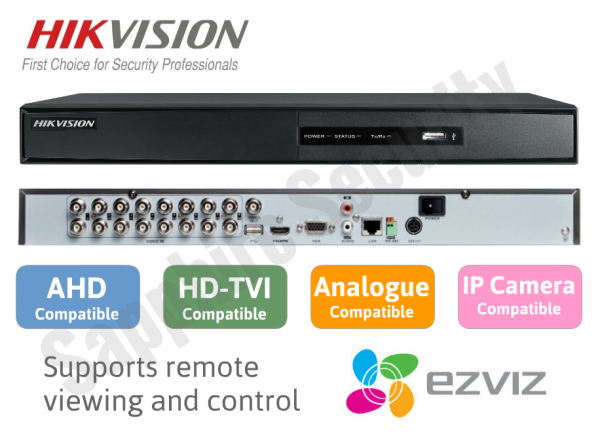

- Connectable to TVI and analog cameras
- Connectable to the Coaxitron camera with long transmission distance
- Connectable to network cameras
- Encoding at up to 720P resolution
- HDMI output and VGA output at up to 1920×1080P resolution.
- New GUI and supports starting record with one key
- Instant playback for assigned camera during multi-channel live view mode
- Support up to 16-ch synchronous playback; and reverse playback for multi-channel
- Smart playback to go through less effective information
- Manual video quality diagnostics
- Customization of tags, searching and playing back by tags
- Locking and unlocking record files
- Provide 1 SATA interface for HDD with up to 6TB capacity
- 1 self-adaptive 10M/100M network interface
- Support access by EZVIZ Cloud P2P
- Support Hikvision DDNS (Dynamic Domain Name System)
- Network detection function
Specifications
Video / Audio Input
- Video compression : H.264
- Analog and HD-TVI video input : 16-Channel; BNC interface (1.0Vp-p, 75 Ω)
- Supported Camera Types : 720P/25, 720P/30, CVBS
- IP Video Input : 2-Channel Up to 1080P resolution
- Audio input : 16-ch, BNC (2.0 Vp-p, 1 kΩ)
- Voice talk input : 1-ch, BNC (2.0 Vp-p, 1 kΩ)
- Audio Compression : G.711u
- Audio input / Two-way audio in : 1-Channel, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
- HDMI / VGA Output : 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
- Encoding Resolution
- Main stream: 720P / VGA / WD1 / 4CIF / CIF
- Sub-stream : 4CIF (non-real-time) / 2CIF (non-real-time) / CIF
- Frame rate : 1/16 fps ~ Real time frame rate
- Video bitrate : 32 Kbps ~ 4 Mbps
- Audio output : 1-ch, RCA (Linear, 1KΩ)
- Audio bitrate : 64 Kbps
- Dual-stream : Support
- Stream type : Video, Video & Audio
- Synchronous playback : 16-ch
- Playback resolution : 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network Management
- Remote Connections : 128
- Network Protocols : TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
- SATA : 1 SATA interface
- Capacity : Up to 6 TB capacity for each disk
External Interface
- Network Interface : 1; 10m / 100m self-adaptive Ethernet interface
- USB Port : 2 × USB2.0
General
- Power Supply : 12V DC
- Consumption (without hard disks) : ≤ 20W
- Working Temperature : -10ºC ~+55ºC
- Working Humidity : 10% ~ 90%
- Chassis : 1U chassis
- Dimensions : 260 x 222 x 45mm
- Weight (without hard disks) : ≤ 1.2 Kg
Additional Information
| Brand | Hikvision |
| Horizontal Definition (Resolution) | 720P |
| Power Supply | 12V DC |
| Power Consumption | ≤ 20W |
| Size | 260mm x 222mm x 45mm |
