Intel NUC6i7KYK Mini PC NUC Kit
Features
- Intel’s NUC can form the basis of a power-packed tiny computer

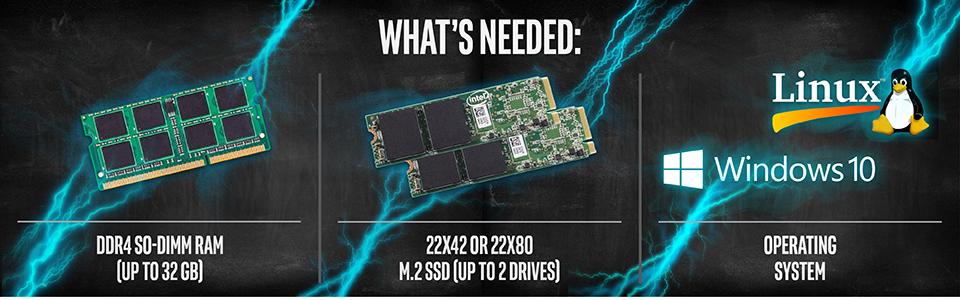

- Just add memory, M.2 SSD and operating system
- Contains a 6th Generation Core i7 Quad Core processor running at 2.6 – 3.5 GHz
- Built-in Intel Iris Pro HD 580 graphics with HDMI 2.0, Mini DisplayPort and Thunderbolt
- On-board gigabit Ethernet port with built-in Wi-Fi and Bluetooth
- Offers four USB 3.0 ports (2 x front, 2 x rear) and accepts up to 32GB memory
Intel NUC Skull Canyon NUC6i7KYK Kit with 6th Gen. Intel Core i7 Processor, M.2 SSD Compatible, Dual DDR4 Memory Max 32GB with Intel Iris Pro Graphics, Thunderbolt 3, No OS, Windows 10 Compatible
|
|
|
|
|---|---|---|
Home Entertainment4K – the next evolution in high definition. It’s changing entertainment and available with the latest Intel Next Unit of Computing (NUC). Intel Iris Pro Graphics enables higher resolutions, meaning crisper lines and greater realism when watching TV and movies. With an HDMI port and a mini Display Port – both supporting 8-channel audio, it’s easy to connect to the widest possible range of flat screen, 4K displays and surround sound configurations. Put simply, this is one device that’s right at home in your living room. |
GamingIt’s time to completely change the game by redefining what a mini gaming PC can do. Experience striking visuals in high resolution with high frame rates, and super-immersive Ultra HD 4K gameplay.(1,2) With a 6th generation Intel Core processor inside, you can play and experience immersive gaming like never before. An updated design based on the 6th generation Intel Core i7 processor and Intel Iris Pro Graphics means you get 30x better 3D graphics (1,4) for higher resolution and faster frame rates. |
A/V EditingFrom editing images to rendering 4K video, the 6th generation Intel Core i7 processor with Intel Iris Pro Graphics gives you maximum performance for anything you create. Thunderbolt 3 technology connects you up to 3 4K displays and allows you to ramp your graphics performance with external graphics cards, or transfer your data to and from an external drive at an incredible 40 Gbps. That’s 2X the video bandwidth (3) and exactly what you need for working with large media files featuring high-resolution, vibrant visuals. |
Features and Configurations
| Processor | 6th generation Intel® Core™ i7-6770HQ processor with Intel® Iris™ Pro graphics (2.6 to 3.5 GHz Turbo, Quad Core, 6 MB Cache, 45W TDP) |
| Memory | Dual channel DDR4-2133+ SODIMMs 1.2/1.35V, 32 GB maximum |
| Graphics | Intel® Iris™ Pro Graphics 580 1x HDMI* 2.0 (4K 60 Hz) 1x Mini DisplayPort* 1.2 (4K 60 Hz) 1x DisplayPort* 1.2 via Type-C |
| Audio | Up to 7.1 multichannel digital audio via HDMI or DisplayPort signals 3.5mm front headset jack, 3.5mm rear speaker/TOSLINK combo jack |
| Peripheral Connectivity | Thunderbolt™ 3 (40 Gbps) or USB 3.1 Gen2 (10 Gbps) via USB Type C connector 2x front USB 3.0 (one charging) 2x rear USB 3.0, 2x internal USB 3.0 and 2x internal USB 2.0 via header Consumer infrared port on front panel |
| Storage | 2x M.2 22×42/80 (key M) slots for SATA3 or PCIe* X4 Gen3 NVMe or AHCI SSDs SDXC slot with UHS-I support |
| Networking | Intel® I219-LM 10/100/1000 Mbps Ethernet Intel® Dual Band Wireless-AC 8260 soldered-down, (IEEE 802.11ac 2×2, Bluetooth* 4.2, internal antennas, Intel® Wireless Display 6.0) |
| Enclosure | Metal and plastic with replaceable lid Dimensions: 211 mm x 116 mm x 28 mm |
| Power Adapter | 19V, 120W AC-DC power adapter |
| Additional Features | Support for user-replaceable third party lids NFC header OS certs: Microsoft Windows® 10, 8.1, 7 logo’d OS compatibility: compatible with various Linux* distros Kensington* lock with base security 3-year warranty |
| Included in the box | Intel® NUC Kit NUC6i7KYK integrated in enclosure:
|
