Janome MB-4S Commercial Embroidery Machine
FEATURES AND BENEFITS
- Stitch TrueType fonts and Greek lettering
- 3,500 built-in designs
- Digitize and edit new embroidery designs, or turn your graphic files into stitches
- Design and cut shapes for applique and quilting with your embroidery machine
- Graphic-based program uses a wide variety of file types Create custom rhinestone designs for ready-to-wear items, craft, and sewing projects
- Use with automated quilting programs such as QuiltMotion
- Great for small sewing and craft business
- Easy versatility – use in conjunction with other software programs
- Use with virtually any brand or style of embroidery machine
- Compatible with KNK Zing, Silhouette Cameo, and Brother Scan N Cut Digitial Cutters

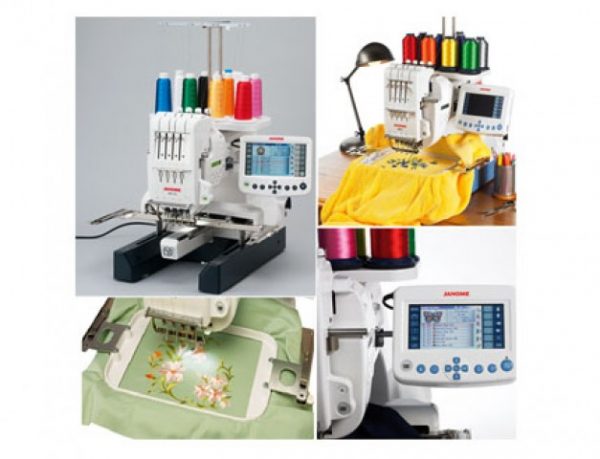

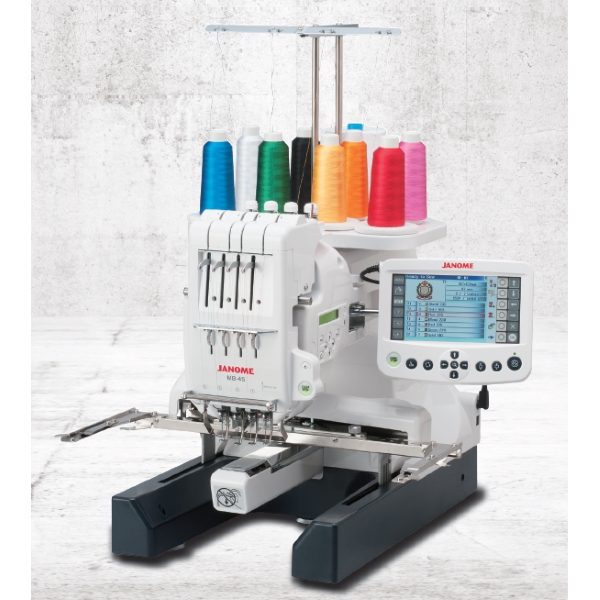

Janome MB-4S Four-Needle Embroidery Machine with included Hat Hoop, Lettering Hoops
The new and improved Janome MB-4S is here! We’ve taken everything you love about Janome embroidery and quadrupled the capacity with this beautiful 4 needle embroidery machine! With this amazing four-needle machine, you can set up your embroidery and move on to other projects while the Janome MB-4S gets it done. The Janome MB-4S is built to work with most embroidery formats, including those used by industry professionals. The Janome MB-4S embroidery machine is compatible with six industry-standard Tajima hoops. The MB-4S also has four available Janome hoops to further expand your creative opportunities. Let our cheerful and knowledgeable staff answer all your questions about this awesome 4-needle embroidery machine.
Janome MB-4S Four Needle Embroidery Machine
“WORLD’S FIRST” HOME-USE FOUR-NEEDLE EMBROIDERY MACHINE
We’ve taken everything you love about Janome embroidery and quadrupled the capacity! With our four needle machine, you can set up your embroidery and move on to other projects while the MB-4S gets it done.
The MB-4S is built to work with most embroidery formats, including those used by industry professionals. It is compatible with six industry-standard Tajima hoops, as well as the four available Janome hoops to further expand your creative opportunities.
Features
- Backlit LCD screen.
- Auto thread cutter.
- USB memory key compatible
- ATA PC card port and USB port (Host) on RCS; USB port on MB-4S
- Compatible with Janome software
- Embroidery speed up to 800spm
- Built-in features:
- Built-in Designs: 50
- Fonts: 10
- Monogramming: 2 & 3 letter
- Expanded built-in memory
- Extra large bobbin is 1.4 times larger than a regular bobbin
- Change colors to favorite thread: Janome, Robison-Anton, Madeira, Mettler
- Drag & Drop editing for easy placement
- Embroidery design resize 80% – 120% by 1%
- Rotate in 1 and 90 degree increments (clockwise / counter clockwise)
- Flip vertically and horizontally
- Standard hoops:
- M1: 9.46″ x 7.88″ (240mm x 200mm)
- M2: 5″ x 4.3″ (126mm x 110mm)
- M3: 50mm x 50mm
- Embroidery area tracing
- My SET screen controls for contrast, in/cm, designation and other customization
- Zoom in and out
- Multi-language selection
- Stitch-out time indicator
- Stitch Counter
- Upper thread and presser foot sensors
- Manual thread tension control
- Ball bearing precision
Key Features
NEW! EXTRA LARGE BOBBIN
Extra large bobbin is 1.4 times larger than a regular bobbin.
REMOTE COMPUTER SCREEN (RCS)
The Remote Computer Screen (RCS) gives you total set-up and editing control with up to 65,536 colors. One RCS can power many machines, saving the cost of additional controllers.
LED LIGHT
The LED Light offers precise lighting for outstanding results.
AUTOMATIC THREAD CUTTER
The MB-4S automatically cuts jump threads – even between letters – saving you time and hassle.
DEDICATED BOBBIN WINDING MOTOR
This feature – not found on professional machines – winds new bobbins even while the machine is stitching a design.
ON BOARD CONTROL
The MB-4S includes an on-board sub-control device. You can use it without the controller! The MB-4S also includes 3 MB of memory which can store up to 1,500,000 stitches or up to 100 designs.
LINK DIRECTLY TO PC
The on-board USB slave port connects directly to your PC with Digitizer MB software, sold separately.

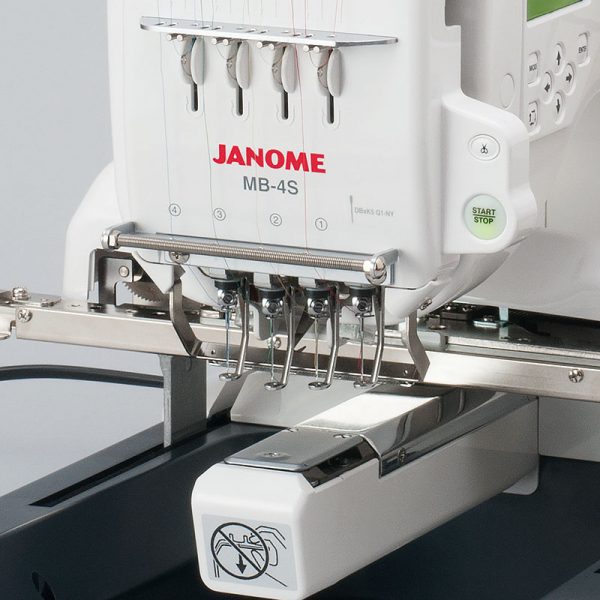

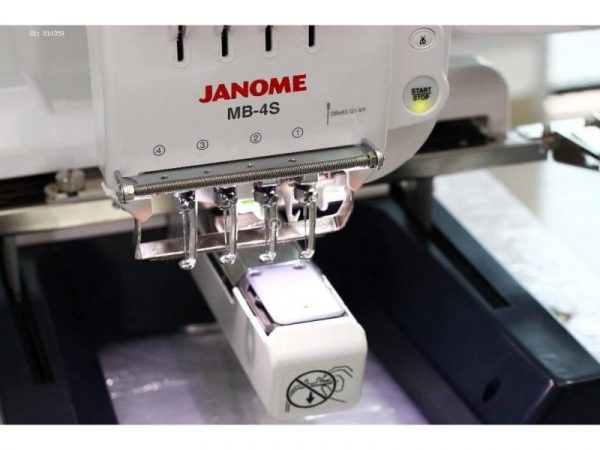

EMBROIDERY HOOPS
Three included MB-4S hoops snap in and out with ease. They provide the embroidery areas most often used in the industry. The MB-4S is also fully compatible with industry-standard Tajima hoops.
Specifications
- Single head 4-needle embroidery machine.
- Upper thread breakage sensor.
- Extra Large Bobbin – 1.4 times larger than a regular bobbin
- Built-in auto thread cutter (needle & bobbin threads).
- Thread cutter for bobbin winding.
- Needles.
- Number of needles: 4.
- Type of needles: DBxK5Q1NY #11.
- Speed.
- Maximum speed: 800 spm.
- Low range speed: Up to 400 spm.
- Bobbin winding speed: 2,000 rpm.
- DB rotary hook (full rotary).
- Machine control: By Remote Computer Screen (option) or Sub-Control Panel.
- Sub-Control Panel: LCD with backlight (H12 x W63mm).
- Lay-in thread tension (manual adjustment).
- Independent bobbin winding (with independent start button).
- Upper thread holder spring on the face plate.
- Direct PC-Link.
- Embroidery format compatibility: jef+/jef (Janome) & DST (Tajima).
- Control keys.
- Mode key (*2).
- OK key.
- 4 Jog-keys.
- Forward / Reverse stitch keys.
- Manual thread cutting key.
- Start/Stop key (on Remote Computer Screen and Sub-Control Panel).
- Resumption setting / My Set (with Remote Computer Screen).
- 3 Hoops.
- White LED x 2 sewing lamp.
- Spool stand (incl. 1 for bobbin thread & 4 additional spool).
- Cylinder shape of bed.
- Skeleton (clam shell) body construction.
- DC motor.
- Machine size: W365 x H640/(440*) x D520 mm.
- Bed width: W299 x H130 mm.
- Machine weight: 20.5 kg.
- Packing size: W450 x H620 x D660 mm (*1).
- Gross weight (incl. packing): 29 kgs (*1).
Limited Manufacturer’s Warranty
Janome America, Inc. Limited 1 Year Warranty.
Standard Accessories
- Bobbins.
- Needle (DB x K5Q1-NY).
- Needle Threader.
- Felt Ring (large).
- Felt Ring (small).
- Hoop M1 (240 x 200).
- Hoop M2 (126 x 110).
- Hoop M3 (50 x 50).
- Hoop Supporter.
- Spool Caps.
- Spool Net.
- Spool Pin.
- Spool Rest.
- Spool Stand.
- Lint Brush.
- Thread Guide Bar.
- Thread Guide Pole.
- Tweezers.
- Seam Ripper.
- Scissors.
- Offset Screwdriver.
- Screwdriver (large).
- Screwdriver (small).
- Setscrew.
- Accessory Box.
- Oiler.
- Power Supply Cable.
- Instruction Book.
- Instructional CD-ROM.
Optional Embroidery Cabinet Addon:
THE PERFECT EMBROIDERY PAIRING
Embroidery at an unbeatable value; the MB-4 has found its perfect companion with the Ava Cabinet.
The Ava Cabinet offers a sturdy home for your MB-4. With a built-in space for embroidery projects below the machine and a spacious counter top, every embroidery project can be done quickly and easily!
Store all of your accessories neatly on-board and keep your embroidery thread at your fingertips with the pegged drawer. The cabinet also features a fully shelved side for King Spool thread storage.
- Side Storage Shelf Dimensions: W 3.25”x D 21.75”x H 6”
- White melamine laminate complements any decor.
- Drawer Dimensions: W 13”x D 16.25”x H 5.5”
- Cabinet Dimensions: W 35.5”x D 23.5”x H 35”
- Drawer Dimensions: W 26.75”x D 16”x H 2”
- Single Drawer Dimensions: W 13”x D 16.25”x H 5.5”
- Cubby Dimensions: W13”x D 22.75”x H 7”
- Side Storage Shelf Dimensions: W 3.25”x D 21.75”x H 6”.
Optional Embroidery Software Addons:
JANOME ARTISTIC SUITE V7 SOFTWARE
Artistic Suite Version 7 contains a wide variety of amazing features and functionality, including cutwork, true type font conversion, applique, fabric cutting, decorative stitches, and heat transfer. It also contains a revolutionary rhinestone application. Rhinestones in a variety of sizes can now be added to sewing and crafting projects like never before. Any shape, including logos, clip art, or imported graphics, can be easily designed for rhinestones. The software then sends the design to a digital cutter for template creation. You’ll also find a powerful monogram feature – insert 3 characters for monogramming, freely edit monogram shapes with a Node Editor, and create a monogram from any True Type font.
FEATURES AND BENEFITS
- Stitch TrueType fonts and Greek lettering
- 3,500 built-in designs
- Digitize and edit new embroidery designs, or turn your graphic files into stitches
- Design and cut shapes for applique and quilting with your embroidery machine
- Graphic-based program uses a wide variety of file types
- Create custom rhinestone designs for ready-to-wear items, craft, and sewing projects
- Use with automated quilting programs such as QuiltMotion
- Great for small sewing and craft business
- Easy versatility – use in conjunction with other software programs
- Use with virtually any brand or style of embroidery machine
Janome Artistic Premium
For the confident Digitizer, Artistic Premium is the most comprehensive software in the Artistic line. It has all the great features found in our other software like compatibility with digital cutters, advanced monogramming, and thousands of built-in designs to get you started. However, Premium also contains the power to do color blending and gradient affects, an Envelope feature that allows you to create 3-D effects, and more. If you are serious about your embroidery, this is the program for you. This program is an additional purchase to Artistic Suite. Artistic Suite includes modules for Basic features, Editing Designs, and Venere. Artistic Premium takes these same modules and adds a Digitizer module, Artistic Digitizer Module where you can add 3-D effects and curves to your embroidery, Text module, and Node Editing. There’s so much you can do to make your next embroidery project Premium.
