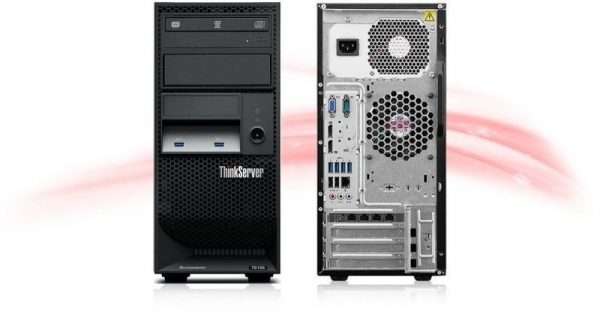

Lenovo Thinkserver TS150 Tower Server
Availability:
In stock
Lenovo ThinkServer TS150 Tower Server 70UB0028AZ, Intel Xeon E3-1245v6 3.7GHz 8mb Cache 4C/8T, 8GB DDR4 2133MHz UDIMM ECC (1/4), Up to 4 fixed 3.5-inch or 5 fixed 2.5-inch (0/4), 250W 80 PLUS Bronze Fixed Internal PSU, ThinkServer RAID 121i SW RAID 0/1/10/5, 1 Gbps Ethernet, Tower Form Factor
Powerful. Reliable. Affordable.
- The ThinkServer TS150 is the perfect first server for small and medium businesses, remote or branch offices, and retail environments. It uses the technologies to provide enterprise-class power. Intel Xeon E3-1200 v6 Series processors incorporate up to four cores, integrated graphics, and support for 64GB of 2400MHz DDR4 memory
- The TS150 helps the environment with energy-efficient processors and 1.2V DDR4 memory, 80 PLUS Bronze (up to 85% efficient) or Platinum (92%) power supplies
- The TS150 provides much higher performance
- Intel® Xeon® E3 v6 CPU & TruDDR4 ECC memory
- Enterprise-class storage and networking
- Support for client and server operating systems
- Quiet, energy efficient, and affordable
Tech Specs
| Form Factor/Height |
Single-socket entry 4U tower ; 25 Liter
|
| Processor (Max) Cache (Max) |
One Intel® Xeon® Processor E3-1200 v6 Series; Core® i3, Pentium® and Celeron® up to 8MB
|
| Memory DIMMS |
Up to 64GB TruDDR4 (4x 16GB UDIMMs); 2400MHz ECC UDIMMs
|
| Memory capacity |
Up to 64GB (16GB x 4)
|
| Media Bays |
Two without a backup drive or one with a backup drive. Support for DVD-ROM or DVD-RW.
|
| Disk Bays |
Up to 4 x 3.5″ + 1 x 2.5″ non-hot swap disk bays
|
| Maximum Internal Storage |
Up to 40TB 3.5-inch SATA HDD storage
|
| RAID Support |
ThinkServer RAID 121i SW RAID 0/1/10/5 std; opt. PCIe ThinkServer RAID 520i 12Gb HW RAID 0/1/10/5
|
| Power Supply (Std/Max) |
1/1; 250W 80 PLUS Bronze or 400W 80 PLUS Platinum (non-hot-swap)
|
| Network Interface |
Up to 9 ports: 1x onboard 1Gbps Ethernet std; 2 opt. 2/4-port 1Gb Ethernet adapters
|
| Expansion Slots |
|
| Ports |
8x USB 3.0 (2 front; 6 rear), 1x RJ-45 Ethernet, 1x serial (COM); 1x VGA (plus 1x DP), 3x audio (mic/lineout/line in), 1 x DisplayPort, 1 x RJ-45, 1 x serial (9-pin), 3 x audio (line-in, line-out, microphone)
|
| Cooling |
3 x fans, non-hot swap
|
| Operating Systems Supported |
Microsoft Windows Server 2016 and 2012R2,VMware Vsphere (ESXi), Red Hat Enterprise Linux Server, and Client (Microsoft Windows 10)
|
| Dimensions (W x H x D) & Weight |
174.75mm (W) x 374.90mm (H) x 430.78mm (D)/6.88 inches (W) x 14.76 inches (H) x 16.96 inches (D); Max. 12,5kg/27.6.lbs
|
Specifications and availability may differ from that promoted or available from Lenovo resellers from time to time.
