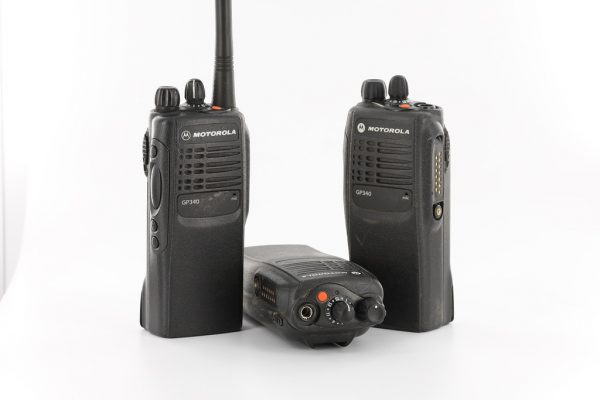

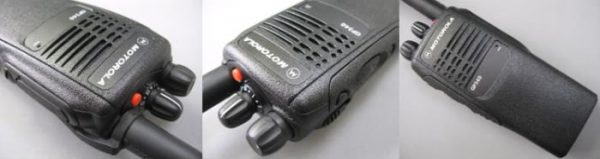

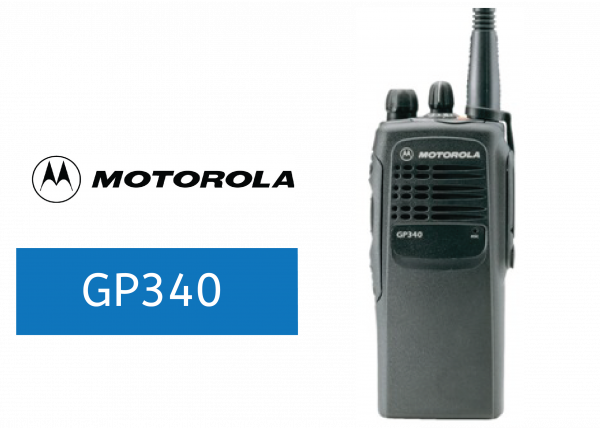

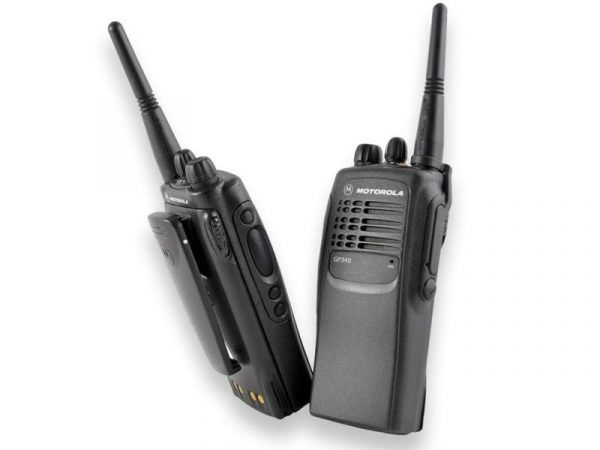

Motorola GP340 Two-Way Radio VHF 136-174 Mhz 5W 16 Channels

Features

Signalling

The radio software encompasses Private Line™ and 5-tone selective signalling.

Channel Scan

Allows activity on different communications channels to be monitored and answered.

X-Pand™ Voice Compression and Low Level Expansion

Crisp, clear and strong audio quality in virtually any noisy environment. Low level expansion allows further improvements in audio quality by reducing noise usually heard during pauses in conversation.

Voice Operated Transmit (VOX)

Hands free operation when used with VOX headset accessory.

Adjustable Power Levels

The radio output power has two settings – low power extends battery life and high power allows the radio to transmit over a greater distance.

Emergency Signalling

Sends a help signal to a pre-defined person or group of people. The help signal can contain a pre-recorded voice message enabling your whereabouts or status to be determined immediately by the receiving person.

Programmable Channel Spacing (12.5/20/25 KHz)

Flexible and easy migration of channel spacing requirements in any situation.

Lone Worker

Added security and safety for individuals who work remotely from their team. The radio enters emergency mode if the user does not respond to the warning signal.

Option Board Expandability

You can expand the existing capabilities by adding one of the following option boards. Encryption for message security, SmarTrunk II for low cost trunking, or Voice Storage option board provides voice recorder features allowing you to store and retrieve messages.

Talkaround

Allows a user to speak quietly into a radio and still be heard clearly.

Call Forward

Allows calls to be forwarded to another radio user if you are unable to answer your calls personal.

Performance Characteristics

• Adjustable power levels

  Yes

• Battery life (based on a 05 05 90 duty cycle)

  Up to 11 hours

• Encryption

  Yes

• Frequency band

  Low band, VHF, UHF

• Standard battery chemistry type

  Nickel Metal Hydride

Physical Characteristics

• Dimensions H x W x D (with standard battery)

  137 x 57.5 x 37.5 mm

• Display

  None

• Emergency button

  Yes

• Keypad

  None

• Weight (With 1400mAh LiIon battery)

  420 g (with standard battery)

Radio Features

• Call forward

  Yes

• Channel scan

  Yes

• Channel spacing

  12.5, 25, 20

• Lone worker

  Yes

• Number of channels

  16

• Programmable buttons

  Yes

• Scan types

  Normal

• Signalling

  Private Line and 5-Tone

• Talkaround

  Yes

• Voice operated transmit (VOX)

  Yes

• Voice recorder

  Yes

• X-pand voice compression and low level expansion

  Yes

User Environment

• TIA4950, Factory Mutual (FM) options

  Yes

• IP Standards

  IP54

• Mil spec

  810 C
