NEC MultiSync LED Backlit Display with Integrated Tuner
Availability:
In stock
NEC LED Backlit Display with Integrated Tuner
The NEC E series, direct backlight, commercial-grade displays, are ideal for education, corporate and other digital signage applications. Compared to previous generation displays, these models’ LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content. These displays also feature a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.
- Full 1,080p high-definition resolution provides stunning detail
- LED backlighting enables eco-friendly digital signage
- Thinner bezel improves display’s aesthetics
- Multiple HDMI ports enhance best-in-class connectivity
- Built-in powerful down-firing stereo speakers enhance the experience with superior sound
- RS-232C allows users to lock out external buttons, synchronize multiple displays and remotely power on/off displays
- Integrated multimedia USB player makes digital signage simple
- Simple 24-hour scheduler feature allows for programmable on/off times
MultiSync E585 /E505 / E425 / E325
| Model | Viewable Image Size | Maximum display pixels |
|---|---|---|
| E585 | 58″ | 1,920 x 1,080 |
| E505 | 50″ | 1,920 x 1,080 |
| E425 | 42″ | 1,920 x 1,080 |
| E325 | 31.5″ | 1,366 x 768 |
LED Backlight, Commercial-Grade LCD Displays Ideal for Education, Corporate and Digital Signage Applications
The NEC E series, direct backlight, commercial-grade displays, are ideal for education, corporate and other digital signage applications. Compared to previous generation displays, these models’ LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content. These displays also feature a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.
- Full 1,080p high-definition resolution provides stunning detail
- LED backlighting enables eco-friendly digital signage
- Thinner bezel improves display’s aesthetics
- Multiple HDMI ports enhance best-in-class connectivity
- Built-in powerful down-firing stereo speakers enhance the experience with superior sound
- RS-232C allows users to lock out external buttons, synchronize multiple displays and remotely power on/off displays
- Integrated multimedia USB player makes digital signage simple
- Simple 24-hour scheduler feature allows for programmable on/off times
Performance-Driven Design
The NEC E series, direct backlight, commercial-grade displays, are ideal for education, corporate and other digital signage applications. Compared to previous generation displays, these models’ LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content. These displays also feature a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.
Benefits
- Full 1,080p high-definition resolution provides stunning detail
- LED backlighting enables eco-friendly digital signage
- Thinner bezel improves display’s aesthetics
- Multiple HDMI ports enhance best-in-class connectivity
- Built-in powerful down-firing stereo speakers enhance the experience with superior sound
- RS-232C allows users to lock out external buttons, synchronize multiple displays and remotely power on/off displays
- Integrated multimedia USB player makes digital signage simple
- Simple 24-hour scheduler feature allows for programmable on/off times
Specifications
| Model | E585 | E505 | |
|---|---|---|---|
| LCD MODULE | |||
| Viewable Size (Diagonal) | 58″ | 50″ | |
| Native Resolution | 1,920 x 1,080 | ||
| Active Screen Area (W x H) | 1,270.08 x 721.44 mm | 1,095.84 x 616.41 mm | |
| Supported Orientation | Landscape | ||
| CONNECTIVITY | |||
| Input Terminals | HDMI | HDMI x 3 | |
| VGA | Mini D-sub 15 pin | ||
| Video | RCA composite (Sharing with component) | ||
| YPbPr / YCbCr | RCA component (Sharing with compsite) | ||
| USB | USB media player (Video, audio, picture)* | ||
| Audio for VGA | Stereo Mini Jack x 1 | ||
| Audio for AV | RCA Stereo x 1 | ||
| Output Terminals | Digital audio | SPDIF | |
| External control | RS232C in | Mini D-Sub 9 pin | |
| Speaker Output | Internal Speakers | 10 W + 10 W | 10 W + 10 W |
| POWER | |||
| Power Requirement | 1.5 A @ 100-120 V, 0.7 A @ 220-240 V |
1.3 A @ 100-120 V, 0.6 A @ 220-240 V |
|
| Power Consumption (Bright / sound max.) |
145 W | 124 W | |
| Power Consumption – standby mode | <0.5 W | <0.3 W | |
| PHYSICAL SPECIFICATIONS | |||
| Bezel Width (T/L/R, B) | 13.8 mm / 20.3 mm | 11.9 mm / 14.4 mm | |
| Dimensions (with stand; W x H x D) |
1,300.9 x 798.8 x 349.2 mm | 1,123.6 x 683.7 x 255.0 mm | |
| Dimensions (without stand; W x H x D) |
1,300.9 x 758.8 x 108.8 mm | 1,123.6 x 646.7 x 77.0 mm | |
| Packaging Dimensions (W x H x D) |
1,425 x 872 x 201 mm | 1,200 x 734 x 133 mm | |
| Net Weight (with stand) | 21.9 kg | 13.1 kg | |
| Net Weight (without stand) | 21.1 kg | 12.6 kg | |
| Gross Weight (with box) | 28.1 kg | 16.0 kg | |
| VESA Hole | 400 × 400 mm (M6, 4 holes) |
200 × 400 mm (M6, 4 holes) |
|
| ENVIRONMENTAL CONDITIONS | |||
| Operating Temperature | 0-40 °C | ||
| Operating Humidity | 10-80 % (without condensation) | ||
| ACCESSORIES | |||
| Included | Power cord, VGA cable, Wireless remote control, Batteries, Setup manual, CD-ROM | ||
| Optional stands | ST-58E | ST-50E | |
| Model | E425 | E325 | |
|---|---|---|---|
| LCD MODULE | |||
| Viewable Size (Diagonal) | 42″ | 31.5″ | |
| Native Resolution | 1,920 x 1,080 | 1,366 x 768 | |
| Active Screen Area (W x H) | 930.24 x 523.26 mm | 697.69 x 392.26 mm | |
| Supported Orientation | Landscape | ||
| CONNECTIVITY | |||
| Input Terminals | HDMI | HDMI x 3 | |
| VGA | Mini D-sub 15 pin | ||
| Video | RCA composite (Sharing with component) | ||
| YPbPr / YCbCr | RCA component (Sharing with compsite) | ||
| USB | USB media player (Video, audio, picture)* | ||
| Audio for VGA | Stereo Mini Jack x 1 | ||
| Audio for AV | RCA Stereo x 1 | ||
| Output Terminals | Digital audio | SPDIF | |
| External control | RS232C in | Mini D-Sub 9 pin | |
| Speaker Output | Internal Speakers | 10 W + 10 W | 5 W + 5 W |
| POWER | |||
| Power Requirement | 1.0 A @ 100-120 V, 0.5 A @ 220-240 V |
0.9 A @ 100-120 V, 0.5 A @ 220-240 V |
|
| Power Consumption (Bright / sound max.) |
100 W | 53 W | |
| Power Consumption – standby mode | <0.5 W | <0.5 W | |
| PHYSICAL SPECIFICATIONS | |||
| Bezel Width (T/L/R, B) | 11.9 mm / 14.9 mm | 11.9 mm / 16.1 mm | |
| Dimensions (with stand; W x H x D) |
959.7 x 591.7 x 255.0 mm | 726.7 x 461.1 x 255.0 mm | |
| Dimensions (without stand; W x H x D) |
959.7 x 555.2 x 76.8 mm | 726.7 x 424.3 x 76.8 mm | |
| Packaging Dimensions (W x H x D) |
1,026 x 647 x 133 mm | 786 x 501 x 133 mm | |
| Net Weight (with stand) | 8.8 kg | 5.3 kg | |
| Net Weight (without stand) | 8.3 kg | 4.8 kg | |
| Gross Weight (with box) | 10.6 kg | 6.7 kg | |
| VESA Hole | 200 × 200 mm (M6, 4 holes) |
100 × 100 mm (M4, 4 holes) |
|
| ENVIRONMENTAL CONDITIONS | |||
| Operating Temperature | 0-40 °C | ||
| Operating Humidity | 10-80 % (without condensation) | ||
| ACCESSORIES | |||
| Included | Power cord, VGA cable, Wireless remote control, Batteries, Setup manual, CD-ROM | ||
| Optional stands | ST-42E | ST-32E | |
*Data format for the integrated multimedia USB player
| Supported file system | FAT16/32 | ||
| Max. folder layer | 9 | ||
| PHOTO mode | |||
|---|---|---|---|
| Data format | JPEG, JPG, JPE | ||
| Max. number of photos | 1200 | ||
| Min. image resolution | 128 × 128 pixels | ||
| Max. image resolution (Progressive DCT) | 1,024 × 768 pixels | ||
| Max. image resolution (Baseline Sequential DCT) | 15,360 × 8,640 pixels | ||
| MUSIC mode | |||
| Data format | MP3 | ||
| Bit rate | 32Kbps ~ 448Kbps | ||
| MOVIE mode | |||
| Data format | Video | Audio | |
| MPG, MPEG | MPEG1, MPEG2 |
MP3, AC-3, LPCM, ADPCM |
|
| MPEG2-TS | MPEG2, H.264 |
||
| MPEG2-PS | MPEG2 | ||
| MP4 | H.264 | ||
| MKV | MPEG1, MPEG2, H.264 |
||
| AVI | MPEG2 H.264 |
||
| Motion JEPG | JPEG | ||
- Not guaranteed to support all USB devices.
- Not support a USB hub and multi-partition USB.

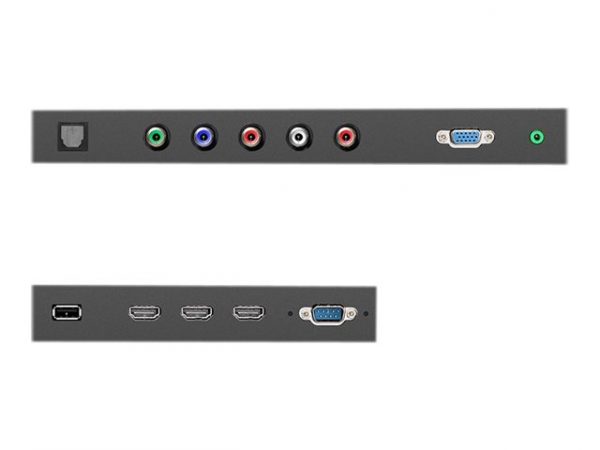

Terminal panel
- Although TFT colour LCD panels are produced with advanced technologies of very high accuracy, there may be some missing or defective pixels. Please note these phenomena are unavoidable.
- Be advised that processing original images, such as compressing or extending, for public display on a wide screen TV in a public area whether or not for profit may infringe rights protected under copyright laws.
- To connect the display to an Apple’s Mac Series, an adapter (optional) may be required. Confirm the shape of the connector on your Apple’s Mac Series. No adapter is required for connecting to a model with the mini D-sub 15-pin VGA connector.
- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- The specifications and designs described in this site may be changed without notice.
- Colours printed on this site may differ slightly from the actual product.
- Confirm the terms of the guarantee certificate and store it carefully.
- Read the operation manual carefully for proper use of the product.
- Images on the screen are pasted. Software shown on the screen is used for demonstration purposes only and may not be available commercially.
- All brand and product names are registered trademarks of their respective holders.
