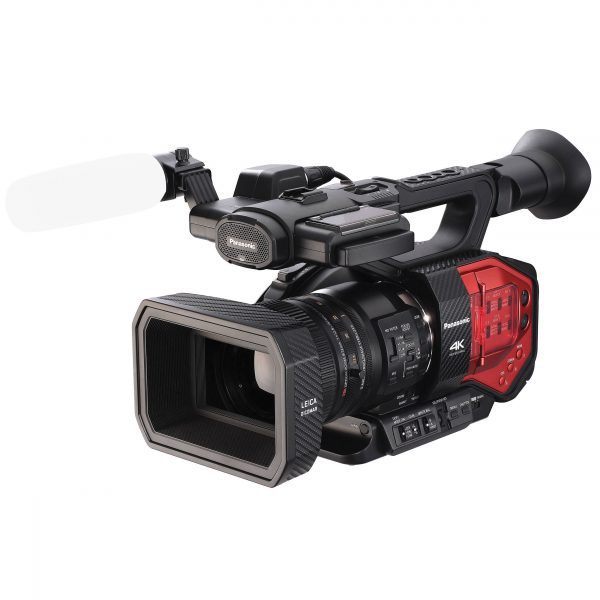

Panasonic AG-DVX200 4K Handheld Camcorder
PRODUCT HIGHLIGHTS
- Newly developed F2.8 LEICA DICOMAR 4K lens
- 13x zoom, 4K (4096 x 2160) 24p: 29.5 mm – 384.9 mm
- FHD: 28mm – 365.3 mm (35 mm film equivalent)
- 5 axis Hybrid Image Stabilizer
- Inteligent Auto Focus system
- ND filters (1/4, 1/16, 1/64)
- Beautiful Bokeh effects from a 4/3-type, large-format sensor
- 12 stops of imager latitude faithfully recorded by new V-Log L gamma curve
- 60p images (MP4/MOV) with 4K (UHD: 3840 x 2160) resolution are recorded onto SD cards (Use SDXC/SDHC Memory Card compatible with UHS Speed Class 3 (U3) when using high bitrate video recording mode of 100 Mbps or greater)
- Variable Frame Rate with a maximum of 120 fps (in FHD resolution)
- Simultaneous, backup, and relay recording using two card slots
Panasonic AG-DVX200 4K Handheld Camcorder with Four Thirds Sensor and Integrated Zoom Lens
The DVX200 captures stunning imagery by virtue of LEICA DICOMAR 4K 13x zoom lens combined with an advanced large format 4K imager and the blending of aesthetics like shallow focus, attractive Bokeh, and an amazing 12 stop dynamic range made possible by the VariCam style V-Log L processing.Newly designed lens-integrated body provides excellent mobility and extra flexibility is supported by the compartment with hatch-type cover which protects the battery and terminals from dust and impacts.
The crimson red coloring and stylish carbon-black textured body represents philosophy and advanced features of the new AG-DVX200 which produce emotional…
Following in the footsteps of the breakthrough AG-DVX100, the new AG-DVX200 debuts as the world’s first*1 4/3-type large format, 4K/60p (Use SDXC/SDHC Memory Card compatible with UHS Speed Class 3 (U3) when using high bitrate video recording mode of 100 Mbps or greater) camcorder to feature an integrated zoom lens.
The DVX200 captures stunning imagery by virtue of LEICA DICOMAR 4K 13x zoom lens combined with an advanced large format 4K imager and the blending of aesthetics like shallow focus, attractive Bokeh, and an amazing 12 stop dynamic range made possible by the VariCam style V-Log L processing.
Newly designed lens-integrated body provides excellent mobility and extra flexibility is supported by the compartment with hatch-type cover which protects the battery and terminals from dust and impacts.
The crimson red coloring and stylish carbon-black textured body represents philosophy and advanced features of the new AG-DVX200 which produce emotional and highly detailed 4K images.
The AG-DVX200 is a 4/3″, fixed lens, 4K camcorder with Leica Dicomar 13 x zoom lens, 4k/60pl large format MOS sensor, 12 stops latitude and 4k/60p recording in SD card. Delivering a shallow depth of field and a wide field of view, the DVX200 is the ideal companion camera to the company’s ground-breaking VariCam 35 4K camera/recorder. With an integrated lens design, the DVX200 will excel in independent film and documentary production, as well as event videography.
Following in the footsteps of the breakthrough AG-DVX100, the new AG-DVX200 debuts as the world’s first*1 4/3-type large format, 4K/60p (Use SDXC/SDHC Memory Card compatible with UHS Speed Class 3 (U3) when using high bitrate video recording mode of 100 Mbps or greater) camcorder to feature an integrated zoom lens.
The DVX200 captures stunning imagery by virtue of LEICA DICOMAR 4K 13x zoom lens combined with an advanced large format 4K imager and the blending of aesthetics like shallow focus, attractive Bokeh, and an amazing 12 stop dynamic range made possible by the VariCam style V-Log L processing.
Newly designed lens-integrated body provides excellent mobility and extra flexibility is supported by the compartment with hatch-type cover which protects the battery and terminals from dust and impacts.
The crimson red coloring and stylish carbon-black textured body represents philosophy and advanced features of the new AG-DVX200 which produce emotional and highly detailed 4K images.
New AG-DVX200 Features
- Optimised for 4K/HD production
- V-Log curve emulating the natural grey-scale rendition of the VariCam 35
- 4/3” large-format MOS sensor
- Frame rate recording up to 120fps in FHD mode
- Fixed, newly-designed Leica Dicomar 4K F2.8~F4.5 zoom lens (4K/24p: 29.5 mm ~ 384.9 mm, HD: 28 mm ~ 365.3mm, 35 mm equivalent)
- Time-code in/out

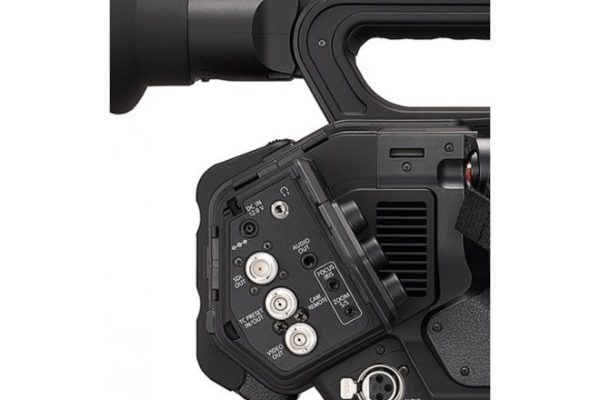

- 3G HD-SDI and HDMI 2.0 (4K) video outs
- Easy focus and zooming
- Programmable user buttons
- Will record 4K (4096 × 2160) / 24p, UHD (3840 × 2160) / HD (1920 × 1080) 60p / 50p / 30p / 25p / 24p in either MP4 / MOV file formats
- Two SD card** slots, facilitating backup and relay recording
- Master frame rate is selectable between 59.94Hz (23.98Hz) / 50.00Hz / 24.00Hz

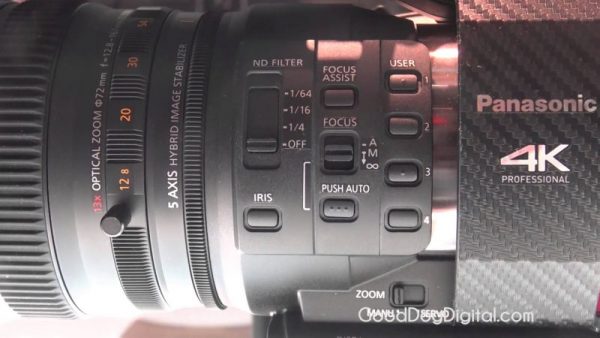

- Three manual operation lens rings—13x zoom (Cam driven), focus and iris – will provide a comfortable manual control similar to an interchangeable lens camera, but without the need for actual lens changes.
- Zoom control on the handle
- Enhanced Image Stabilizer, including a five-axis Hybrid Image Stabilizer and 4x correction-area Image Stabilizer
- Micro-drive focus unit that improves focus speed, tracking and capture performance
“A Day of Life” Highlight Scenes
- Scene 1: This 4K Camera Recorder is ideal for documentaries. It combines stunning 4K picture quality, excellent mobility with its integrated lens, rich gradation with its V-Log L, and a long recording time with no file restrictions.
- Scene 2: This clearly evokes images of wedding videography. It was recorded entirely with the V-Log L, which can be seen in the expression produced by the wide dynamic range.
- Scene 3: This clear picture quality has excellent details and minimal color bleeding, thanks to its 4K (4096 x 2160) resolution and LEICA DICOMAR 4K lens.
- Scene 4: There’s almost no compression noise even in difficult scenes, such as this one with the spray of the waterfall and the light filtering through the trees.
- Scene 5: This beautiful bokeh effect was achieved useing a shallow depth of field. The large 4/3-type sensor and Macro function provide the same level of expression as you get with a DSLR camera.
- Scene 6: This running bike shot, taken from a helicopter, was totally handheld. Sports scenes like this are possible thanks to the wide zoom range, powerful focusing, and excellent hand-shake correction.
- Scene 7: This fast-action shot was recorded at UHD/60p and HD/120p (VFR 120fps) for beautifully dynamic images with a slow-motion effect.
- Scene 8: Remarkable level of expression made possible by the wide angle of view and high-definition 4K imaging. The creator’s sensibility is clearly expressed in the image, thanks to the camera’s agile mobility.
Panasonic AG-DVX200 Specs
| Sensor | 1 x 4/3-type MOS |
| Effective Pixels | 4K: 1335 MP UHD (29.97p): 1289 MP UHD (59.94p): 871 MP FHC: 1549 MP |
| Resolution | 4K DCI: 4096 x 2160 UHD: 3840 x 2160HD 1920 x 1080 |
| Dynamic Range | 12 stops |
| Frame Rates | DCI 4K: 24p UHD 4K: 60p / 50p / 30p / 25p / 24p 1920 x 1080: 60p / 50p / 30p / 25p / 24p |
| Shutter Speed | 59.94 Hz 60i/60p mode: 1/60, 1/100 , 1/120, 1/180, 1/250, 1/350, 1/500 sec, 1/750 sec, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec 30p mode: 1/30, 1/50 sec, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec 24p mode: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec50 Hz 50i/50p mode: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec 25p mode: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000=, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 |
| Slow Shutter Speed | 59.94 Hz 60i/60p mode: 1/2, 1/4, 1/8, 1/15, 1/30 30p mode: 1/2, 1/4, 1/8, 1/15 sec 24p mode: 1/2 , 1/3, 1/6, 1/12 sec50 Hz 50i/50p mode: 1/2, 1/3, 1/6, 1/12, 1/25 25p mode: 1/2, 1/3, 1/6, 1/12 sec |
| Synchro Scan Shutter | 59.94 Hz 60i/60p mode: 1/60.0 to 1/249.8 sec 30p mode: 1/30.0 to 1/249.8 sec 24p mode: 1/24.0 to 1/249.6 sec50 Hz 50i/50p mode: 1/50.0 to 1/250.0 sec 25p mode: 1/25.0 to 1/250.0 sec |
| Shutter Opening Angle | 5.0 to 360° in 0.5 deg steps (displayed in shutter angle) |
| VFR Recording Frame Rate | 59.94 Hz 60p mode: 2, 15, 30, 40, 55, 58, 60, 62, 65, 75, 90, and 120 (frames per second) 30p mode: 2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, and 120 (frames per second) 24p mode: 2, 12, 18, 20, 22, 24, 26, 28, 30, 36, 48, 60, 72, 84, 96, and 120 (frames per second)50 Hz 50p mode: 2, 12, 25, 33, 45, 48, 50, 52, 55, 62, 75, 100, and 120 (frames per second) 25p mode: 2, 12, 21, 23, 25, 27 |
| Minimum Subject Illumination | High Sens mode: 0.2 lx (F2.8, gain 18 dB, [1/2S] manual slow shutter) |
| General | |
|---|---|
| Dimensions | 7.1 x 8.5 x 14.7″ / 181 x 216 x 374 mm (excluding protrusions and eye cup) |
| Weight | 6.0 lb / 2.7 kg (excluding lense hood, battery, and accessories) |
| Packaging Info | |
|---|---|
| Package Weight | 12.7 lb |
| Box Dimensions (LxWxH) | 19.1 x 14.8 x 11.2″ |
